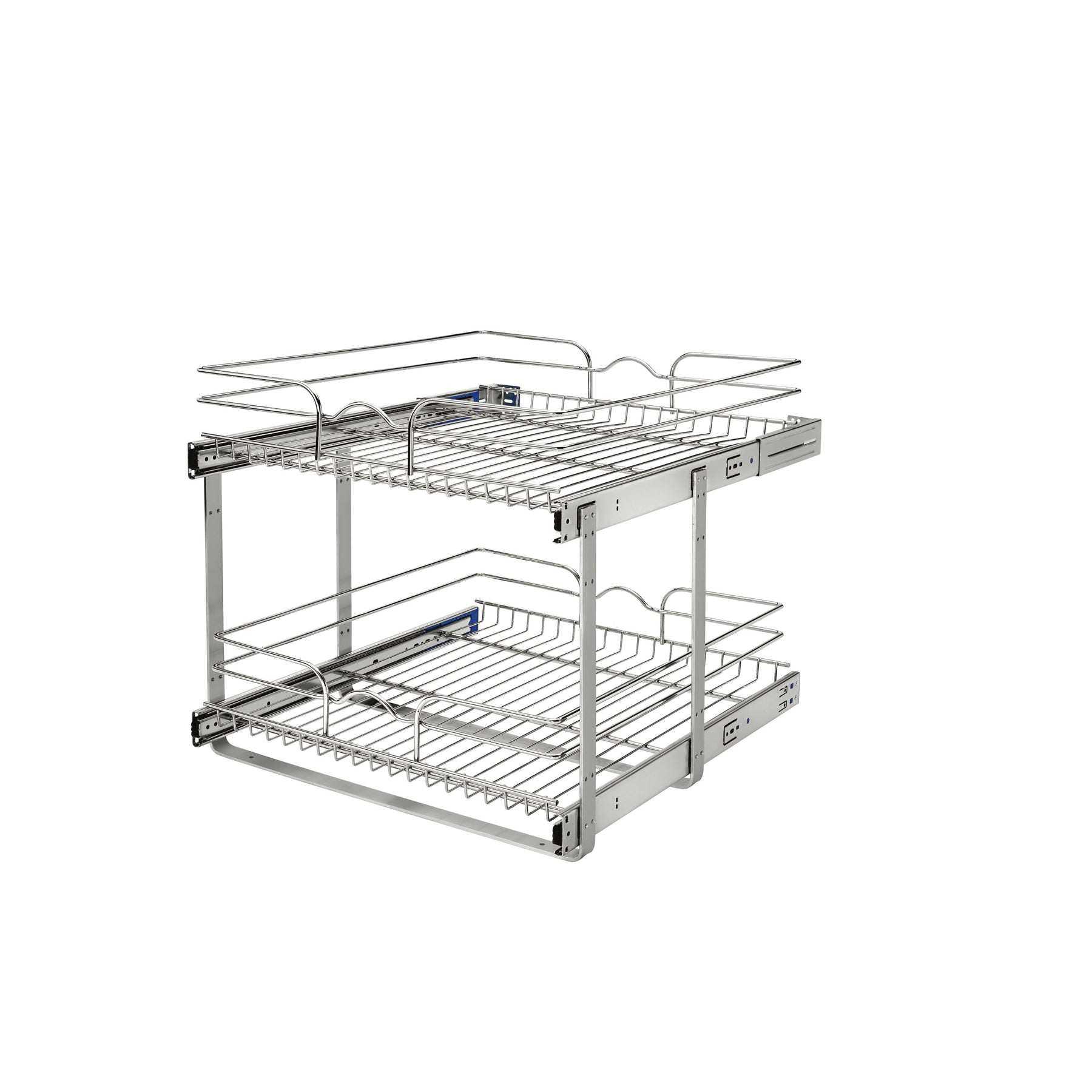

Rev-A-Shelf 2-tier soft-close pull-out cabinet basket

Maximize base cabinet storage with this two-tier pull-out organizer from Rev-A-Shelf. Heavy-gauge chrome metal baskets glide on 100 lb full-extension soft-close slides, with adjustable frame height to fit your space. Ideal for pots, pans and small appliances, it mounts to the cabinet floor, sides and rear for rock-solid stability.

---

Key Features:

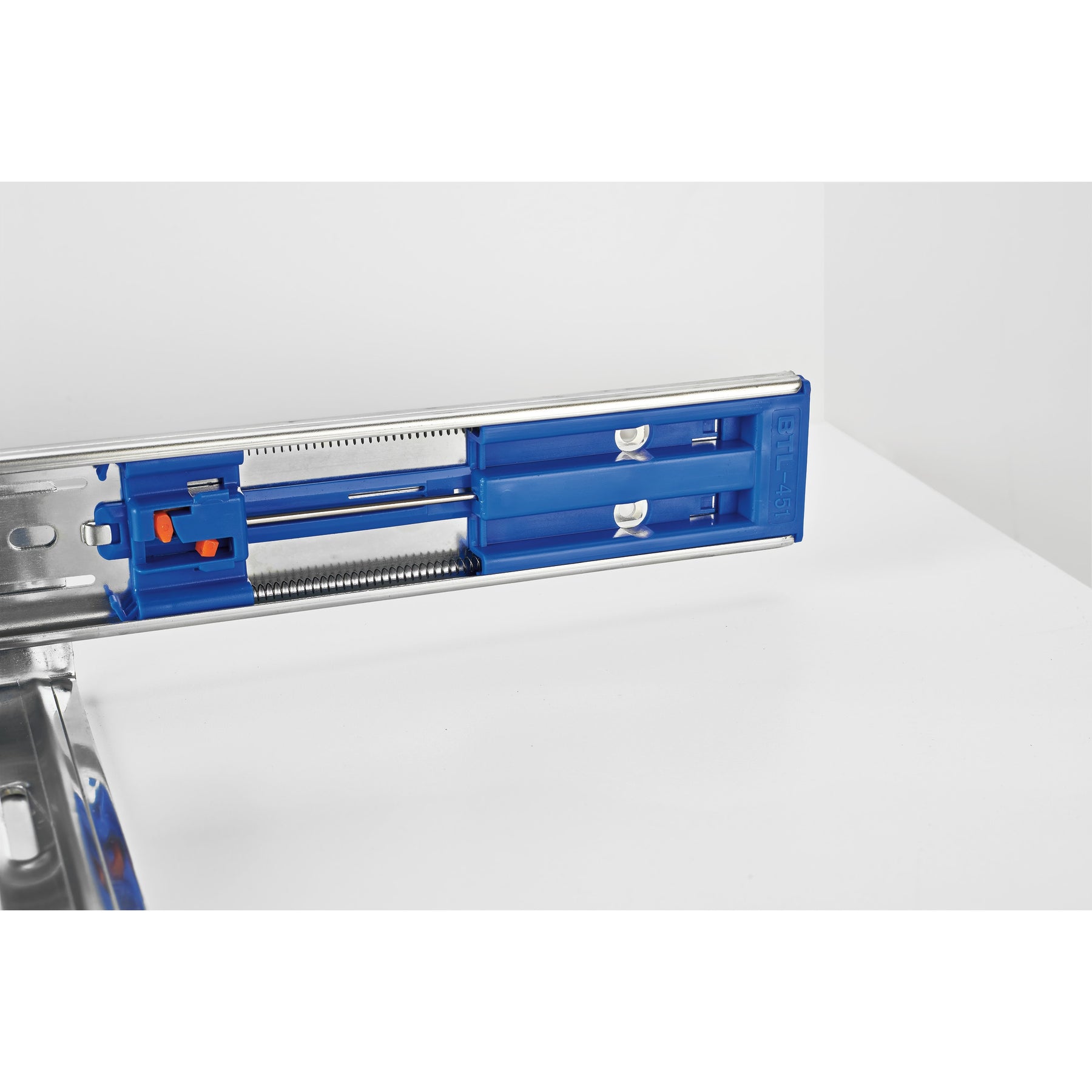

• Soft-Close Performance: 100 lb full-extension ball-bearing slides with gentle soft-close action

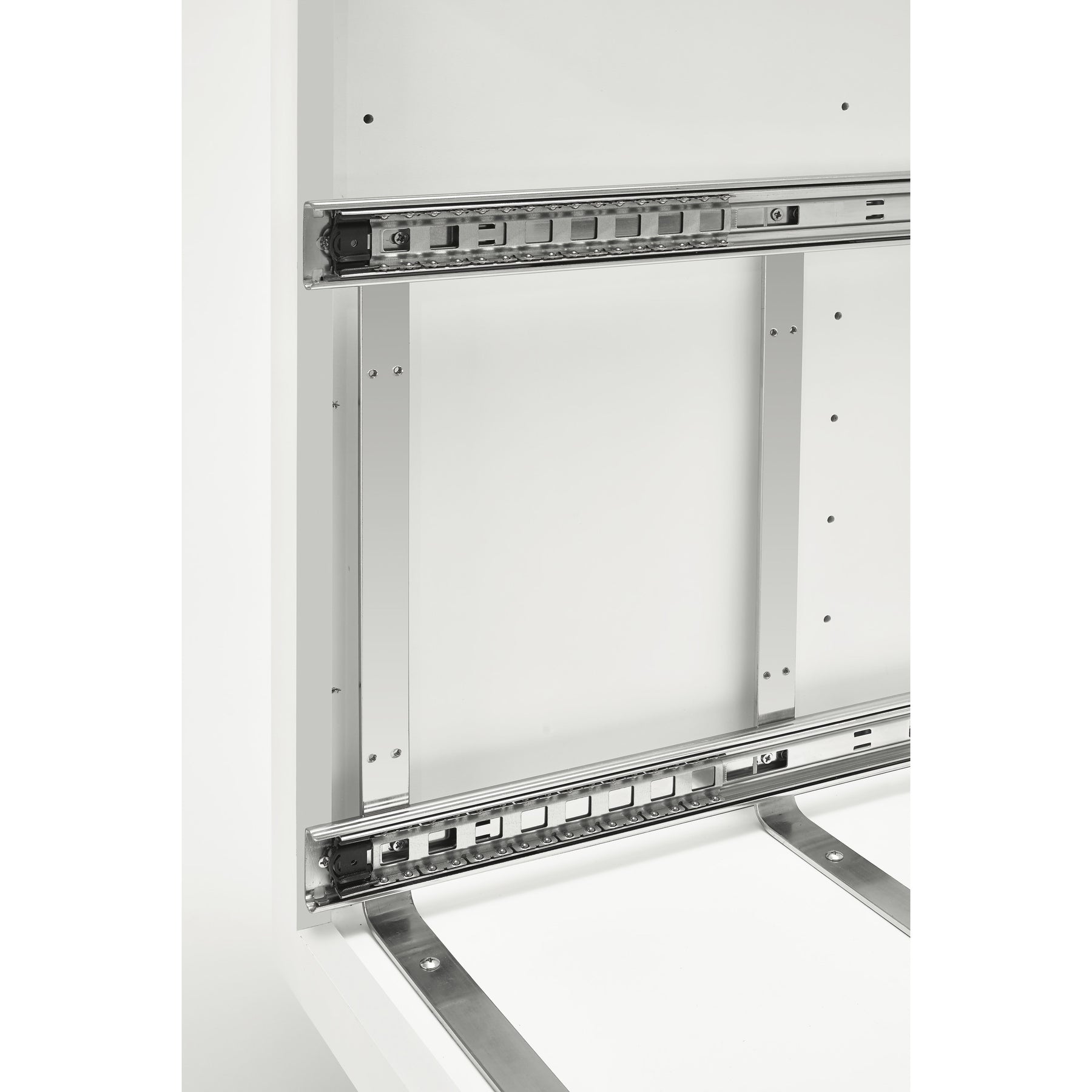

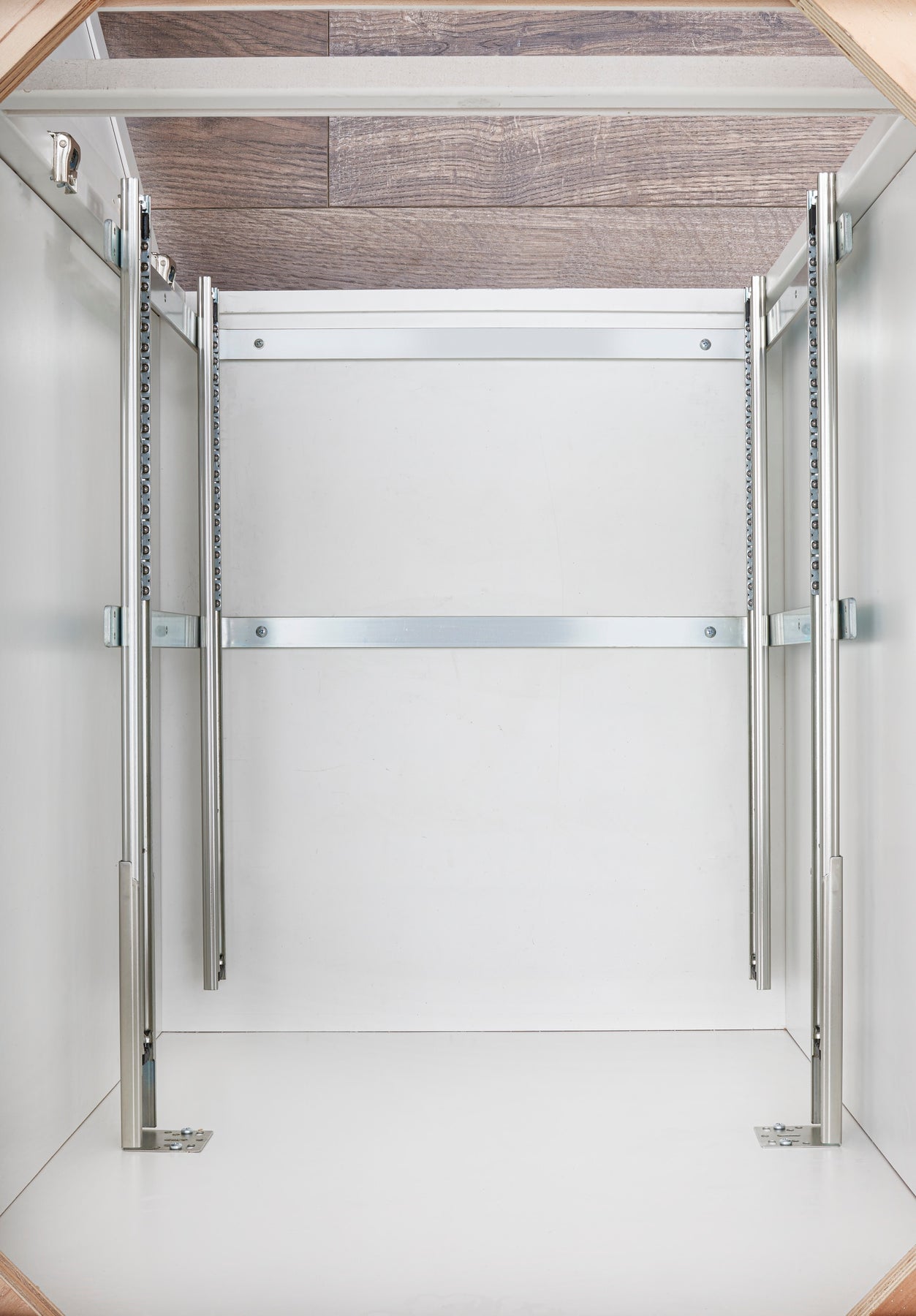

• Stable Installation: Mounts to floor, side and rear of cabinet for secure, wobble-free use
• Adjustable Fit: Frame height adjusts from 16-3/4 in to 19 in to accommodate various cabinet openings
• Durable Construction: Heavy-gauge plated chrome metal wire baskets with independent movement
• All-Inclusive Kit: Includes top basket, bottom basket and mounting hardware; optional door-mount brackets available separately

---

Specifications Table:

Specification	Details
Series Name	Two-Tier Pull-Out Baskets
Type	Sliding basket kit
Color/Finish Family	Chrome
Manufacturer Color/Finish	Chrome
Material	Metal (heavy-gauge plated wire)
Number of Tiers	2
Number of Compartments	2

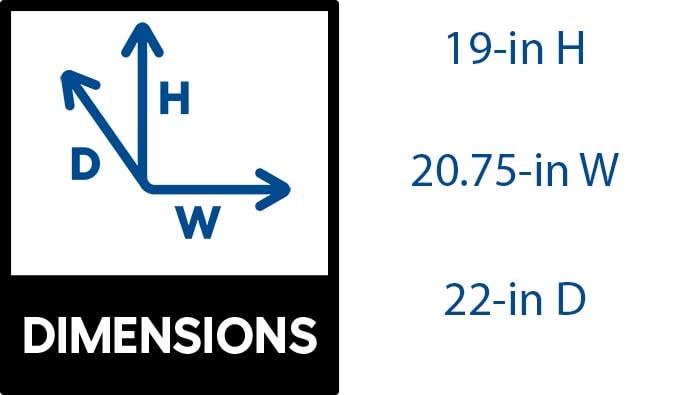

Actual Width (Inches)	20.75
Actual Height (Inches)	19
Actual Depth (Inches)	22
Maximum Extended Length (Inches)	22
Minimum Cabinet Width (Inches)	20.5
Minimum Cabinet Height (Inches)	17
Minimum Cabinet Depth (Inches)	22
Access Method	Pull-out
Cabinet Type	Base
Soft Close	Yes
Drawer Glides Type	Side (full extension)
Drawer Glides Material	Metal
Weight Capacity (lbs.)	100
Assembly Required	Yes

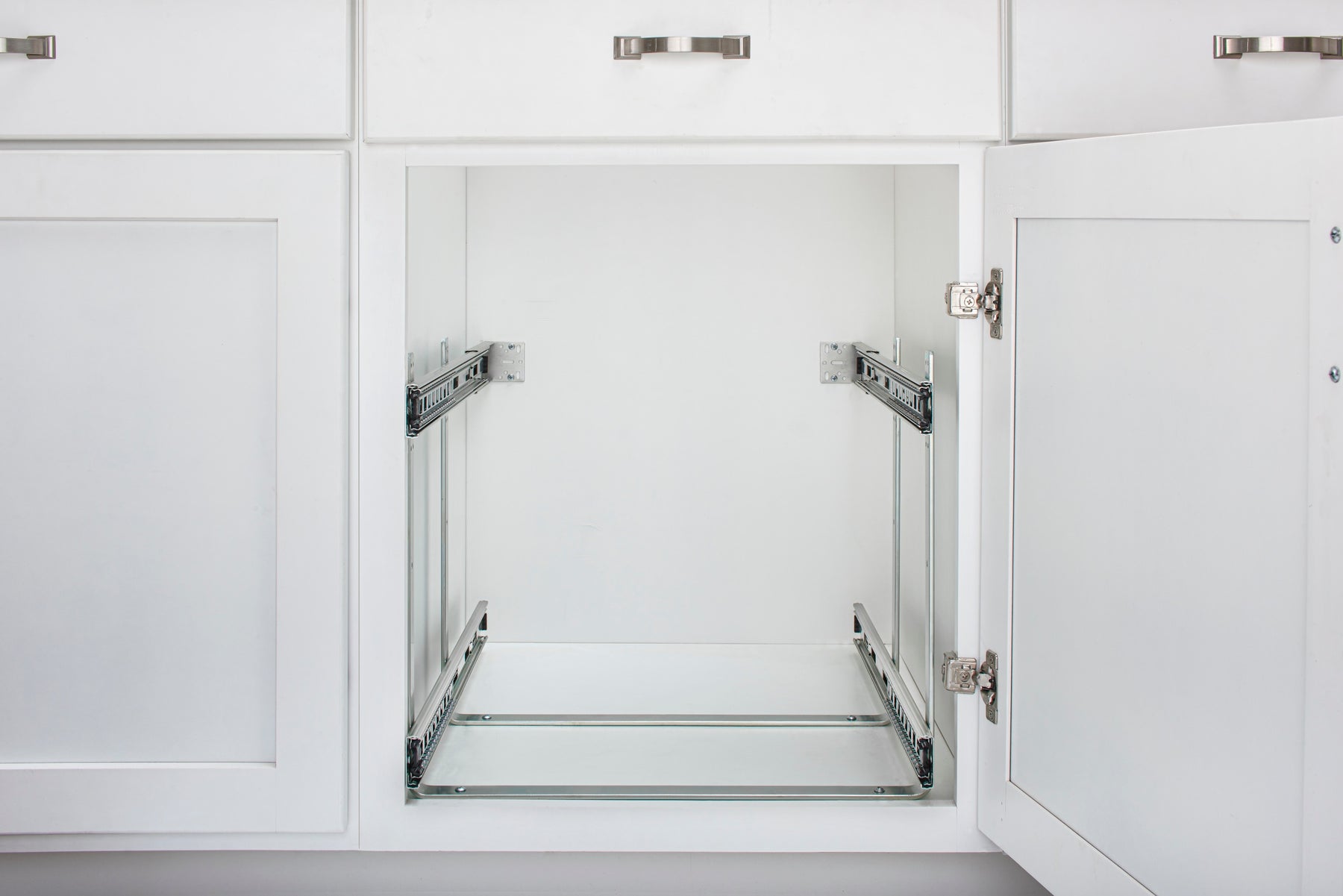

Installation Type	Cabinet-mount (mounts to floor, side and rear)
Hardware Included	Yes
Package Contents	(1) Top basket, (1) Bottom basket, mounting hardware
Package Quantity	1
Adjustable Frame Height	16-3/4 in to 19 in
Lower Basket Usable Height	10–12-3/4 in

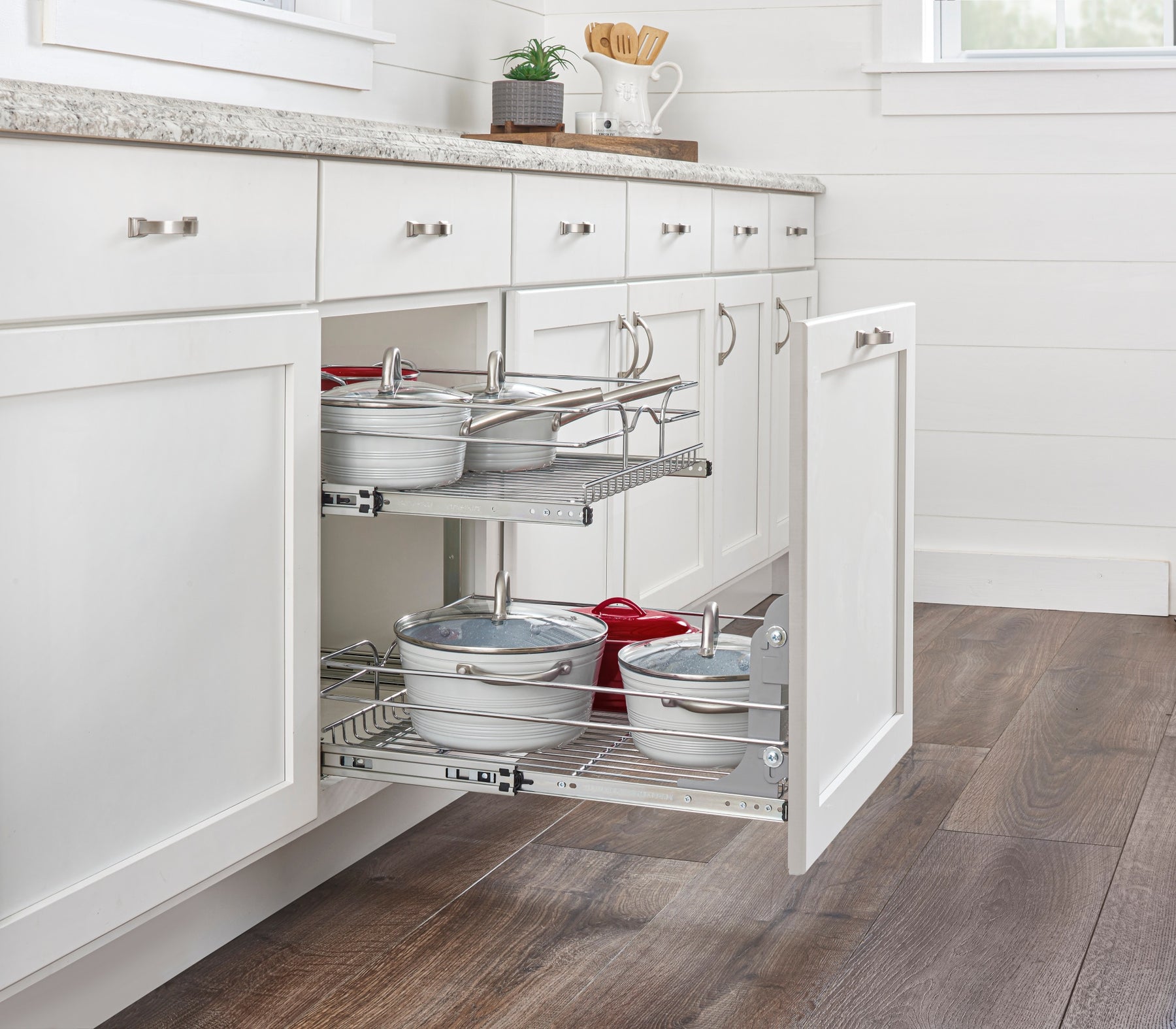

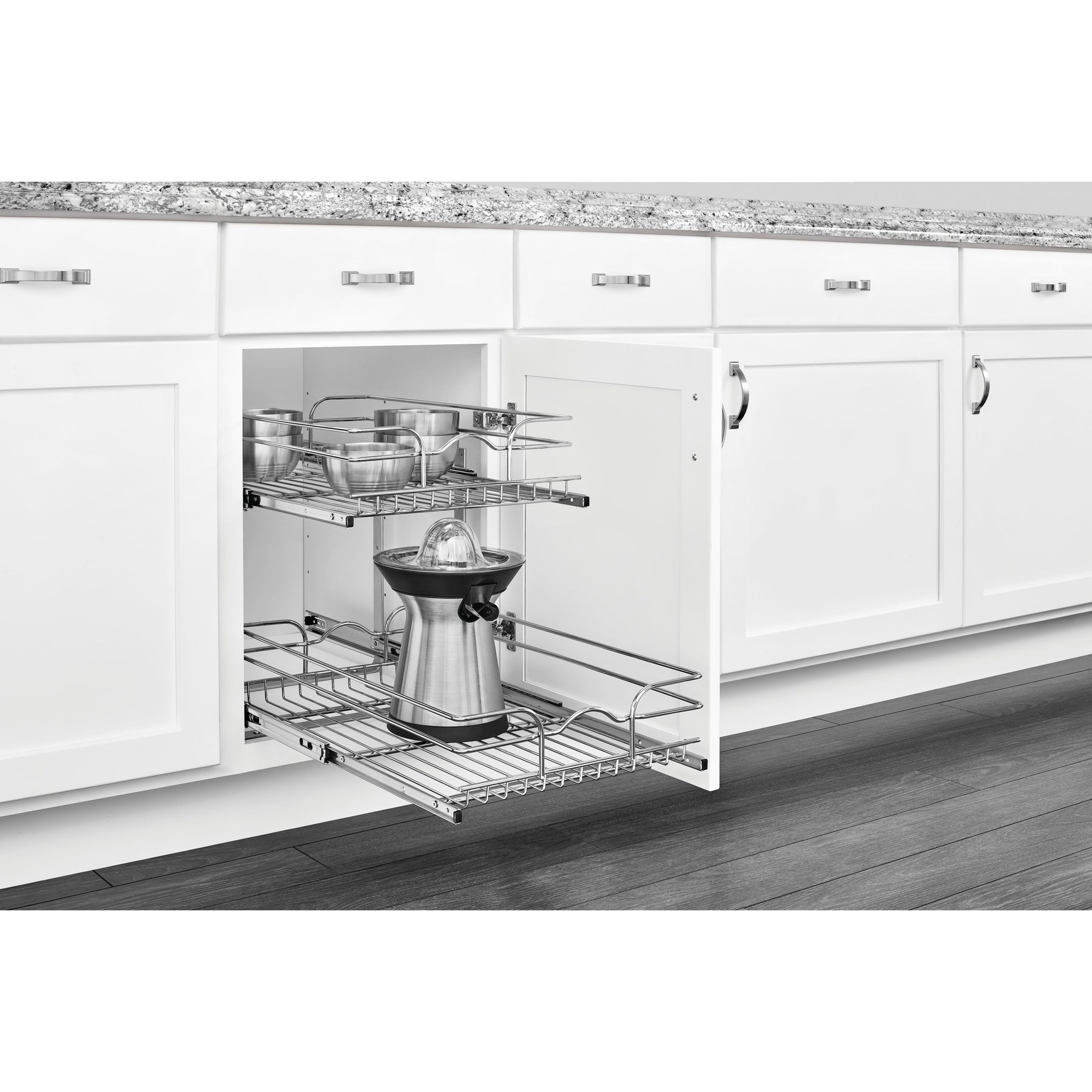

For Use With	Bakeware; Cleaning supplies; Pots and pans; Small appliances
Blind Corner	No
Warranty	Limited lifetime
UNSPSC	30162300
Door Mount Brackets	Optional, sold separately (RV-DM17KIT-5)

---

Frequently Asked Questions (FAQ):

Q: What cabinet size will this fit?
A: Requires a minimum cabinet opening of approximately 20.5-in W, 17-in H and 22-in D.

---

Q: How much weight can it hold?
A: Each unit is rated for up to 100 lbs total on the soft-close full-extension slides.

---

Q: Is door-mount hardware included?
A: No. Door-mount brackets are sold separately (model RV-DM17KIT-5).

---

Q: Can the basket heights be adjusted?
A: Yes, the frame height adjusts 16-3/4 in to 19 in and the lower basket usable height is 10–12-3/4 in.

---

Q: What materials is it made of?
A: Heavy-gauge plated chrome metal wire with metal slide components.

---

Elevate everyday storage with sleek, chrome precision

This two-tier pull-out brings a polished, architectural moment to the kitchen, blending chrome lines with effortless glide. The soft-close mechanism feels luxurious, while the adjustable baskets let you curate space for your tallest pots and streamlined appliances. Pair it with matte cabinetry and warm stone for a chic contrast and a highly functional centerpiece. It’s a smart, refined essential for an elegantly organized home.

---

Upgrade your base cabinet with smooth, soft-close organization—add this Rev-A-Shelf two-tier pull-out to your cart today.
