Heavy-Duty Soft-Close Mixer Lift with Maple Shelf

Rev-A-Shelf’s ML Series mixer lift effortlessly raises your stand mixer to countertop height and tucks it away when not in use. The heavy-duty, soft-close metal mechanism includes a solid maple shelf and adjustable spring tension to handle appliances up to 60 lb, making it ideal for full-height base cabinets.

---

Key Features:

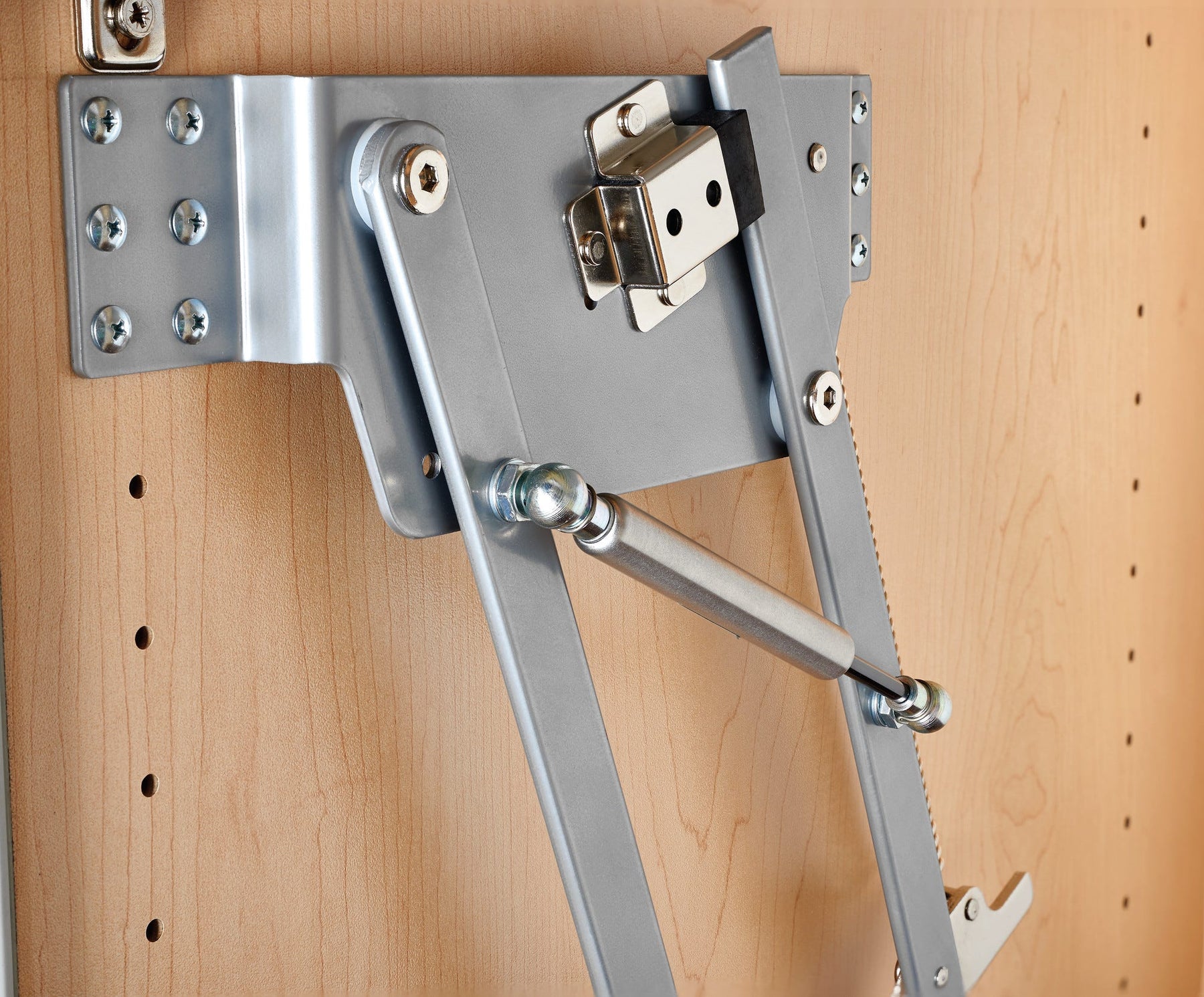

• Soft-Close Lift Mechanism: Smooth, controlled descent with built-in shock dampeners for safety.
• Heavy-Duty Capacity: Adjustable spring tension supports appliances from 0–60 lb.

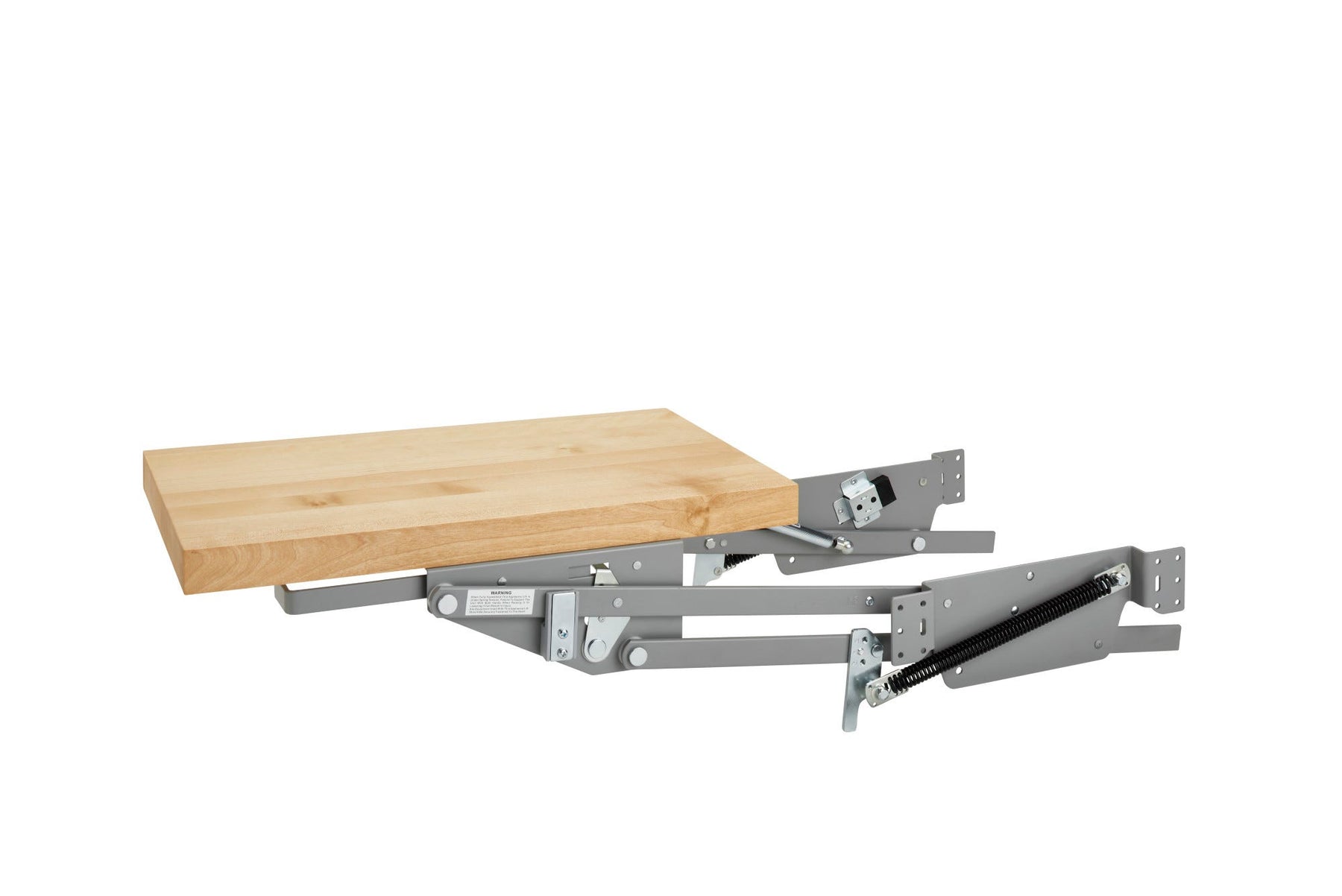

• Solid Maple Shelf Included: 11-3/4 in W x 20 in D x 1-3/8 in H shelf with clear polyurethane finish.
• Side-Mounted Installation: Powder-coated steel frame mounts to cabinet sides; fits full-height 24 in deep cabinets.
• Max Appliance Height: Accommodates mixers 17 in to 18-3/8 in tall; requires minimum 15 in cabinet opening.

---

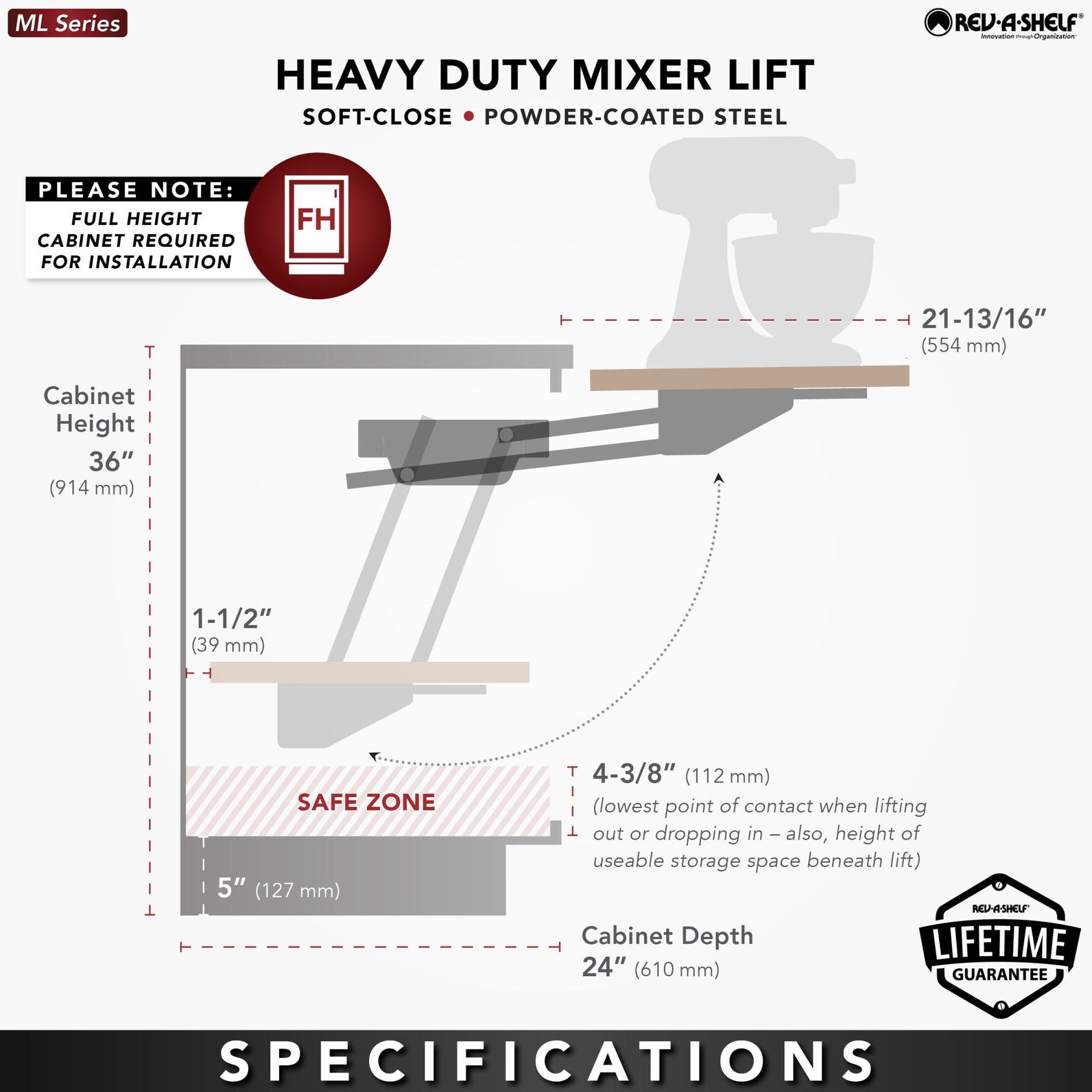

Specifications Table:

Specification	Details
Series	ML Series
Included Shelf Dimensions	11-3/4 in W x 20 in D x 1-3/8 in H
Construction	Heavy-duty metal frame with solid bottom surface; powder-coated steel mechanism
Finish	Clear polyurethane finish on maple shelf
Number of Shelves	1
Installation Type	Cabinet side mounted; full-height cabinet required
Cabinet Depth Requirement	24 in (610 mm)
Minimum Cabinet Opening	15 in (381 mm)

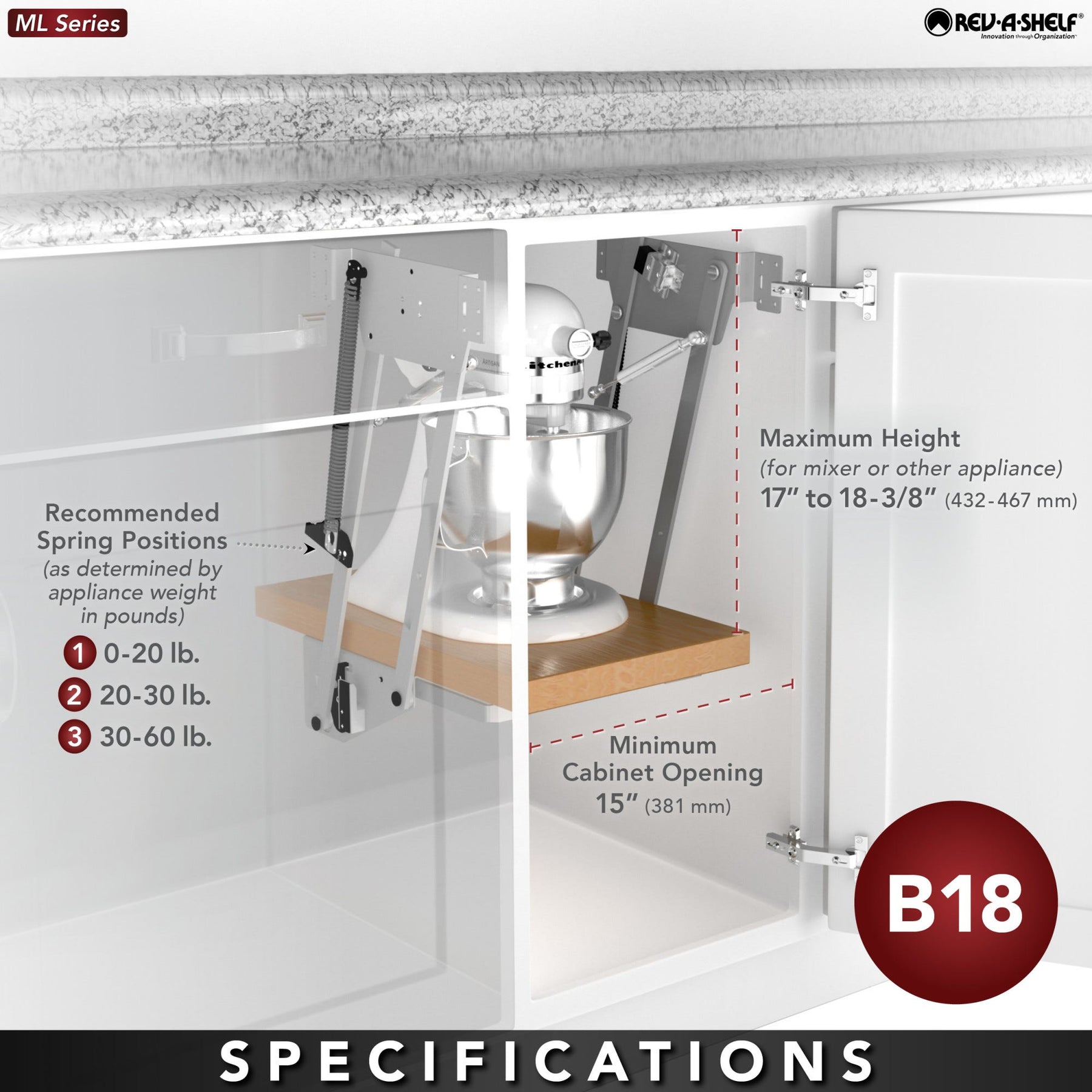

Maximum Appliance Height	17 in to 18-3/8 in (432–467 mm)
Weight Capacity	Up to 60 lb; adjustable spring positions for 0–20 lb, 20–30 lb, 30–60 lb
Soft-Close	Yes; built-in shock dampeners
TSCA Title VI Compliant	Yes
Door Mountable	No
Country of Origin	China

---

Frequently Asked Questions (FAQ):

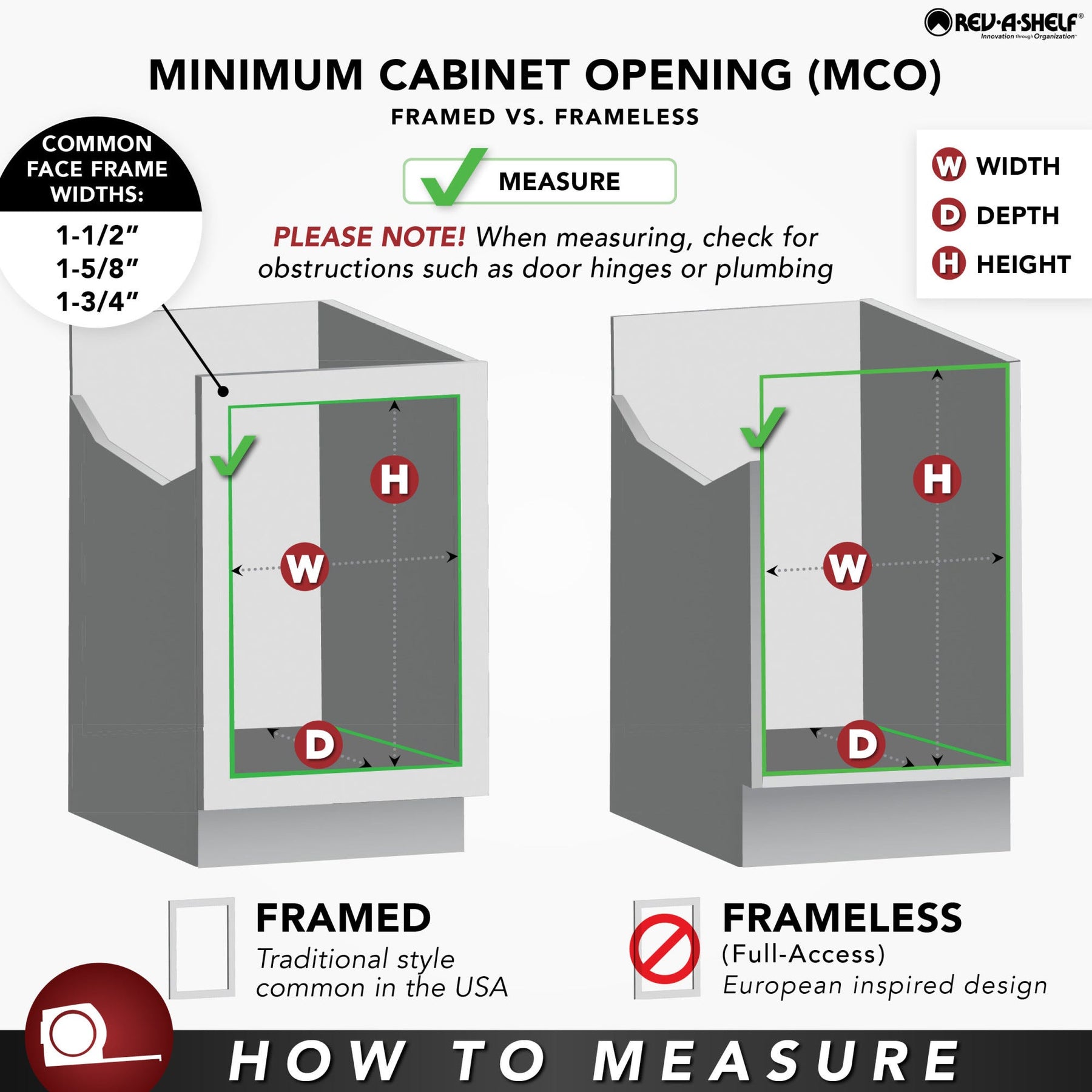

Q: What size cabinet do I need?
A: A full-height base cabinet with 24 in depth and at least a 15 in minimum opening is required.

---

Q: What are the shelf dimensions?
A: The included maple shelf measures 11-3/4 in W x 20 in D x 1-3/8 in H.

---

Q: How much weight can it lift?
A: It is designed for appliances up to 60 lb with adjustable spring positions for 0–20, 20–30, and 30–60 lb ranges.

---

Q: Is the unit door-mountable?
A: No, it is not door mountable; it mounts to the cabinet sides.

---

Q: Does it include soft-close?
A: Yes, the ML Series features a soft-close mechanism with built-in shock dampeners.

---

Concealed Power, Elevated Craft

This mixer lift is a seamless ballet of form and function, bringing your culinary workhorse to counter height with a whisper-soft glide. The solid maple shelf adds a warm, crafted note against sleek powder-coated steel. Style it with a handsome stand mixer and a linen towel for a sculptural moment that stows away in seconds. It’s the quiet luxury your kitchen deserves.

---

Upgrade your base cabinet with this soft-close mixer lift and enjoy effortless access to your heaviest kitchen tools today.

Installation
