Rev-A-Shelf Heavy-Duty Soft-Close Mixer Lift with Shelf

Bring your stand mixer to counter height with a heavy-duty, soft-close lift that tucks neatly back into your cabinet. The ML Series features a solid maple shelf and a powder-coated steel frame with adjustable spring tension to handle appliances up to 60 lb.

---

Key Features:

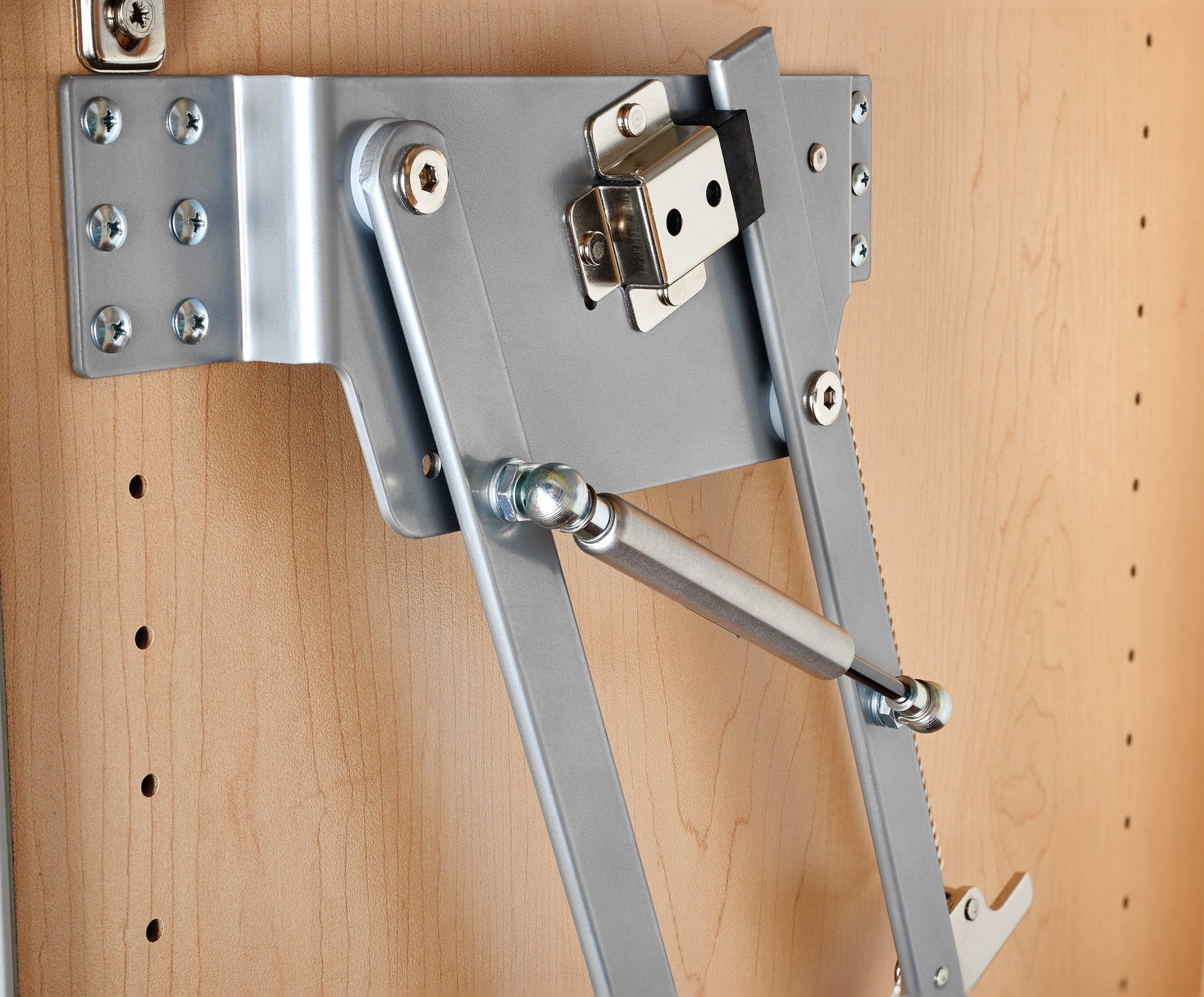

• Soft-Close Mechanism: Built-in shock dampeners provide smooth, controlled lifting and lowering
• Heavy-Duty Capacity: Adjustable spring tension supports appliances from 0–60 lb

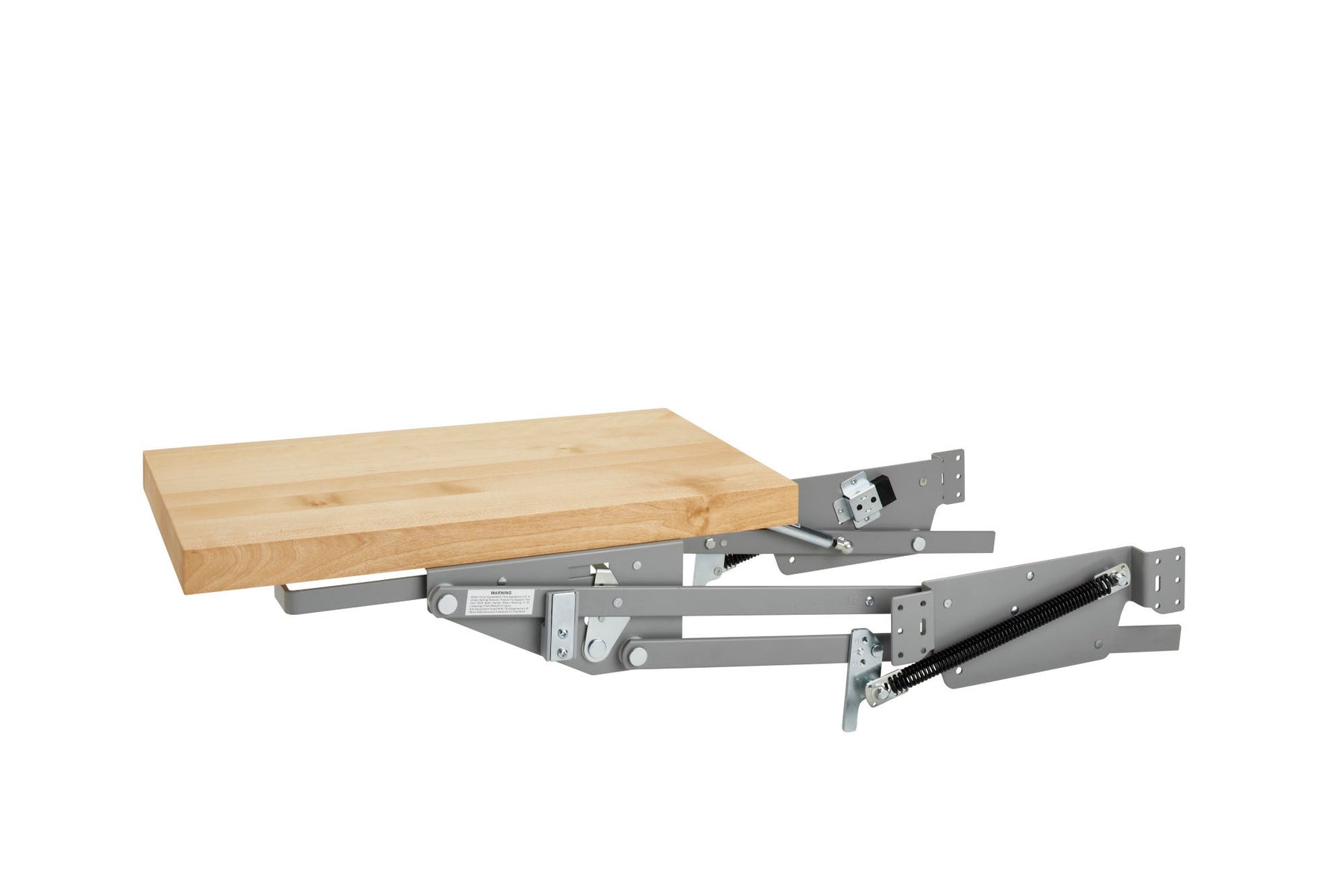

• Maple Shelf Included: 11-3/4 in W x 20 in D x 1-3/8 in H platform with clear polyurethane finish
• Durable Construction: Powder-coated metal frame with solid bottom surface for stability
• Side-Mount Installation: Fits full-height cabinets; minimum opening typically 15 in wide (B18)

---

Specifications Table:

Specification	Details
Series	ML Series
Product type	Heavy-Duty Mixer Lift with Shelf
Included shelf dimensions	11-3/4 in W x 20 in D x 1-3/8 in H
Frame material	Powder-coated metal frame with solid bottom surface
Shelf material/finish	Maple, clear polyurethane finish
Number of shelves	1
Installation type	Cabinet side mounted; full-height cabinet required

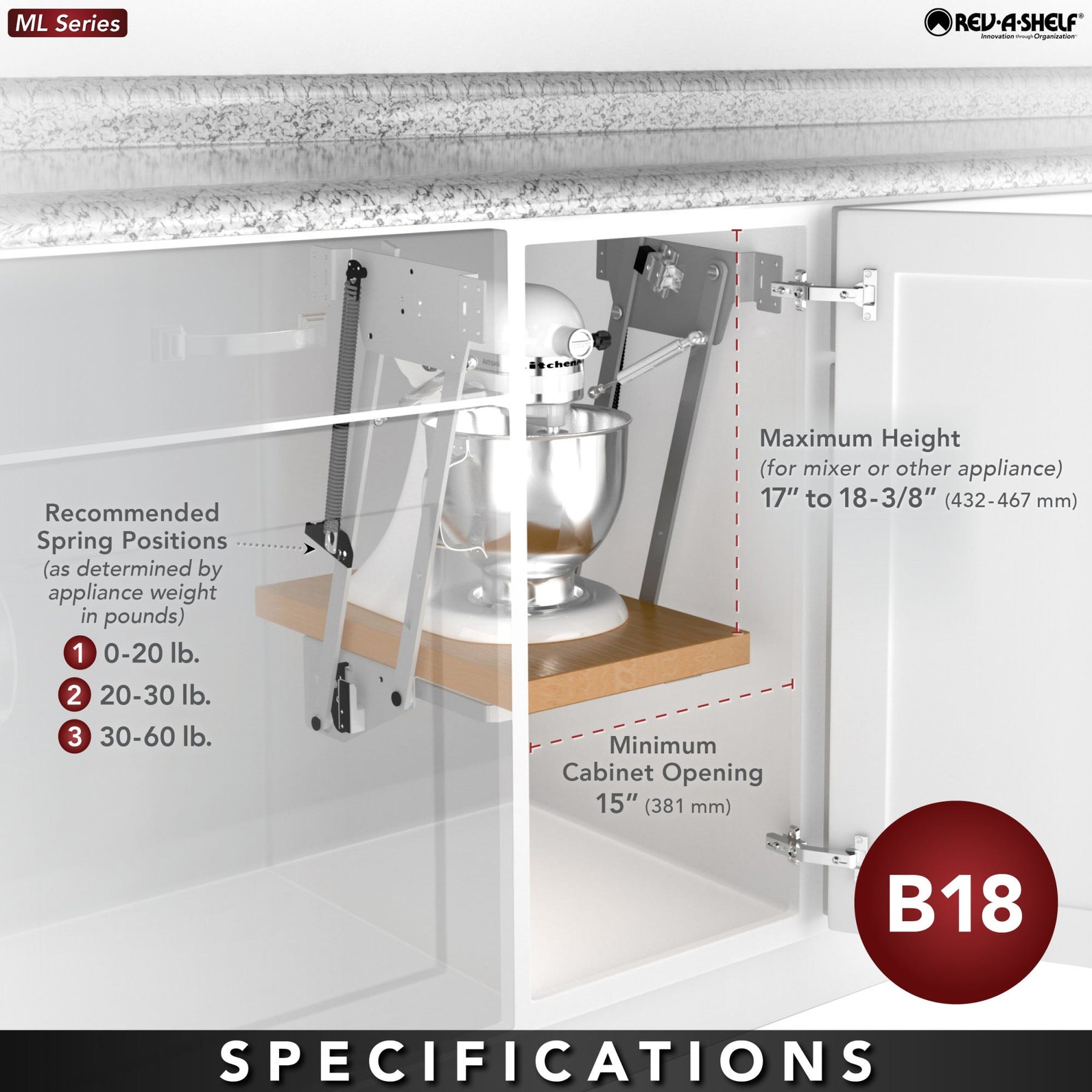

Weight capacity	Up to 60 lb with adjustable spring positions (0–20 lb, 20–30 lb, 30–60 lb)

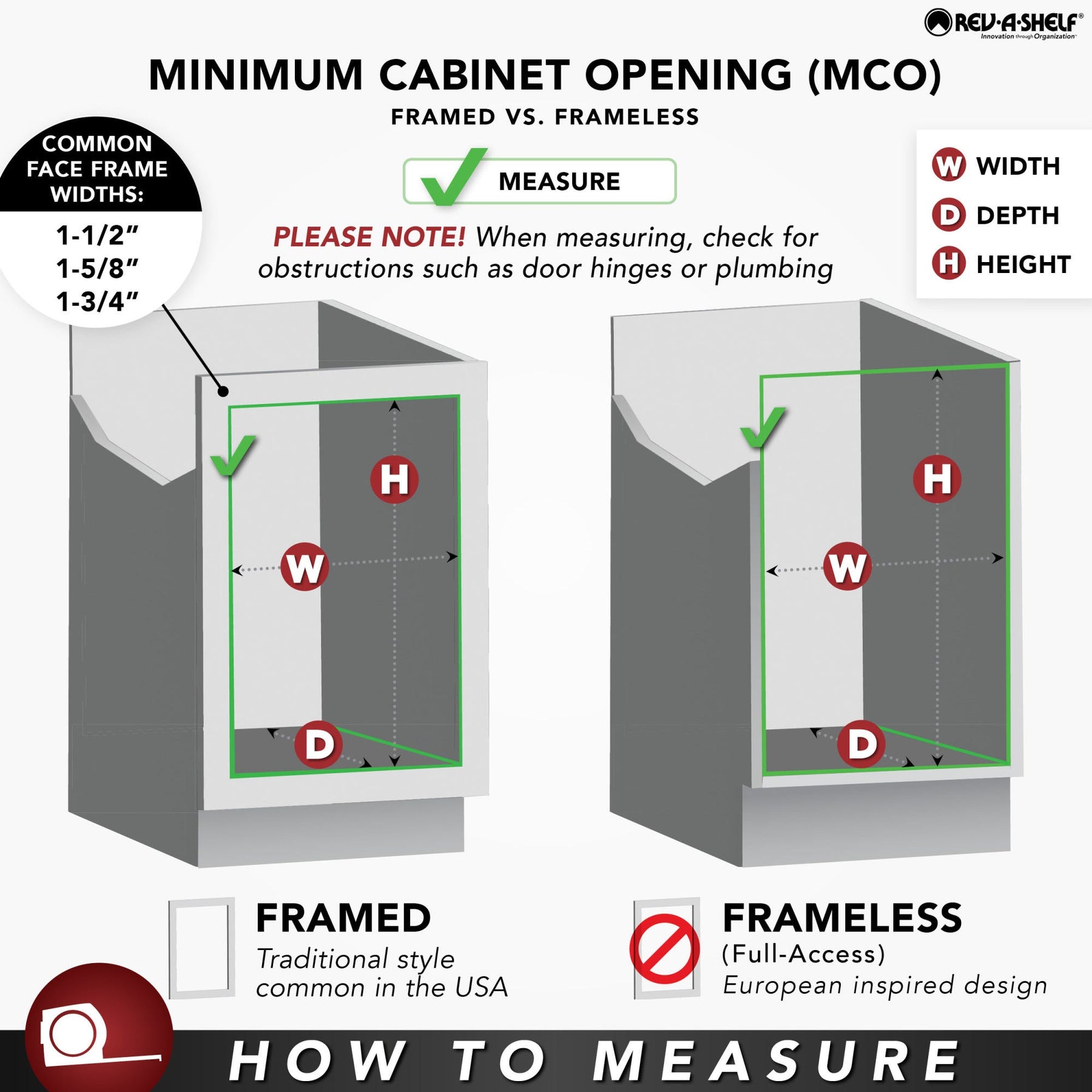

Minimum cabinet opening (width)	15 in (B18 example shown)

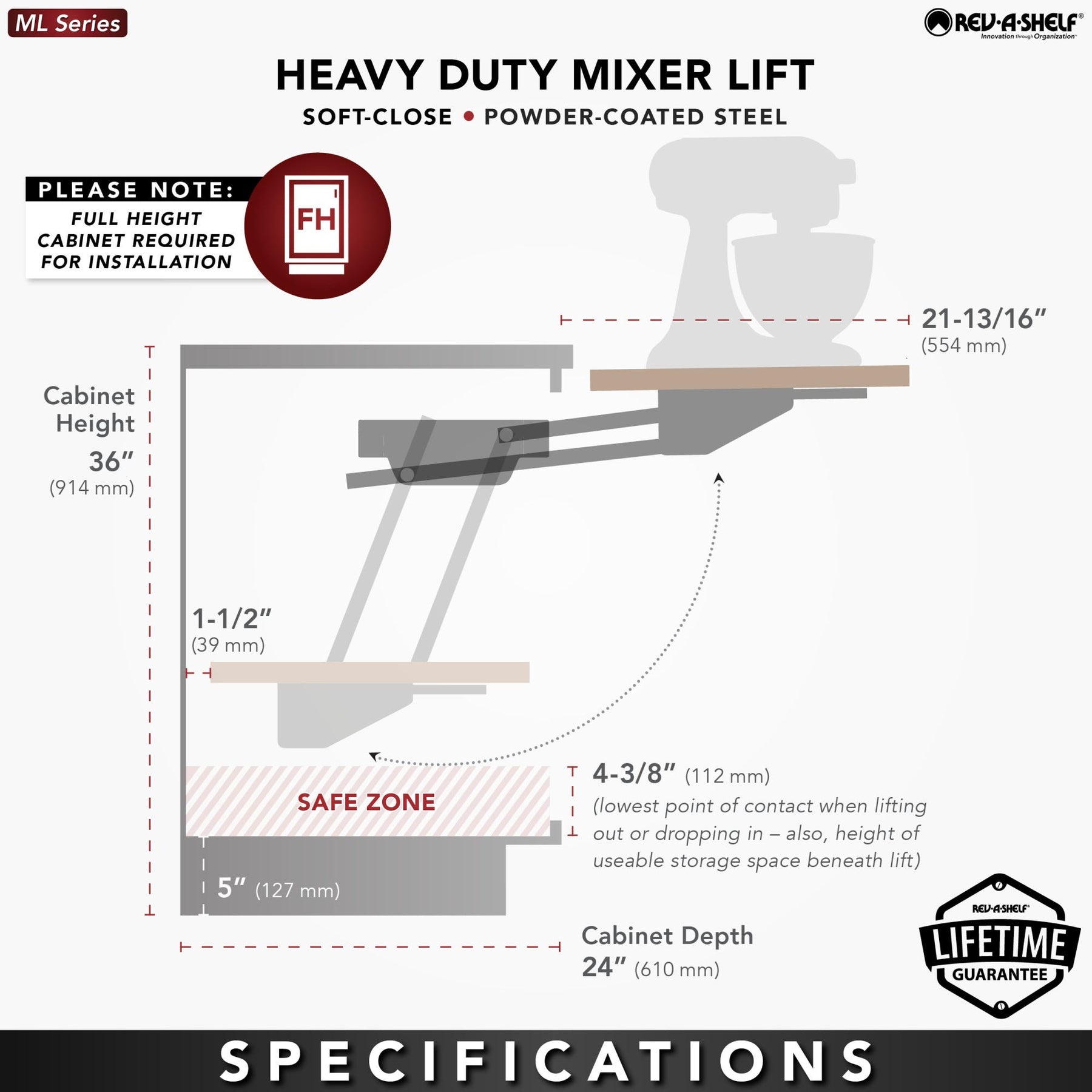

Maximum appliance height on lift	17 in to 18-3/8 in
Cabinet depth (required)	24 in
Clearance below mechanism (lowest point)	4-3/8 in
Face frame clearance at top	1-1/2 in
TSCA Title VI compliant	Yes
Country of origin	China
Door mountable	No

---

Frequently Asked Questions (FAQ):

Q: What is the weight capacity?
A: Up to 60 lb with adjustable spring positions for different appliance weights.

---

Q: Is the shelf included?
A: Yes, a maple shelf measuring 11-3/4 in W x 20 in D x 1-3/8 in H is included.

---

Q: What cabinet do I need?
A: A full-height base cabinet with approximately 24 in depth; minimum opening around 15 in width as shown in specs.

---

Q: Does it have soft-close?
A: Yes, built-in soft-close shock dampeners ensure smooth operation.

---

Q: Can it be door-mounted?
A: No, the unit is side-mounted inside the cabinet and is not door-mountable.

---

Elevate Your Culinary Workhorse in Style

This lift transforms your kitchen choreography—your mixer rises gracefully from its hidden cove to a handsome maple stage. The refined soft-close action and powder-coated hardware feel tailored and deliberate. Style the maple platform with a neutral silicone mat or a polished steel turntable to echo your fixtures. It’s a discreet luxury that keeps counters serene while keeping performance at the ready.

---

Upgrade your base cabinet with this soft-close mixer lift and enjoy instant, clutter-free counter space for your heaviest appliances.
