Rev-A-Shelf 53TM Steel Soft-Close Top Mount Waste Pullout, Double 35 qt or Double 35 qt + Double 8 qt, 18 in. Frameless Base
Regular price $276.15Orders start at $399 — combine any items to reach the minimum. Learn more
Rev-A-Shelf 53TM Steel Soft-Close Top Mount Waste Pullout, Double 35 qt or Double 35 qt + Double 8 qt, 18 in. Frameless Base
The Rev-A-Shelf 53TM Series is a top-mount, steel-frame waste pullout designed for full access (frameless) 18 in. full height base cabinets with 5/8 in. or 3/4 in. side walls. Two configurations are offered: double 35 qt bins, or double 35 qt plus double 8 qt bins, each with a sleek metal lid. Units include 90 lb rated Grass slides with 1-1/2 in. over-travel and a door mountable frame.
Key Features:
- Top mount design: Top mount pull-out installs in full access 18 in. full height base cabinets.
- Flexible bin options: Available as double 35 qt or as double 35 qt plus double 8 qt bins.
- 90 lb rated slides: Grass slides are rated 90 lb with 1-1/2 in. over-travel for easy full access.
- Soft-close action: Soft-close slides close the pull-out smoothly and quietly.
- Built-in metal lid: A sleek metal lid conceals bin contents.
- Door mountable frame: The sturdy frame accepts your cabinet door for a finished look.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Rev-A-Shelf |
| Sell unit | 1 set |
| Model / series | 53TM |
| Available sizes | 16-3/16 in. W x 21-5/8 in. D x 19 in. H (double 35 qt); 22-3/4 in. W x 21-5/8 in. D x 19 in. H (double 35 qt + double 8 qt) |
| Available finishes | Steel Frame & Gray Bins |
| Material | Steel frame with polymer bins |
| Finish / colour | Steel frame and gray bins |

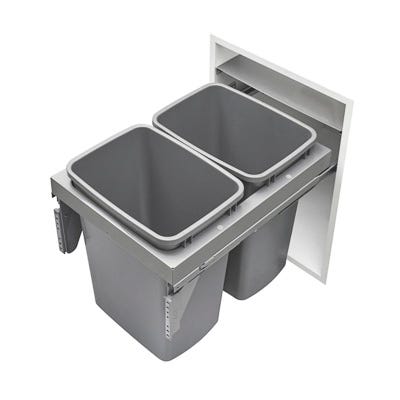

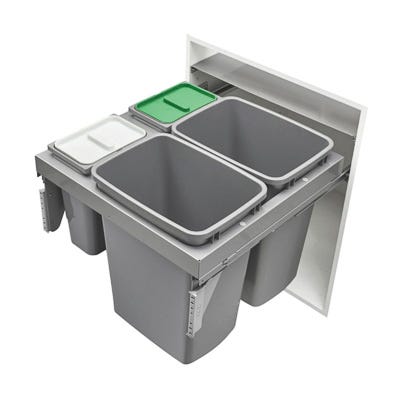

| Capacity | Double 35 qt; or double 35 qt plus double 8 qt |
| Mounting | Top mount, door mountable frame |
| Soft-close | Yes |
| Intended use | Full access (frameless) 18 in. full height base cabinets with 5/8 in. or 3/4 in. side walls |
| Assembly | Includes frame, bins, slides, and metal lid |
Fit and Compatibility:
Designed for full access (frameless) 18 in. full height base cabinets with 5/8 in. and 3/4 in. side walls. Measure the cabinet interior and compare to the printed 16-3/16 in. or 22-3/4 in. width before selecting a configuration.
Frequently Asked Questions (FAQ):
Q: What bin configurations are available?
A: Double 35 qt, or double 35 qt plus double 8 qt bins.
Q: What cabinet does it require?
A: A full access (frameless) 18 in. full height base cabinet with 5/8 in. or 3/4 in. side walls.
Q: How much weight do the slides hold?
A: The Grass slides are rated for 90 lb with 1-1/2 in. over-travel.
Q: What is included?
A: Each unit includes the steel frame, the bins for the chosen configuration, soft-close Grass slides, and a metal lid.
Q: Do I need to buy a lid separately?
A: No, a sleek metal lid is included with the unit.
Q: Can my cabinet door attach to it?
A: Yes, the frame is door mountable.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
For a double 35 qt layout choose the 16-3/16 in. wide unit; the 22-3/4 in. wide version is best when you want four bins to separate trash and recycling streams. Because these are top-mount units for frameless cabinets, confirm your cabinet is true full-access before ordering. Remove the door during installation, set the frame level, then rehang the door and adjust the metal lid alignment before loading bins.
Do not exceed the 90 lb slide rating, and support the frame during installation so it cannot fall or shift.
Choose the Rev-A-Shelf 53TM steel soft-close top mount waste pullout for a clean, built-in waste solution.
