Rev-A-Shelf 4WCSD BLUMOTION SERVO-DRIVE Bottom Mount Waste Pullout, Single or Double, 35 or 50 Quart
Regular price $798.73Rev-A-Shelf 4WCSD BLUMOTION SERVO-DRIVE Bottom Mount Waste Pullout, Single or Double, 35 or 50 Quart
The Rev-A-Shelf 4WCSD is a bottom-mount waste pull-out with BLUMOTION soft-close and Servo-Drive electric opening, in single 35 qt, single 50 qt, double 35 qt and double 50 qt configurations. Each unit pairs a natural maple wood frame with metallic silver polymer containers, side-wall mounted and full-extension. The double 50 qt model fits a 21 in base cabinet with a 24-1/2 x 18 x 22-1/2 in opening.
Key Features:
- Servo-Drive opening: The Servo-Drive system electrically opens the pull-out at a touch.
- BLUMOTION soft-close: The slide is full-extension with BLUMOTION soft-close damping.

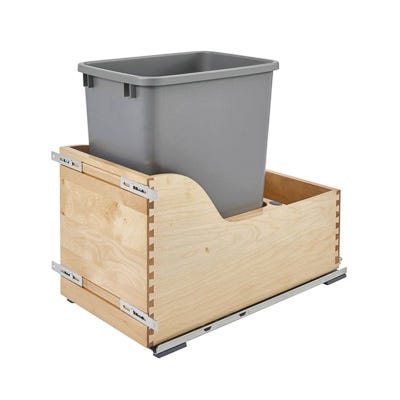

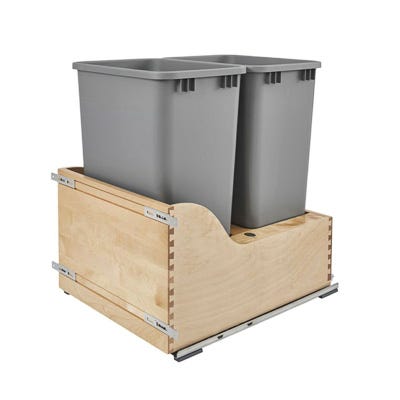

- Single or double: Available as single-container 35 qt or 50 qt units and double-container 35 qt or 50 qt units.
- Maple frame: Frames are natural maple wood with metallic silver polymer containers.
- Bottom mount: Cabinet side wall mount, bottom-mount installation.
- 21 in base cabinet: The double 50 qt model is specified for a 21 in base cabinet.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Rev-A-Shelf |
| Sell unit | 1 unit |
| Model / series | Rev-A-Shelf 4WCSD BLUMOTION + SERVO-DRIVE |
| Available sizes | Single 35 qt: 12 in W x 22-1/2 in D x 19-1/2 in H; Single 50 qt: 12 in W x 22-1/2 in D x 23-3/8 in H; Double 35 qt: 15 in W x 22-1/2 in D x 19-1/2 in H; Double 50 qt: 18 in W x 22-1/2 in D x 23-3/8 in H |
| Available finishes | Maple frame with silver bin(s) |
| Material | Wood frame, polymer containers |
| Finish / colour | Natural maple frame, metallic silver containers |
| Mounting | Cabinet side wall mount, bottom mount, full-extension |
| Soft-close | Yes, BLUMOTION; Servo-Drive opening |
| Capacity | 35 qt or 50 qt, single or double |
| Minimum cabinet opening | Double 50 qt: 24-1/2 in H x 18 in W x 22-1/2 in D |
| For | 21 in base cabinet (double 50 qt) |
| Pack quantity | 12/Box (double 50 qt packaging quantity as listed) |
Fit and Compatibility:
Belongs to the Rev-A-Shelf 4WCSD series of BLUMOTION and Servo-Drive waste pull-outs. Servo-Drive operation requires the appropriate power supply; separate containers, lids and power components may be sold separately.
Frequently Asked Questions (FAQ):
Q: Which configurations can I order?
A: Single 35 qt, single 50 qt, double 35 qt and double 50 qt, all with natural maple frames and silver polymer bins.
Q: What cabinet does the double 50 qt unit need?
A: A 21 in base cabinet with an opening of 24-1/2 in H x 18 in W x 22-1/2 in D.
Q: How does it open?
A: The Servo-Drive system opens the pull-out electrically, and the full-extension slide closes with BLUMOTION soft-close damping.
Q: Does Servo-Drive need power?
A: Yes, Servo-Drive is an electric opening system, so plan a power supply to the cabinet; confirm required components with the manufacturer's instructions.
Q: Is it a bottom-mount or door-mount unit?
A: It is a bottom-mount, cabinet side wall mounted pull-out on a full-extension slide.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
Reserve this unit for clients who want hands-free operation; plan the Servo-Drive power supply and switch placement during rough-in, not after install. Check the opening height carefully on the 50 qt models since they run 23-3/8 in tall versus 19-1/2 in for the 35 qt units. The double 50 qt configuration is ideal for a 21 in base cabinet serving both trash and recycling.
Disconnect power before servicing the Servo-Drive mechanism and secure all mounting screws before loading the containers.
Upgrade to the Rev-A-Shelf 4WCSD BLUMOTION Servo-Drive waste pullout for touch-open, soft-close waste storage.
