Rev-A-Shelf 4WCBM Wood Rev-A-Motion Bottom Mount Waste Pullout, Natural Maple Frame with Metallic Silver Polymer Bins
Regular price $326.61Orders start at $399 — combine any items to reach the minimum. Learn more
Rev-A-Shelf 4WCBM Wood Rev-A-Motion Bottom Mount Waste Pullout, Natural Maple Frame with Metallic Silver Polymer Bins

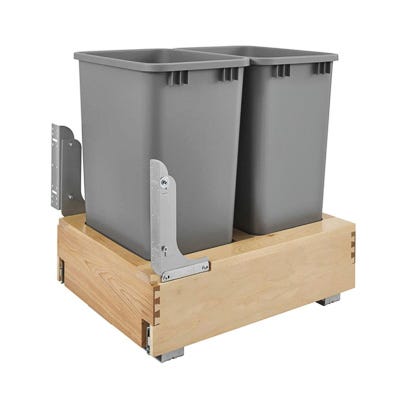

The Rev-A-Shelf 4WCBM is a bottom mount pull-out waste container system for base cabinets, built on a natural maple wood frame with metallic silver polymer bins. It is offered in single and double configurations from 30 to 50 quarts, ranging from 12 in. to 20-1/4 in. wide, and each unit comes with Rev-A-Motion soft-open/soft-close slides. Choose the size that matches your base cabinet opening.
Key Features:
- Soft-Open/Soft-Close: Rev-A-Motion slides let the pullout glide open gently and close softly without slamming.
- Wood Frame: The pullout is built on a natural maple wood frame that holds the bins securely.
- Polymer Bins: Metallic silver polymer containers lift out for easy emptying and cleaning.
- Single or Double: Available as single-bin or double-bin setups with capacities from 30 to 50 quarts.
- Bottom Mount: Bottom mount design attaches to the cabinet side walls for a stable, full pullout.
- Multiple Widths: Five configurations fit 12 in., 14-1/4 in., 15-3/4 in. equivalent, 17-1/4 in. and 20-1/4 in. wide applications for common base cabinet sizes.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Rev-A-Shelf |
| Sell unit | 1 pullout waste container unit |
| Model / series | 4WCBM Wood Rev-A-Motion Bottom Mount Waste Pullout |
| Available sizes | Double 30 qt: 20-1/4 in. W x 21-3/4 in. D x 19-1/4 in. H; Double 35 qt: 14-1/4 in. W x 21-3/4 in. D x 19-1/4 in. H; Double 50 qt: 17-1/4 in. W x 21-3/4 in. D x 23-3/16 in. H; Single 35 qt: 12 in. W x 21-3/4 in. D x 19-1/4 in. H; Single 50 qt: 12 in. W x 21-3/4 in. D x 23-3/16 in. H |
| Capacity | 30 qt, 35 qt, or 50 qt depending on configuration |
| Material | Wood frame with polymer containers |
| Finish / colour | Natural maple frame with metallic silver bins |
| Mounting | Bottom mount, cabinet side wall mount |
| Soft-close | Rev-A-Motion soft-open/soft-close slide |
| Minimum cabinet opening | 23-1/4 in. H x 17-1/2 in. W x 21-7/8 in. D (for the 50 qt double, 21 in. base cabinet) |
| Intended use | Waste and recycling pullout for a 21 in. base cabinet |
Fit and Compatibility:
Designed for Rev-A-Shelf bottom mount waste pullout installations in base cabinets; each configuration is sized to a specific base cabinet width (12 in. to 21 in. openings as listed). Verify your cabinet's interior width, depth and height against the printed opening requirements before ordering. Bins and slides are included; no separate hardware purchase is listed.
Frequently Asked Questions (FAQ):
Q: What is included with one unit?
A: Each unit includes the maple bottom mount frame, the polymer waste containers (single or double depending on the configuration), and Rev-A-Motion soft-open/soft-close slides.
Q: How do I choose the right size?
A: Measure your cabinet's interior width, depth and height, then match it to the configuration for your base cabinet width; the 50 qt double is listed for a 21 in. base cabinet with a 23-1/4 in. H x 17-1/2 in. W x 21-7/8 in. D opening.
Q: Do the bins come out for emptying?
A: Yes, the metallic silver polymer containers are removable for emptying and cleaning.
Q: Does it close softly?
A: Yes, the Rev-A-Motion slides provide both soft-open and soft-close motion.
Q: Is this door mount or bottom mount?
A: This is a bottom mount unit that attaches to the cabinet side walls; the cabinet door can be coupled to the pullout face.
Q: Will it fit a frameless cabinet?
A: The listed opening dimensions apply to the cabinet interior; check your interior width, depth and height against the printed opening regardless of face-frame or frameless construction.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
As an installer, I always measure the actual cabinet opening first: the 50 qt double needs a 23-1/4 in. high by 17-1/2 in. wide by 21-7/8 in. deep opening, so shorter base cabinets must step down to a 19-1/4 in. tall configuration. Single-bin 12 in. wide units are ideal when you want maximum bin capacity in a narrow sink base; double bins suit households that separate trash and recycling. Bottom mount units ride on side-wall-mounted slides, so confirm your cabinet walls are square and plumb before fastening the slides.
Wear gloves when drilling and fastening slides inside the cabinet, and confirm the bottom mount is securely anchored before loading the bins.
Choose your Rev-A-Shelf 4WCBM Rev-A-Motion bottom mount waste pullout configuration today.
