Rev-A-Shelf 448 Series Drawer/Door Base Cabinet Pull-Out Organizer, 5-29/32 to 11 in. Widths, Natural Maple, Soft-Close
Regular price $226.92Orders start at $399 — combine any items to reach the minimum. Learn more
Rev-A-Shelf 448 Series Drawer/Door Base Cabinet Pull-Out Organizer, 5-29/32 to 11 in. Widths, Natural Maple, Soft-Close

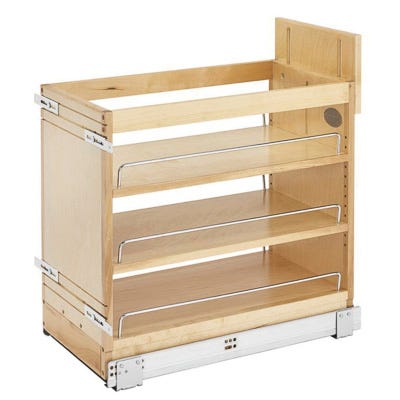

The Rev-A-Shelf 448 drawer/door base cabinet pull-out is a 3-compartment wood organizer in natural maple semi-gloss, rated 150 lb, with BLUMOTION soft-close slides. Its shorter 19-3/8 in. height suits base cabinets with a top drawer above the door. Three widths (5-29/32, 8 and 11 in.) each include adjustable shelves with chrome rails and door-mount hardware.
Key Features:
- Drawer-over-door fit: At 19-3/8 in. high, it fits base cabinets that have a drawer above the door.
- Soft-close slides: BLUMOTION soft-close slides provide quiet, controlled closing.
- 150 lb capacity: Rated for a 150 lb load for demanding kitchen storage.
- Three widths: Available in 5-29/32, 8 and 11 in. widths for different base cabinet sizes.
- Adjustable shelves: Includes adjustable shelves with chrome rails to set compartment heights.
- Maple semi-gloss: Wood construction in natural maple with a semi-gloss finish.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Rev-A-Shelf |
| Sell unit | 1 set |
| Model / series | 448 Series (Drawer/Door) |
| Available sizes | 5-29/32 in. W x 21-5/8 in. D x 19-3/8 in. H; 8 in. W x 21-5/8 in. D x 19-3/8 in. H; 11 in. W x 21-5/8 in. D x 19-3/8 in. H |
| Available finishes | Natural Maple / Semi-Gloss |
| Configuration | 3-Compartment |
| Capacity | 150 lb load |
| Material | Wood |
| Finish / colour | Natural Maple / Semi-Gloss |
| Cabinet opening (as printed, 8 in. unit) | Face frame: 20 in. H x 8-1/2 in. W x 22 in. D; Full access: 20 in. H x 9 in. W x 22 in. D |
| Intended cabinet | 12 in. base cabinet (drawer over door) |
| Mounting | Floor mount with door-mount hardware |
| Slide type | BLUMOTION soft-close |
| Includes | Adjustable shelves with chrome rails, door-mount hardware |
Fit and Compatibility:
Made for 12 in. base cabinets with a drawer above the door, using the printed 20 in. H opening (8-1/2 in. W face frame, 9 in. W full access). Do not use in full-height door-only openings, where the taller 448 units are intended. Shelves and door hardware are included; no other components required.
Frequently Asked Questions (FAQ):
Q: When do I need this shorter model?
A: Use it in base cabinets that have a working drawer above the door, where the opening height is about 20 in. rather than full height.
Q: What is included?
A: Adjustable shelves with chrome rails and door-mount hardware are included, with BLUMOTION soft-close slides.
Q: What weight can it carry?
A: The printed load capacity is 150 lb.
Q: Will it fit a frameless cabinet?
A: Yes, the printed full-access opening is 20 in. H x 9 in. W x 22 in. D.
Q: How many compartments does it have?
A: All three widths in this line are 3-compartment configurations.
Q: How is it installed?
A: Mount the organizer to the cabinet floor and attach the door to the unit using the included door-mount hardware.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
This drawer/door version solves the most common base cabinet layout, so I keep 8 in. and 11 in. units on the truck. Verify the drawer above still operates with the slide hardware installed; a 20 in. opening must be clear of drawer boxes and slides. If the cabinet has no top drawer, step up to the full-height 448 units for extra storage. The 5-29/32 in. width fits true filler pull-out openings.
Confirm the drawer above the organizer clears the slide hardware through its full travel before final assembly to avoid binding or damage.
Order the Rev-A-Shelf 448 drawer/door base cabinet pull-out for soft-close storage under cabinet drawers.
