Rev-A-Shelf 448 Series Base Cabinet Pull-Out Organizer, 5 in. and 8 in. Widths, Natural Maple, BLUMOTION and Servo-Drive Slides
Regular price $744.07Rev-A-Shelf 448 Series Base Cabinet Pull-Out Organizer, 5 in. and 8 in. Widths, Natural Maple, BLUMOTION and Servo-Drive Slides

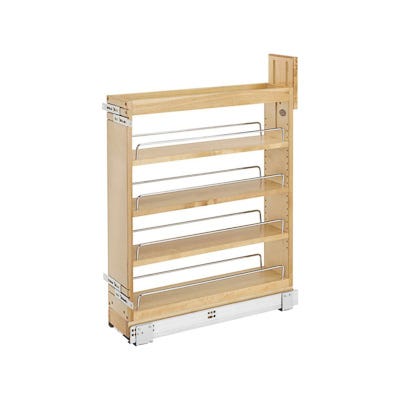

This Rev-A-Shelf 448 series base cabinet pull-out is a 4-compartment wood organizer in natural maple with a semi-gloss finish, rated for 150 lb. It uses BLUMOTION soft-close slides and supports Servo-Drive electric opening, and comes with adjustable shelves with chrome rails and door-mount hardware. Two widths, 5 in. and 8 in., fit 12 in. full face frame base cabinets.
Key Features:
- Servo-Drive ready: Compatible with BLUMOTION soft-close and Servo-Drive slides for touch-to-open electric operation.
- 150 lb capacity: Rated for a 150 lb load so heavy cookware can be stored safely.
- Adjustable shelves: Includes adjustable shelves with chrome rails for flexible storage configurations.
- Face frame and frameless: Printed openings cover both 12 in. face frame cabinets and 9 in. W full-access (frameless) cabinets.
- Natural maple finish: Wood construction with a natural maple semi-gloss finish.
- Four compartments: The 4-compartment design keeps pans, lids and trays separated and easy to reach.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Rev-A-Shelf |
| Sell unit | 1 set |
| Model / series | 448 Series (BLUMOTION / Servo-Drive) |
| Available sizes | 5 in. W x 22-3/4 - 24-1/4 in. D x 25-1/2 - 29-1/2 in. H; 8 in. W x 22-3/4 - 24-1/4 in. D x 25-1/2 - 29-1/2 in. H |
| Available finishes | Natural Maple / Semi-Gloss |
| Configuration | 4-Compartment |
| Capacity | 150 lb load |
| Material | Wood |
| Finish / colour | Natural Maple / Semi-Gloss |
| Cabinet opening (as printed) | Face frame: 25-3/4 in. H x 8-1/2 in. W x 22-7/8 in. D; Full access: 25-5/8 in. H x 9 in. W x 22-7/8 in. D |
| Intended cabinet | 12 in. full face frame base cabinet |
| Mounting | Floor mount with door-mount hardware |
| Slide type | BLUMOTION soft-close and Servo-Drive |
| Includes | Adjustable shelves with chrome rails, door-mount hardware |
Fit and Compatibility:
Fits 12 in. full face frame base cabinets with the printed 25-3/4 in. H x 8-1/2 in. W x 22-7/8 in. D opening, or 9 in. W full-access (frameless) openings. Servo-Drive opening hardware is used with the slide system; confirm servo components are sourced separately if not included with your slide kit.
Frequently Asked Questions (FAQ):
Q: What comes in the box?
A: The organizer includes adjustable shelves with chrome rails and door-mount hardware; it runs on BLUMOTION soft-close and Servo-Drive slides.
Q: How much weight can it hold?
A: The printed load capacity is 150 lb.
Q: Will it work in a frameless cabinet?
A: Yes, the printed full-access opening is 25-5/8 in. H x 9 in. W x 22-7/8 in. D for frameless cabinets.
Q: What does Servo-Drive do?
A: Servo-Drive is an electric opening system that lets you open the pull-out with a light touch or knee press.
Q: How do I size it?
A: Measure your cabinet opening width, depth and height and compare to the printed openings; the unit is made for 12 in. face frame base cabinets.
Q: Do I need special installation for Servo-Drive?
A: The Servo-Drive system requires mounting its drive units per that system's instructions; the organizer itself floor-mounts with door-mount hardware included.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
This is the version of the 448 line to specify when the client wants touch-to-open function; the deep 22-7/8 in. opening requirement is slightly greater than the standard 448, so verify depth before ordering, especially in frameless boxes where drawer fronts reduce interior depth. The 150 lb rating comfortably handles cast iron and small appliances. Always level the base before attaching the door panel to keep reveals consistent.
Disconnect power before installing or servicing Servo-Drive components and confirm the unit is fully secured before loading to its 150 lb rating.
Add the Rev-A-Shelf 448 BLUMOTION and Servo-Drive pull-out organizer for hands-free, soft-close base cabinet storage.
