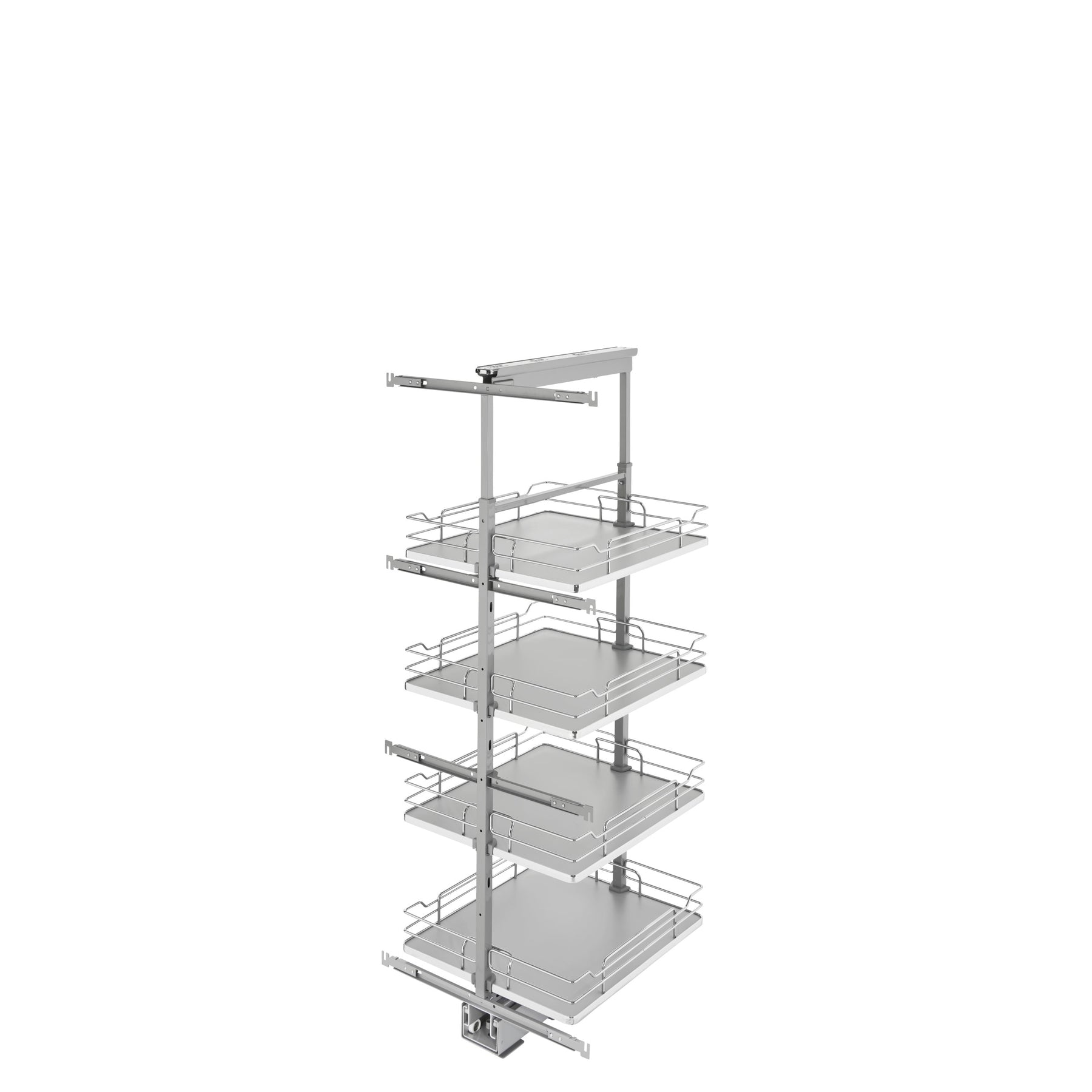

4-tier soft-close pull-out pantry organizer

Maximize pantry space with Rev-A-Shelf’s heavy-duty, cabinet-mounted pull-out organizer. Four gray solid-bottom baskets glide on full-extension soft-close slides for smooth, quiet access and adjustable positioning to fit tall items.

---

Key Features:

• Heavy-Duty Construction: Metal frame with gray solid-bottom baskets designed for durability

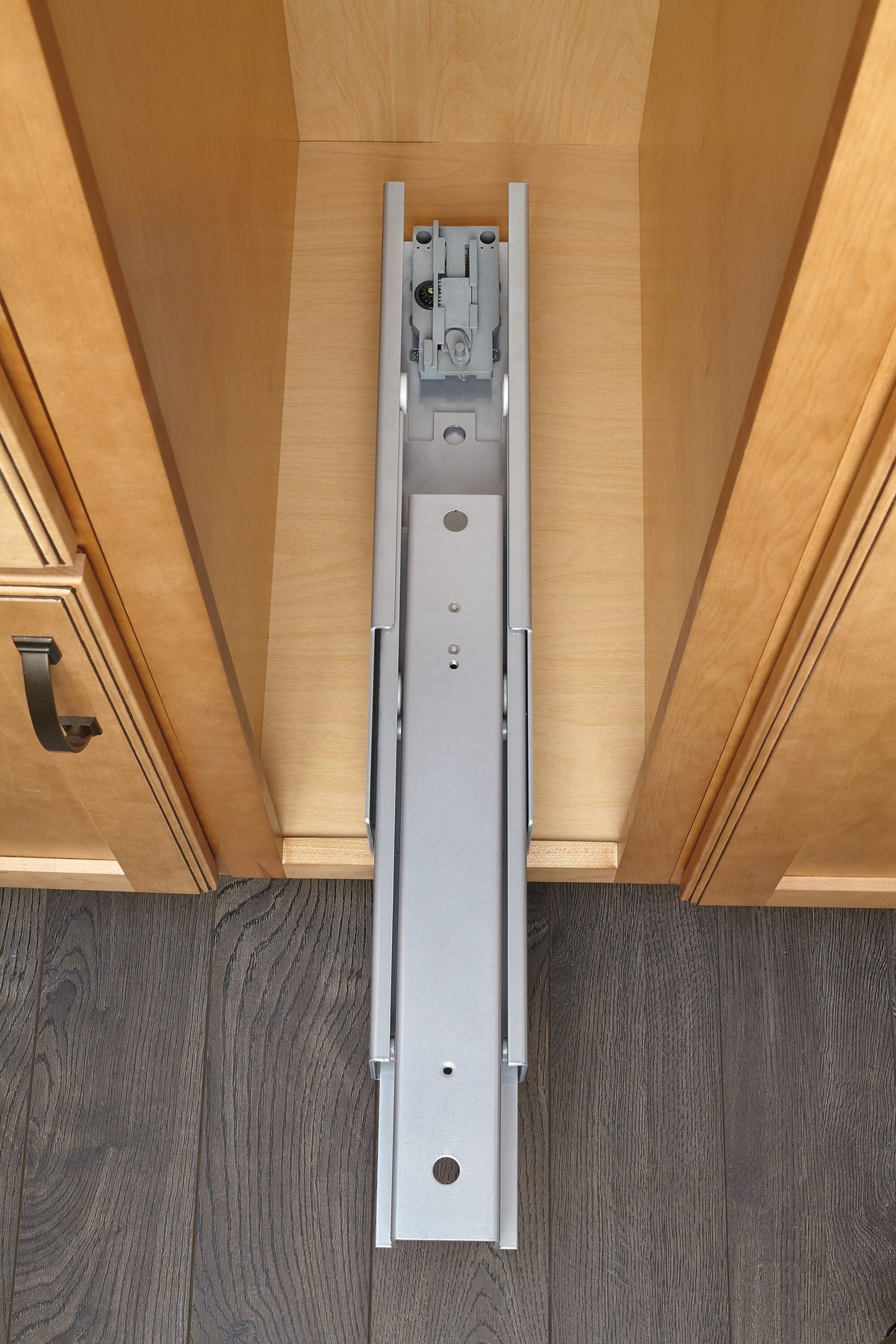

• Soft-Close, Full-Extension Slides: Smooth operation with easy access to all contents
• Adjustable Height & Basket Positioning: Frame height adjusts; optional extenders available
• Generous Capacity: Designed for 19.5–24-in cabinet openings; up to 350 lbs weight capacity

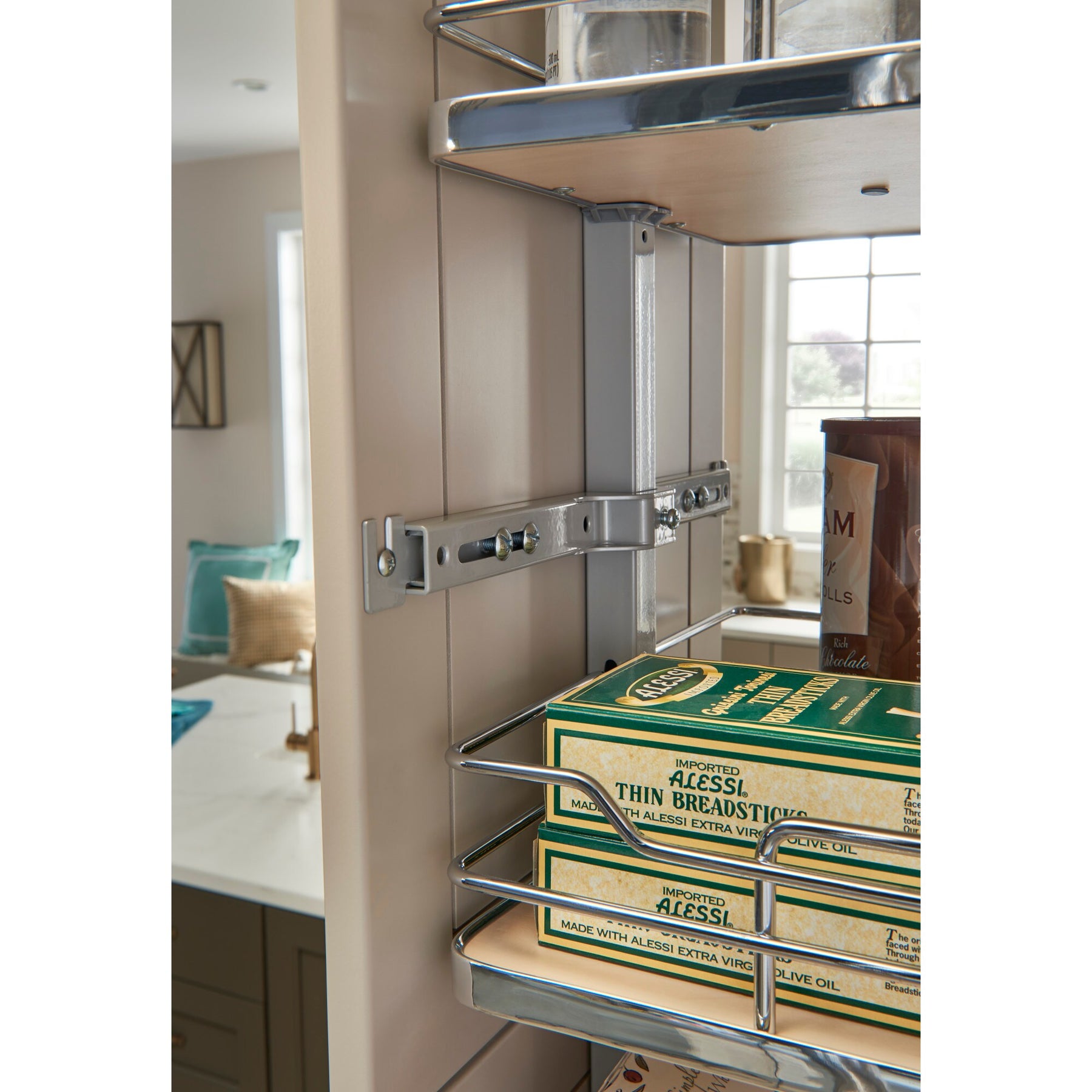

• Complete Kit: Includes frame, four baskets, slide system, door-mount brackets, and hardware

---

Specifications Table:

Specification	Details
Type	Sliding shelf kit
Color/Finish Family	Multiple colors/finishes
Manufacturer Color/Finish	Gray
Actual Width (Inches)	19.25
Actual Height (Inches)	50.75
Actual Depth (Inches)	21.69
Size (W x D x H)	19-in x 22-in x 51-in
Minimum Cabinet Width (Inches)	19.5
Minimum Cabinet Height (Inches)	52.25
Minimum Cabinet Depth (Inches)	21.75
Number of Tiers	4
Access Method	Pull-out
Installation Type	Cabinet-mount
Material	Metal
Soft Close	Yes
Drawer Glides Type	Side (full extension)
Drawer Glides Material	Metal
Weight Capacity (lbs.)	350
Assembly Required	Yes
Cabinet Type	Pantry
Blind Corner	No
For Use with Pots and Pans	Yes
For Use with Small Appliances	Yes
For Use with Spices	Yes
For Use with Bakeware	Yes
For Use with Cleaning Supplies	No
For Use with Cutting Boards	No
For Use with Files	No
For Use with Plastic Bags	No
For Use with Stemware	No
Package Contents	(4) Gray solid-bottom baskets, (1) frame, slide system, (2) door mount brackets, hardware
Package Quantity	1
Warranty	Limited lifetime
UNSPSC	30162300
Basket Dimensions	19 in W x 2.81 in D x 3.6 in H
Adjustable Frame Height	5-3/4 in to 58-1/4 in
Designed Cabinet Opening	19-1/2 in to 24 in
Series	Rev-A-Shelf 5300 Pullout Pantry Series

---

Frequently Asked Questions (FAQ):

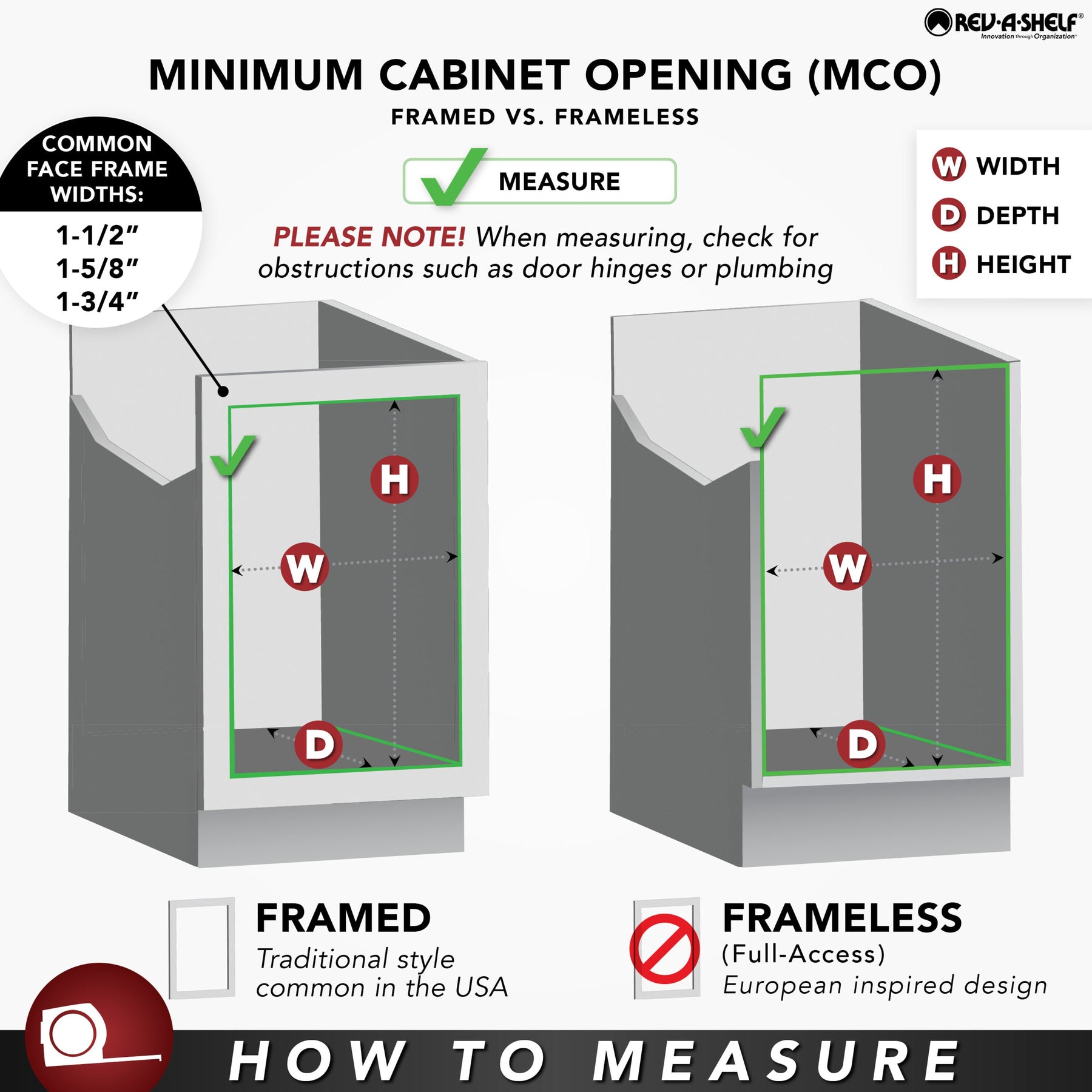

Q: What cabinet size is required?
A: Fits cabinet openings from 19.5 in to 24 in with minimum cabinet dimensions of approximately 21.75 in depth and 52.25 in height.

---

Q: Does it have soft-close?
A: Yes, the organizer features full-extension soft-close slides.

---

Q: Is installation DIY-friendly?
A: Professional installation is recommended; kit includes hardware and door-mount brackets.

---

Q: Can the basket positions be changed?
A: Yes, basket locations are adjustable and optional extender brackets can raise the top basket further.

---

Q: What is the weight capacity?
A: Up to 350 lbs overall capacity per manufacturer specifications.

---

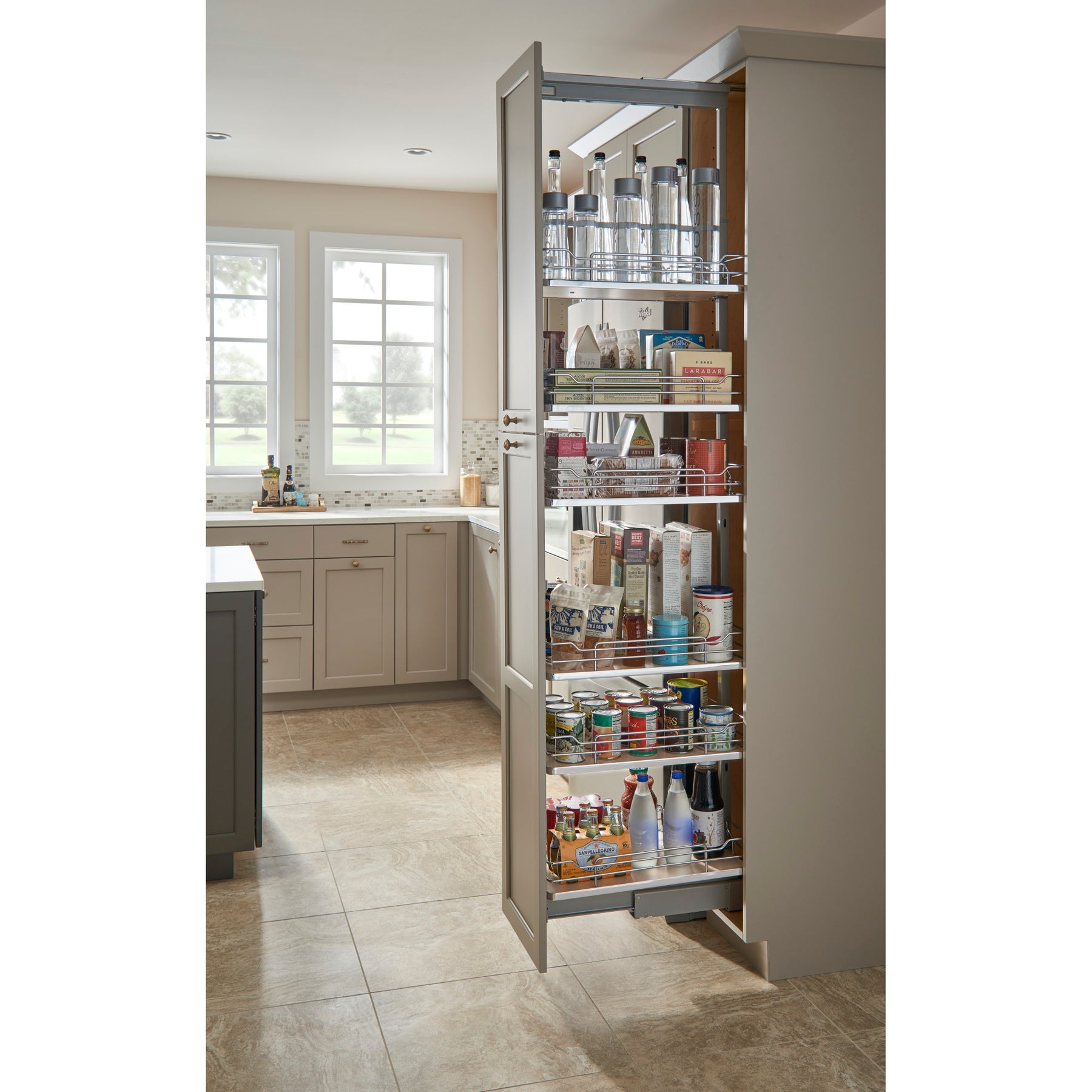

A Sleek, Built-In Pantry That Elevates Everyday Storage

This pull-out organizer brings a refined, architectural presence to the kitchen, turning a tall cabinet into a gallery of neatly displayed essentials. The gray, solid-bottom trays feel tailored and modern, gliding out with a whisper-soft close. Style it with clear canisters and labeled baskets to create a calm, curated pantry moment. It’s a subtle luxury that delivers order and elegance in equal measure.

---

Upgrade your pantry with smooth, soft-close access and streamlined organization—add this Rev-A-Shelf pull-out today.
