5-tier soft-close pull-out pantry organizer

Maximize pantry storage with Rev-A-Shelf’s heavy-duty, 5-tier pull-out organizer. Designed for 13.5–18 in cabinet openings, it features gray solid-bottom baskets on full-extension, soft-close slides for smooth, quiet access.

---

Key Features:

• Heavy-Duty Construction: Metal frame with gray solid-bottom baskets built for daily use

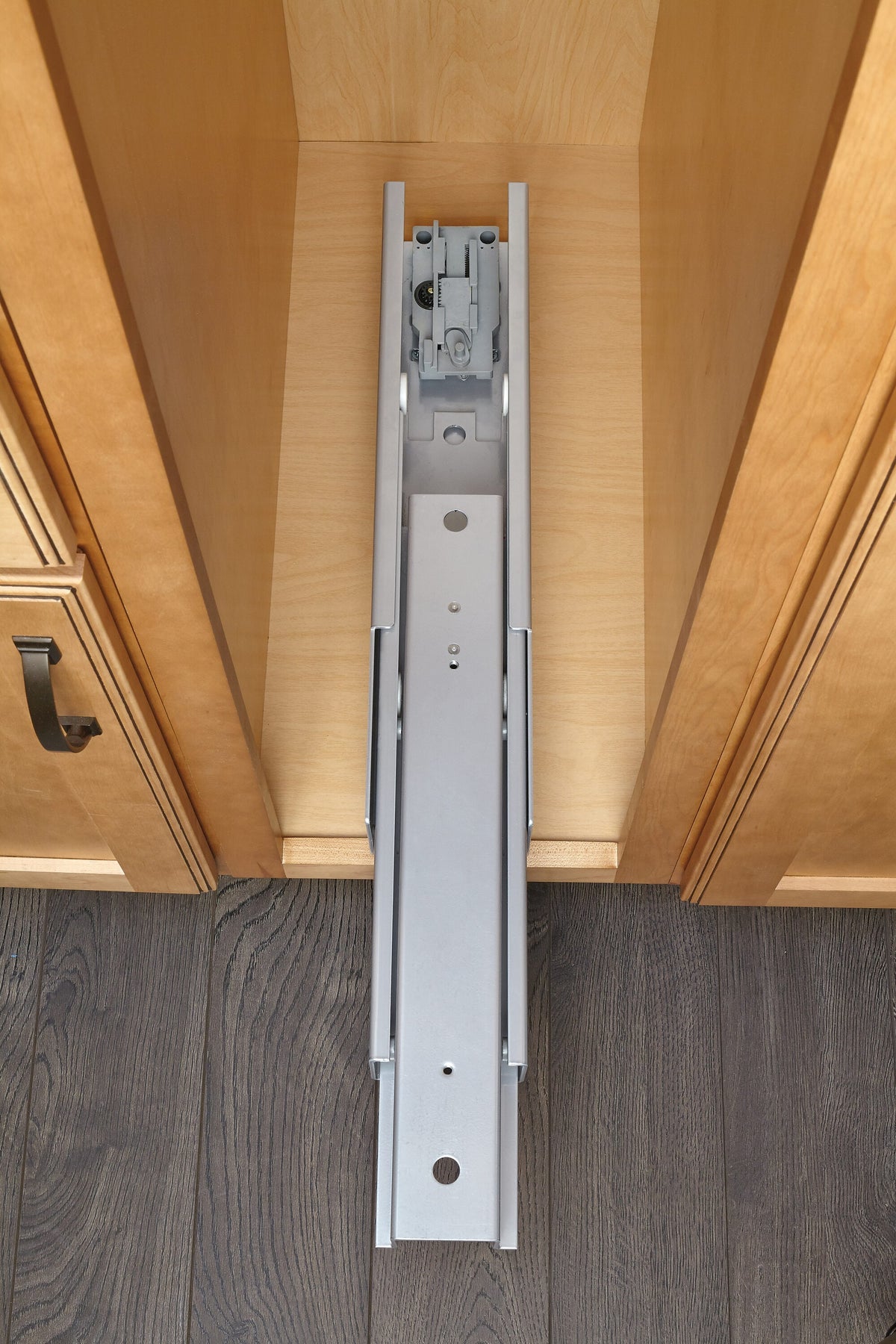

• Soft-Close, Full Extension: Smooth slide system brings all tiers fully into reach and closes quietly
• Adjustable Height: Frame adjusts from 58-1/4 in to 65-3/4 in to fit tall pantry cabinets
• High Capacity: Rated up to 350 lb to hold cans, bottles, and small appliances

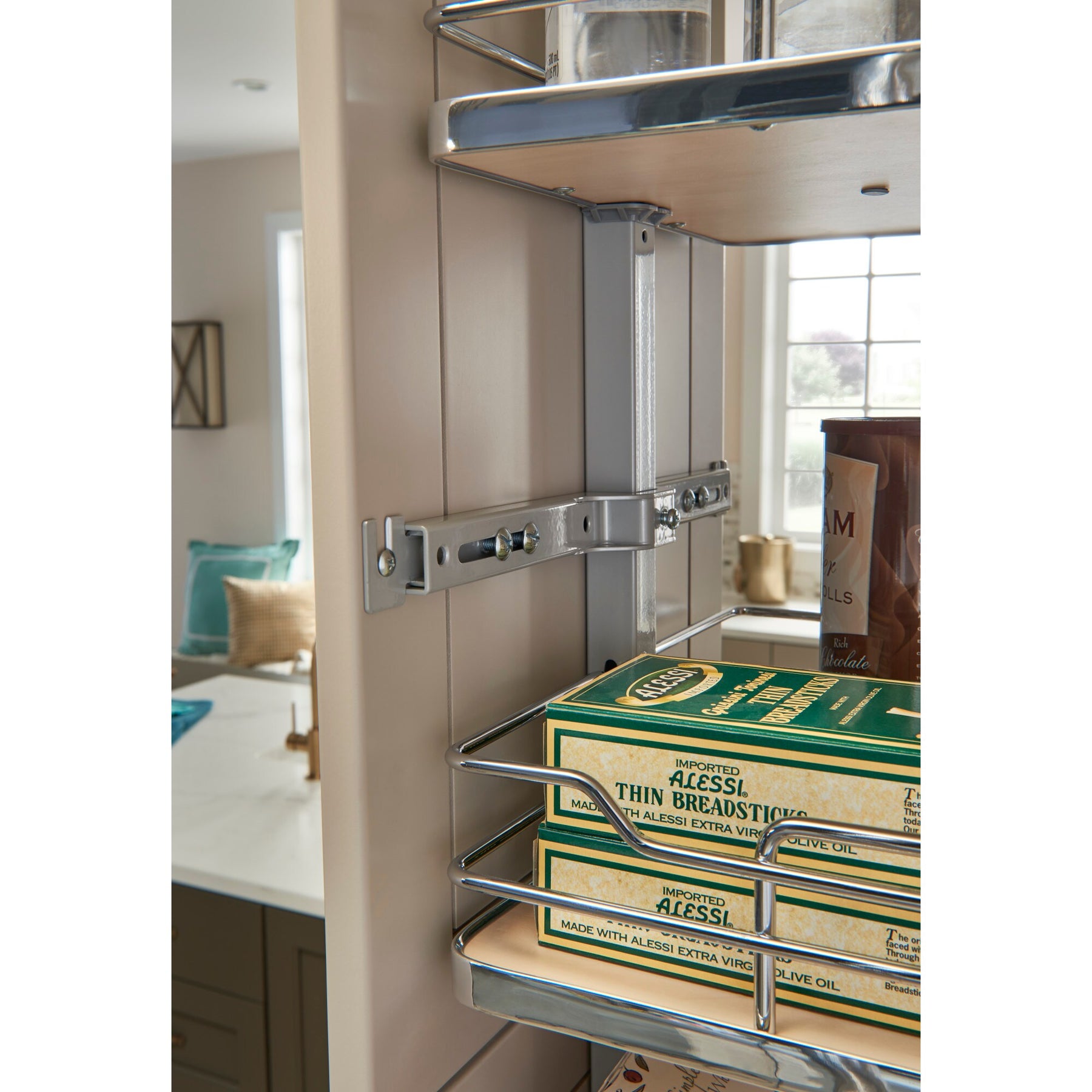

• Door-Mount Ready: Includes door-mount brackets and hardware for integrated, clean installation

---

Specifications Table:

Specification	Details
Type	Sliding shelf kit / Pull-out pantry organizer
Color/Finish	Gray
Material	Metal
Number of Tiers	5
Actual Width (Inches)	13.25
Actual Height (Inches)	58.25
Actual Depth (Inches)	21.68
Minimum Cabinet Width (Inches)	13.5
Minimum Cabinet Height (Inches)	59.75
Minimum Cabinet Depth (Inches)	21.75
Access Method	Pull-out
Assembly Required	Yes
Cabinet Type	Pantry
Soft Close	Yes
Drawer Glides Type	Side (full extension)
Drawer Glides Material	Metal
Weight Capacity (lbs.)	350
Basket Dimensions (W x D x H)	13 in W x 2.81 in D x 3.6 in H
Adjustable Frame Height	58-1/4 in to 65-3/4 in
Package Contents	(5) Gray solid-bottom baskets, (1) frame, (1) 200 lb slide system, (2) door-mount brackets, hardware
Installation Type	Cabinet-mount
Warranty	Limited lifetime
Sub-Brand	5300 Series
UNSPSC	30162300

---

Frequently Asked Questions (FAQ):

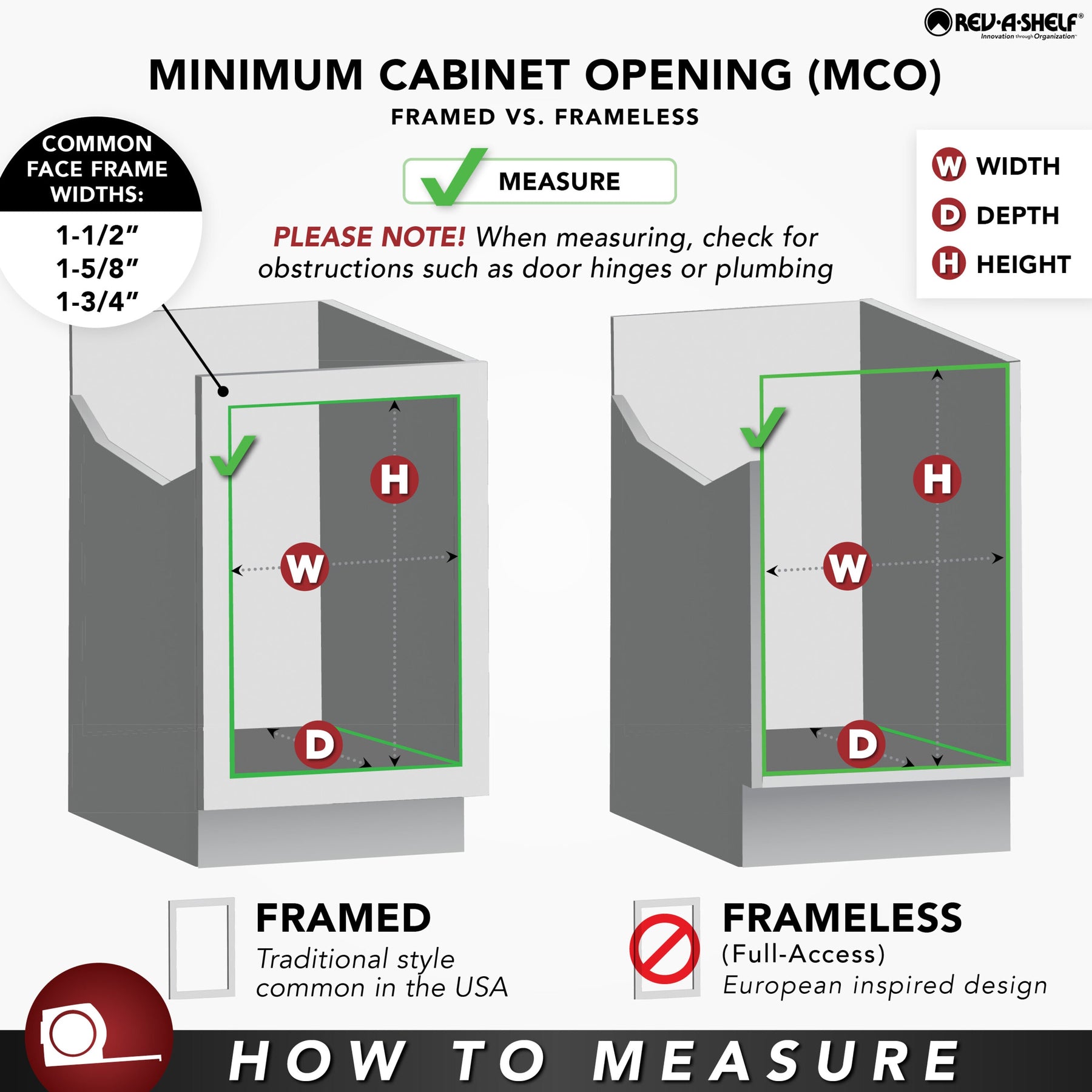

Q: What cabinet opening size is required?
A: Fits cabinet openings from 13-1/2 in to 18 in; minimum cabinet depth 21.75 in and height 59.75 in.

---

Q: What’s included in the kit?
A: Five gray solid-bottom baskets, frame, 200 lb soft-close slide system, two door-mount brackets, and installation hardware.

---

Q: Can the basket positions be adjusted?
A: Yes, the frame and baskets are adjustable; optional extender brackets (57-EXTEND-1) can raise the top basket further (sold separately).

---

Q: Is professional installation needed?
A: Professional installation is recommended due to size and alignment requirements.

---

Q: What is the weight capacity?
A: Overall capacity up to 350 lb; slide system rated at 200–250 lb depending on configuration.

---

A Sleek, Full-Access Pantry That Puts Everything on Display

This tall, streamlined organizer turns your pantry into a showcase of order and elegance. The gray, solid-bottom baskets and polished rails feel architectural, creating clean vertical lines and effortless movement. Style it with clear canisters and labeled bins for a curated, boutique-grocery vibe. It’s a refined essential that elevates everyday rituals into a luxurious experience.

---

Transform your pantry with smooth, soft-close access and high-capacity organization—add this Rev-A-Shelf pull-out today.
