RELIABILT 150 Series New Construction 35-1/2-in x 51-1/2-in x 3-1/4-in Jamb White Vinyl Dual-pane Single Hung Window Half Screen Included
Regular price $190.16/
Shipping calculated at checkout.

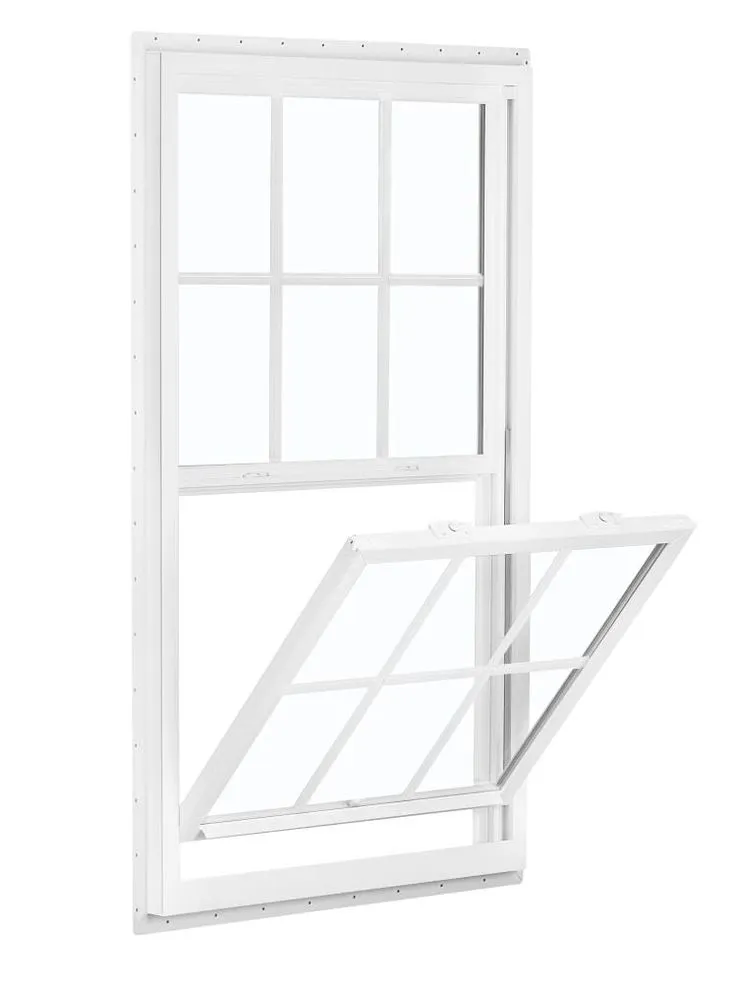

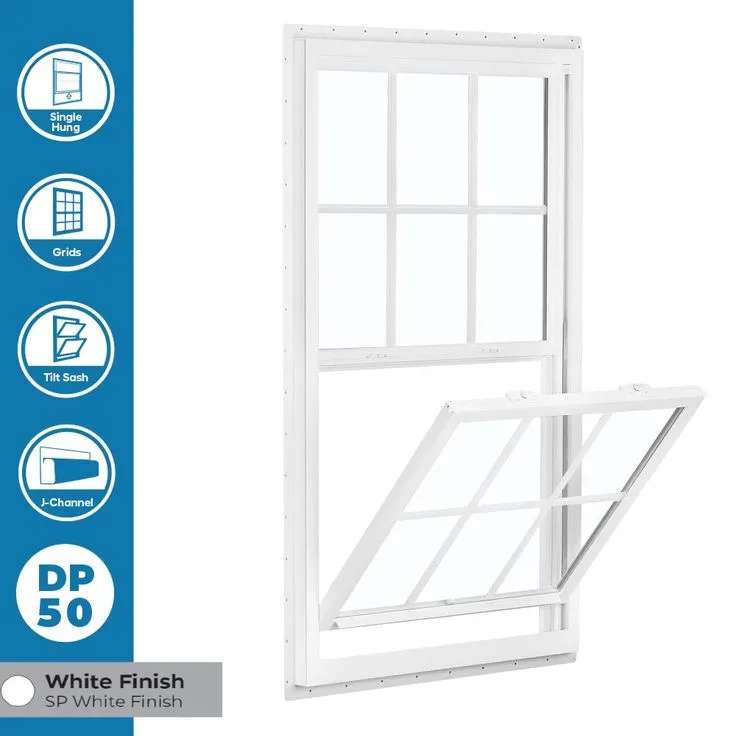

The RELIABILT 150 Series New Construction Single Hung Window is a top-selling choice, featuring a brick mould exterior that complements any home's style. Designed for both new construction and remodeling projects, this window is easy to install with a pre-punched nail fin and included J-channel (can also be purchased without J-channel in the Series 160 option). The bottom sash has a tilting feature for simple operation and is equipped with an integrated lift rail and block and tackle balance system. With a DP-50 rating, this window can withstand strong winds and pressure. It also includes energy-efficient Low-E glass which reflects heat during the summer and keeps warmth inside during the winter. Available in white with a half screen included, this window offers options for additional sizes, factory mulling, glass, wood jamb extensions, grids, and colors.
| Specification | Details |
|---|---|
| Color/Finish Family | White |
| Interior Color/Finish | White |
| Exterior Color/Finish | White |
| Series Name | 150 Series |
| Hardware Color/Finish | White |
| Dimensions | |

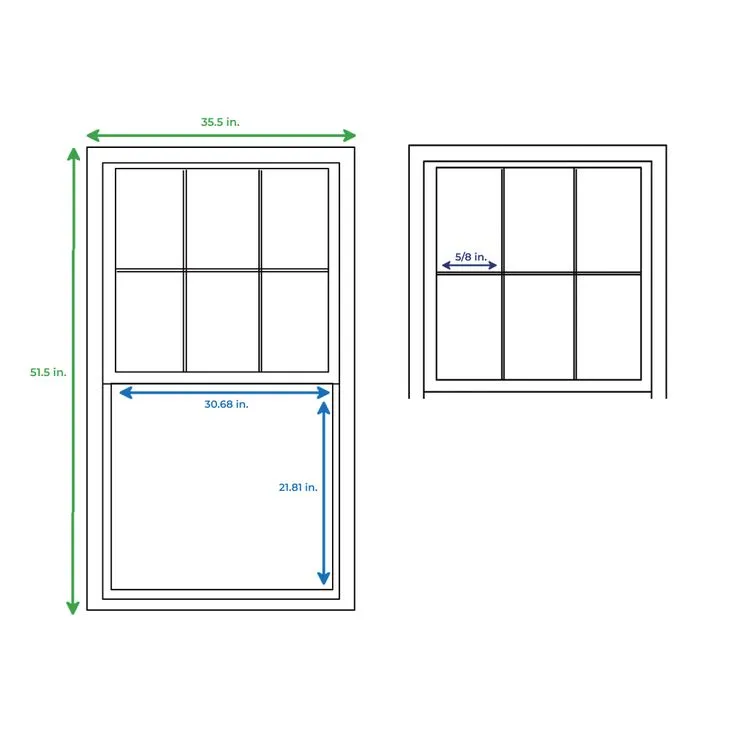

| Actual Height (Inches) | 51.5 |
| Jamb Depth (Inches) | 3.25 |
| Actual Size (W x H) | 35-1/2-in x 51-1/2-in |
| Jamb Depth Measurement | 3-1/4-in |
| Actual Width (Inches) | 35.5 |
| Overfit Flange Size | N/A |
| Clear Opening Height (Inches) | 21.8125 |
| Rough Opening Height (Inches) | 52.0 |
| Clear Opening Size (W x H) | 21-13/16-in x 30-11/16-in |
| Rough Opening Size (W x H) | 36-in x 52-in |
| Clear Opening Width (Inches) | 30.6875 |
| Rough Opening Width (Inches) | 36.0 |
| Common Size (W x H) | 36-in x 52-in |
| TTT Flange Size | N/A |
| Grid Width | N/A |
| Weight (lbs.) | 40 |
| Features | |
| Argon Gas Insulated | No |
| J Channel | Integrated |
| Balance System | Block and tackle |
| Lock Type | Cam |
| Clear Opening Sq Ft | 4.65 |
| Design Pressure (DP) Rating | 50 |
| Mulling | N/A |
| For Use with Mobile Homes | No |
| Nail Fin | Integrated |
| Frame Material | Vinyl |
| Number of Locks | 2 |
| Frame Profile | Brick mould |
| Obscure Glass | No |
| Glass Insulation | Dual-pane |
| Paintable | No |
| Glass Strength | Single strength |
| Project Type | New construction |
| Glazing Type | Double pane |
| Screen Frame Type | Roll-form |
| Grid Included | No |
| Screen Included | Half |
| Grid Pattern | N/A |
| Screen Type | Fiberglass mesh |
| Grid Profile | N/A |
| Solar Heat Gain Coefficient (SHGC) | 0.29 |
| Grid Type | N/A |
| Tilt Mechanism | Flush |
| High Altitude Rated | No |
| Tilting | Yes |
| Impact Resistant | No |
| Ventilation Latches | N/A |
| Insect Screen Included | Yes |
| Wood Jamb Extension | None |
| Warranty | |
| Warranty | Limited lifetime |
