RELIABILT 150 Series New Construction 35-1/2-in x 47-1/2-in x 3-1/4-in Jamb White Vinyl Low-e Argon Single Hung Window with Grids Half Screen Included
Regular price $221.34/
Shipping calculated at checkout.

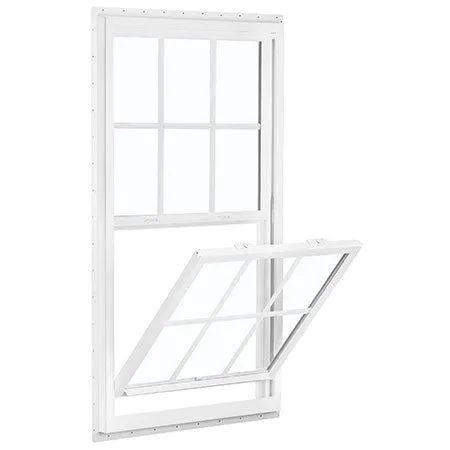

The RELIABILT 150 Series New Construction 35-1/2-in x 47-1/2-in x 3-1/4-in Jamb White Vinyl Low-e Argon Single Hung Window with Grids Half Screen Included is a popular choice for both new construction and remodeling projects. Its brick mould exterior adds to the aesthetic of any home, while the pre-punched, integrated nail fin and J-channel (optional for Series 160) make for easy installation. The bottom sash tilts in and operates smoothly with an integrated lift rail and block and tackle balance system. This window is DP-50 rated and features Low-E glass and Argon insulating gas for enhanced energy efficiency. The 5/8-in contoured grid pattern adds style to your home without the hassle of exterior grids.
| Specification | Details |
|---|---|
| Color/Finish Family | White |
| Interior Color/Finish | White |
| Exterior Color/Finish | White |
| Series Name | 150 Series |
| Hardware Color/Finish | White |
| Dimensions | |
| Actual Height (Inches) | 47.5 |
| Jamb Depth (Inches) | 3.25 |
| Actual Size (W x H) | 35-1/2-in x 47-1/2-in |
| Jamb Depth Measurement | 3-1/4-in |
| Actual Width (Inches) | 35.5 |
| Overfit Flange Size | N/A |
| Clear Opening Height (Inches) | 18.8125 |
| Rough Opening Height (Inches) | 48.0 |
| Clear Opening Size (W x H) | 18-13/16-in x 30-11/16-in |
| Rough Opening Size (W x H) | 36-in x 48-in |
| Clear Opening Width (Inches) | 30.6875 |
| Rough Opening Width (Inches) | 36.0 |
| Common Size (W x H) | 36-in x 48-in |
| TTT Flange Size | N/A |
| Grid Width | 5/8-in |
| Weight (lbs.) | 38 |
| Features | |
| Argon Gas Insulated | Yes |
| J Channel | Integrated |
| Balance System | Block and tackle |
| Lock Type | Cam |
| Clear Opening Sq Ft | 4.01 |
| Design Pressure (DP) Rating | 50 |
| Mulling | N/A |
| For Use with Mobile Homes | No |
| Nail Fin | Integrated |
| Frame Material | Vinyl |
| Number of Locks | 2 |
| Frame Profile | Brick mould |
| Obscure Glass | No |
| Glass Insulation | Low-E argon |
| Paintable | No |
| Glass Strength | Single strength |
| Project Type | New construction |
| Glazing Type | Double pane |
| Screen Frame Type | Roll-form |
| Grid Included | Yes |
| Screen Included | Half |
| Grid Pattern | 1hx2v |
| Screen Type | Fiberglass mesh |
| Grid Profile | Contoured |
| Solar Heat Gain Coefficient | 0.2 |
| Grid Type | Between the glass |
| Tilt Mechanism | Flush |
| High Altitude Rated | No |
| Tilting | Yes |
| Impact Resistant | No |
| Ventilation Latches | N/A |
| Insect Screen Included | Yes |
| Wood Jamb Extension | None |
| Warranty | |
| Warranty | Limited lifetime |
