RELIABILT 150 Series New Construction 35-1/2-in x 35-1/2-in x 3-1/4-in Jamb White Vinyl Low-e Argon Single Hung Window with Grids Half Screen Included
Regular price $202.74/
Shipping calculated at checkout.

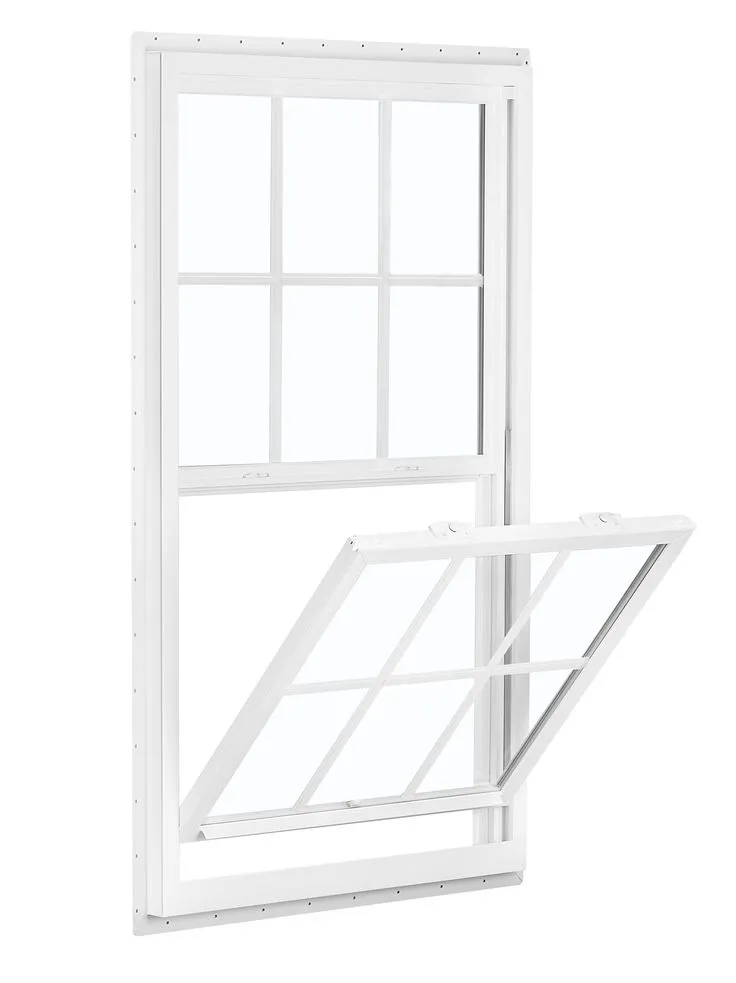

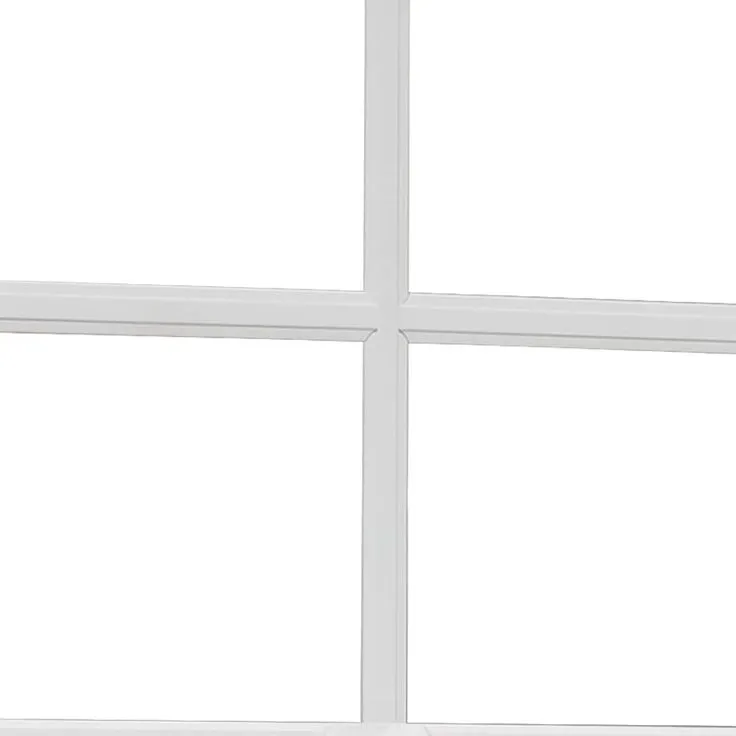

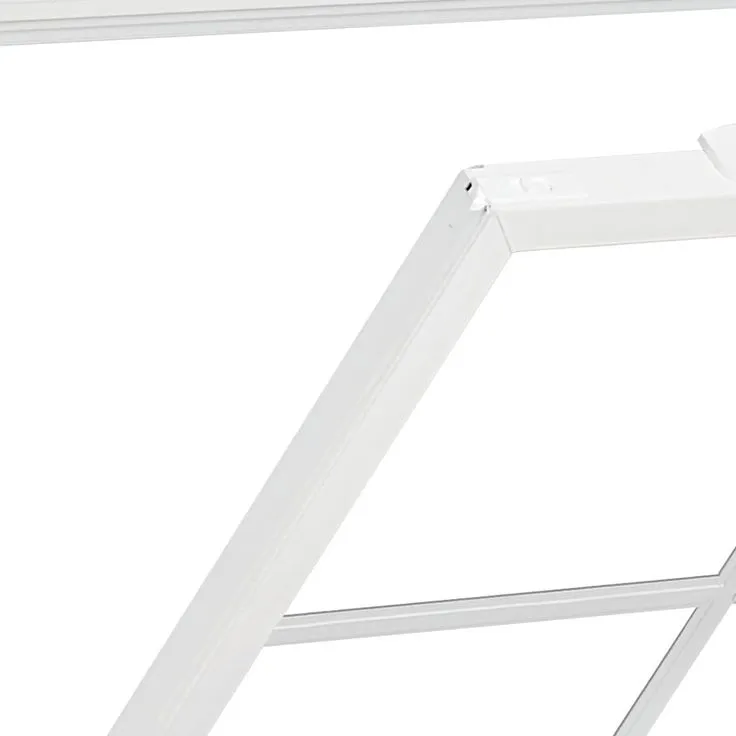

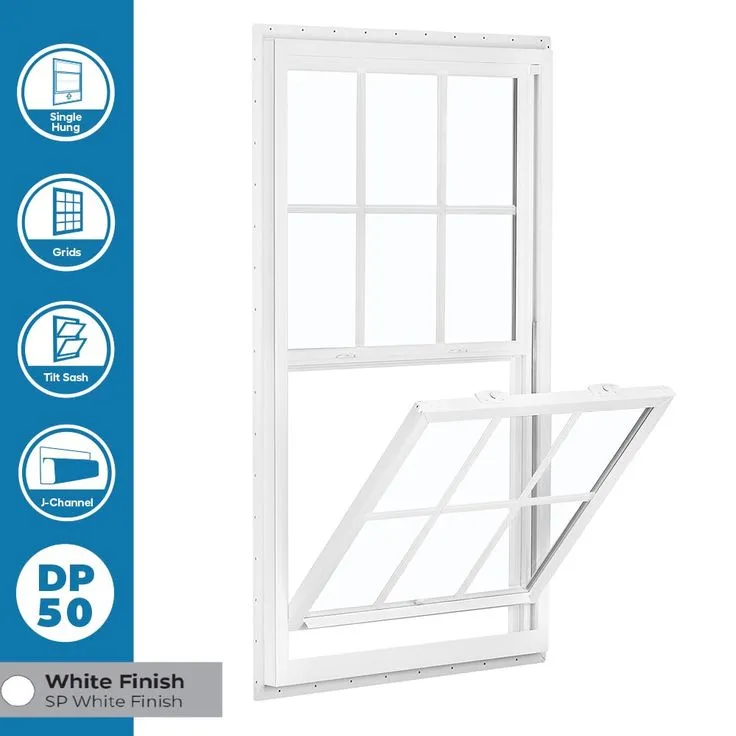

The RELIABILT 150 Series New Construction Single Hung Window is a popular choice, featuring a brick mould exterior that complements any style of home. It can easily be installed for both new construction and remodeling applications, thanks to its pre-punched, integrated nail fin and J-channel (or the option to exclude the J-channel). The bottom sash has a tilt-in feature and operates smoothly with a full-length, slim-line lift rail and block and tackle balance system. With a DP-50 rating (Design Pressure rating) for windows up to 36-in W x 74-in H, this window offers excellent durability. It also features Low-E glass and Argon insulating gas for increased thermal efficiency (ENERGY STAR qualifications may not apply in all zones; refer to each window's U-Value and SHGC value for specific details). The 5/8-in contoured grid pattern inside the glass panes adds style to your home without the hassle of cleaning grids on the outside.
| Specification | Details |
|---|---|
| Color/Finish Family | White |
| Interior Color/Finish | White |
| Exterior Color/Finish | White |
| Series Name | 150 Series |
| Hardware Color/Finish | White |
| Dimensions | |
| Actual Height (Inches) | 35.5 |
| Grid Width | 5/8-in |

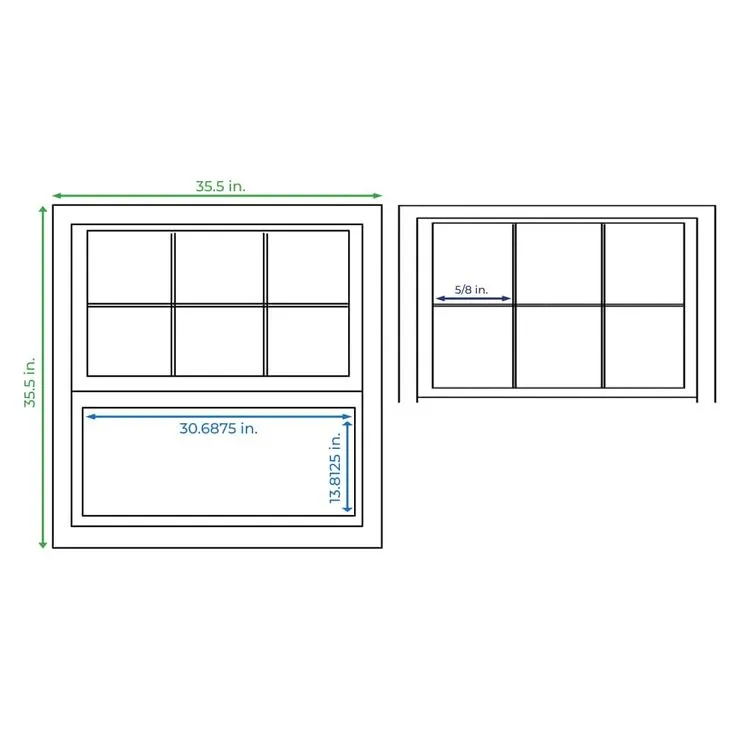

| Actual Size (W x H) | 35-1/2-in x 35-1/2-in |
| Jamb Depth (Inches) | 3.25 |
| Actual Width (Inches) | 35.5 |
| Jamb Depth Measurement | 3-1/4-in |
| Clear Opening Height (Inches) | 13.8125 |
| Rough Opening Height (Inches) | 36.0 |
| Clear Opening Size (W x H) | 13-13/16-in x 30-11/16-in |
| Rough Opening Size (W x H) | 36-in x 36-in |
| Clear Opening Width (Inches) | 30.6875 |
| Rough Opening Width (Inches) | 36.0 |
| Common Size (W x H) | 36-in x 36-in |
| Weight | 33 |
| Features | |
| Argon Gas Insulated | Yes |
| J Channel | Integrated |
| Balance System | Block and tackle |
| Lock Type | Cam |
| Clear Opening Sq Ft | 2.94 |
| Design Pressure (DP) Rating | 50 |
| Mulling | N/A |
| For Use with Mobile Homes | No |

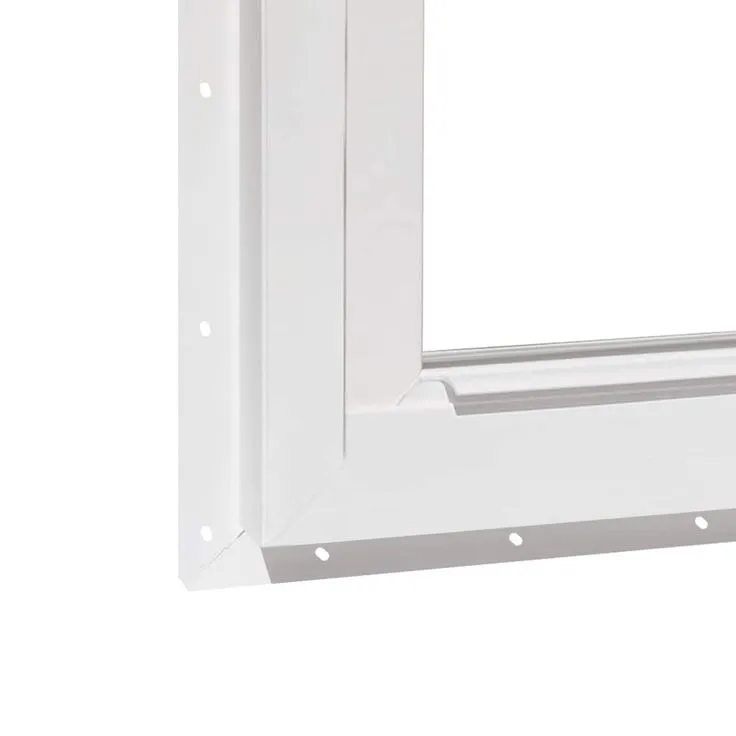

| Nail Fin | Integrated |
| Frame Material | Vinyl |
| Number of Locks | 2 |
| Frame Profile | Brick mould |
| Obscure Glass | No |
| Glass Insulation | Low-E argon |
| Paintable | No |
| Glass Strength | Single strength |
| Project Type | New construction |
| Glazing Type | Double pane |
| Screen Frame Type | Roll-form |
| Grid Included | Yes |
| Screen Included | Half |
| Grid Pattern | 1hx2v |
| Screen Type | Fiberglass mesh |
| Grid Profile | Contoured |
| Solar Heat Gain Coefficient | 0.2 |
| Grid Type | Between the glass |
| Tilt Mechanism | Flush |
| High Altitude Rated | No |
| Tilting | Yes |
| Impact Resistant | No |
| Ventilation Latches | N/A |
| Insect Screen Included | Yes |
| Wood Jamb Extension | None |
| Warranty | |
| Warranty | Limited lifetime |
