RELIABILT 150 Series New Construction 31-1/2-in x 51-1/2-in x 3-1/4-in Jamb White Vinyl Low-e Argon Single Hung Window with Grids Half Screen Included
Regular price $221.34/
Shipping calculated at checkout.

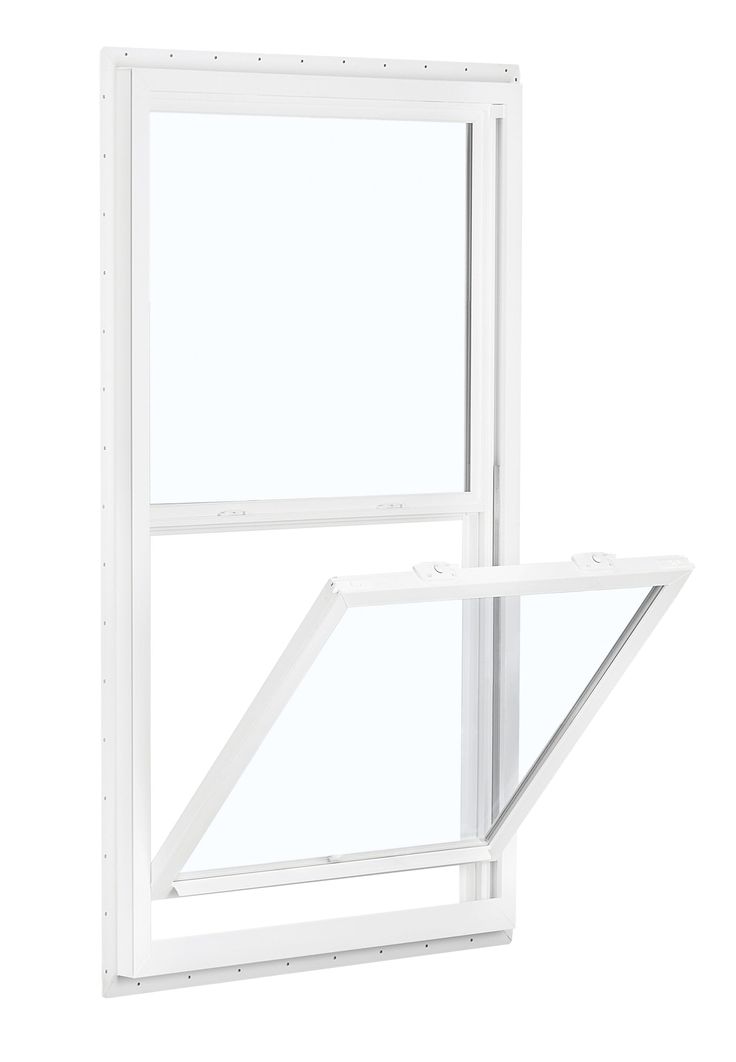

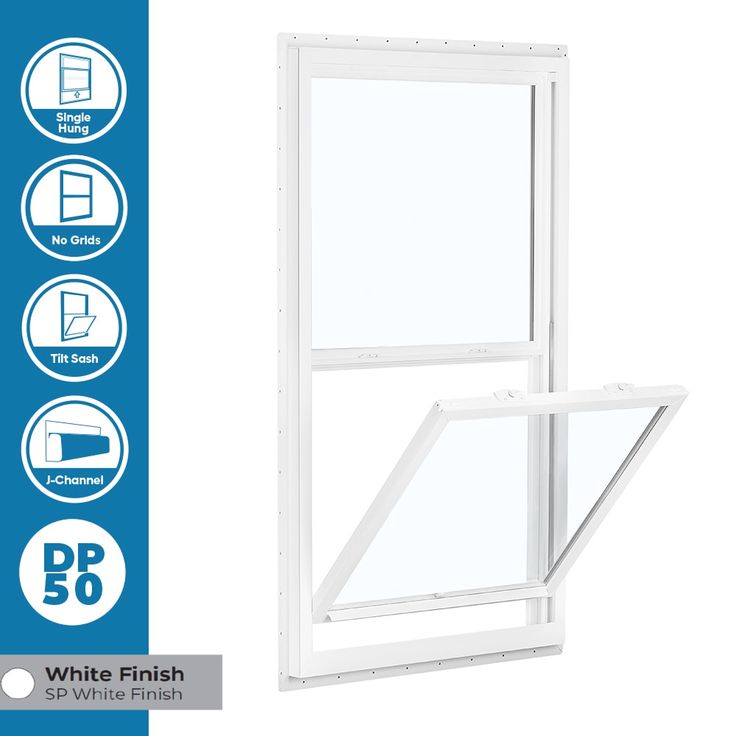

This Series 150 RELIABILT window is a popular choice for new construction and remodeling projects. Featuring a brick mould exterior, it can effortlessly complement any home's style. The window is designed for easy installation using a pre-punched, integrated nail fin and J-channel (Series 160 does not include a J-channel). Its bottom sash tilts and operates smoothly thanks to an integrated full-length slim-line lift rail and block and tackle balance system. With a DP-50 rating, this window offers superior performance. It also includes Low-E glass and Argon insulating gas for improved thermal efficiency. Please note, ENERGY STAR qualifications may vary by zone (refer to each window's U-Value and SHGC value for precise specifications). Finally, this window features a 5/8-inch contoured grid pattern between the glass panes, adding style to your home without the hassle of cleaning grids on the outside.
| Specification | Details |
|---|---|
| Color/Finish Family | White |
| Interior Color/Finish | White |
| Exterior Color/Finish | White |
| Series Name | 150 Series |
| Hardware Color/Finish | White |
| Dimensions | |
| Actual Height (Inches) | 51.5 |
| Jamb Depth (Inches) | 3.25 |

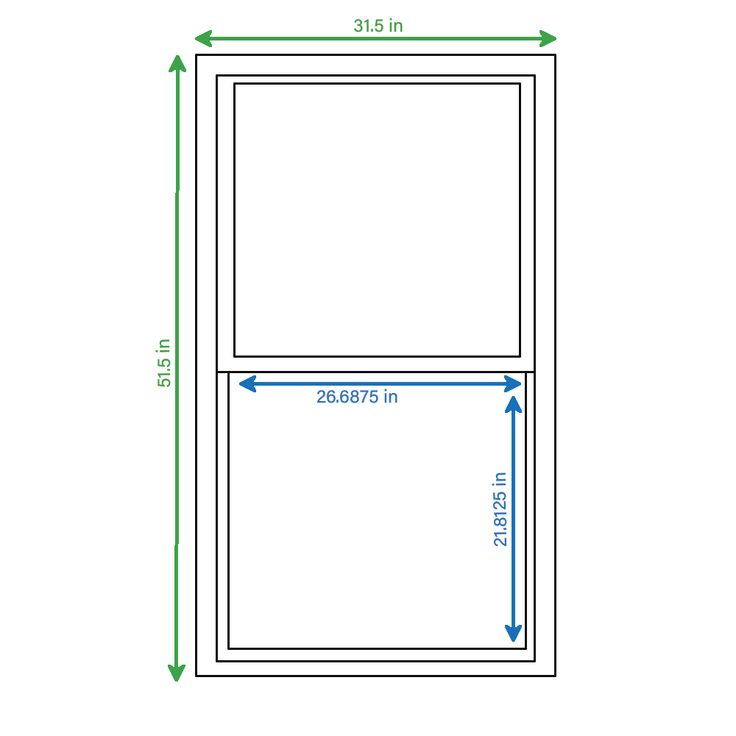

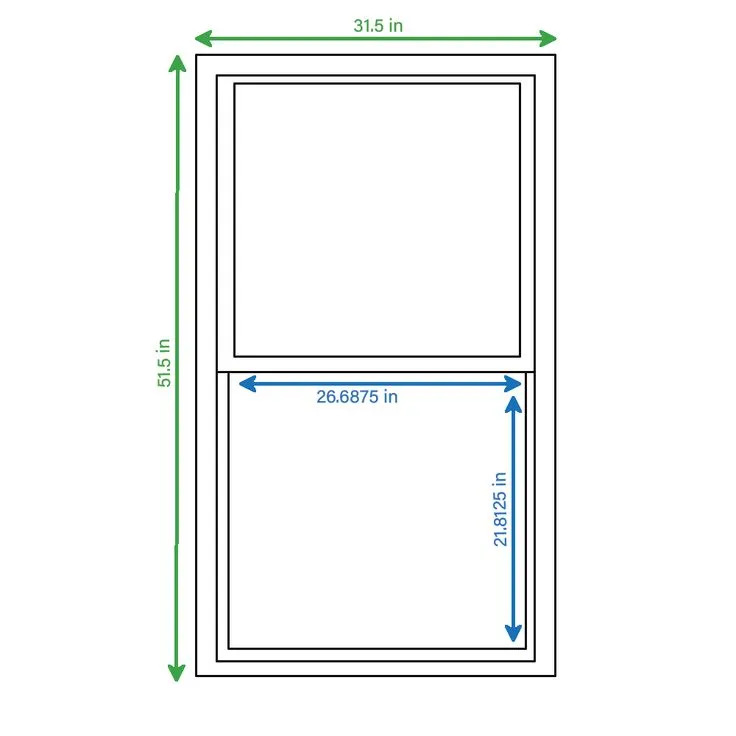

| Actual Size (W x H) | 31-1/2-in x 51-1/2-in |
| Jamb Depth Measurement | 3-1/4-in |
| Actual Width (Inches) | 31.5 |
| Overfit Flange Size | N/A |
| Clear Opening Height (Inches) | 21.8125 |
| Rough Opening Height (Inches) | 52.0 |
| Clear Opening Size (W x H) | 21-13/16-in x 26-11/16-in |
| Rough Opening Size (W x H) | 32-in x 52-in |
| Clear Opening Width | 26.6875 |
| Rough Opening Width (Inches) | 32.0 |
| Common Size (W x H) | 32-in x 52-in |
| TTT Flange Size | N/A |
| Grid Width | 5/8-in |
| Weight | 38 |
| Features | |
| Argon Gas Insulated | Yes |
| J Channel | Integrated |
| Balance System | Block and tackle |
| Lock Type | Cam |
| Clear Opening Sq Ft | 4.04 |
| Design Pressure (DP) Rating | 50 |
| Mulling | N/A |
| For Use with Mobile Homes | No |

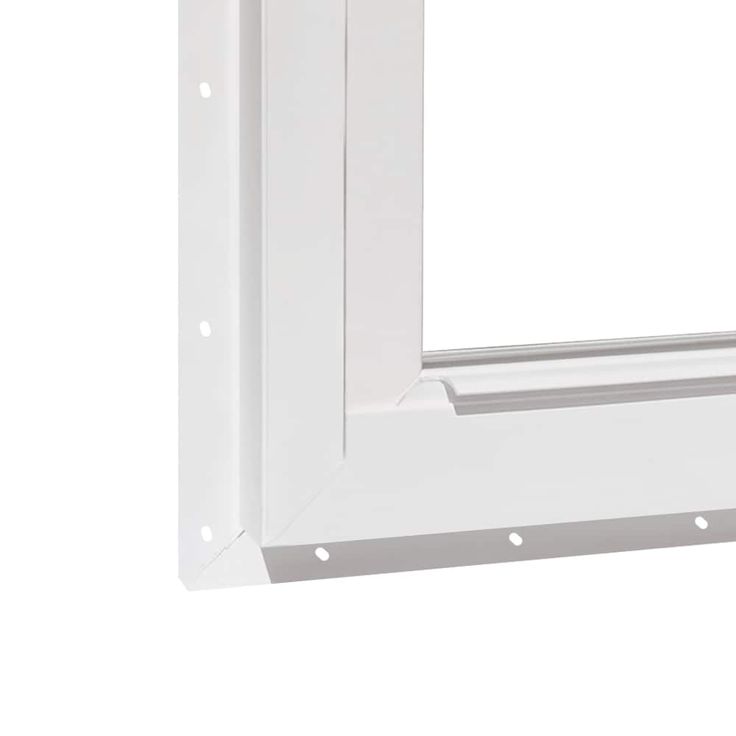

| Nail Fin | Integrated |
| Frame Material | Vinyl |
| Number of Locks | 2 |

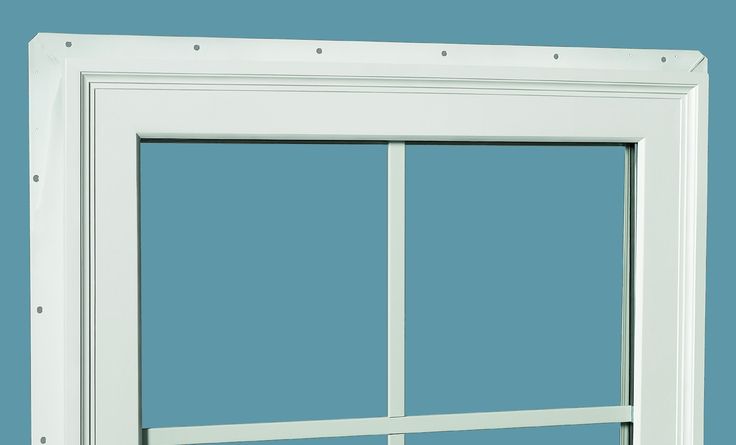

| Frame Profile | Brick mould |
| Obscure Glass | No |
| Glass Insulation | Low-E argon |
| Paintable | No |
| Glass Strength | Single strength |
| Project Type | New construction |
| Glazing Type | Double pane |
| Screen Frame Type | Roll-form |
| Grid Included | Yes |
| Screen Included | Half |

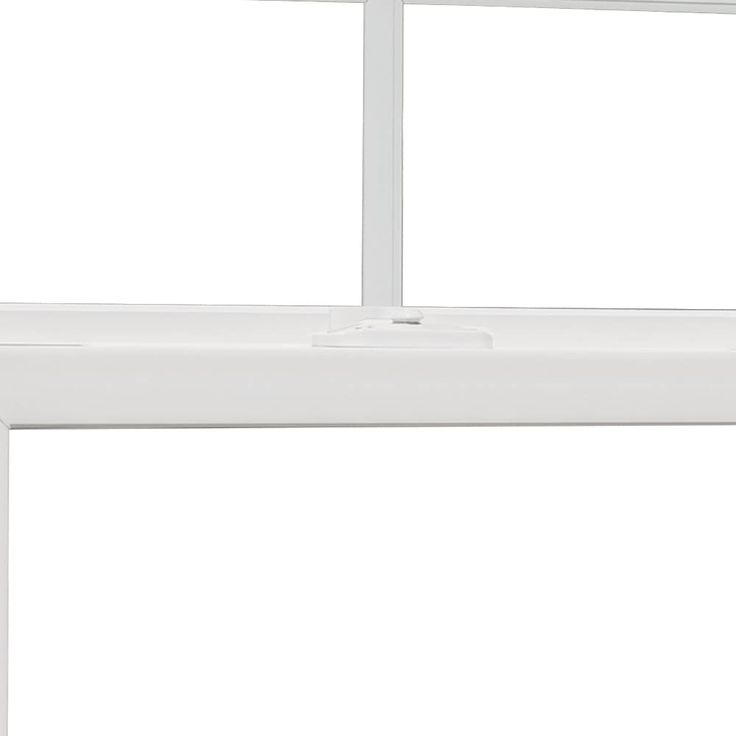

| Grid Pattern | 1hx2v |
| Screen Type | Fiberglass mesh |
| Grid Profile | Contoured |
| Solar Heat Gain Coefficient | 0.2 |
| Grid Type | Between the glass |
| Tilt Mechanism | Flush |
| High Altitude Rated | No |
| Tilting | Yes |
| Impact Resistant | No |
| Ventilation Latches | N/A |
| Insect Screen Included | Yes |
| Wood Jamb Extension | None |
| Warranty | |
| Warranty | Limited lifetime |
