RELIABILT 150 Series New Construction 23-1/2-in x 35-1/2-in x 3-1/4-in Jamb White Vinyl Low-e Argon Single Hung Window with Grids Half Screen Included

$165.54

/
Shipping calculated at checkout.

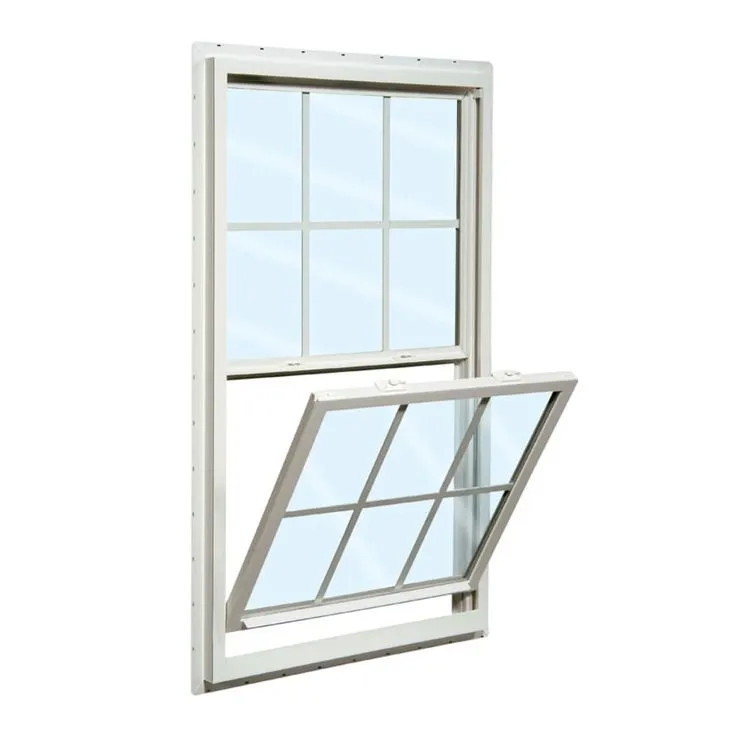

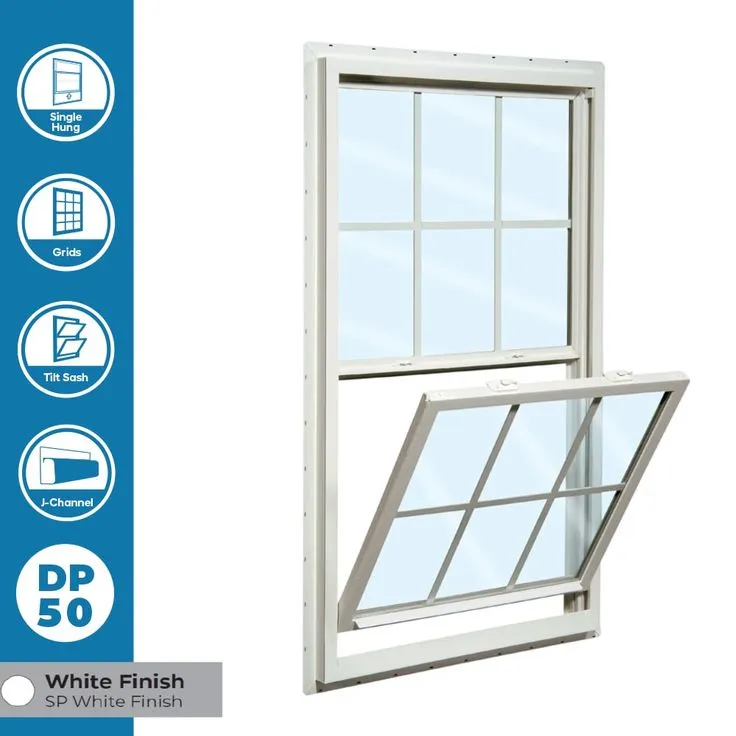

This Series 150 RELIABILT new construction single hung window is a popular choice among homeowners due to its brick mould exterior that complements any home's style. It is designed for both new construction and remodeling projects and can be easily installed with a pre-punched, integrated nail fin and J-channel included (Series 160 also available without J-channel). The bottom sash features a tilt-in design and operates smoothly with an integrated, full-length, slim-line lift rail and a block and tackle balance system. With a DP-50 (Design Pressure) rating, this window is suitable for windows up to 36-in W x 74-in H. Its energy-efficient Low-E glass helps reflect the sun's heat away from your home during the warmer months and retains warmth inside during the colder months. The window also boasts a 5/8-in contoured grid pattern between the glass panes, adding style to your home without the extra cleaning hassle of exterior grids.

Specification Details
Color/Finish Family White
Interior Color/Finish White
Exterior Color/Finish White
Series Name 150 Series
Hardware Color/Finish White
Dimensions
Actual Height (Inches) 35.5
Jamb Depth (Inches) 3.25

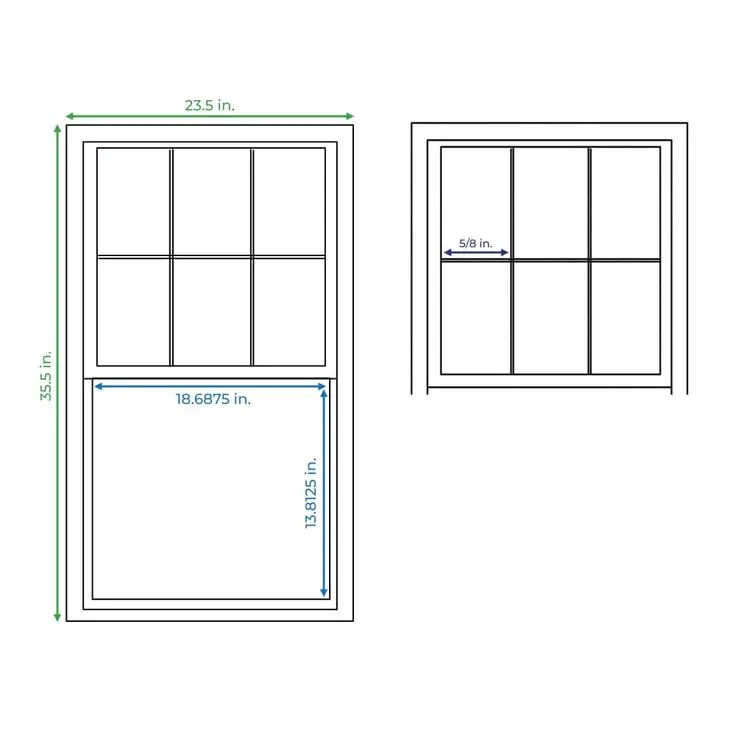

Actual Size (W x H) 23-1/2-in x 35-1/2-in
Jamb Depth Measurement 3-1/4-in
Actual Width (Inches) 23.5
Overfit Flange Size N/A
Clear Opening Height (Inches) 13.8125
Rough Opening Height (Inches) 36.0
Clear Opening Size (W x H) 13-13/16-in x 18-11/16-in
Rough Opening Size (W x H) 24-in x 36-in
Clear Opening Width (Inches) 18.6875
Rough Opening Width (Inches) 24.0
Common Size (W x H) 24-in x 36-in
TTT Flange Size N/A
Grid Width 5/8-in
Weight 42
Features
Argon Gas Insulated Yes
Lock Type Cam
Balance System Block and tackle
Clear Opening Sq Ft 1.79
Meets Title 24 No
Design Pressure (DP) Rating 50
Mulling N/A
For Use with Mobile Homes No

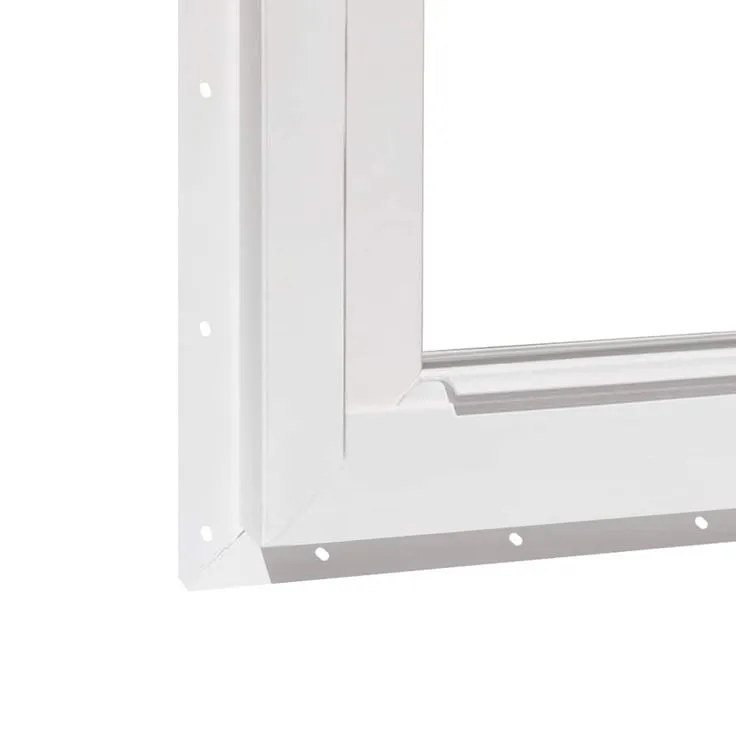

Nail Fin Integrated
Frame Material Vinyl
Number of Locks 1
Frame Profile Brick mould
Obscure Glass No
Glass Insulation Low-E argon
Paintable No
Glass Strength Single strength
Project Type New construction
Glazing Type Double pane
Screen Frame Type Roll-form
Grid Included Yes
Screen Included Half
Grid Pattern 1Hx1V-1Hx1V
Screen Type Fiberglass mesh
Grid Profile Contoured
Solar Heat Gain Coefficient 0.2
Grid Type Between the glass
Sound Transmission Control No
(STC) Rated
High Altitude Rated No

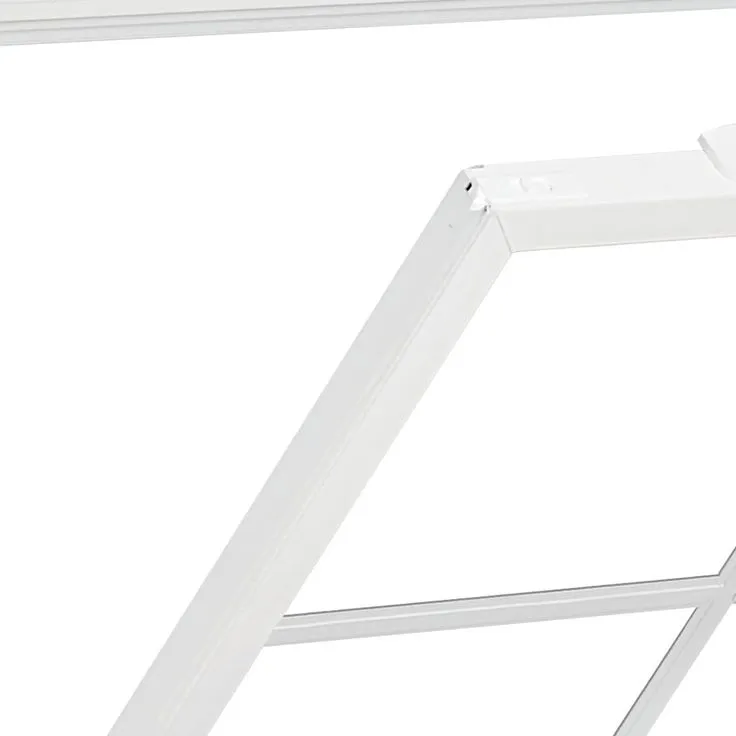

Tilt Mechanism Flush
Impact Resistant No
Tilting Yes
Insect Screen Included Yes
Ventilation Latches N/A
J Channel Integrated
Wood Jamb Extension None
Warranty
Warranty Limited lifetime
