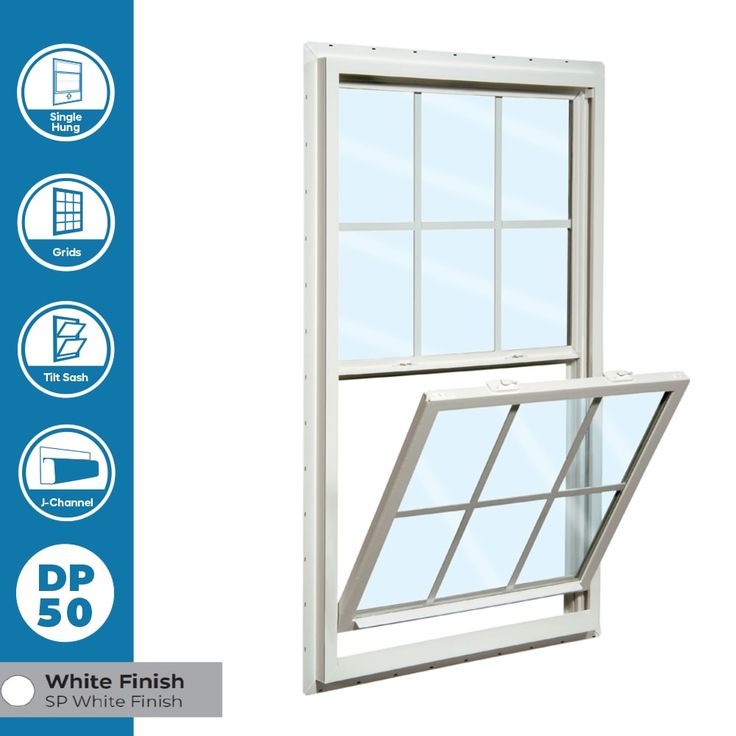

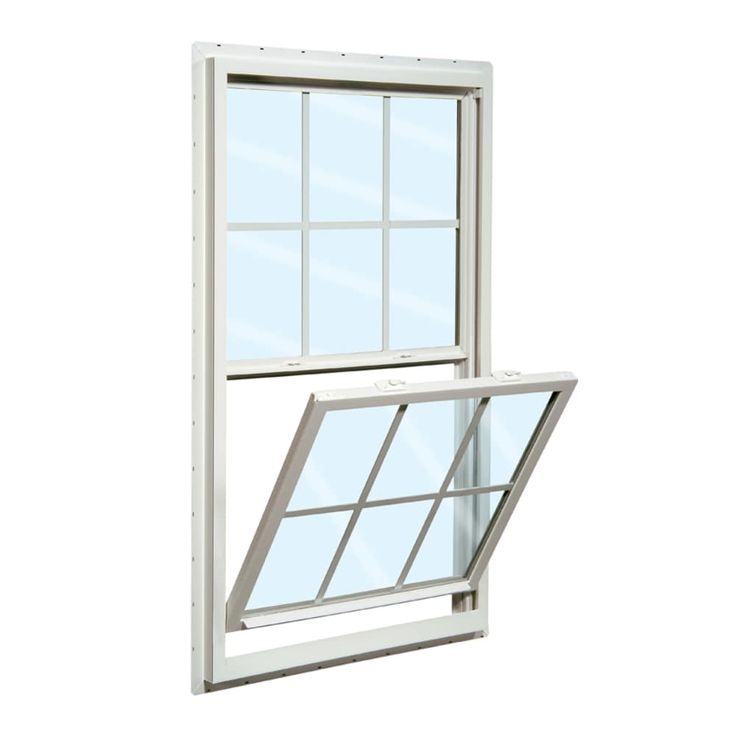

RELIABILT 150 Series New Construction 23-1/2-in x 35-1/2-in x 3-1/4-in Jamb White Vinyl Dual-pane Single Hung Window Half Screen Included
Regular price $129.66/
Shipping calculated at checkout.
Designed for both new construction and remodeling projects, the RELIABILT 150 Series single hung window offers a sleek brick mould exterior that complements any home. With a pre-punched, integrated nail fin and J-channel (or optional Series 160 without J-channel), installation is a breeze. The bottom sash easily tilts in and operates with a full-length, slim-line lift rail and block and tackle balance system. This window boasts a DP-50 rating and energy-efficient Low-E glass, keeping your home cool in the summer and warm in the winter. Available in standard white with a half screen included, this window also offers custom options such as different sizes, factory mulling, various glass types, wood jamb extensions, and grid and color options (contact local sales associate for details). Enjoy a limited lifetime warranty on all vinyl materials and parts under regular use, as well as a 25-year prorated warranty against seal failure (see official warranty for specifics).
| Specification | Details |
|---|---|
| Color/Finish Family | White |
| Interior Color/Finish | White |
| Exterior Color/Finish | White |
| Series Name | 150 Series |
| Hardware Color/Finish | White |
| Dimensions | |
| Actual Height (Inches) | 35.5 |
| Jamb Depth (Inches) | 3.25 |
| Actual Size (W x H) | 23-1/2-in x 35-1/2-in |
| Jamb Depth Measurement | 3-1/4-in |
| Actual Width (Inches) | 23.5 |
| Overfit Flange Size | N/A |

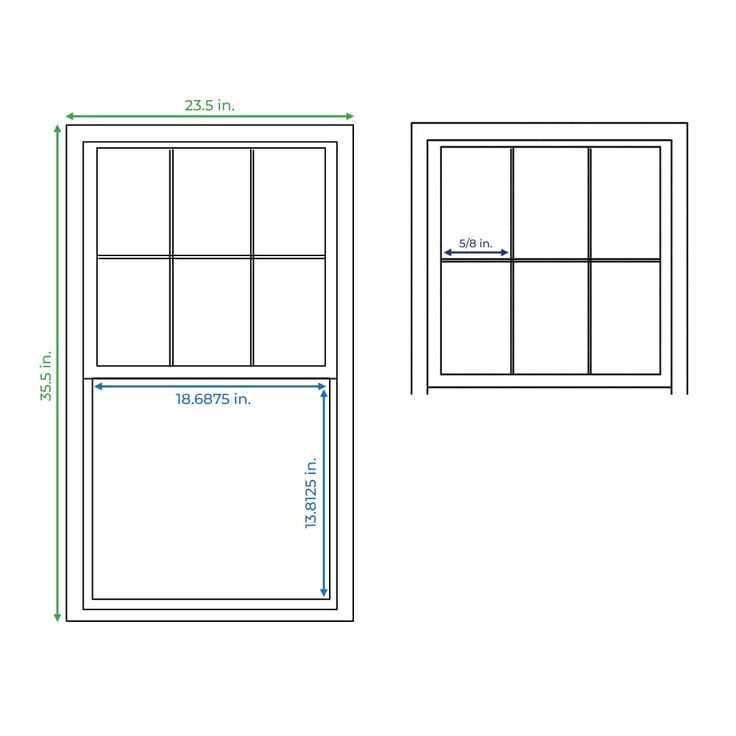

| Clear Opening Height (Inches) | 13.8125 |
| Rough Opening Height (Inches) | 36.0 |
| Clear Opening Size (W x H) | 13-13/16-in x 18-11/16-in |
| Rough Opening Size (W x H) | 24-in x 36-in |
| Clear Opening Width (Inches) | 18.6875 |
| Rough Opening Width (Inches) | 24.0 |
| Common Size (W x H) | 24-in x 36-in |
| TTT Flange Size | N/A |
| Grid Width | N/A |
| Weight | 28.0 |
| Features | |
| Argon Gas Insulated | No |
| J Channel | Integrated |
| Balance System | Block and tackle |
| Lock Type | Cam |
| Clear Opening Sq Ft | 1.79 |
| Design Pressure (DP) Rating | 50.0 |
| Mulling | N/A |
| For Use with Mobile Homes | No |

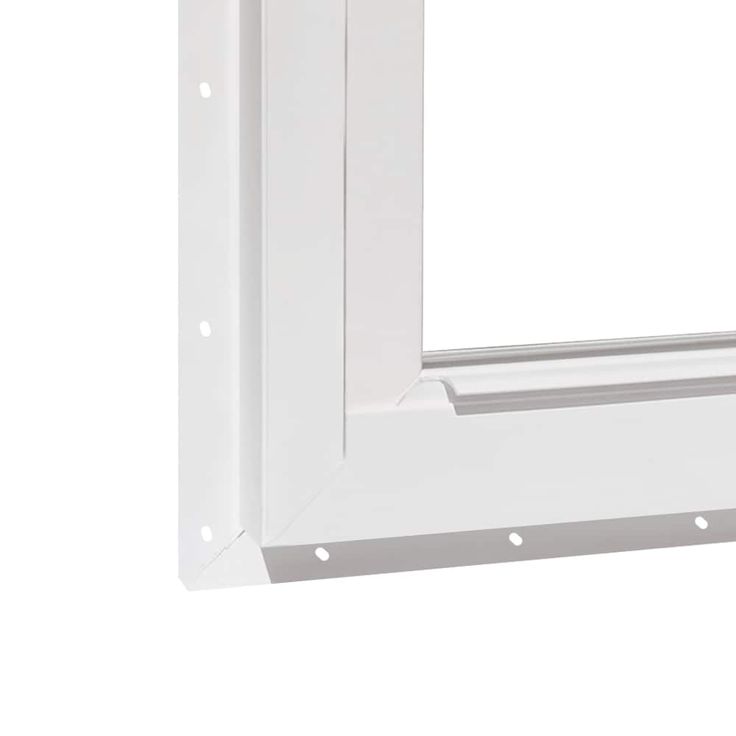

| Nail Fin | Integrated |
| Frame Material | Vinyl |
| Number of Locks | 1 |
| Frame Profile | Brick mould |
| Obscure Glass | No |
| Glass Insulation | Dual-pane |
| Paintable | No |
| Glass Strength | Single strength |
| Project Type | New construction |
| Glazing Type | Double pane |

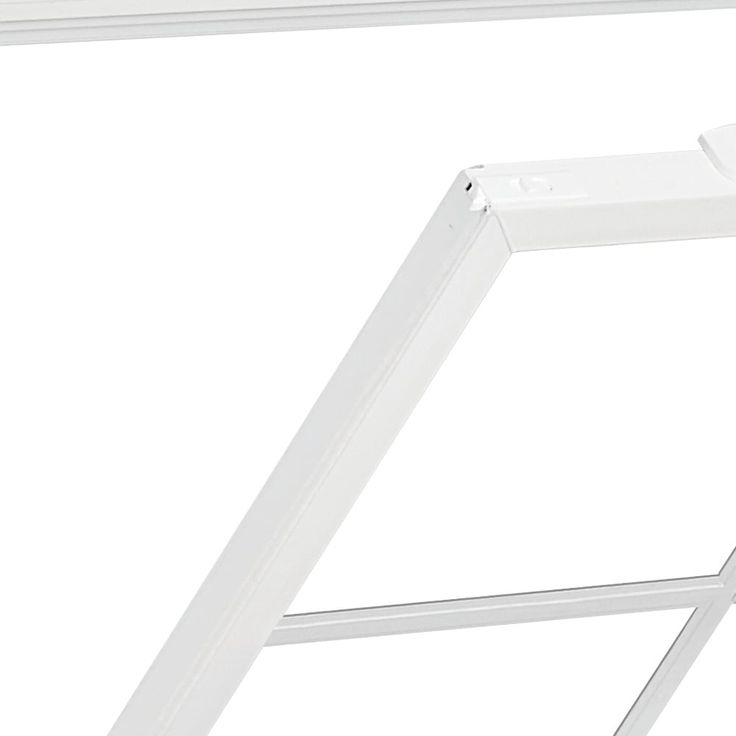

| Screen Frame Type | Roll-form |
| Grid Included | No |
| Screen Included | Half |
| Grid Pattern | N/A |
| Screen Type | Fiberglass mesh |
| Grid Profile | N/A |
| Solar Heat Gain Coefficient (SHGC) | 0.29 |
| Grid Type | N/A |
| Tilt Mechanism | Flush |
| High Altitude Rated | No |
| Tilting | Yes |
| Impact Resistant | No |
| Ventilation Latches | N/A |
| Insect Screen Included | Yes |
| Wood Jamb Extension | None |
| Warranty | |
| Warranty | Limited lifetime |
