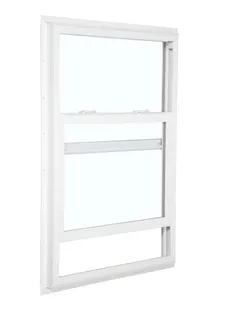

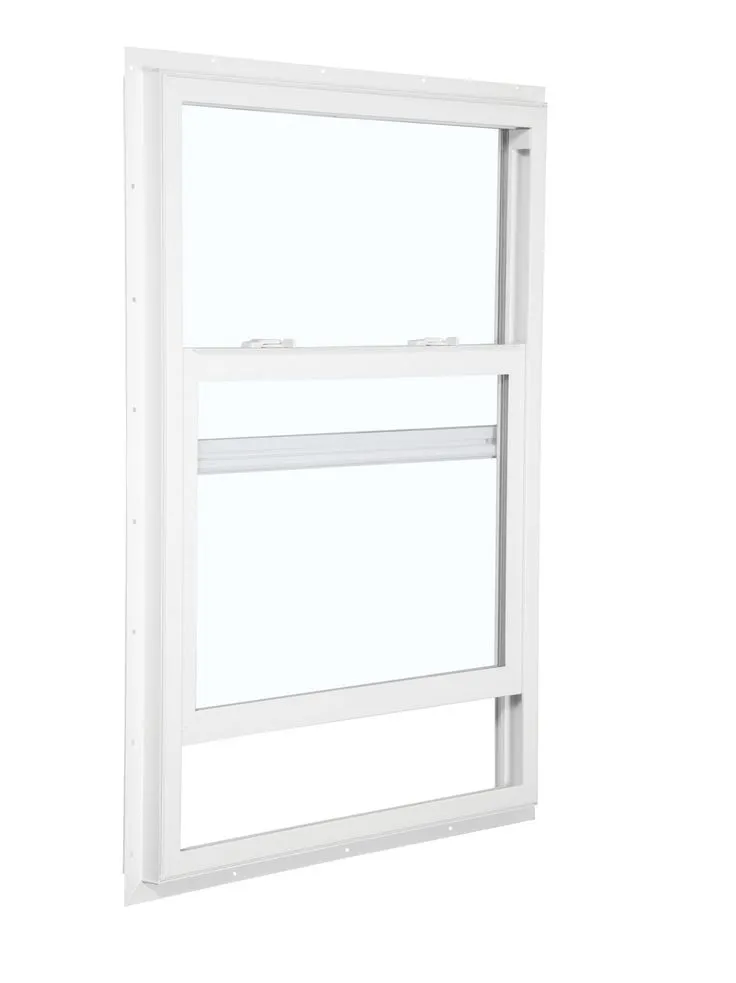

RELIABILT 105 Series New Construction 35-1/2-in x 59-1/2-in x 2-5/8-in Jamb White Vinyl Low-e Argon Single Hung Window with Grids Half Screen Included
Regular price $213.08/
Shipping calculated at checkout.
The RELIABILT 105 Series single hung window is an affordable option for those seeking high performance on a limited budget. With a side-loaded bottom sash and dual lift rails, this window is easy to remove and operate. It is suitable for both new construction and remodeling projects and comes with a pre-punched nail fin and built-in accessory channels for easy installation. Additionally, this window has a DP-50 rating (Design Pressure rating) for sizes up to 36 inches wide and 74 inches high. The modular size makes it simple to determine rough opening widths for multiple units. This window also features Low-E glass and Argon insulating gas for reflectivity and improved thermal efficiency. (Note: ENERGY STAR qualifications may vary depending on location; please refer to the U-Value and SHGC values for specific details). The 5/8-inch contoured grid pattern between the glass panes adds a touch of style to your home without the extra hassle of cleaning grids on the exterior.
| Specification | Details |
|---|---|
| Color/Finish Family | White |
| Interior Color/Finish | White |
| Exterior Color/Finish | White |
| Series Name | 105 Series |
| Hardware Color/Finish | White |
| Dimensions | |

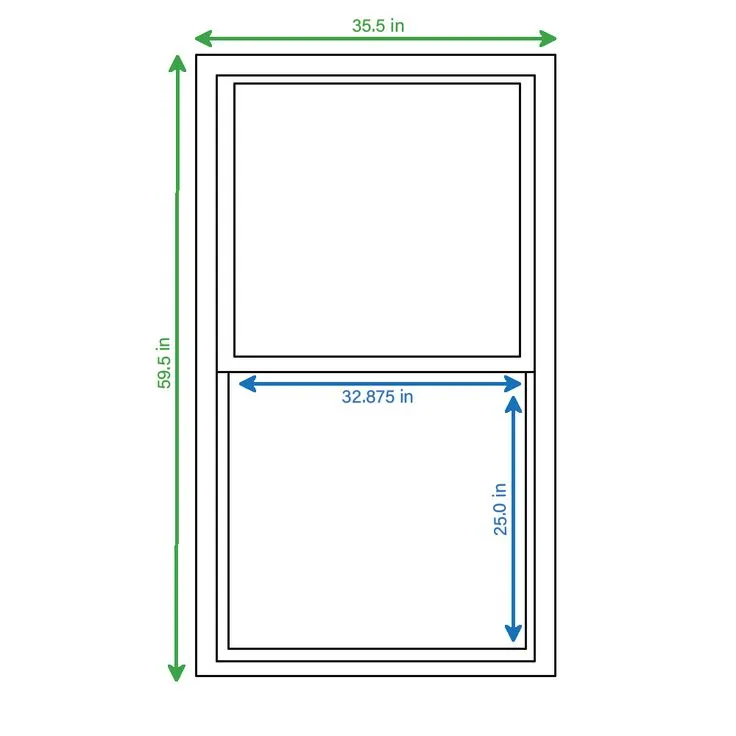

| Actual Height (Inches) | 59.5 |
| Jamb Depth (Inches) | 2.625 |
| Actual Size (W x H) | 35-1/2-in x 59-1/2-in |
| Jamb Depth Measurement | 2-5/8-in |
| Actual Width (Inches) | 35.5 |
| Overfit Flange Size | N/A |
| Clear Opening Height (Inches) | 25.0 |
| Rough Opening Height (Inches) | 60.0 |
| Clear Opening Size (W x H) | 25-in x 32-7/8-in |
| Rough Opening Size (W x H) | 36-in x 60-in |
| Clear Opening Width (Inches) | 32.875 |
| Rough Opening Width (Inches) | 36.0 |
| Common Size (W x H) | 36-in x 60-in |
| TTT Flange Size | N/A |
| Grid Width | 5/8-in |
| Weight (lbs.) | 37 |
| Features | |
| Argon Gas Insulated | Yes |
| J Channel | N/A |
| Balance System | Block and tackle |
| Lock Type | Sweep |
| Clear Opening Sq Ft | 5.7 |
| Design Pressure (DP) Rating | 50 |
| Mulling | N/A |
| For Use with Mobile Homes | Yes |
| Nail Fin | Integrated |
| Frame Material | Vinyl |
| Number of Locks | 2 |
| Frame Profile | Flat |
| Obscure Glass | No |
| Glass Insulation | Low-E argon |
| Paintable | No |
| Glass Strength | Single strength |
| Project Type | New construction |
| Glazing Type | Double pane |
| Screen Frame Type | Roll-form |
| Grid Included | Yes |
| Screen Included | Half |
| Grid Pattern | 1hx2v |
| Screen Type | Fiberglass mesh |
| Grid Profile | Contoured |
| Solar Heat Gain Coefficient (SHGC) | 0.21 |
| Grid Type | Between the glass |
| Tilt Mechanism | N/A |
| High Altitude Rated | No |
| Tilting | No |
| Impact Resistant | No |
| Ventilation Latches | N/A |
| Insect Screen Included | Yes |
| Wood Jamb Extension | None |
| Warranty | |
| Warranty | Limited lifetime |
