ReliaBilt · Hardware

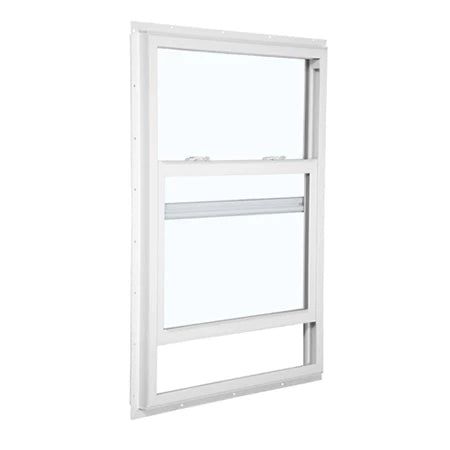

105 Series New Construction 35-1/2 × 35-1/2 × 2-5/8 in Jamb White Vinyl Low-e Argon Single Hung Window with Grids Half Screen Included

36 × 36 in

$160.17 each

Orders start at $399. Combine any items to reach it.

Windows
Project notes (optional)

Saved with this line in your cart and sent with your order, so the desk can check the fit.

1 window
$160.17
Standard delivery
$49.99 per order
Sales tax
Added at checkout

All orders are subject to approval.

You're not charged until your order is approved and ready to ship. Cancel free before then.

Standard delivery$49.99

Per order, added in your cart. We deliver to the 48 contiguous states.

Availability confirmed by the desk at approval, with your delivery date. Shipping policy · Returns

ReliaBilt · Hardware

Details & specifications.

From the maker · ReliaBilt’s description

The RELIABILT 105 Series New Construction Single Hung Window boasts top performance at an affordable price. Its bottom sash is easily removable and operates using dual lift rails. Ideal for both new construction and remodeling, this window features a pre-punched, integrated nail fin and built-in accessory channels for various installation options (Series 3050 is available without a nailing fin). With a DP-50 rating for windows up to 36 inches wide by 74 inches high, this modular window makes calculating rough opening widths for multiple units a breeze. It also features Low-E glass to reflect solar energy and the added thermal efficiency of Argon insulating gas. The 5/8-inch contoured grid pattern between the glass panes adds style to your home without creating the extra cleaning complexities of exterior grids. (Please note that ENERGY STAR qualifications may not apply in all zones. Refer to each window's U-Value and SHGC value for exact specifications.)

Actual size
35-1/2 × 35-1/2 in
Rough opening
36 × 36 in
Series
105 Series
Project
New construction
Glass
Double pane
Frame
Vinyl
Brand
ReliaBilt
Color/Finish Family
White
Interior Color/Finish
White
Exterior Color/Finish
White
Hardware Color/Finish
White
Actual Height (Inches)
35.5
Jamb Depth (Inches)
2.625
Jamb Depth Measurement
2-5/8-in
Actual Width (Inches)
35.5
Clear Opening Height (Inches)
13.0
Rough Opening Height (Inches)
36.0
Clear Opening Size (W x H)
13-in x 32-7/8-in
Clear Opening Width (Inches)
32.875
Rough Opening Width (Inches)
36.0
Common Size (W x H)
36-in x 36-in
Grid Width
5/8-in
Weight (lbs.)
28
Argon Gas Insulated
Yes
Balance System
Block and tackle
Lock Type
Sweep
Clear Opening Sq Ft
2.96
Design Pressure (DP) Rating
50
For Use with Mobile Homes
Yes
Nail Fin
Integrated
Number of Locks
2
Frame Profile
Flat
Obscure Glass
No
Glass Insulation
Low-E argon
Paintable
No
Glass Strength
Single strength
Glazing Type
Double pane
Screen Frame Type
Roll-form
Grid Included
Yes
Screen Included
Half
Grid Pattern
1hx2v
Screen Type
Fiberglass mesh
Grid Profile
Contoured
Solar Heat Gain Coefficient (SHGC)
0.21
Grid Type
Between the glass
High Altitude Rated
No
Tilting
No
Impact Resistant
No
Insect Screen Included
Yes
Warranty
Limited lifetime

Specifications are provided by the manufacturer. Brand names are trademarks of their owners.

Guide

Measure before you order

  1. 1

    New construction: the rough opening

    Order by the framed opening. Every window here that lists both sizes is 1/2 in smaller than its rough opening each way: a 36 × 48 opening takes a 35-1/2 × 47-1/2 window.

  2. 2

    Replacement: the frame you have

    Measure inside the old frame, jamb to jamb, at the top, middle and bottom, and use the smallest width. Do the same for the height, left, center and right.

  3. 3

    Glass and grids

    The listing states its panes, Low-E and argon, and whether it has grids.
