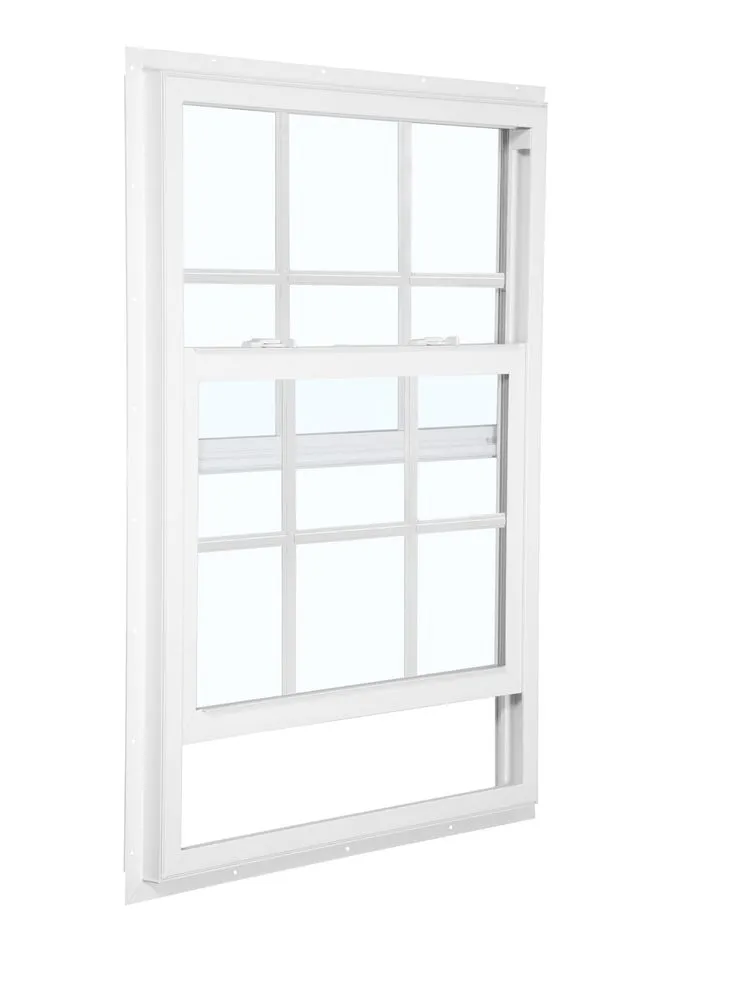

RELIABILT 105 Series New Construction 31-1/2-in x 59-1/2-in x 2-5/8-in Jamb White Vinyl Low-e Argon Single Hung Window with Grids Half Screen Included
Regular price $204.65/
Shipping calculated at checkout.

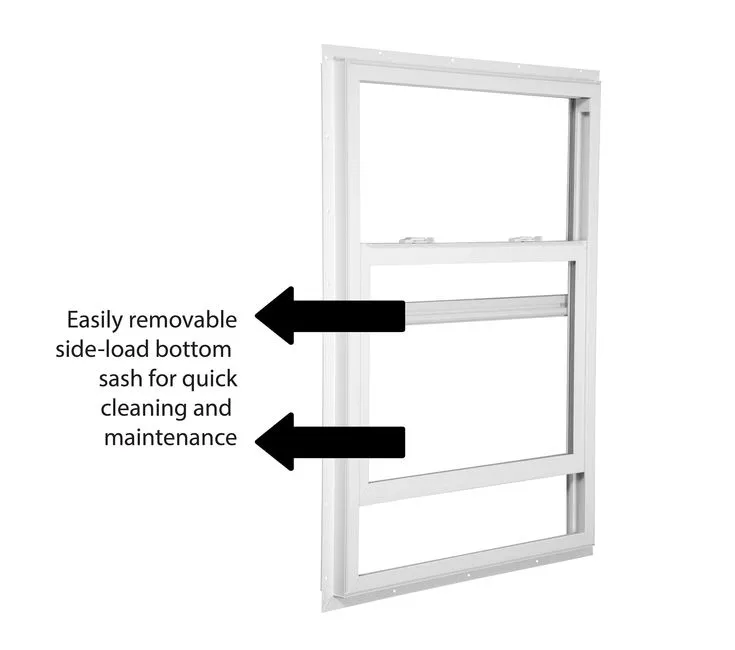

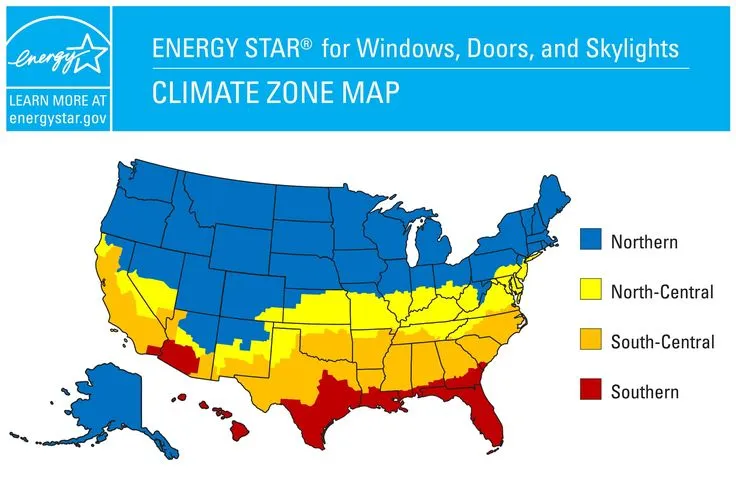

The RELIABILT 105 Series single hung window is the ideal choice for those seeking high performance on a tight budget. Its bottom sash is conveniently side-loaded for easy removal and is operated by dual lift rails. This window is perfect for both new construction and remodeling projects, with its pre-punched, integrated nail fin and built-in accessory channels that offer multiple installation options (nailing fin not available in Series 3050). It boasts a DP-50 rating (Design Pressure rating) for windows up to 36 inches in width and 74 inches in height. The modular sizing makes calculating rough opening widths for multiple units a breeze. Additionally, this window features Low-E glass to reflect solar energy and is insulated with Argon gas for enhanced thermal efficiency (Note: ENERGY STAR qualifications may vary by region; please refer to the U-Value and SHGC value for specific specifications).
| Specification | Details |
|---|---|
| Color/Finish Family | White |
| Interior Color/Finish | White |
| Exterior Color/Finish | White |
| Series Name | 105 Series |
| Hardware Color/Finish | White |

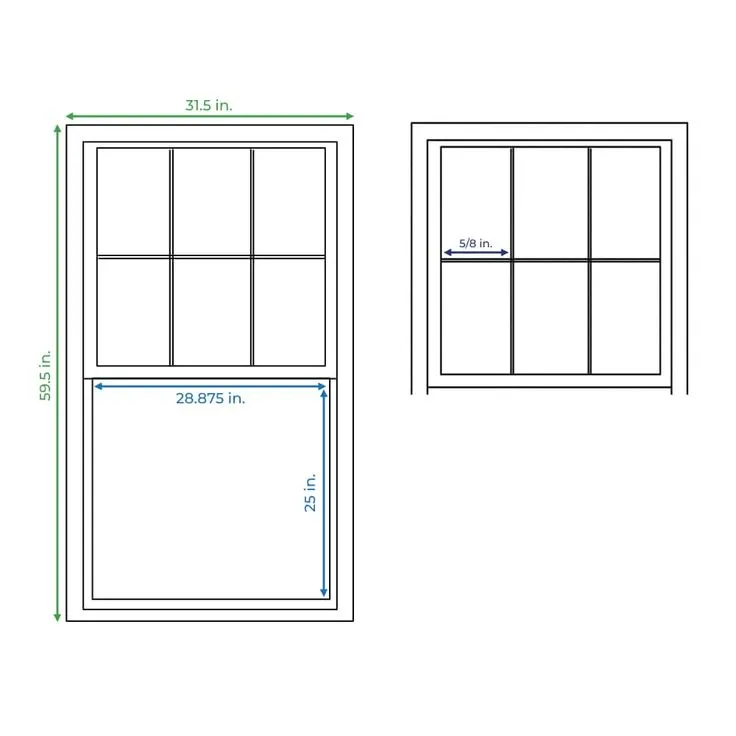

| Dimensions | |
| Actual Height (Inches) | 59.5 |
| Jamb Depth (Inches) | 2.625 |
| Actual Size (W x H) | 31-1/2-in x 59-1/2-in |
| Jamb Depth Measurement | 2-5/8-in |
| Actual Width (Inches) | 31.5 |
| Overfit Flange Size | N/A |
| Clear Opening Height (Inches) | 25.0 |
| Rough Opening Height (Inches) | 60.0 |
| Clear Opening Size (W x H) | 25-in x 28-7/8-in |
| Rough Opening Size (W x H) | 32-in x 60-in |
| Clear Opening Width (Inches) | 28.875 |
| Rough Opening Width (Inches) | 32.0 |
| Common Size (W x H) | 32-in x 60-in |
| TTT Flange Size | N/A |
| Grid Width | 5/8-in |
| Weight (lbs.) | 36 |
| Features | |
| Argon Gas Insulated | Yes |
| J Channel | N/A |
| Balance System | Block and tackle |
| Lock Type | Sweep |
| Clear Opening Sq Ft | 5.013 |
| Design Pressure (DP) Rating | 50 |
| Mulling | N/A |
| For Use with Mobile Homes | Yes |
| Nail Fin | Integrated |
| Frame Material | Vinyl |
| Number of Locks | 2 |
| Frame Profile | Flat |
| Obscure Glass | No |
| Glass Insulation | Low-E argon |
| Paintable | No |
| Glass Strength | Single strength |
| Project Type | New construction |
| Glazing Type | Double pane |
| Screen Frame Type | Roll-form |
| Grid Included | Yes |
| Screen Included | Half |
| Grid Pattern | 1hx2v |
| Screen Type | Fiberglass mesh |
| Grid Profile | Contoured |
| Solar Heat Gain Coefficient (SHGC) | 0.21 |
| Grid Type | Between the glass |
| Tilt Mechanism | N/A |
| High Altitude Rated | No |
| Tilting | No |
| Impact Resistant | No |
| Ventilation Latches | N/A |
| Insect Screen Included | Yes |
| Wood Jamb Extension | None |
| Warranty | |
| Warranty | Limited lifetime |
