PITTCON INDUSTRIES Softforms SWR Aluminum Wall Reveal, 1/4 in. x 1/4 in., Primed, 92 in. Length – SWR-025-025
Regular price $18.98Orders start at $399 — combine any items to reach the minimum. Learn more
This is a Pittcon Industries Softforms SWR Series extruded aluminum wall reveal bead in a 1/4 in. width x 1/4 in. depth profile, supplied in 92 in. (7 ft. 8 in.) lengths and primed for painting. It creates a clean reveal line in drywall construction and accepts joint compound, latex and enamel paints.
Key Features
- Extruded aluminum: Made from 6063 T5 aluminum alloy (or equal) for durable, straight reveals.
- Factory primed: Primed with corrosion-resistant primer compatible with joint compound, latex and enamel paints and wall covering adhesives.

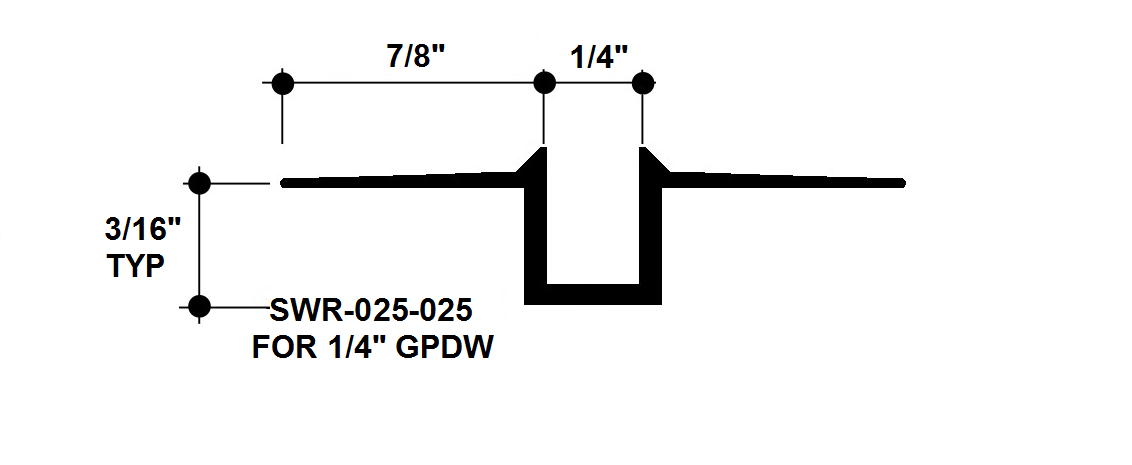

- Integral fin design: Continuous integral 7/8 in. wide tapered fins provide surface contact with conventionally installed gypsum drywall.
- Screw holes: Tapered fins are punched with staggered holes to accept standard screw fastening.
- Bonding grooves: Continuous grooves extruded into the face of the fins provide greater bonding surface.
- Softforms series: Part of the Pittcon Softforms preformed architectural profiles line for drywall construction.
Specifications
- Manufacturer model
- SWR-025-025
- Sell unit
- 1 length, 1/4 in. x 1/4 in. x 92 in.
- Material
- Aluminum alloy 6063 T5 or equal
- Color / finish
- Factory primed
- Nominal size
- 1/4 in. x 1/4 in. reveal
- Length
- 92 in. (7 ft. 8 in.)
- Thickness
- 1/4 in. width x 1/4 in. depth profile
- Intended use
- Drywall wall reveal / trim bead for architectural reveal lines
Coverage and How Much You Need
One piece covers a 92 in. (about 7 ft. 8 in.) run of reveal. Measure each reveal run and order enough lengths to cover it, allowing for butt joints between pieces.
Fit and Compatibility
Part of the Pittcon Softforms SWR Series, which spans widths from 1/8 in. to 3 in. and depths of 1/2 in. or 5/8 in. Standard 10 ft. lengths are also available in the series; this listing is the 92 in. length of the SWR-025-025 (1/4 in. x 1/4 in.) profile. Screws and joint compound sold separately.
Frequently Asked Questions
What is included in the sell unit?
One 92 in. (7 ft. 8 in.) length of 1/4 in. x 1/4 in. primed aluminum SWR wall reveal bead.
Can it be painted?
Yes. It comes factory primed with a corrosion-resistant primer compatible with joint compound, latex and enamel paints and wall covering adhesives.
How is it installed?
Attach it to gypsum drywall through the staggered punched holes in the 7/8 in. tapered fins using standard screws, then tape and finish per the manufacturer's specification.
What material is it made of?
Extruded aluminum alloy 6063 T5 or equal.
Are other reveal sizes available?
Yes. The Softforms SWR Series is offered in widths from 1/8 in. to 3 in. with 1/2 in. or 5/8 in. depths, and standard 10 ft. lengths with custom sizes as special order.
Product Expert Notes
Choose the SWR-025-025 when a narrow 1/4 in. reveal is specified; step up to wider SWR profiles for bolder shadow lines. Fasten through the staggered holes into studs or backing to keep the extrusion straight, and finish the tapered fins with tape and spackle before priming and painting.
Wear gloves and eye protection when cutting extruded aluminum trim, as cut edges can be sharp.
Order the Pittcon Softforms SWR 1/4 in. aluminum wall reveal for crisp, professional reveal lines.
