Pactool Gecko Gauge SA903 Fiber Cement Siding Installation Tool, 5/16 in. Boards, 4 in.-8 in. Reveals
Regular price $93.00Orders start at $399 — combine any items to reach the minimum. Learn more
Pactool Gecko Gauge SA903 Fiber Cement Siding Installation Tool, 5/16 in. Boards, 4 in.-8 in. Reveals

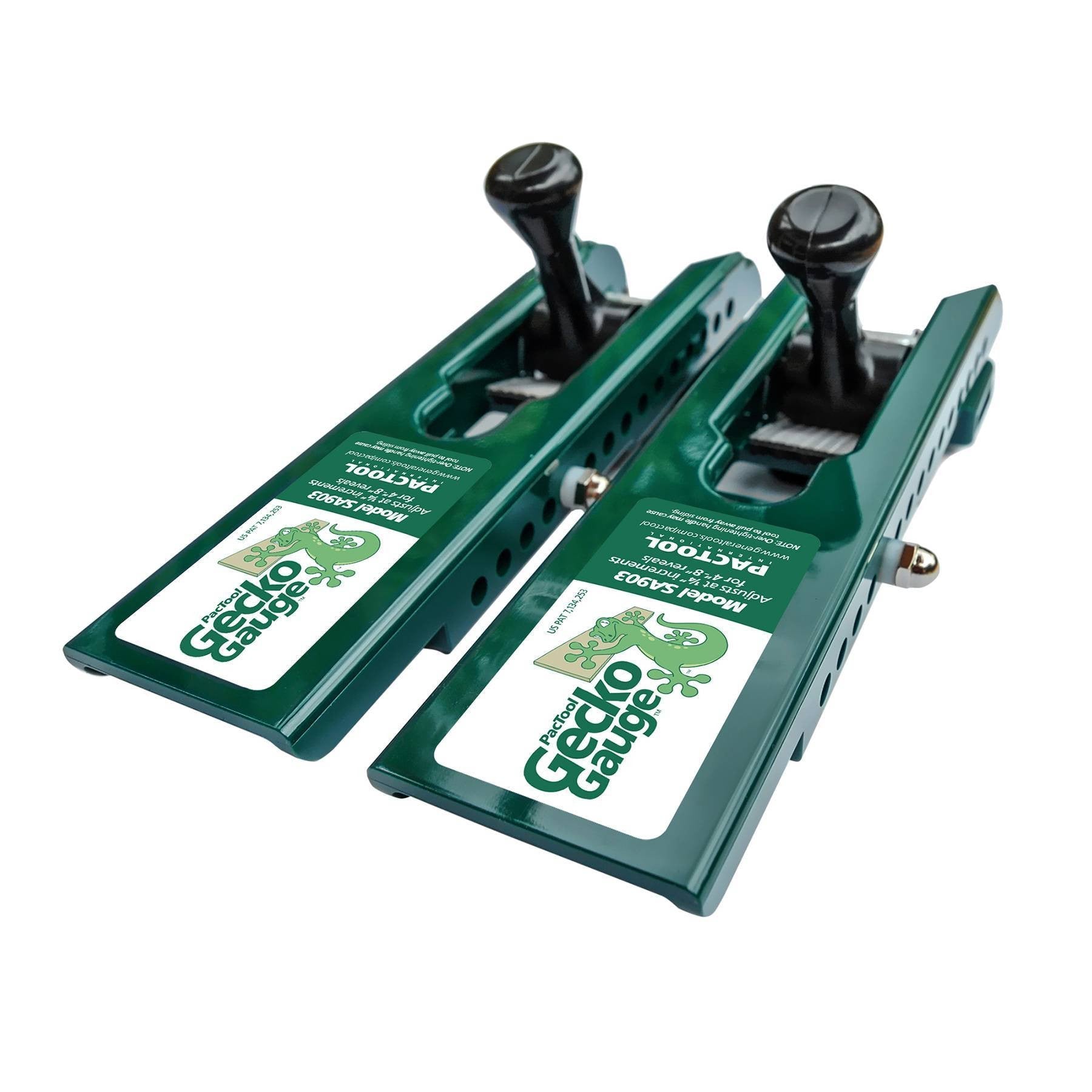

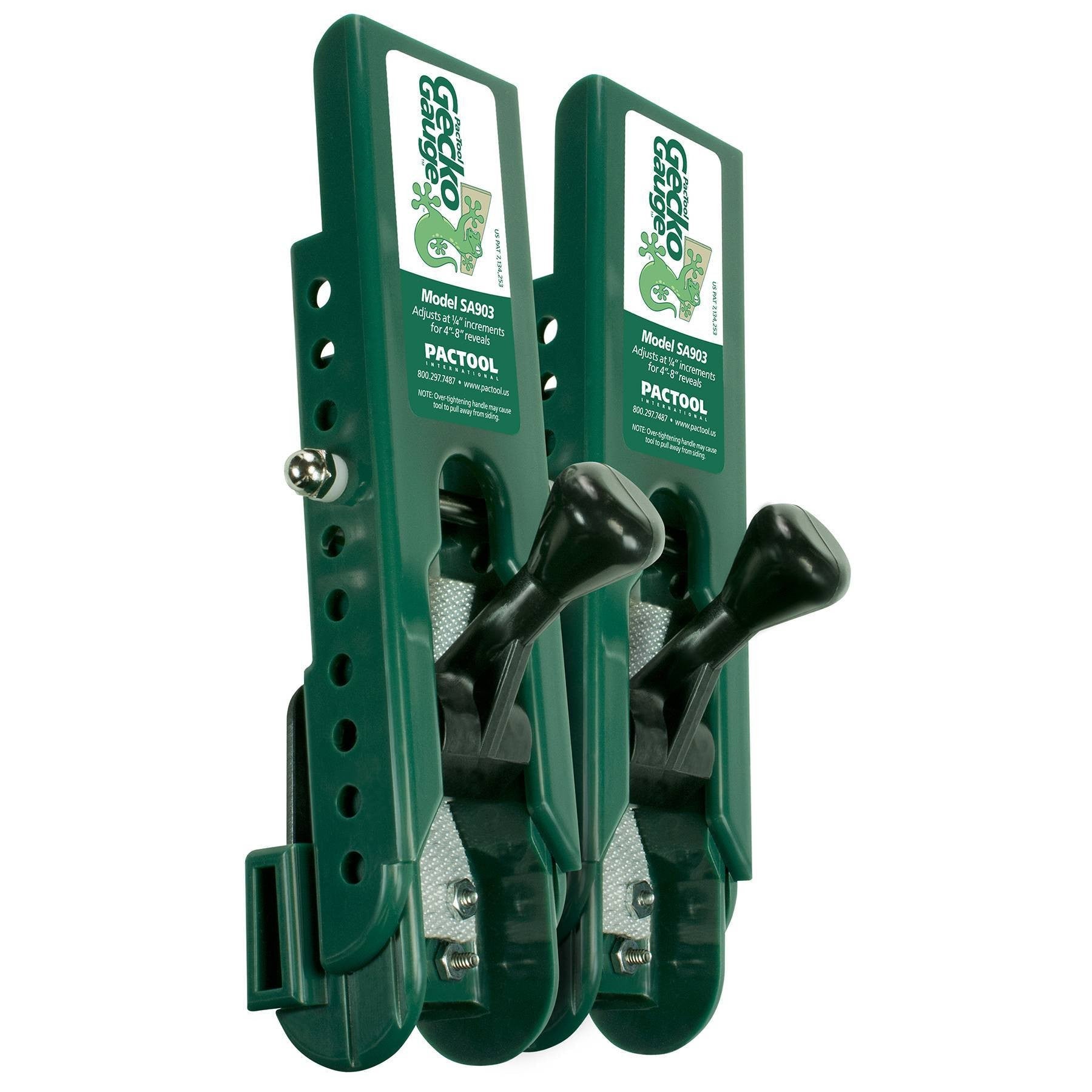

The Pactool Gecko Gauge SA903 is a pair of fiber cement siding gauges that support 5/16 in. cement boards so one person can install siding with virtually no layout time. Each gauge adjusts in 1/4 in. increments for 4 in. to 8 in. reveals and holds full 12 ft. board lengths. One tool set per order; sold individually as a pair working together.
Key Features:

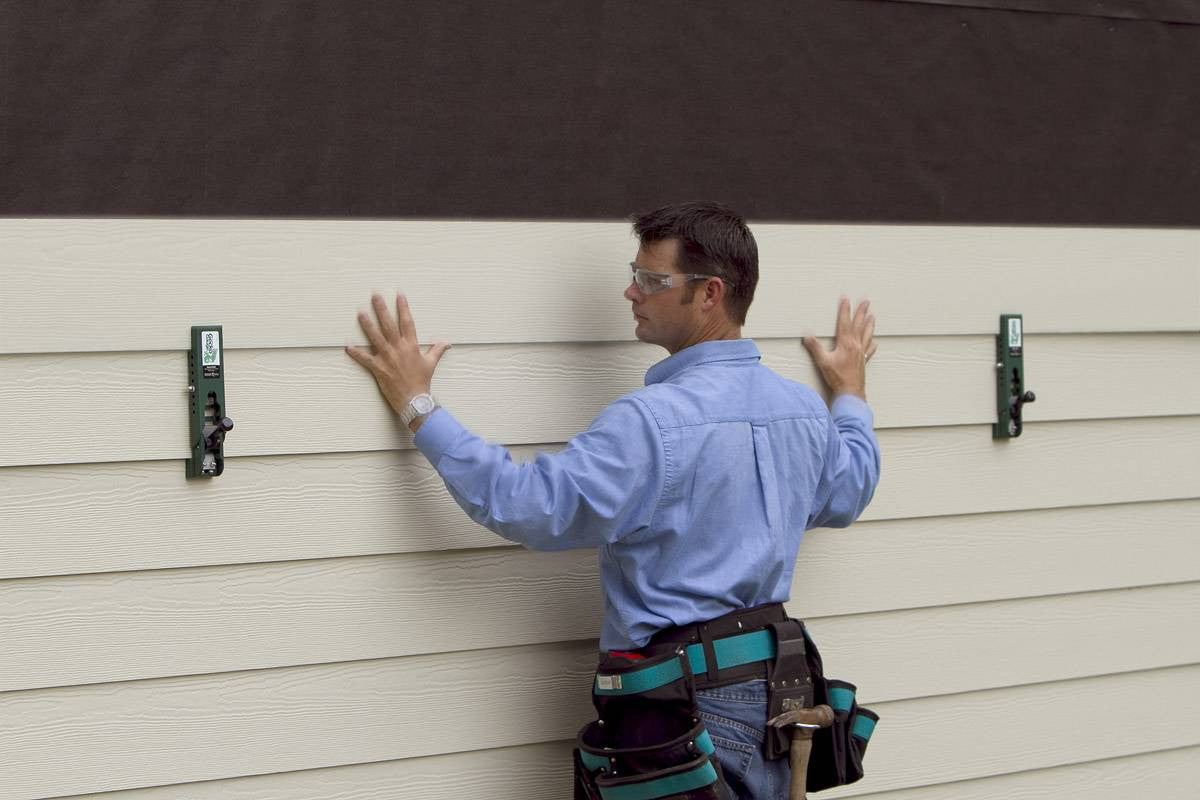

- One-person install: Working as a pair, the gauges support cement-board siding for single-installation with virtually no layout time.
- Adjustable reveals: Each gauge adjusts in 1/4 in. increments for 4 in. to 8 in. siding reveals.
- Holds 12 ft. boards: The patented Friction-Cam mechanism supports full 12 ft. fiber cement siding lengths.
- No-scratch contact: Heavy-gauge plastic construction will not scratch or mar pre-painted siding.
- HZ5 compatible: Works with 5/16 in. fiber-cement siding products, including updated HZ5 series boards with eased drip-edge profile.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Pactool |
| Sell unit | 1 set of gauges (pair) |
| Product line | Gecko Gauge |
| Available sizes | 5/16 in. boards, 4 in. to 8 in. reveals |
| Siding thickness | 5/16 in. fiber cement |
| Reveal adjustment | 4 in. to 8 in. in 1/4 in. increments |
| Material | Heavy-gauge plastic |
| Intended use | Fiber cement siding installation support |
Fit and Compatibility:
Designed for 5/16 in. fiber-cement siding, including James Hardie's updated HZ5 series with eased drip-edge profile. Not for other board thicknesses; screws or nails for fastening the siding are not included.
Frequently Asked Questions (FAQ):
Q: What is included?
A: One order includes the Gecko Gauge SA903 set; the two gauges work as a pair to support each board.
Q: What board thickness does it fit?
A: It is made for 5/16 in. fiber-cement siding, including updated HZ5 series boards.
Q: What reveals can I set?
A: The gauges adjust in 1/4 in. increments for reveals from 4 in. to 8 in.
Q: Will it damage painted boards?
A: No, the heavy-gauge plastic construction will not scratch or mar pre-painted siding.
Q: Can one person really hang 12 ft. boards?
A: Yes, the patented Friction-Cam mechanism supports full 12 ft. fiber cement board lengths while you fasten.
Q: Do I still nail each board?

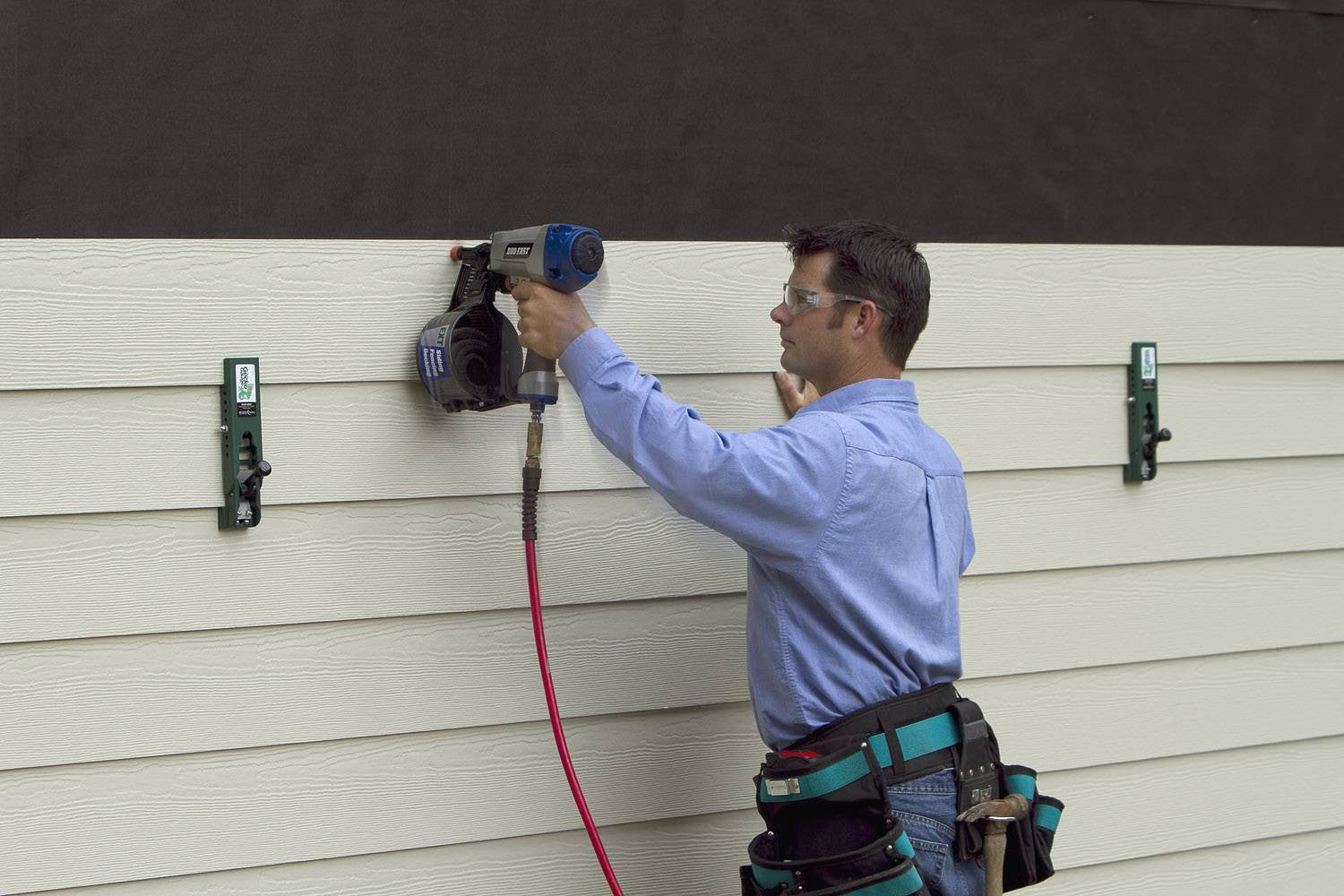

A: Yes, the gauges hold and support the board; you still fasten it per the siding manufacturer's nailing requirements.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
Set both gauges to the same reveal before you start and re-check after the first course, since a quarter-inch drift compounds over a whole wall. Keep a spare set on larger crews because they pay for themselves in layout time on the first day. They are sized for 5/16 in. boards, so confirm your board thickness before ordering if you are running a different product line.
Boards must still be fastened per the siding manufacturer's nailing pattern; never leave boards supported only on the gauges, and follow ladder and scaffold safety when working at height.
Order the Pactool Gecko Gauge SA903 and hang fiber cement siding solo with fast, accurate reveals.
