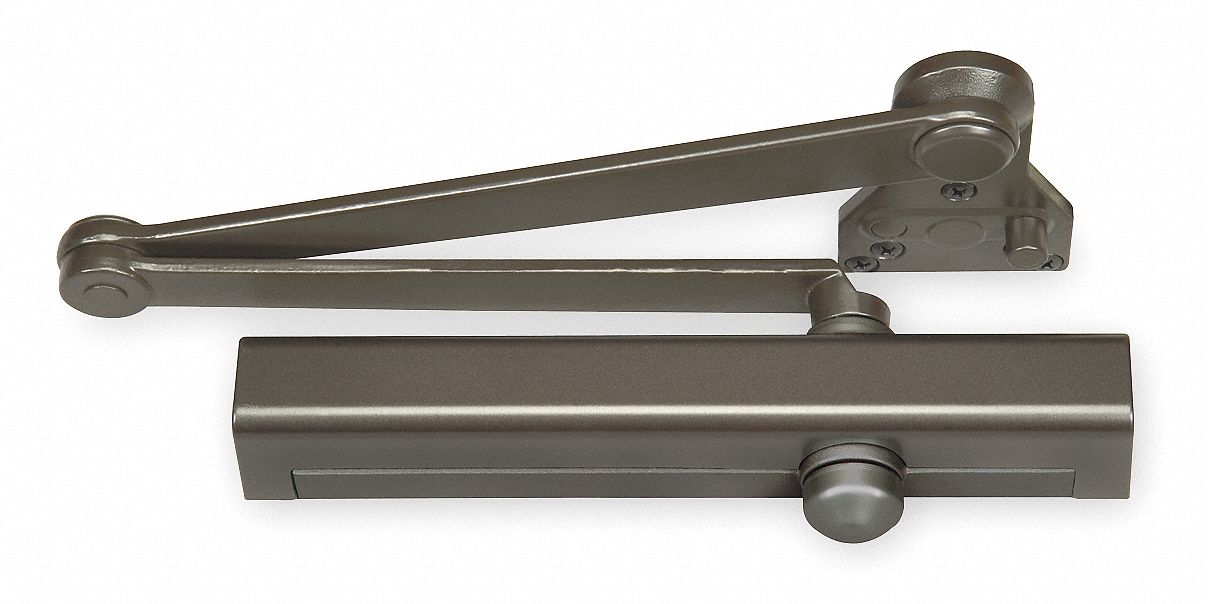

Heavy Duty Door Closer, Bronze

Elevate your entrance security and functionality with the NORTON DOOR CONTROLS Heavy Duty Top Frame Door Closer. Specifically designed for top frame mounting, this Grade 1 closer is ideal for exterior doors up to 54 inches wide, offering reliability and style in a dark bronze finish.

---

Key Features:

• Heavy Duty Performance: With a Grade 1 rating, this door closer ensures long-lasting durability and can withstand 25,000,000 cycles.
• Easy Installation: Top frame mounting makes it perfect for doors where space is limited for traditional mounting.
• Adjustable Spring Tension: Features an adjustable spring type ensuring smooth and precise operation tailored to your needs.
• Bronze Finish: A sleek dark bronze finish enhances the aesthetic of any doorway while resisting wear and tear.
• ADA Compliant: Meets ADA standards, ensuring accessibility without compromising performance.

---

Specifications Table:

Specification	Details
Manufacturer Part Number	CLP8301 x 690
Brand	NORTON DOOR CONTROLS
Closer Mounting Type	Top Frame
Closer Series	Norton 8301
Closer Stop Type	Spring
Closer Type	Non-Hold Open
Color	Dark Bronze
Compatible with Brand	NORTON RIXSON
Display Qty	1
Display Sell UOM	EA
Max Door Opening Angle	110 °
Finish	Bronze
Fire Rating	3 hr
Housing Depth	2-3/4 in
Housing Height	2-1/2 in
Energy Source	Hydraulic
Door Width Campatibility	54 in
Location Use	Exterior
Standards	UL and cUL Listed
Spring Type	Adjustable
Height Between Mounting Holes	3/4 in
Spring Size - Minimum	1
Material	Plastic
Exterior Door Width - Maximum	48 in
Product Type	Door Closer
Projection	2-3/4 in
Spring Size	6
Arm Type	Parallel
Closer Cycles	25,000,000
Hand Orientation	Non-Handed
Housing Length	13 in
Operation Style	Manual
Performance Duty Rating	1
Length Between Mounting Holes	12 in
Ligature Resistance	Not Ligature-Resistant
ADA Compliant	Yes
Performance Rating	Grade 1 - Heavy Duty
Finish C	Dark Bronze Painted ; Plastic ; Dark Bronze

---

Frequently Asked Questions (FAQ):

Q: How do I install this door closer?
A: The Norton door closer is mounted on the top frame of the door on the push side. Ensure you have the appropriate tools for installation, and follow the clear instructions provided with the product.

---

Q: Does this door closer meet fire safety standards?
A: Yes, it is rated for a 3-hour fire rating and meets UL and cUL listed standards for added safety.

---

Q: What is the maximum door size this closer can handle?
A: This closer is compatible with exterior doors up to 54 inches wide.

---

Q: Can this door closer be used on both left and right-hand doors?
A: Yes, it is non-handed and can be installed on both left and right-hand doors.

---

Q: Is this suitable for high-traffic areas?
A: Absolutely, with a heavy-duty rating and ability to handle 25,000,000 cycles, it's ideal for high-traffic environments.

---

Elevate Entryways with Functional Elegance

The NORTON DOOR CONTROLS Top Frame Door Closer transforms entrances, blending robustness with elegance through its dark bronze finish. The sleek design seamlessly integrates with various architectural styles, making it not just a hardware necessity but a design statement. Pair this door closer with complementary dark bronze accents to create a cohesive space that balances aesthetics and functionality. Truly, it's a testament to sophisticated, practical living, making every exit and entry seamlessly luxurious.

---

Secure your entryways with the NORTON DOOR CONTROLS Heavy Duty Door Closer and experience superior door management today!
