M12 FUEL 4‑in‑1 Installation Drill/Driver, 12V

Compact, brushless 12V installation drill/driver with 4 interchangeable heads delivers precise control in tight spaces. The POWERSTATE motor puts out up to 300 in-lbs of torque, while REDLINK Plus protects against overload and overheating. Includes right-angle, offset, 3/8 in. chuck and 1/4 in. hex attachments for maximum versatility.

---

Key Features:

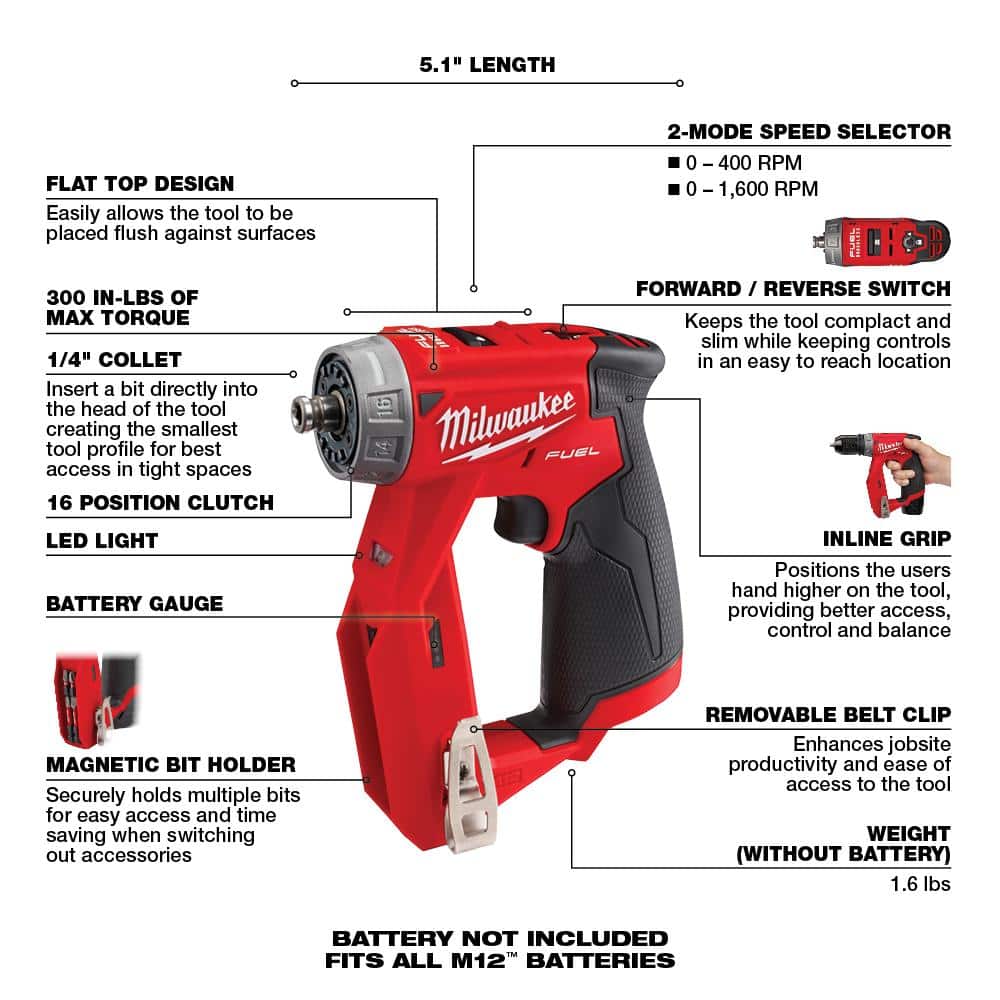

• 4-in-1 Versatility: Swap between 3/8 in. chuck, 1/4 in. hex, offset, and right-angle heads to tackle drilling and fastening in any space.

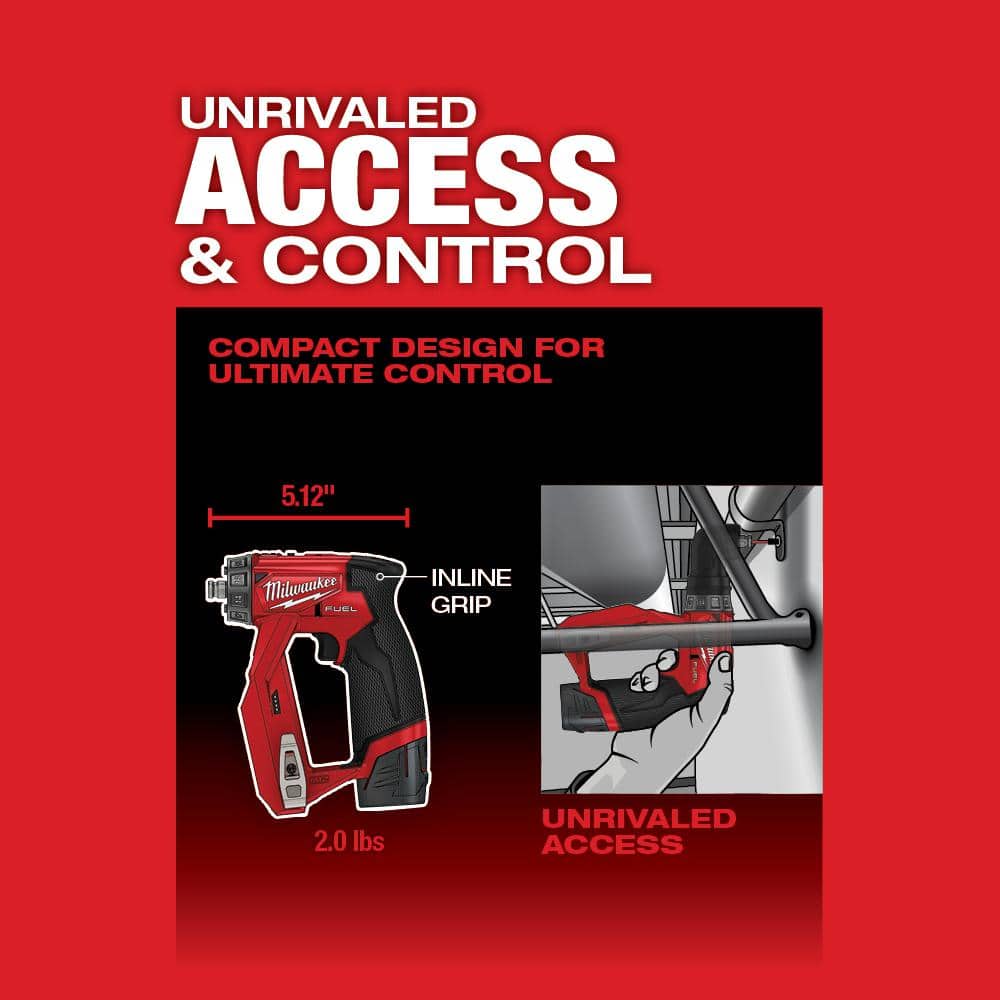

• Compact Control: Inline grip and 5.1 in. length offer unrivaled access in cabinets, electrical and HVAC installs.

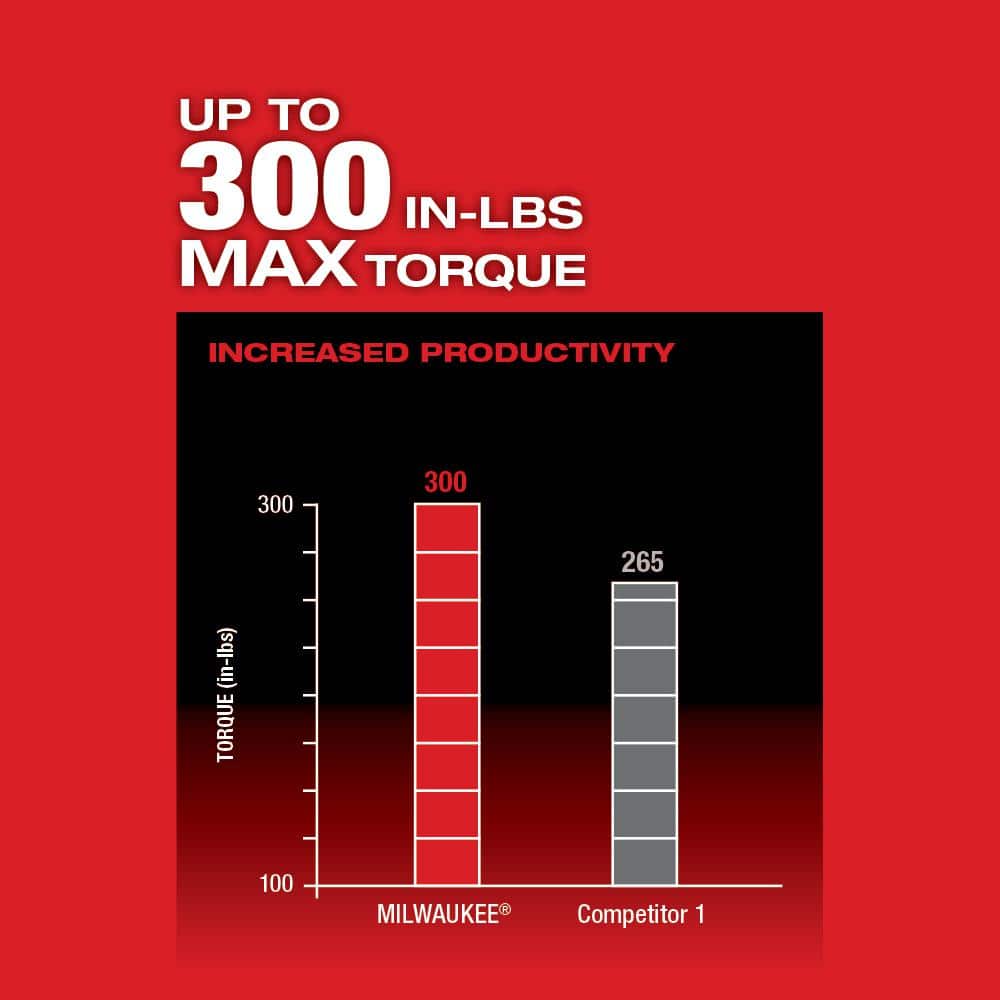

• Brushless Power: POWERSTATE motor delivers up to 300 in-lbs torque with 0–1,600 RPM and variable speed trigger.
• Smart Protection: REDLINK Plus Intelligence helps prevent overload and overheating for long tool life.
• Jobsite Ready: All-metal chuck, magnetic bit holder, LED light, belt clip, and contractor bag included.

---

Specifications Table:

Specification	Details
Battery Amp Hours	2.5 Ah
Battery Power Type	Lithium Ion
Battery Voltage (V)	12V
Battery/Charger	1 Battery Included (Charger Not Included)
Charger Included	No
Chuck Size (In.)	3/8 In.
Chuck Type	Keyless
Color Family	Red
Cordless Tool Type	Drill/Driver
Cordless/Corded	Cordless
Drill/Driver Type	Power Drill

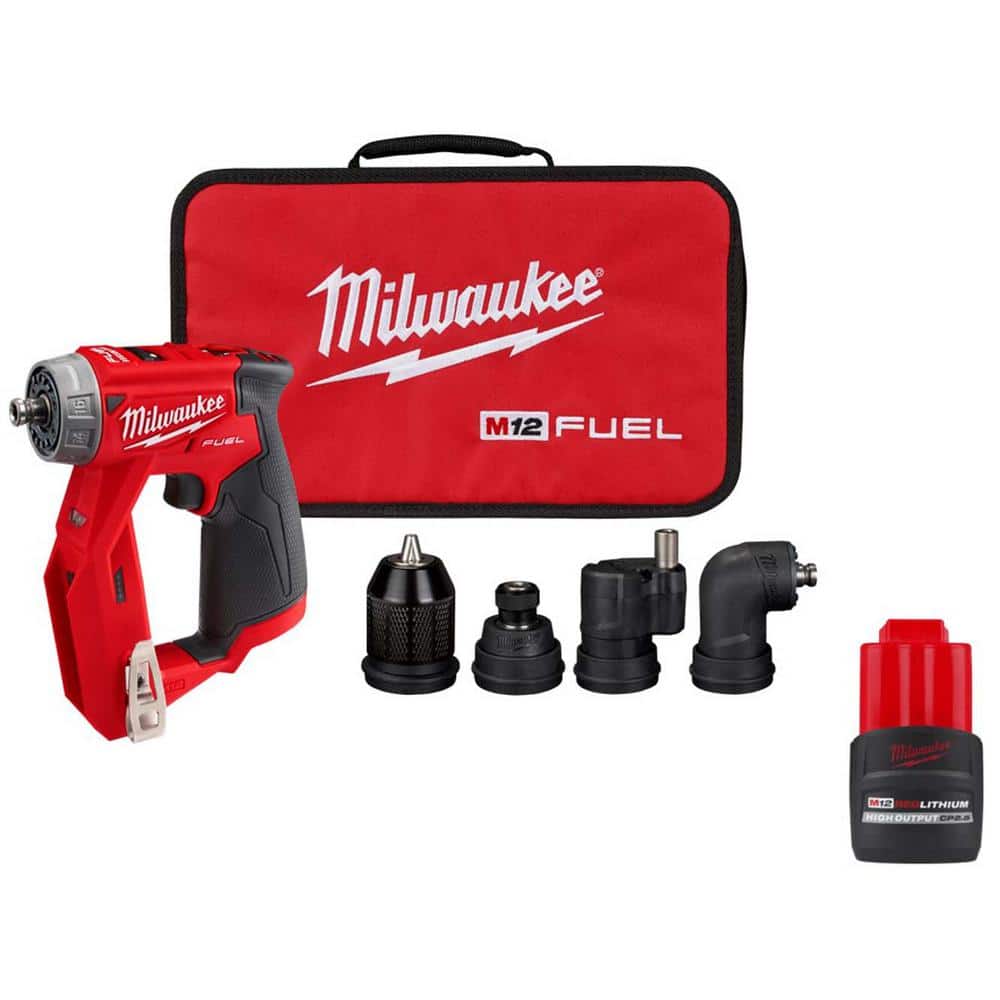

Included	Installation drill/driver, 3/8 in. chuck, 1/4 in. hex, offset, right‑angle attachments, belt clip, contractor bag, 2.5Ah battery
Maximum Speed (RPM)	0–1,600 RPM (2-speed)
Motor Type	Brushless
Number of Total Batteries Included	1
Power Tool Features	Forward/Reverse Switch, Keyless Chuck, LED Light, Sub-Compact, Variable Speed, Magnetic Bit Holder, 16-position clutch
Product Weight (lb.)	1.8 lb (tool only)
Tools Product Type	Power Tool
Torque (lb-in)	300 in-lbs
Certifications and Listings	UL Listed
Manufacturer Warranty	5 year limited
Product Depth (in.)	5.2 in
Product Height (in.)	7 in
Product Width (in.)	1.8 in

---

Frequently Asked Questions (FAQ):

Q: What batteries does it use?
A: It runs on Milwaukee M12 REDLITHIUM battery packs, including the included 2.5Ah High Output pack.

---

Q: Is a charger included?
A: No charger is included in this kit.

---

Q: Can it work in tight spaces?
A: Yes—its compact body, inline grip, and right‑angle/offset heads provide excellent access in confined areas.

---

Q: What is the max torque and speed?
A: Up to 300 in-lbs of torque with a 2-speed selector up to 1,600 RPM.

---

Q: How many head positions are available?
A: Attachments index in 16 positions for optimal angle and reach.

---

Precision Power, Minimal Footprint

This sleek, compact drill/driver slips effortlessly into the choreography of a well-designed workspace. Its modular 4-in-1 head system is the star—transformative, functional, and beautifully engineered for tight, polished installations. Pair it with matte black hardware and organized, labeled bins for a clean, professional aesthetic. Consider it an essential instrument for luxe, detail‑driven craftsmanship.

---

Equip your kit with compact power and 4‑in‑1 versatility—add the Milwaukee M12 FUEL Installation Drill/Driver to your cart today.
