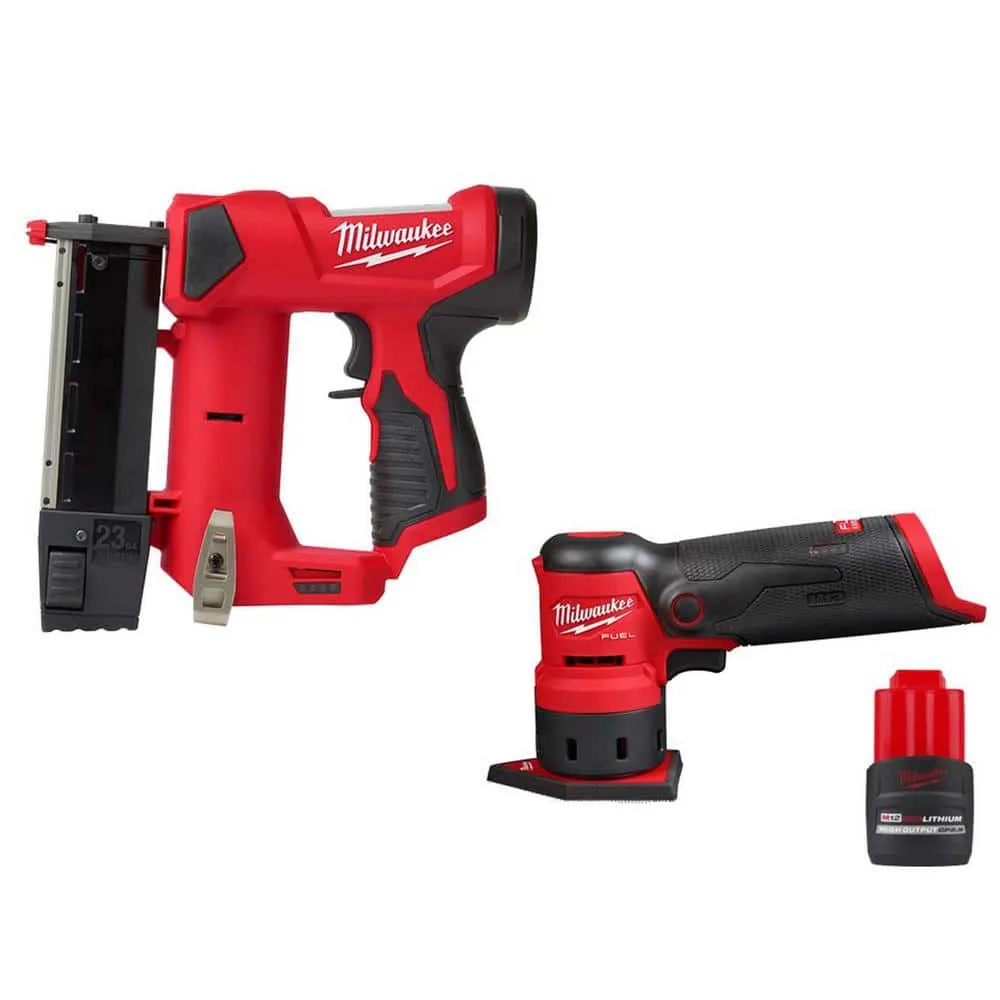

Milwaukee M12 23GA Cordless Pin Nailer Kit with Detail Sander & CP2.5 Battery

A compact, cordless 23-gauge pin nailer bundled with an M12 FUEL orbital detail sander and a REDLITHIUM High Output CP2.5Ah battery for precise trim work and fine woodworking. The nitrogen air spring delivers consistent depth while the tool-free adjustments, dry-fire lockout, and ergonomic design enhance control in tight spaces.

---

Key Features:

• Cordless Precision: 23GA pin nailer runs on M12 power with nitrogen air spring for consistent depth in hard or soft woods.
• Clean, Safe Operation: Dry-fire lockout, magazine reload indicator, LED and reversible belt hook protect workpieces and boost productivity.
• Fast Adjustments: Tool-free drive depth and double‑action trigger for accurate sequential placement.
• Detail Sanding Included: M12 FUEL orbital detail sander with 4-mode speed control and variable speed trigger for refined finishes.
• High-Output Battery: REDLITHIUM CP2.5 pack delivers 25% more power and runs cooler for longer runtime.

---

Specifications Table:

Specification	Details
System Voltage	12V (M12)

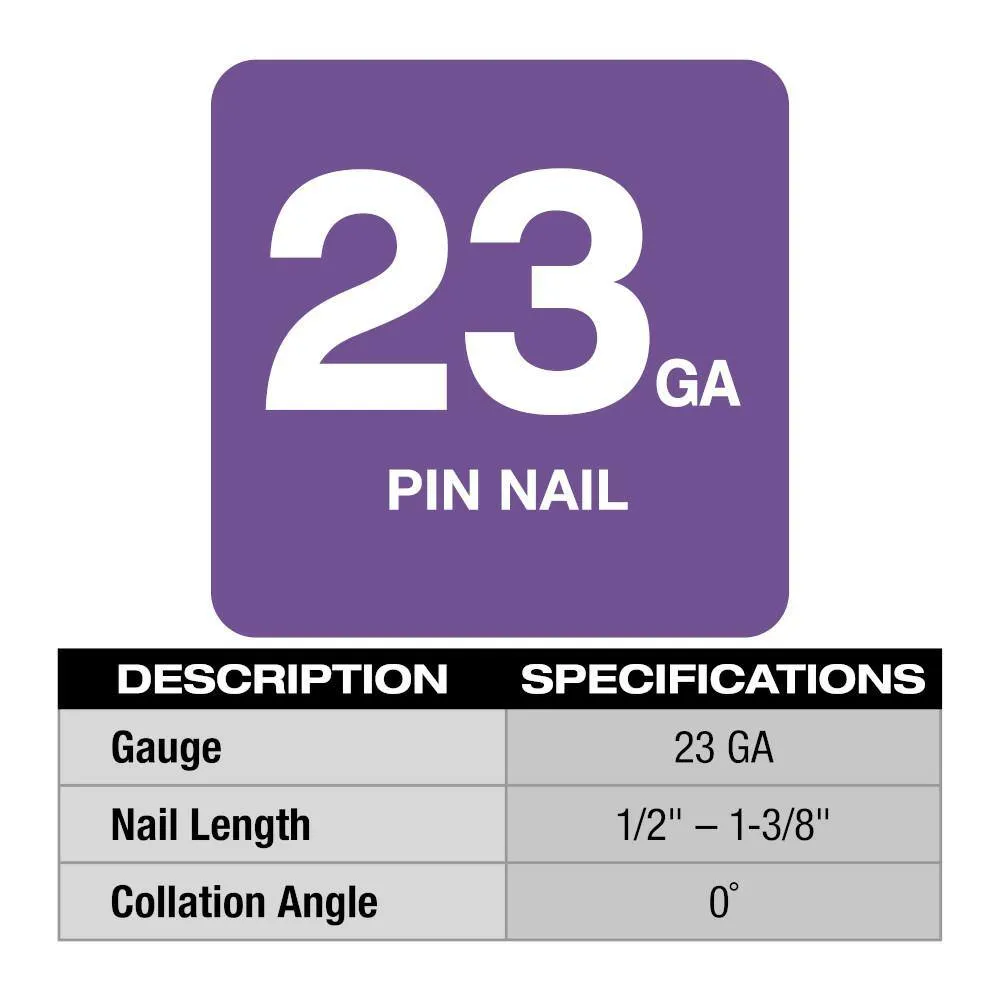

Nail Gauge	23 gauge
Nail Length Range	1/2 in. to 1-3/8 in.
Collation Angle	0° (Straight)
Magazine Capacity	110
Firing Mode	Single Sequential; double‑action trigger
Power Type	Cordless, battery powered
Motor Type	Brushed (pin nailer)
Tool Weight	3.3 lb
Loading Type	Strip
Included Components	M12 23GA Pin Nailer (2540-20), M12 FUEL Orbital Detail Sander (2531-20), M12 REDLITHIUM High Output CP2.5Ah Battery (48-11-2425); hex wrench; 2 no‑mar tips
Charger Included	No
Batteries Included	1 (CP2.5Ah)
Dry-Fire Lockout	Yes
Magazine Reload Indicator	Yes
Depth Adjustment	Tool-free
Worklight	LED
Belt Hook	Reversible
Detail Sander Orbit	Orbital motion (1.5mm)
Detail Sander Speed Control	4-mode 4,000–14,000 OPM with variable speed trigger
Warranty	5-year limited (tools)
Product Dimensions (Pin Nailer)	Depth 8.7 in.; Height 7.7 in.; Width 2.6 in.

---

Frequently Asked Questions (FAQ):

Q: Can it drive pins into hardwood?
A: Yes. The nitrogen air spring mechanism maintains power for consistent depth in hardwoods.

---

Q: How many pins per charge can I expect?
A: Up to about 750 pins with the included CP2.5Ah battery, depending on material and pin length.

---

Q: Is a charger included?
A: No. This bundle includes the nailer, orbital detail sander, and a CP2.5Ah battery; charger is sold separately.

---

Q: What pin sizes does it accept?
A: 23-gauge pins from 1/2 in. to 1-3/8 in., straight collation.

---

Q: What warranty is provided?
A: Milwaukee 5-year limited power tool warranty.

---

Precision Finish, Studio-Grade Detail

This compact nailer and detail sander duo elevates millwork into a tailored statement. The streamlined silhouette and precision point tip create nearly invisible joins that read as couture craftsmanship. Pair it with pale oak trim and satin paint for a gallery-clean finish, using the sander to feather edges to perfection. It’s the discreet, hard‑working kit that makes luxury detailing feel effortless.

---

AI Review Summary:

Reviews of the 2540-20 pin nailer highlight its compact size, clean pin holes, and reliable depth in hardwoods; users appreciate the dry‑fire lockout and precision tip. Some note occasional jam clearing and that balancing can feel nose-heavy with larger batteries. The M12 detail sander earns praise for control in corners and finish quality, with a few comments that dust collection is minimal and higher speeds can cause vibration on thin stock. Quotes: “Holes are nearly invisible—perfect for trim touch‑ups,” “Surprisingly powerful for 23-gauge,” and “Great for corners; wish it came with a charger.”

---

Finish faster with flawless results—add this Milwaukee M12 23GA Pin Nailer Kit to your cart today.
