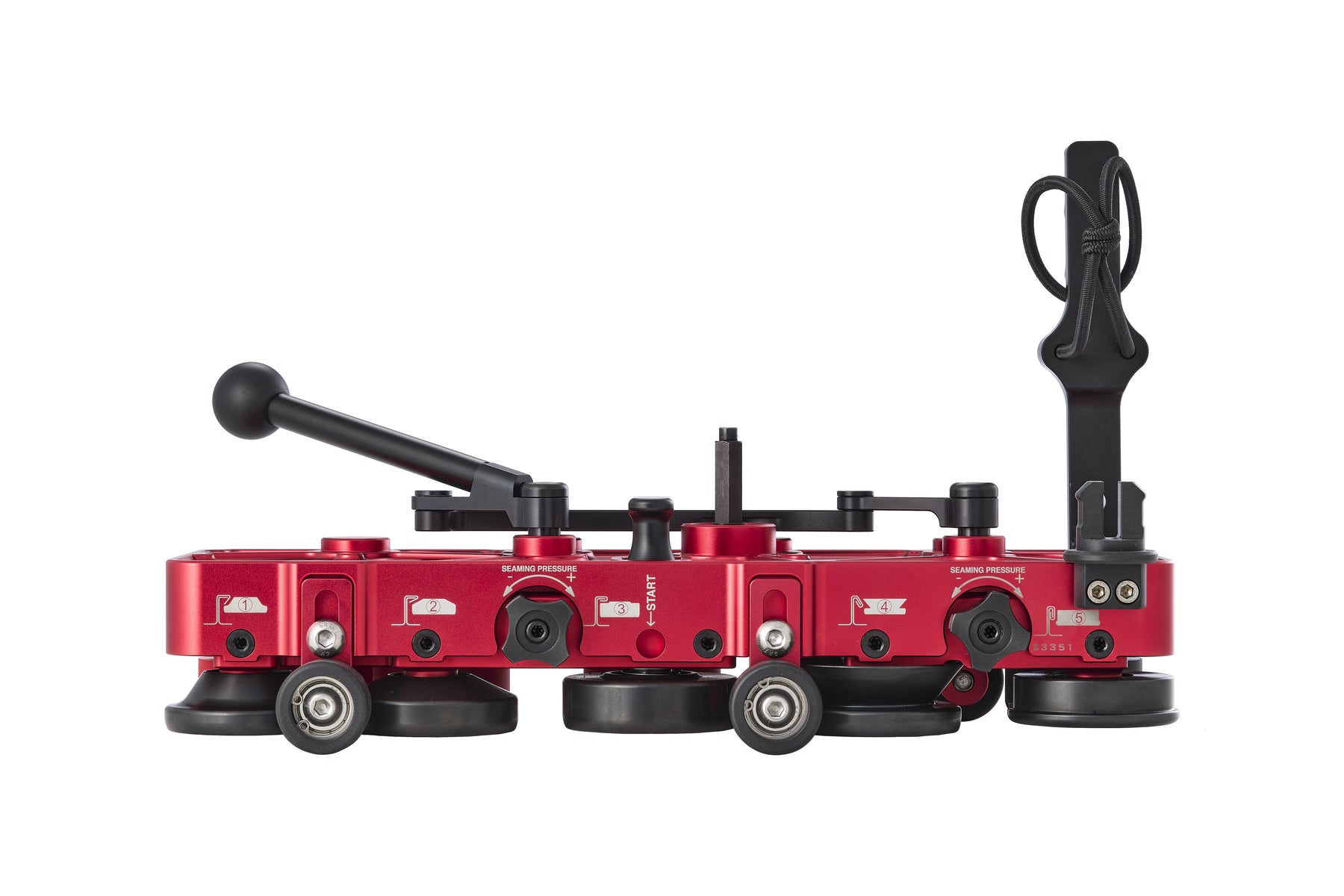

MALCO FSXS Power-Assisted Standing Seam Seamer for 1 in. and 1.5 in. Single & Double Lock Panels

The Malco FSXS is a power-assisted standing seam seamer that closes 1 in. and 1.5 in. single and double mechanical-lock panels in one pass at up to 98 ft. per minute. It attaches to a contractor-grade cordless drill (sold separately) and requires no hand seamer to start the seam. Supplied in an IP67-rated case with custom foam inserts.

Key Features

• One-pass seaming: Closes 1 in. and 1.5 in. single or double mechanical-lock standing seam panels in one efficient operation.
• 98 ft/min speed: Reaches seaming speeds up to 98 ft. per minute (30 m/min), about 1,076 sq. ft. in 7 minutes (100 m2/7 min).
• No hand seamer: Engineered to start seaming from the beginning of the panel without a hand seamer.
• Multi-metal capable: Works with steel, stainless steel, aluminum, copper and zinc panels.
• Drill powered: Attaches to a contractor-grade cordless drill for cordless operation with no dedicated power supply.
• Rugged transport case: Ships in a premium IP67 case with custom foam inserts for safe storage.
• Standing operation: Equipped with a leash so you can seam while walking up the roof.

Specifications

Manufacturer model

FSXS

Sell unit

1 seamer in IP67 case (drill sold separately)

Material

Hand-held power seaming tool (drill-driven)

Seam profiles

1 in. and 1.5 in. single and double mechanical lock

Seaming speed

Up to 98 ft./min. (30 m/min)

Coverage rate

About 1,076 sq. ft. in 7 minutes (100 m2/7 min)

Compatible metals

Steel, stainless steel, aluminum, copper, zinc

Power source

Contractor-grade cordless drill (sold separately)

Starting capability

Seams from the start of the panel; no hand seamer required

Pressure

Adjustable seaming pressure

Included case

IP67-rated case with custom foam inserts

Assembly

Attach to cordless drill; no assembly required

Intended use

Standing seam metal roof installation and retrofit

Manufacturer warranty summary

Malco Limited Lifetime Warranty

Fit and Compatibility

Fits 1 in. and 1.5 in. single and double mechanical-lock standing seam panels in steel, stainless steel, aluminum, copper and zinc. A contractor-grade cordless drill is required and sold separately; the tool is not sized for 2 in. profiles (a separate Malco model covers that size).

Frequently Asked Questions

What is included with the FSXS?

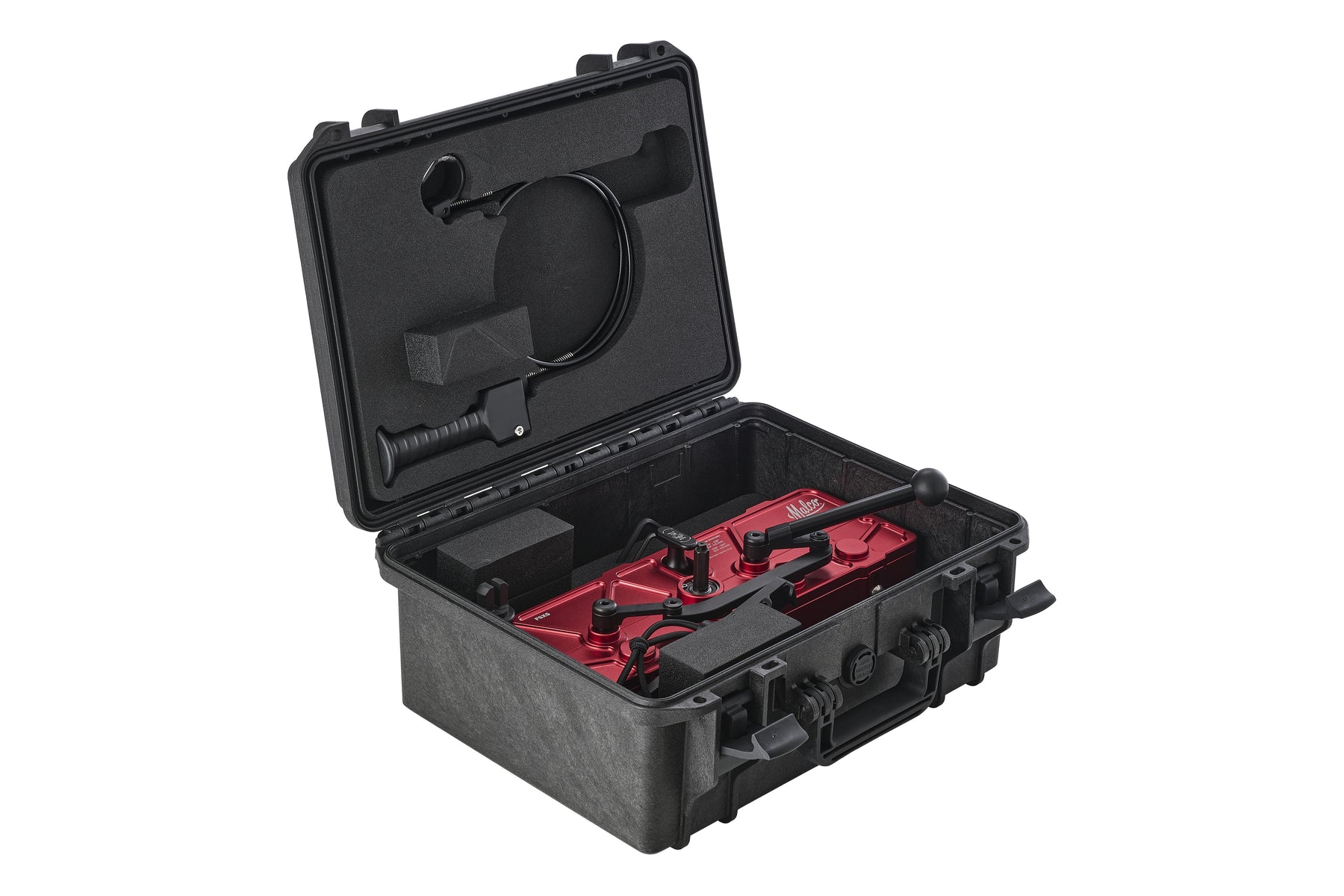

The seamer with leash, packaged in an IP67-rated case with custom foam inserts. The cordless drill that powers it is sold separately.

Do I need a hand seamer to start the seam?

No. The FSXS is designed to start seaming from the beginning of the panel without a hand seamer.

Which metals can it seam?

It works with steel, stainless steel, aluminum, copper and zinc standing seam panels in 1 in. and 1.5 in. single or double mechanical-lock profiles.

How fast does it seam?

Up to 98 ft. per minute, roughly 1,076 sq. ft. of seaming in 7 minutes.

Are there operating cautions?

Roof panels must be dry, and correct pressure matters: too little pressure can prevent feeding and excessive pressure can deform the finished seam.

Is there a warranty?

Yes, Malco backs it with a Limited Lifetime Warranty.

Product Expert Notes

Set the seaming pressure before each run: under-pressure stalls the feed and over-pressure distorts the seam, so test on a scrap panel or an inconspicuous stretch first. Keep panels dry and let the drill do the work at a steady walking pace up the roof. Choose the FSXS for 1-1.5 in. mechanical-lock profiles; for 2 in. seams you need the larger Malco model.

Seaming on roofs carries fall hazards: use appropriate fall protection, keep the leash attached during standing operation, and keep hands clear of the seaming rollers while the drill is engaged.
