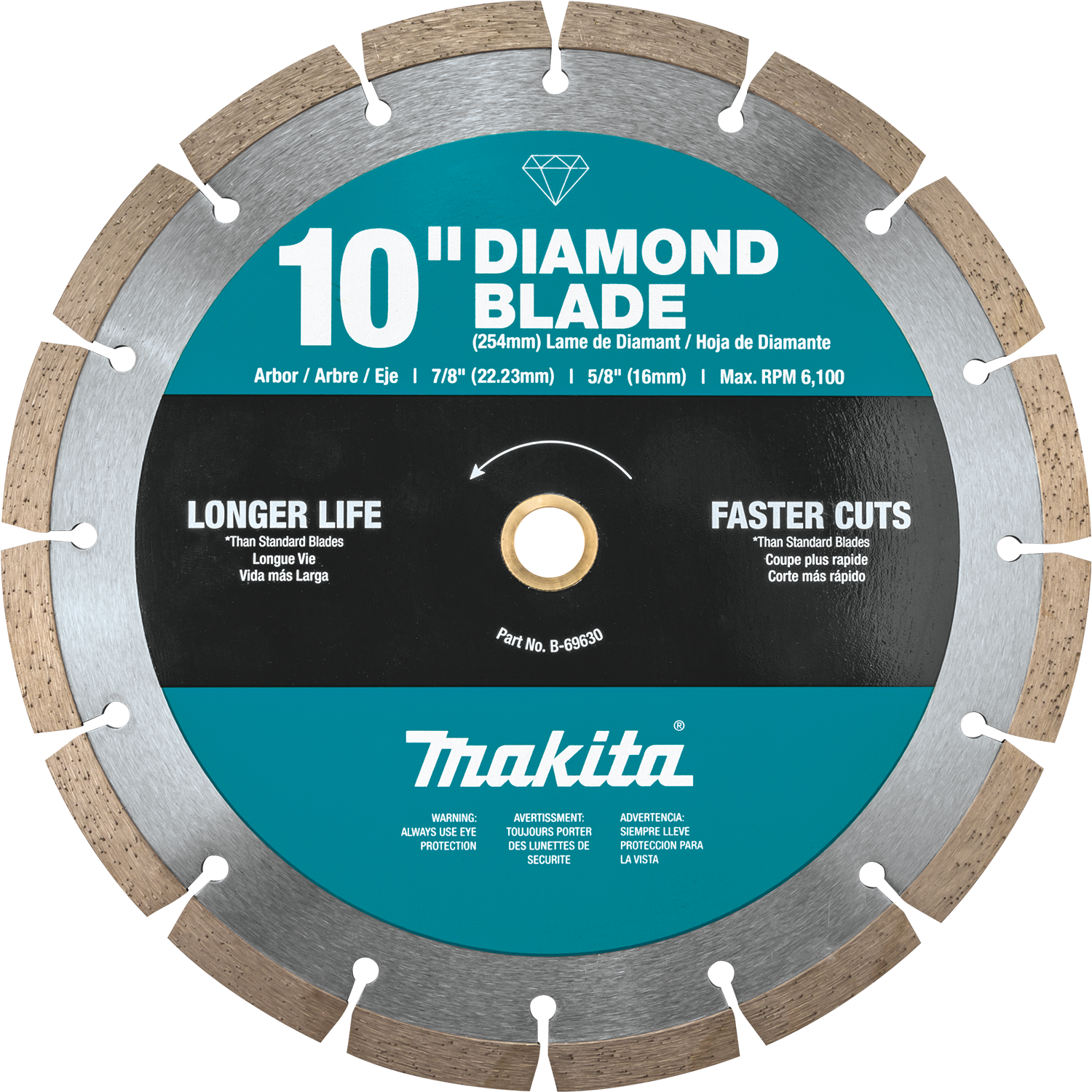

Makita 10 in. Segmented Rim Diamond Blade for General Purpose, 7/8" & 5/8" Arbor
Regular price $0.0010" Segmented Diamond Blade for Concrete/Block/Brick

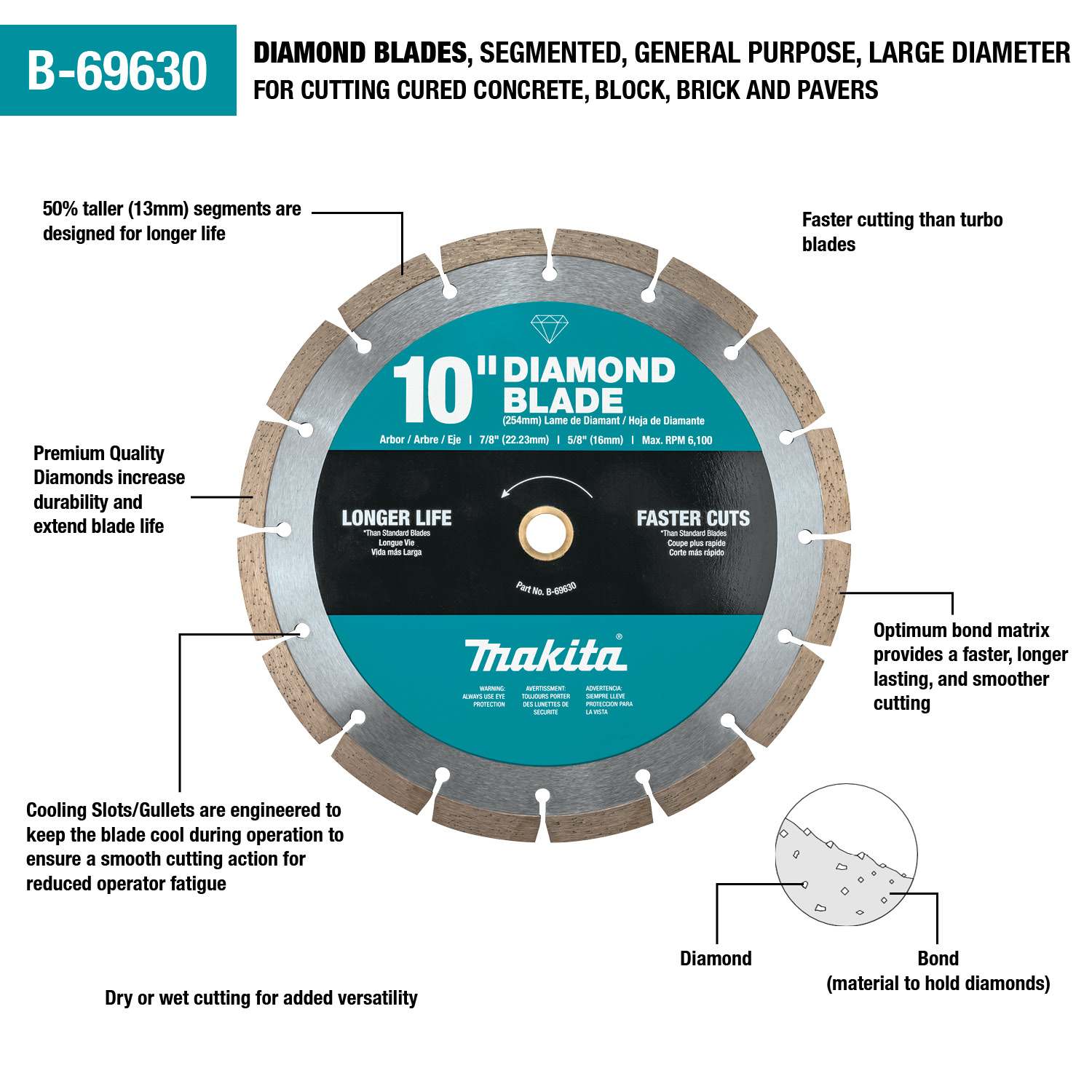

Makita’s 10-inch segmented rim diamond blade delivers fast, cool cuts in cured concrete, brick, block, and pavers. A premium steel core with laser‑welded, taller segments and an optimized bond matrix ensures longer life, reduced vibration, and superior cutting performance wet or dry.
Key Features:
- General Purpose Masonry Cutting: Ideal for cured concrete, block, brick, and pavers
- Longer Life Segments: 50% taller laser‑welded segments with premium diamonds for durability
- Fast, Smooth Cutting: Optimum bond matrix and cooling slots reduce heat and vibration
- Versatile Use: Dry or wet cutting; fits 10" saws with 7/8" or 5/8" arbor
- High Performance Rating: Max RPM 6,100 with expertly balanced steel core
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Blade Diameter | 10 in (254 mm) |
| Rim Type | Segmented |
| Application | Concrete, Block, Pavers, Brick |
| Tool Compatibility | Power Cutter, Cut-off Saw; 10" saws |
| Arbor | 7/8 in (22.23 mm); 5/8 in (16 mm) |
| Kerf | .095 in |
| Max RPM | 6,100 |
| Segment Height | 50% taller segments (approx. 13 mm) for longer life |
| Core | Expertly balanced premium steel core; laser‑welded segments |
| Cutting Method | Dry or wet |
| Product Type (Diamond Blades) | General Purpose |
| Shipping Weight | 1.8 lb |
| UPC Code | 088381-548960 |
| Packaged Dimensions (HxWxD) | 12.8 in x 11.4 in x 0.25 in |
Frequently Asked Questions (FAQ):
Q: What materials can this blade cut?
A: It’s a general-purpose diamond blade designed for cured concrete, block, brick, and pavers.
Q: Will it fit my saw?
A: It fits 10-inch saws with 7/8 inch (22.23 mm) or 5/8 inch (16 mm) arbor sizes.
Q: Can it be used dry or wet?
A: Yes, it’s suitable for both dry and wet cutting applications.
Q: What is the maximum RPM?
A: 6,100 RPM.
Q: How is vibration controlled?
A: The expertly balanced premium steel core and cooling slots help reduce vibration and noise.
Cutting Clarity Meets Industrial Elegance
This diamond blade turns heavy-duty cuts into a crisp, confident gesture—clean edges that elevate concrete, brick, and stone to architecture. The segmented rim, punctuated with taller laser‑welded teeth, is a study in precision and endurance. Pair it with a sleek 10-inch saw and let the cool, quiet balance shape patios, fireplaces, and statement thresholds. It’s a refined essential for crafting luxe surfaces with speed and control.
Equip your 10" saw with this Makita diamond blade and make faster, cleaner cuts in masonry today.
