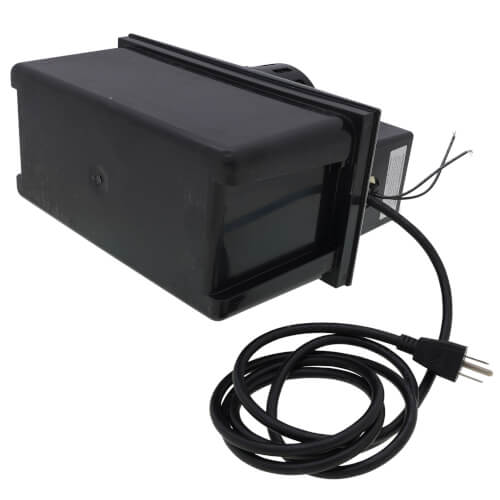

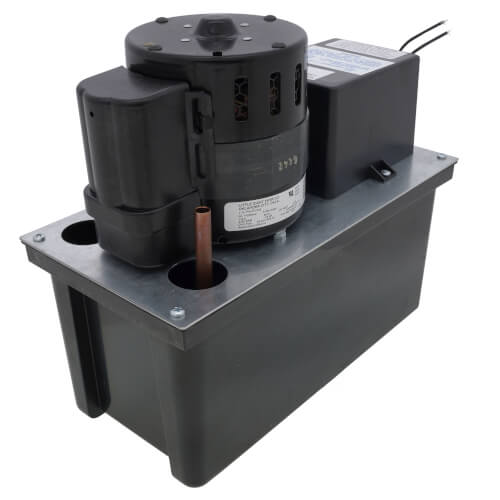

Little Giant 553240 VCL-45ULS, 450 GPH Automatic Condensate Removal Pump with Safety Switch (115V) Condensate Pump
Regular price $391.68The Little Giant 553240 VCL-45ULS, 450 GPH Automatic Condensate Removal Pump with Safety Switch (115V) Condensate Pump is a Little Giant condensate pump for HVAC repair and replacement work. Use it when the part number 553240 and the listed specifications match the equipment being serviced.
VCL-45 Series pump is rated for high-efficiency gas furnace applications that produce an acidic condensate Specifications: • Motor - 1/5 HP • 1 gallon tank capacity • Intermittent Liquid Temp. up to - 120°F • Flow - 450 GPH @ 1' of Head • Discharge - 3/8" O.D. • Housing - N/A • Cover - Galvanized steel • Motor Shaft - Stainless steel • Shaft Seal - N/A • Screen - ABS • Cord Length - 6 ft • Weight - 13 lbs • Height - 10.5" • Width - 6" • Length - 12" • Volute - ABS • Impeller - Polypropylene • Electrical - 115 V, 60 Hz, 3.5 Amps, 185 Watts, thermally protected motor Features: • Vertical type pump unit • Leakproof, rustproof, ABS tank • ABS…
Key Specs
- Voltage: 115V
- Horse Power: 1/5
- Flow at 1 FT Head: 450 GPH
- Shutoff Head (ft.): 45'
- Includes: Safety Switch, 3/8" Tubing
- Product Type: Condensate Pump
Replacement Notes
Captured replacement references include 599064. Confirm supersession details against the manufacturer parts list.
Expert Verdict
Reviewed by the SuperArbor Pro Desk: choose this part when the existing component label and unit documentation match 553240 and the spec set above. It is best suited for targeted HVAC service repairs where exact fitment matters more than broad universal compatibility.
FAQs
What is the Little Giant 553240 used for?
It is a condensate pump for compatible Little Giant HVAC equipment. Match the part number 553240 and the equipment service literature before ordering or installing.
Which specs should I verify before purchase?
Verify the spec set shown for this part: Voltage: 115V; Horse Power: 1/5; Flow at 1 FT Head: 450 GPH; Shutoff Head (ft.): 45'; Includes: Safety Switch, 3/8" Tubing; Product Type: Condensate Pump. The replacement should match the existing component and the unit documentation.
Does the electrical rating need to match exactly?
Yes. Confirm voltage rating 115V against the failed component label. Do not substitute a different rating unless the equipment manufacturer allows it.
Are replacement or superseded references available?
Captured cross-reference data includes 599064. Verify any supersession directly against the manufacturer parts list before installation.
Who should install this HVAC component?
A qualified HVAC technician should install and test the condensate pump. Disconnect power first, follow lockout procedures, and confirm safe operation after replacement.
Safety and Installation Notes
Disconnect power before service. HVAC electrical and combustion-related components should be installed and tested by a qualified technician. After installation, confirm wiring, mounting, airflow or fluid routing as applicable, and normal system operation.
