Lavi Industries 700 Series Ball Tee, Stainless Steel, Polished, 3-Way Rail Connector for 1-1/2 in or 2 in Tube
Regular price $31.56Orders start at $399 — combine any items to reach the minimum. Learn more

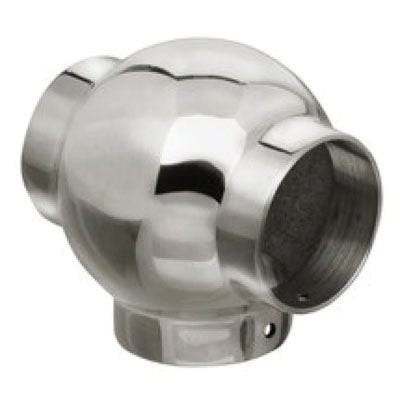

Lavi Industries 700 Series Ball Tee, Stainless Steel, Polished, 3-Way Rail Connector for 1-1/2 in or 2 in Tube
The Lavi Industries 700 Series ball tee joins two inline rail runs with a third tube branching at 90 degrees through a polished stainless ball. It is available for 1-1/2 in or 2 in tube. Each fitting includes six #8 x 5/8 in Phillips pan head self-drilling screws for a no-weld installation.
Key Features:
- 3-Way Tee: Connects two collinear tube runs and one perpendicular branch.
- Screws Included: Ships with six #8 x 5/8 in Phillips pan head self-drilling screws.
- Stainless Steel: Stainless steel construction in a polished finish.
- No Welding Required: Self-drilling screw installation for straightforward on-site assembly.
- Two Tube Sizes: Choose 2-1/2 in Dia x 2-3/4 in H for 1-1/2 in tube or 3-1/4 in Dia x 3-3/8 in H for 2 in tube.
- 700 Series Family: Matches the spherical styling of 700 Series elbows, crosses and side outlet fittings.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Lavi Industries |
| Sell unit | 1 piece (6 self-drilling screws included) |
| Collection | 700 Series |
| Product type | Ball tee, 3-way railing fitting |
| Available finishes | Polished |
| Available sizes | 3-1/4 in Dia x 3-3/8 in H (for 2 in tube); 2-1/2 in Dia x 2-3/4 in H (for 1-1/2 in tube) |
| Material | Stainless steel |
| Tube size | 1-1/2 in or 2 in round tube depending on variant |
| Installation | Self-drilling screws |
| Included hardware | (6) #8 x 5/8 in Phillips pan head self-drilling screws |
Fit and Compatibility:
Fits Lavi 700 Series round tubing; the 3-1/4 in ball is for 2 in tube and the 2-1/2 in ball is for 1-1/2 in tube. Use with other 700 Series ball fittings in matching polished stainless for a cohesive rail.
Frequently Asked Questions (FAQ):
Q: What comes with the tee?
A: One ball tee fitting plus six #8 x 5/8 in Phillips pan head self-drilling screws.
Q: How do I choose the size?
A: Match the fitting to your tubing: 3-1/4 in Dia x 3-3/8 in H for 2 in tube, 2-1/2 in Dia x 2-3/4 in H for 1-1/2 in tube.
Q: Are other finishes offered?
A: No, this ball tee line is listed in polished stainless only.
Q: How is it fastened?
A: The included self-drilling screws pass through the fitting into the tube; no welding is required.
Q: When would I use a tee instead of a cross?
A: Use a tee where three tube directions meet, such as a branch off a continuous rail; a cross is for four directions.
Q: Is special tooling needed?
A: A drill with a Phillips driver is all that is needed for the self-drilling screws.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
The ball tee is the workhorse junction of a 700 Series ball-fitting rail, handling branch connections at posts or intersecting rails. Align all three tubes fully into the ball before driving the six screws, working opposite screws to keep the fitting centered. Match tube diameter and polished finish across all fittings in the run.
Railing fittings are structural components; verify the completed assembly meets local building code load and guardrail requirements before use.
Add the Lavi Industries 700 Series ball tee to build reliable three-way joints in your stainless railing.
