Lavi Industries 700 Series Ball Cross, Stainless Steel, Polished, 4-Way Rail Connector for 1-1/2 in or 2 in Tube
Regular price $33.85Orders start at $399 — combine any items to reach the minimum. Learn more

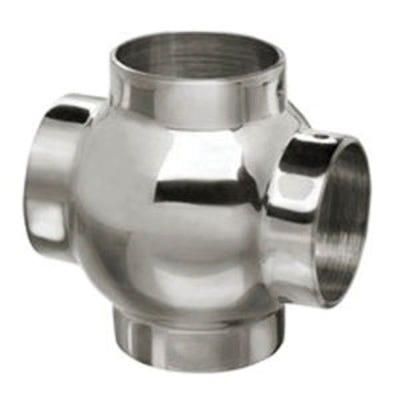

Lavi Industries 700 Series Ball Cross, Stainless Steel, Polished, 4-Way Rail Connector for 1-1/2 in or 2 in Tube
This Lavi Industries 700 Series ball cross is a polished stainless 4-way connector that joins four lengths of round railing tube through a spherical center. It is offered for 1-1/2 in or 2 in tube. Each fitting includes four #8 x 5/8 in Phillips pan head self-drilling screws and installs with self-drilling screws.
Key Features:
- 4-Way Connection: A ball-style cross that accepts four tube ends for intersecting railing runs.
- Screws Included: Ships with four #8 x 5/8 in Phillips pan head self-drilling screws.
- Stainless Steel: Constructed of stainless steel in a polished finish.
- Screw Installation: Installs with self-drilling screws, so no welding is required.
- Two Tube Sizes: Available in 2-1/2 in Dia x 3 in H for 1-1/2 in tube and 3 in Dia x 3-1/2 in H for 2 in tube.
- 700 Series Look: Matches the spherical styling of other Lavi 700 Series ball fittings.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Lavi Industries |
| Sell unit | 1 piece (4 self-drilling screws included) |
| Collection | 700 Series |
| Product type | Ball cross, 4-way railing fitting |
| Available finishes | Polished |
| Available sizes | 3 in Dia x 3-1/2 in H (for 2 in tube); 2-1/2 in Dia x 3 in H (for 1-1/2 in tube) |
| Material | Stainless steel |
| Tube size | 1-1/2 in or 2 in round tube depending on variant |
| Installation | Self-drilling screws |
| Included hardware | (4) #8 x 5/8 in Phillips pan head self-drilling screws |
Fit and Compatibility:
Fits Lavi 700 Series round tubing; select the 3 in ball for 2 in tube or the 2-1/2 in ball for 1-1/2 in tube. Pairs with other 700 Series ball fittings such as ball elbows, tees and side outlet tees in the same finish.
Frequently Asked Questions (FAQ):
Q: What is included?
A: One ball cross fitting plus four #8 x 5/8 in Phillips pan head self-drilling screws.
Q: How do I pick the correct size?
A: Match the fitting to your tube: the 3 in Dia x 3-1/2 in H cross is for 2 in tube and the 2-1/2 in Dia x 3 in H cross is for 1-1/2 in tube.
Q: Does it require welding?
A: No, it attaches with self-drilling screws through the fitting into the tube.
Q: Is it available in satin?
A: No, this ball cross line is listed in a polished stainless finish only.
Q: Can I use it mid-run on a rail?
A: Yes, a cross is used where four tube directions meet, such as an intersecting grid of rails.
Q: Do I need special tools?
A: A drill with a Phillips driver is sufficient since the supplied screws are self-drilling.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
Ball crosses are ideal for decorative intersecting rail layouts where four members meet at one point. Because the screws are self-drilling, mark and align all four tube ends before driving so the spherical fitting sits squarely. Keep the polished finish matched across all fittings for a consistent look, and consider satin alternatives where fingerprints are a concern.
Railing fittings are structural components; verify the completed assembly meets local building code load requirements before use.
Order the Lavi Industries 700 Series ball cross to create a four-way junction in your polished stainless railing.
