Lavi Industries 500 Series Wall Flange, 3 in and 4 in Dia, 304 Stainless Steel, Polished or Satin
Regular price $30.14Orders start at $399 — combine any items to reach the minimum. Learn more
Lavi Industries 500 Series Wall Flange, 3 in and 4 in Dia, 304 Stainless Steel, Polished or Satin

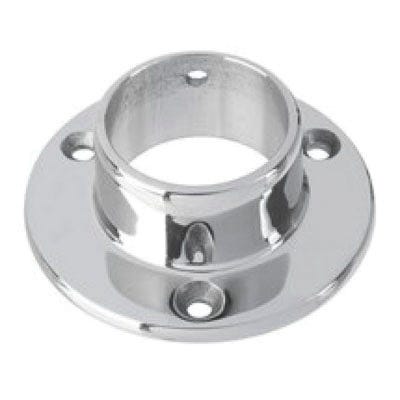

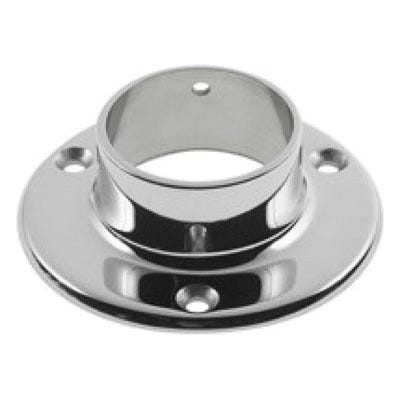

This is a Lavi Industries 500 Series wall flange that anchors 1-1/2 in or 2 in railing tube to a wall or post face. Made of 304 stainless steel in polished or satin finishes, each flange includes self-drilling screws: three #12 x 2 in Phillips flat head and one #8 x 5/8 in Phillips pan head. Sold per piece; choose diameter and finish to match your tube.
Key Features:
- Wall-mount anchoring: Secures the end of a railing tube to a wall or post face with self-drilling screws.
- Two tube sizes: Available for 1-1/2 in tube (3 in Dia) or 2 in tube (4 in Dia), each 1-1/4 in H.
- 304 stainless steel: Constructed of 304 stainless steel for durable interior and exterior railing use.
- Polished or satin: Offered in polished or satin stainless to match your railing components.
- Screws included: Includes (3) #12 x 2 in Phillips flat head screws and (1) #8 x 5/8 in Phillips pan head self-drilling screw.
- Concealed installation: Self-drilling screw installation leaves a clean flange face on the finished rail.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Lavi Industries |
| Sell unit | 1 piece |
| Product type | Wall flange |
| Collection | 500 Series |
| Available finishes | Polished, Satin |
| Available sizes | 3 in Dia x 1-1/4 in H (1-1/2 in tube); 4 in Dia x 1-1/4 in H (2 in tube) |
| Diameter | 3 in or 4 in |
| Height | 1-1/4 in |
| Tube size | 1-1/2 in or 2 in |
| Material | 304 stainless steel |
| Color / finish | Polished or Satin |
| Mounting | Self-drilling screw; (3) #12 x 2 in Phillips flat head and (1) #8 x 5/8 in Phillips pan head self-drilling screws included |
| Intended use | Railing tube wall mount |
Fit and Compatibility:
Fits 1-1/2 in or 2 in Lavi Industries 500 Series railing tube depending on the variant chosen; matching 500 Series flanges and covers are available. Screws for metal framing are included; verify substrate compatibility.
Frequently Asked Questions (FAQ):
Q: What is included with the flange?
A: Each flange includes (3) #12 x 2 in Phillips flat head screws and (1) #8 x 5/8 in Phillips pan head self-drilling screw.
Q: Which size do I need?
A: Use the 3 in Dia flange for 1-1/2 in tube and the 4 in Dia flange for 2 in tube; both are 1-1/4 in H.
Q: What finishes are offered?
A: Polished and satin 304 stainless steel.
Q: How is it installed?
A: Position the tube in the flange and drive the included self-drilling screws to secure it to the wall or post.
Q: Is one flange enough for a rail run?
A: A wall-terminated rail typically needs one flange per tube end; order accordingly.
Q: How is it packaged?
A: Manufacturer packaging is 48 per box; the sell unit offered here is 1 piece.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
Choose the flange diameter to match your tube: 3 in for 1-1/2 in tube, 4 in for 2 in tube. Satin stainless hides fingerprints on handrails while polished gives a mirror look; keep the same finish across brackets and end caps. Confirm the mounting substrate will accept the included self-drilling screws, or substitute appropriate anchors.
Railing mounts must be anchored to structural framing capable of carrying the code-required loads; check local building codes.
Add the Lavi Industries 500 Series wall flange to terminate your stainless railing run cleanly.
