Lavi Industries 500 Series Brass Cut Wall Flange, 3-4 in Dia, Polished, for 1-1/2 or 2 in Tube
Regular price $19.79Orders start at $399 — combine any items to reach the minimum. Learn more
Lavi Industries 500 Series Brass Cut Wall Flange, 3-4 in Dia, Polished, for 1-1/2 or 2 in Tube

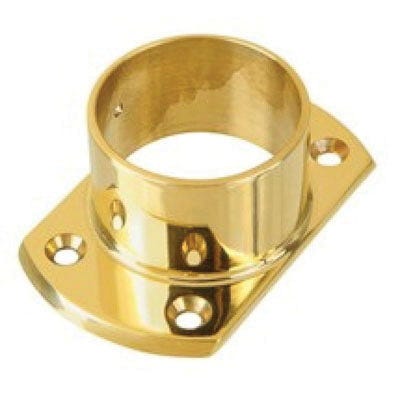

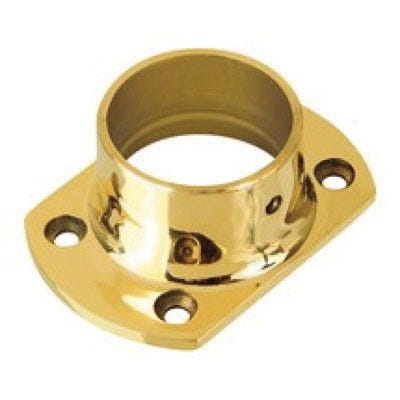

This is a Lavi Industries 500 Series cut wall flange in polished brass, offered in two sizes to accept 1-1/2 in or 2 in tubing. One flange per order, with screws included. It mounts a tube end to a wall and pairs with Lavi 44 Series round tubing.
Key Features:
- Screws included: Includes (4) #12 x 2 in Phillips flat head screws and (1) #8 x 5/8 in Phillips pan head self-drilling screw as printed for the 4 in size.
- Self-drilling installation: Installation type is self-drilling screw.
- Two sizes: Available in 4 in Dia x 2-1/2 in H for 2 in tube and 3 in Dia x 2 in H for 1-1/2 in tube.
- Solid brass: Made of brass with a polished finish.
- Wall mount: Secures a tube end to a wall surface.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Lavi Industries |
| Sell unit | 1 piece |
| Series | 500 |
| Product type | Cut wall flange |
| Available finishes | Polished |
| Available sizes | 3 in Dia x 2 in H (for 1-1/2 in tube), 4 in Dia x 2-1/2 in H (for 2 in tube) |
| Material | Brass |
| Color / finish | Polished brass |
| Diameter | 3 in or 4 in depending on variant |
| Height | 2 in or 2-1/2 in depending on variant |
| Tube size | For 1-1/2 in or 2 in tubing |
| Mounting | Self-drilling screw; screws included on the 4 in size as printed |
| Intended use | Wall-mount railing terminations |
Fit and Compatibility:
The 4 in flange fits 2 in tubing and the 3 in flange fits 1-1/2 in tubing, matching Lavi 44 Series tube sizes. Tubing is sold separately.
Frequently Asked Questions (FAQ):
Q: Are screws included?
A: The printed description for the 4 in size lists (4) #12 x 2 in Phillips flat head screws and (1) #8 x 5/8 in Phillips pan head self-drilling screw included; confirm the screw set for the 3 in size at order time.
Q: Which size fits my tube?
A: The 4 in Dia x 2-1/2 in H flange accepts 2 in tube and the 3 in Dia x 2 in H flange accepts 1-1/2 in tube.
Q: What is a cut wall flange used for?
A: It terminates a cut tube end against a wall, hiding the tube end and anchoring the rail to the wall.
Q: What material and finish is it?
A: Brass with a polished finish.
Q: Can it be used on the floor?
A: It is designed as a wall flange; for floor mounting Lavi offers dedicated floor flanges and flange canopies in the 500 Series.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
Match the flange to your tube diameter first, then confirm the wall substrate will accept the included screw type; self-drilling screws suit metal substrates as printed. Position flanges so the rail terminates at a comfortable graspable height and keep polished brass fittings consistent across the run.
Anchor wall flanges into structural backing capable of supporting railing loads; surface-only fastening may not hold.
Order the Lavi Industries 500 Series polished brass cut wall flange for a clean rail-to-wall termination.
