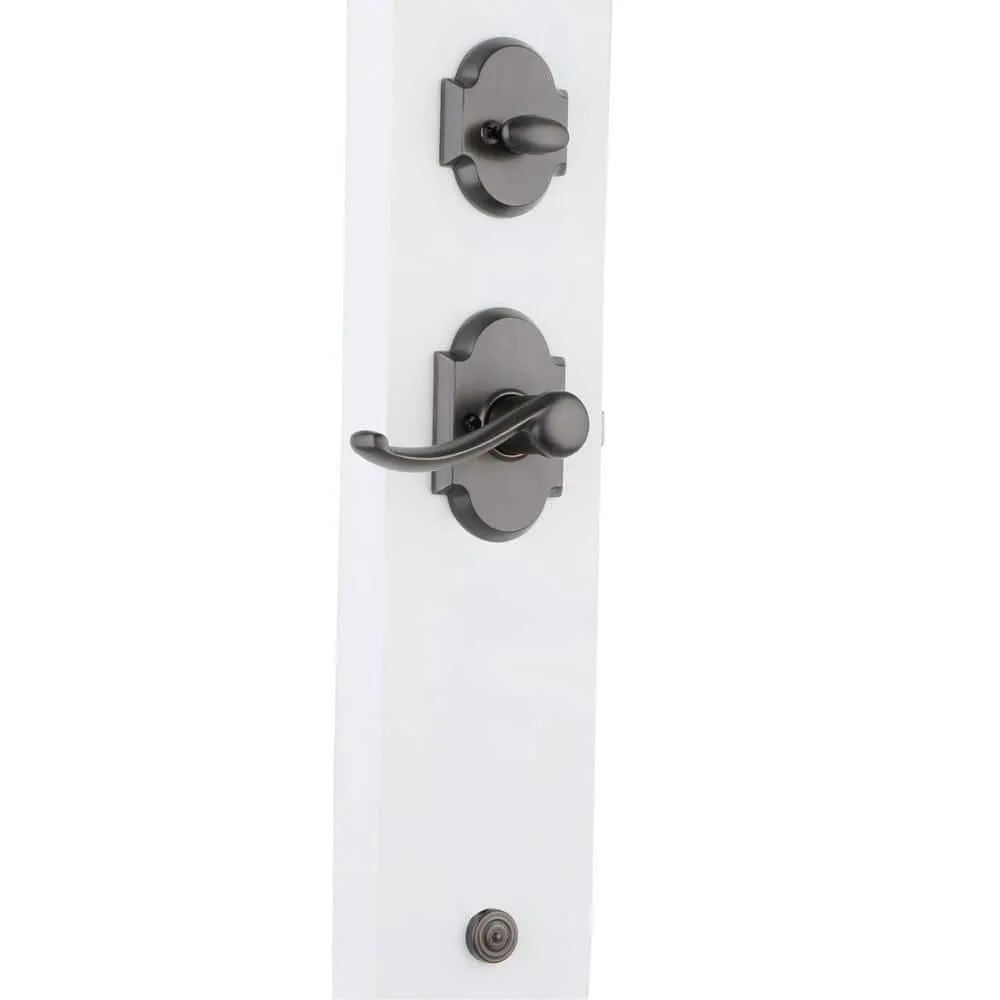

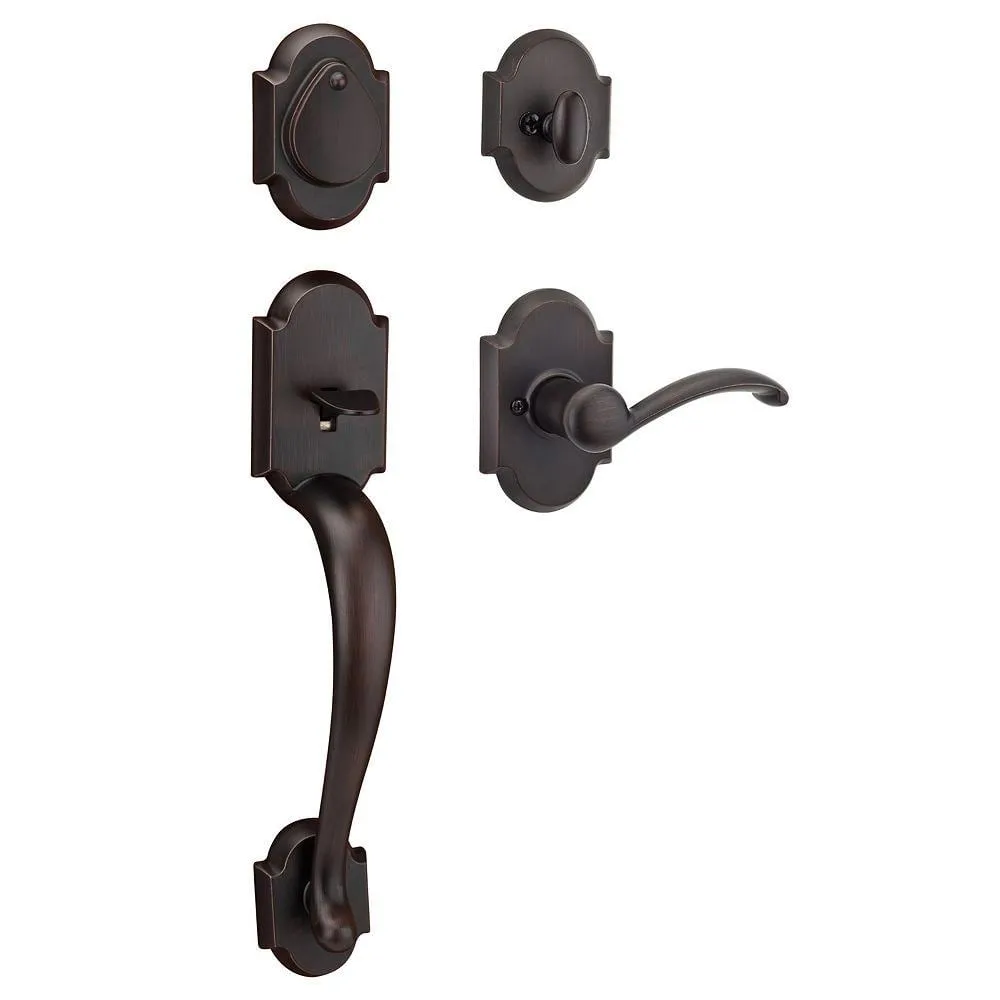

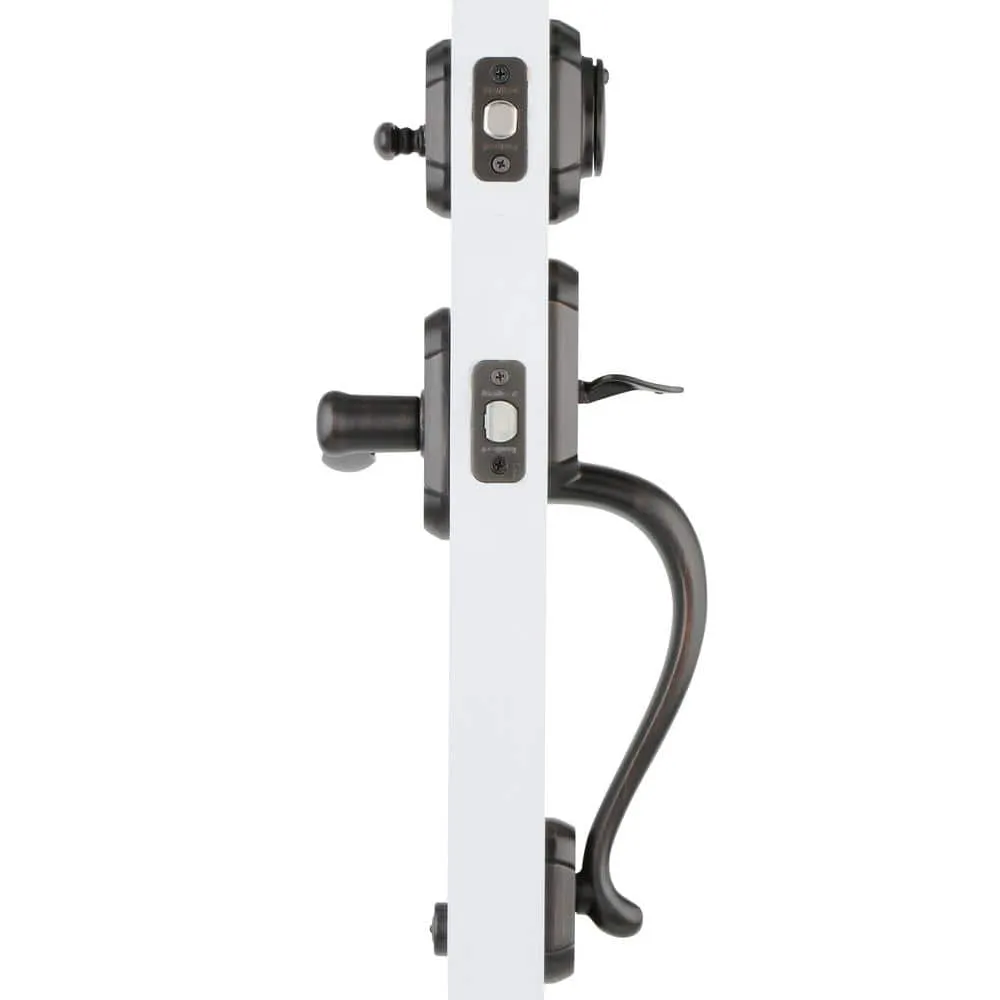

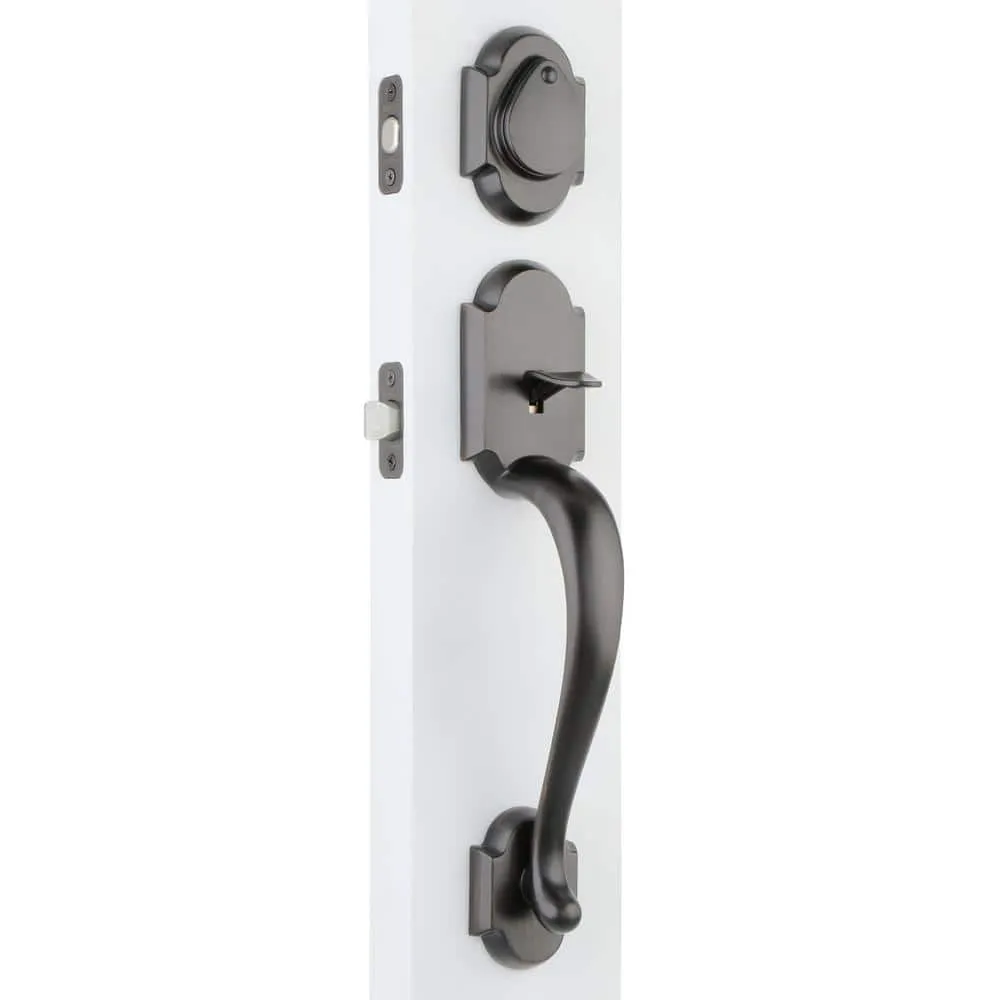

Austin Venetian Bronze Single Cylinder Handleset with Lever, SmartKey

This Kwikset Austin handleset pairs a single-cylinder deadbolt with an Austin interior lever in a rich Venetian Bronze finish. SmartKey Security lets you re-key in seconds, while universal handing and an adjustable latch ensure a fast, screwdriver-only install.

---

Key Features:

• SmartKey Security: Re-key your lock yourself in seconds for added peace of mind
• Universal Handing: Fully reversible lever fits right- or left-handed doors
• Easy Installation: Installs in minutes with just a screwdriver; adjustable latch fits standard preps
• Durable Build & Finish: Metal construction with hand-rubbed Venetian Bronze highlights
• High Security Rating: ANSI/BHMA Grade 1 single-cylinder deadbolt

---

Specifications Table:

Specification	Details
Finish	Venetian Bronze
Hardware Color Family	Bronze
Backplate Shape	Round Backplate
Commercial/Residential	Residential
Deadbolt Type	Single Cylinder Deadbolt
Deadbolt strike	Round corner
Door Handing	Universal
Door Lock Style	Rustic
Door Locks & Knobs Product Type	Keyed Handlesets
Door Type	Keyed Entry
Electronic/Mechanical	Mechanical
Features	Easy Installation; SmartKey Security
Handleset Product Type	2 Piece Front & Back
Hardware Finish Family	Venetian

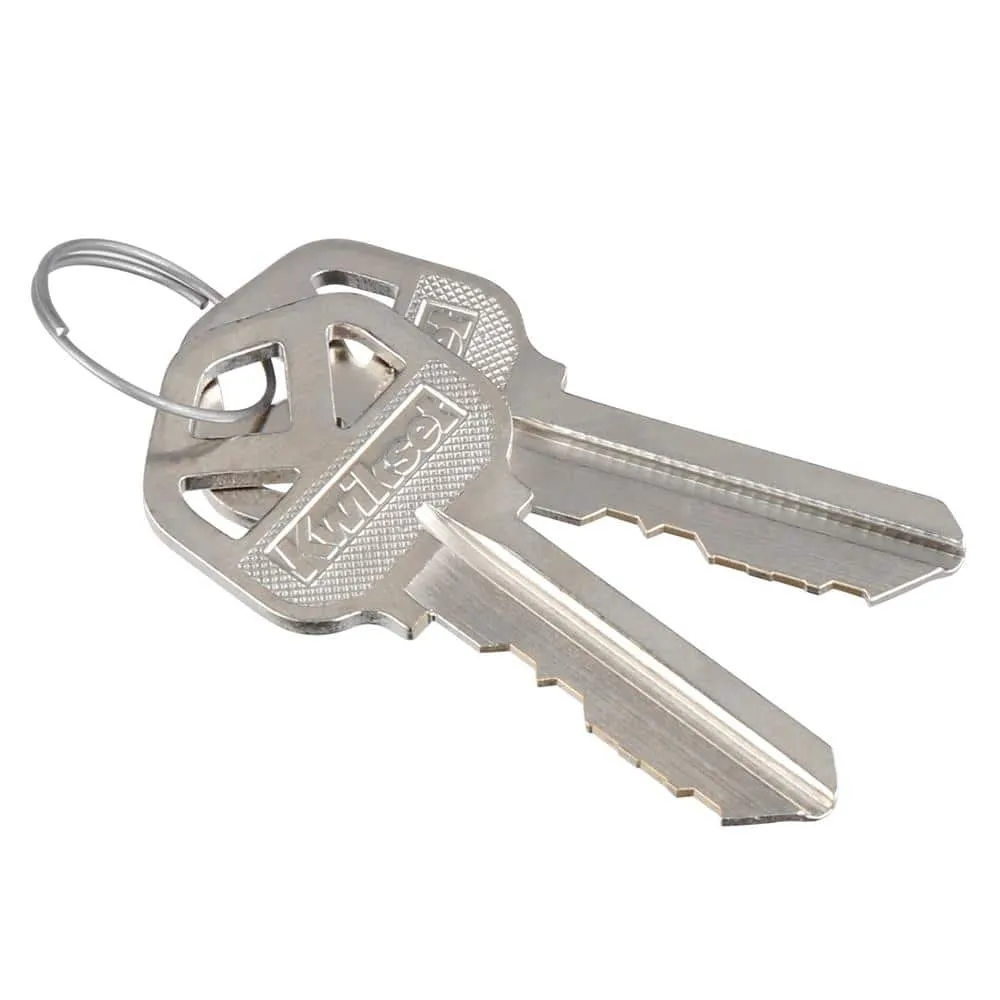

Included	Hardware; Installation Instructions; 2 Keys
Keying Type	Keyed Different
Keyway	KW1
Lever style	Wave
Lock Type	Keyed
Material	Metal
Product Weight (lb.)	10.3 lb
Security/ANSI Grade	ANSI/BHMA Grade 1
Tools/Hardware Collections	Kwikset SmartKey
Total Number of Keys Included	2
Certifications and Listings	No Certifications or Listings; ADA compliant
Manufacturer Warranty	Lifetime mechanical and finish warranty
Assembled Depth (in.)	3.15625 in
Assembled Height (in.)	18.42 in
Assembled Width (in.)	2.6875 in
Backset Size (in.)	Adjustable
Deadbolt Bore Hole Diameter (in.)	8 in
Deadbolt Cross Bore Diameter (in.)	2.125 in
Deadbolt Strike Height (in.)	2.25 in
Deadbolt Strike Width (in.)	1 in
Deadbolt Throw Length (in.)	1 in
Deadbolt Trim Ring Diameter (in.)	3 in
Handle grip length (in.)	4.125 in
Inside top plate length (in.)	1.0 in
Inside top plate width (in.)	1.0 in
Knob/lever bore hole diameter (in.)	2.125 in
Knob/lever cross bore diameter (in.)	1.0 in
Knob/lever housing height (in.)	2.625 in
Knob/lever housing width (in.)	2.625 in
Knob/lever strike height (in.)	2.25 in
Knob/lever strike width (in.)	1 in
Knob/lever throw length (in.)	0.5 in
Lever Grip Length (in.)	4.219 in
Maximum Door Thickness (in.)	1.75 in
Minimum Door Thickness (in.)	1.75 in
Outside bottom handle plate length (in.)	1.0 in
Outside bottom handle plate width (in.)	1.0 in
Outside key plate length (in.)	1.0 in
Outside key plate width (in.)	1.0 in
Outside top handle plate length (in.)	1.0 in
Outside top handle plate width (in.)	1.0 in
Projection (in.)	2.53125 in

---

Frequently Asked Questions (FAQ):

Q: Will this fit my door thickness?
A: It fits doors 1-3/4 in. thick with an adjustable latch for standard preparations.

---

Q: Can I install this myself?
A: Yes. It installs in minutes with just a screwdriver; detailed instructions are included.

---

Q: Is the lever reversible?
A: Yes, the Austin lever is fully reversible for right- or left-handed doors.

---

Q: How does SmartKey work?
A: SmartKey Security allows you to re-key the lock to a new key in seconds using the included tool.

---

Q: What security grade is the deadbolt?
A: ANSI/BHMA Grade 1 for residential security.

---

Rustic Elegance Meets Everyday Security

The Austin handleset is a sculptural accent with sweeping curves and a hand-rubbed Venetian Bronze finish that warms the entry. Its profile feels both rugged and refined, anchoring traditional and transitional facades. Pair it with textured woods and matte black accents to echo its artisanal charm. A beautiful statement piece that also delivers Grade 1 security—essential for luxe, livable homes.

---

Elevate your entry with designer style and Grade 1 security—add the Kwikset Austin handleset to your cart today.
