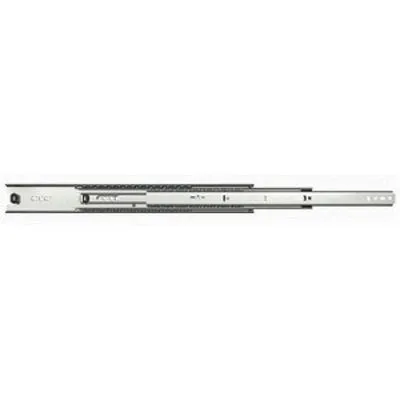

Knape & Vogt 8810 Heavy-Duty Ball-Bearing Drawer Slide, 10-28 in., Full Extension, 200 lb, Side Mount, Zinc
The Knape & Vogt 8810 heavy-duty slide is a side-mount, ball-bearing, full-extension slide rated at 200 lb and sized for drawers up to 42 in. wide. It features a hold-in anti-rebound closure and butterfly lever disconnect, in a zinc finish. Slides are sold per pair (one left and one member for one drawer); choose from 10 to 28 in. lengths.
Key Features:
- 200 lb capacity: Rated to carry 200 lb per set, suited to heavy file and equipment drawers.
- Full extension: Telescopic ball-bearing action extends fully; a 28 in. slide reaches 56 in. extended.
- Hold-in closure: Hold-in anti-rebound closure keeps the drawer securely retracted.
- Easy disconnect: Butterfly lever disconnect lets the drawer be removed without tools.
- Wide drawers: Approved for drawers up to 42 in. wide.
- Standard side space: Requires 3/4 in. side clearance and uses #8 or #10 x 5/8 in. screws.
- Multiple lengths: Offered in 10, 12, 14, 16, 18, 20, 22, 24, 26 and 28 in. lengths, zinc finish.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Knape & Vogt |
| Sell unit | 1 pair |
| Series | 8810 |
| Available lengths | 10 in., 12 in., 14 in., 16 in., 18 in., 20 in., 22 in., 24 in., 26 in., 28 in. |
| Available finishes | Zinc |
| Extension | Full extension, telescopic |
| Load rating | 200 lb |
| Mounting | Side mount |
| Closing | Hold-in anti-rebound |
| Side clearance | 3/4 in. |
| Dimensions | 2.09 in. OAH, 3/4 in. W overall; 28 in. slide = 56 in. extended |
| Disconnect | Butterfly lever |
| Screws | #8 or #10 x 5/8 in. |
| Max drawer width | 42 in. |
| Material | Steel |
| Finish | Zinc |
| Packaging | 4/box |
Fit and Compatibility:
A Knape & Vogt 8810 series heavy-duty side-mount slide for drawers up to 42 in. wide; members work as a left/right pair. Fastening screws (#8 or #10 x 5/8 in.) are specified but should be confirmed as included; other drawer hardware is sold separately.
Frequently Asked Questions (FAQ):
Q: What is included?
A: One pair of 8810 slides, one left and one right member, in your chosen length; packaging is 4 slides per box.
Q: What length should I choose?
A: Match the slide length to the drawer depth, typically the box dimension rounded down; lengths run 10 through 28 in.
Q: How much weight will it hold?
A: The printed rating is 200 lb, well suited to file drawers, pots and heavy equipment storage.
Q: How much side clearance does it need?
A: 3/4 in. of side space per slide, and drawers up to 42 in. wide are supported.
Q: Can I remove the drawer?
A: Yes, the butterfly lever disconnect releases the drawer for cleaning or moving.
Q: Is it soft close?
A: No, the 8810 uses a hold-in anti-rebound closure, not a soft-close damper.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
Pick the slide length closest to but not longer than your drawer box depth, and confirm 3/4 in. side clearance on both sides before drilling. At 200 lb, this is a genuine heavy-duty slide: reserve it for file drawers, tool chests and pot drawers, and use lighter-duty slides for everyday cabinetry. Mount both members on a level line, and let the butterfly disconnect simplify fitting and cleanup.
Fully seat all mounting screws in solid material before loading heavy drawers, and support the drawer when using the disconnect.
Choose the Knape & Vogt 8810 heavy-duty slide for 200 lb full-extension drawer performance.
