Knape & Vogt 1300 Drawer Slide, 12-28 in., Side Mount, 3/4 Extension, 75 lb, Steel in White or Zinc
Regular price $23.43Orders start at $399 — combine any items to reach the minimum. Learn more
Knape & Vogt 1300 Drawer Slide, 12-28 in., Side Mount, 3/4 Extension, 75 lb, Steel in White or Zinc

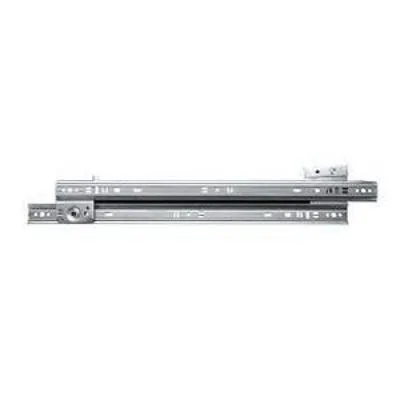

The Knape & Vogt 1300 is a light-duty side-mount drawer slide spanning nine lengths from 12 in. to 28 in. with 3/4 extension and a 75 lb capacity. Nylon roller bearings, hold-in anti-rebound closure and lift-out disconnect in steel with white or zinc finish. Each order includes one pair of slides with mounting screws in a polybag.
Key Features:
- Nine lengths: Offered in 12 through 28 in. lengths in 2 in. increments.
- 75 lb capacity: Rated for drawers up to 75 lb.
- 3/4 extension: Opens to three-quarters of full travel.
- Nylon roller glide: Nylon roller bearings provide smooth drawer travel.
- Hold-in anti-rebound: Hold-in anti-rebound closure stops rebound when closing.
- Screws included: Each pair ships with mounting screws in a polybag.
- Lift-out disconnect: Drawer lifts out of the cabinet members for cleaning.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Knape & Vogt |
| Sell unit | 1 pair |
| Series | 1300 |
| Type | Light-duty side-mount slide |
| Available lengths | 12 in., 14 in., 16 in., 18 in., 20 in., 22 in., 24 in., 26 in., 28 in. |
| Available finishes | White, Zinc |
| Extension | 3/4 |
| Load rating | 75 lb |
| Mounting | Side mount |
| Closing | Hold-In Anti-Rebound |
| Glide mechanism | Nylon roller bearing |
| Disconnect | Lift-Out |
| Side clearance | 1/2 in. |
| Height | 3 in. OAH |
| Width | 1/2 in. overall |
| Material | Steel |
| For drawers up to | 18 in. W |
| Mounting screw | #7 x 1/2 in. |
| Packaging | Bulk pack or polybagged, 10/Box |
Fit and Compatibility:
Knape & Vogt 1300 series slides fit drawers up to 18 in. wide with 1/2 in. side clearance per slide. Zinc items come in bulk pack or polybagged; white items are offered in bulk pack on selected lengths.
Frequently Asked Questions (FAQ):
Q: What is included in the order?
A: One pair of slides (left and right) plus mounting screws in a polybag.
Q: What lengths are offered?
A: 12, 14, 16, 18, 20, 22, 24, 26 and 28 in.
Q: How much weight does it hold?
A: The slide is rated for 75 lb.
Q: What finishes can I choose?
A: White or zinc on steel.
Q: How should I size the slide?
A: Choose a length equal to or slightly less than the cabinet's interior drawer depth.
Q: How is the drawer removed?
A: The lift-out disconnect lets you lift the drawer straight out for cleaning.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
The wide 12-28 in. length range makes the 1300 a go-to roller slide for everything from small vanity drawers to long pantry pull-outs. The 3 in. overall height means it can replace many older full-profile roller slides in existing face-frame cabinets. Keep 1/2 in. side clearance per side and drive the #7 x 1/2 in. screws into solid cabinet material for a rattle-free drawer.
Ensure both members are screwed firmly to the cabinet before loading the drawer.
Get the Knape & Vogt 1300 side-mount slide for a reliable fit across nearly any drawer depth.
