Knape & Vogt 1260 Drawer Slide, 14-22 in., Side Mount, 3/4 Extension, 60 lb, Steel in Brown or Zinc
Regular price $7.72Orders start at $399 — combine any items to reach the minimum. Learn more
Knape & Vogt 1260 Drawer Slide, 14-22 in., Side Mount, 3/4 Extension, 60 lb, Steel in Brown or Zinc

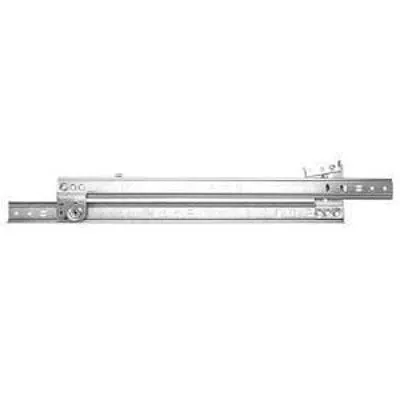

The Knape & Vogt 1260 is a light-duty side-mount drawer slide in 14, 16, 18, 20 and 22 in. lengths with 3/4 extension and a 60 lb capacity. Nylon roller bearings and a hold-in anti-rebound closure give smooth, controlled travel in steel with a brown or zinc finish. Sold per pair for one drawer.
Key Features:
- Five lengths: Offered in 14, 16, 18, 20 and 22 in. lengths to match common cabinet depths.
- 60 lb capacity: Rated to carry drawers up to 60 lb.
- 3/4 extension: Opens to three-quarters of full travel.
- Nylon roller glide: Nylon roller bearings deliver smooth drawer travel.
- Hold-in anti-rebound: Hold-in anti-rebound closure prevents the drawer from rebounding open.
- Lever lift-out: Lever disconnect plus lift-out method makes drawer removal easy.
- Two finishes: Available in brown or zinc on steel.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Knape & Vogt |
| Sell unit | 1 pair |
| Series | 1260 |
| Type | Light-duty side-mount slide |
| Available lengths | 14 in., 16 in., 18 in., 20 in., 22 in. |
| Available finishes | Brown, Zinc |
| Extension | 3/4 |
| Load rating | 60 lb |
| Mounting | Side mount |
| Closing | Hold-In Anti-Rebound |
| Glide mechanism | Nylon roller bearing |
| Disconnect | Lever, Lift-Out |
| Side clearance | 1/2 in. |
| Height | 3.12 in. OAH |
| Width | 1/2 in. overall |
| Material | Steel |
| For drawers up to | 18 in. W |
| Mounting screw | #7 x 3/32 in. |
| Packaging | 10/Box |
Fit and Compatibility:
Knape & Vogt 1260 series side-mount slides fit drawers up to 18 in. wide requiring 1/2 in. side clearance per slide. Choose the length closest to your cabinet's interior depth.
Frequently Asked Questions (FAQ):
Q: How are slides sold?
A: Slides are sold per pair, one left and one right member for one drawer.
Q: Which length should I choose?
A: Pick the length that matches or is slightly shorter than your cabinet's interior drawer depth.
Q: What is the load rating?
A: The 1260 is rated at 60 lb per pair.
Q: What side clearance is needed?
A: Allow 1/2 in. of side space for each slide; the slide is 3.12 in. tall and 1/2 in. wide overall.
Q: What finish options are there?
A: Brown or zinc plated steel.
Q: How do I remove the drawer?
A: Use the lever disconnect and lift the drawer out.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
The 1260 is a classic roller side-mount for kitchen and vanity drawers up to 18 in. wide. Measure inside cabinet depth and pick the longest listed length that fits without binding. Its 60 lb rating suits everyday cutlery and utensil drawers; for file or pot drawers, choose a ball-bearing slide with a higher capacity. Keep both sides level and at identical heights to avoid roller skip.
Verify the cabinet side can accept the mounting screws and keep fingers clear of the roller path during installation.
Choose the Knape & Vogt 1260 side-mount slide for dependable, economical drawer motion.
