Knape & Vogt 1175 Undermount Drawer Slide, 22-5/8 in., 3/4 Extension, 50 lb, Zinc-Plated Steel
Regular price $6.44Orders start at $399 — combine any items to reach the minimum. Learn more
Knape & Vogt 1175 Undermount Drawer Slide, 22-5/8 in., 3/4 Extension, 50 lb, Zinc-Plated Steel

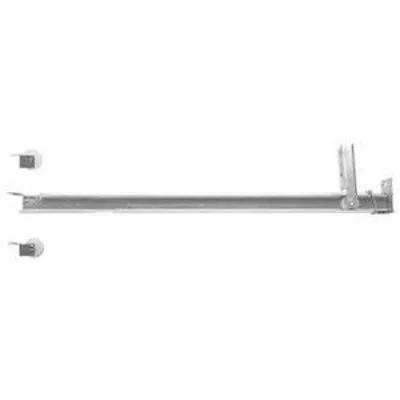

This Knape & Vogt 1175 is a light-duty concealed undermount drawer slide, 22-5/8 in. long with 3/4 extension and a 50 lb load capacity. The zinc-plated steel slide rides on nylon roller bearings and uses a hold-in anti-rebound closure with lift-out disconnect. Sold as a pair for one drawer; order polybagged or bulk pack.
Key Features:
- Concealed undermount: Mounts beneath the drawer so the slide is hidden when the drawer is open.
- 3/4 extension: Opens to three-quarters of its 22-5/8 in. length for partial drawer access.
- 50 lb capacity: Rated to carry drawers up to 50 lb.
- Nylon roller glide: Nylon roller bearings provide smooth, quiet travel.
- Hold-in anti-rebound: Hold-in anti-rebound closure keeps the drawer from bouncing back open.
- Lift-out disconnect: Drawer lifts out of the cabinet member for removal and cleaning.
- For drawers to 18 in.: Sized for drawers up to 18 in. wide with 1 in. overall height.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Knape & Vogt |
| Sell unit | 1 pair |
| Series | 1175 |
| Type | Light-duty concealed undermount slide |
| Available lengths | 22-5/8 in. |
| Extension | 3/4 |
| Load rating | 50 lb |
| Mounting | Undermount |
| Closing | Hold-In Anti-Rebound |
| Glide mechanism | Nylon roller bearing |
| Disconnect | Lift-Out |
| Height | 1 in. OAH |
| Material | Steel, zinc plated |
| For drawers up to | 18 in. W |
| Mounting screw | #6 x 1/2 in. |
| Packaging | Bulk pack or polybagged |
Fit and Compatibility:
Part of the Knape & Vogt 1175 undermount slide series for light-duty drawers up to 18 in. wide. Mounting screws are #6 x 1/2 in.; check your cabinet's undermount clearance before ordering.
Frequently Asked Questions (FAQ):
Q: What is included with one order?
A: One pair of slides (left and right member) for one drawer; you can choose polybagged or bulk pack packaging of the same slide.
Q: How much weight will it hold?
A: The slide is rated for a 50 lb load capacity.
Q: Does it open fully?
A: No, it is a 3/4 extension slide, so the drawer opens to three-quarters of travel.
Q: How is the drawer removed?
A: It uses a lift-out disconnect: simply lift the drawer out of the cabinet members.
Q: Will it fit my cabinet?
A: It is 22-5/8 in. long with 1 in. overall height and is intended for drawers up to 18 in. wide; verify your cabinet has undermount space and matching screw pilot holes.
Q: What screws does it use?
A: #6 x 1/2 in. mounting screws.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
Undermount roller slides like the 1175 hide hardware from view and suit light-duty drawers such as nightstands and occasional tables. Match slide length to cabinet depth, choosing a length slightly shorter than the drawer if needed. For heavy file or pot drawers, step up to a ball-bearing side-mount with a higher load rating instead.
Support the drawer fully while installing undermount members and wear eye protection when driving screws inside a cabinet.
Order the Knape & Vogt 1175 undermount slide today for a clean, concealed glide on your light-duty drawers.
