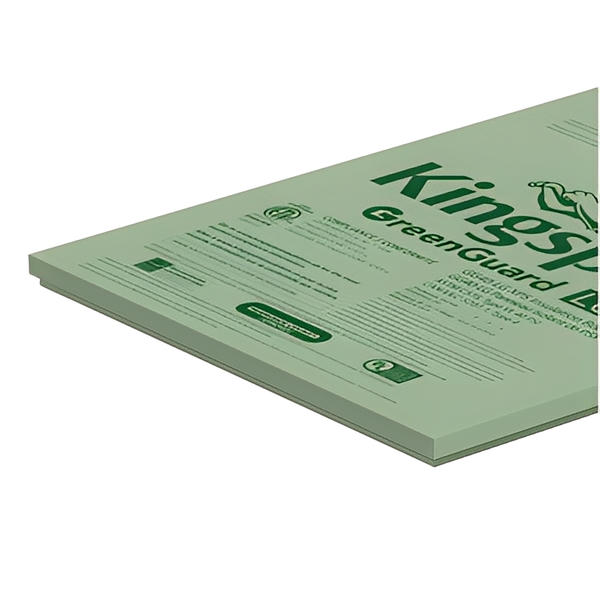

Kingspan GreenGuard GG25-LG XPS 4ft x 8ft Insulation Board - All Sizes

$3,454.67 $3,247.39

Save $207.28
/
Shipping calculated at checkout.

Kingspan GreenGuard GG25-LG XPS Insulation Board is an ideal exterior insulation, meeting your needs for multiple applications. Its extruded polystyrene (XPS) construction provides superior moisture resistance. And since it does not absorb moisture, it retains its insulating properties over time.

With an R-Value of 5.0 per inch of thickness, the board increases the energy efficiency of your structures. Plus it’s lightweight, easy to handle, and easy to cut with a knife. Use this insulation for below slab, cavity wall, and foundation applications. It meets and exceeds all Type IV and Type X specifications.

Pallet Size Board Size Boards Per Pallet Coverage Per Pallet
Full Pallet 0.56" x 4' x 8' 160 5120 Sq/Ft
Full Pallet 1" x 4' x 8' 96 3072 Sq/Ft
Full Pallet 1.5" x 4' x 8' 64 2048Sq/Ft
Full Pallet 2" x 4' x 8' 48 1536 Sq/Ft
Full Pallet 3" x 4' x 8' 32 1024 Sq/Ft
Full Pallet 4" x 4' x 8' 24 768 Sq/Ft



Features & Properties

● R-value of 5.0 per inch of thickness
● Retains insulating properties over time
● Maintains integrity
● Lightweight, durable...easy to use
● Continuous Insulation (Ci) for walls
● Insulates foundation exteriors and protects against backfill damage



Property Test Method Result
Nominal Thickness (in)   1*, 1 1/2, 2, 2 1/2, 3
Nominal Board Width 4ft
Nominal Board Length 8ft
Edge Profile Square or Score
Property Type ASTM C578 IV
Compressive Strength, Min.
(psi@ 10% deflection)		 ASTM D1621 25
Water Absorption, Max.
(% by volume)		 ASTM C272 0.3
Density, Min.
(lb/ft³)		 ASTM C303 1.45
Water Vapor Permeance, Max.
(perm)		 ASTM E 96
(Dessicant Method)		 1.5
Service Temperature, Max (°F)   165
Thermal
Thermal Resistance, R-value

(°F.ft².hr / Btu per in thick)

 ASTM C518
(@75°F Mean Temperature)		 5.0
Thermal Conductivity, k-value
(Btu.in / hr.ft.ºF)		 ASTM C518
(@75°F Mean Temperature)		 0.2
Fire & Smoke
Flame Spread
Smoke Developed		 ASTM E84 / UL723 25 (Class A)
140
