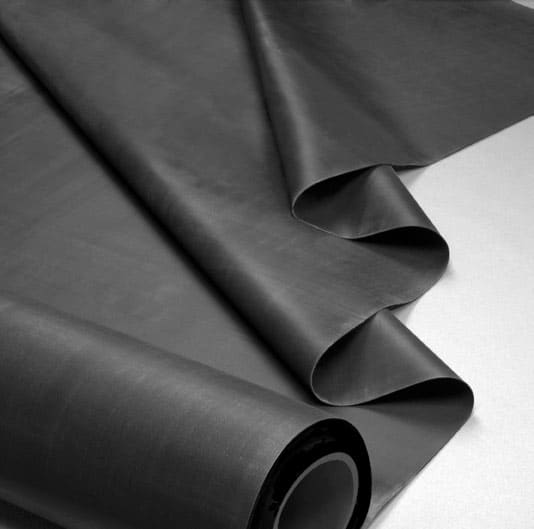

Johns Manville EPDM Non-Reinforced Membrane, 60 mil Black Rolls, Plain or Pre-Taped 1 or 2 Sides
Johns Manville 60 mil non-reinforced black EPDM membrane rolls for NR 45, 60 and 90 mil systems, offered in multiple widths and lengths with plain edges or factory 4 in. or 6 in. inseam tape on one or both sides. Meets ASTM D 4637, Type I. Fully extruded, vulcanized cured EPDM delivers uniform thickness and long weather resistance.
Key Features:
-
Factory inseam tape: Pre-taped variants offer superior quality assurance and labor savings compared to field-fabricated seams.
-
Cured non-reinforced EPDM: Non-reinforced cured EPDM meets the requirements of ASTM D 4637, Type I.
-
Fully extruded sheet: Fully extruded production produces fewer air voids, more uniform thickness and smoother sheets.
-
Vulcanized monolithic: Vulcanization combines two layers of membrane into a fully cross-linked monolithic membrane.
-
Extreme climate ready: The membrane formulation performs in extreme temperature climates and withstands differential movement.
-
UV and ozone resistance: UV-stabilization properties provide outstanding ozone and weather resistance with a long service life.
Specifications Table:
| Specification |
Details |
| Brand |
Johns Manville |
| Sell unit |
1 roll (sizes and tape options vary) |
| Product line |
JM EPDM Systems (NR 45 mil, 60 mil and NR 90 mil) |
| Available colors |
Black |
| Available sizes |
8 variants: 60 mil x 20 ft x 50 ft plain; 60 mil x 16 ft 8 in. x 100 ft plain, 4 in. tape 1 side, or 6 in. tape; 60 mil x 20 ft x 100 ft with 4 in. or 6 in. tape; 60 mil x 10 ft x 100 ft with 4 in. or 6 in. tape 2 sides |
| Material |
Non-reinforced cured EPDM |
| Color / finish |
Black |
| Nominal size |
.060 in. (60 mil), widths 10 ft, 16 ft 8 in., 20 ft; lengths 50-100 ft; plain or 4 in./6 in. factory tape 1 or 2 sides |
| Thickness |
60 mil |
| Approvals |
ASTM D 4637, Type I |
| Intended use |
Commercial low-slope single-ply roofing |
Coverage & How Much You Need:
A 20 ft x 100 ft roll covers 2,000 sq ft nominal, a 16 ft 8 in. x 100 ft roll covers about 1,667 sq ft, and a 10 ft x 100 ft roll covers 1,000 sq ft. Deduct for taped overlaps and perimeter details when estimating.
Fit and Compatibility:
For Johns Manville NR 45 mil, 60 mil and 90 mil EPDM systems. Pair with JM flashing, tape primers and accessories sold separately.
Frequently Asked Questions (FAQ):
Q: What roll sizes are available?
A: Eight variants: 10 ft, 16 ft 8 in. and 20 ft wide by 50-100 ft long, plain or pre-taped with 4 in. or 6 in. tape on one or both sides.
Q: Is this membrane reinforced?
A: No, it is non-reinforced cured EPDM meeting ASTM D 4637, Type I.
Q: What is included per order?
A: One roll of black 60 mil EPDM in the selected size and tape configuration.
Q: Why pre-taped seams?
A: Factory inseam tape gives better quality assurance and saves labor compared to field-fabricated seams.
Q: Does it resist weather and ozone?
A: Yes, UV-stabilization offers outstanding ozone and weather resistance for one of the longest service lives available.
Q: Which JM systems does it fit?
A: It is designed for NR 45 mil, 60 mil and NR 90 mil EPDM systems.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
Non-reinforced 60 mil EPDM is the workhorse for standard low-slope roofs; choose pre-taped variants to cut seam labor on larger decks. Wider 20 ft rolls reduce the number of seams per square. For high-traffic or hail-prone roofs, consider reinforced EPDM instead.
Follow the manufacturer's installation instructions and local building codes, and use proper fall protection when working on low-slope roofs.
Order the Johns Manville 60 mil non-reinforced EPDM membrane roll in the size and tape option you need.
