IPS 3-in-1 Galvanized Base Roof Pipe Flashing, 24 Gauge Steel with Elastomer Collar, Fits 1-1/4 in. to 3 in. Pipes
Regular price $14.50Orders start at $399 — combine any items to reach the minimum. Learn more

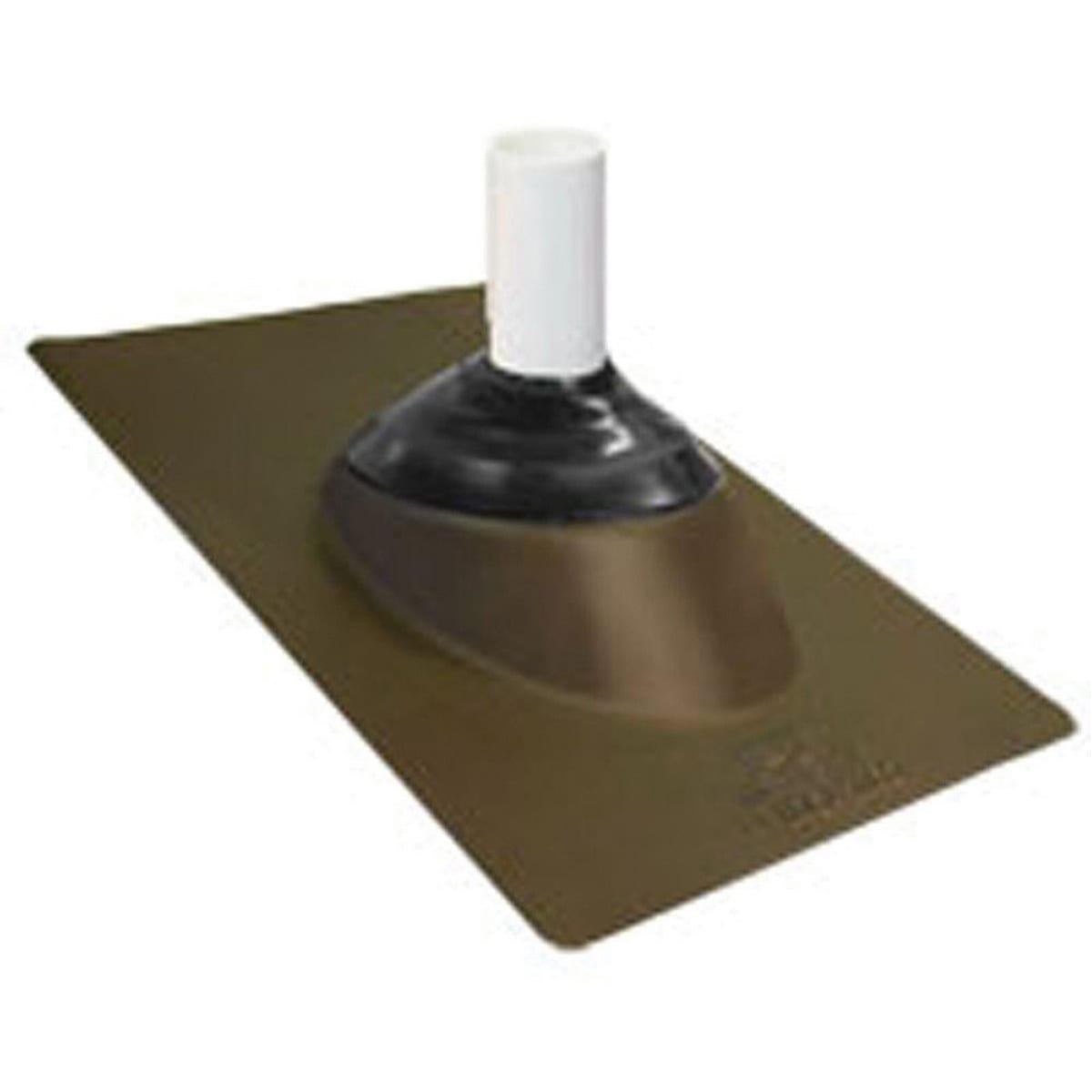

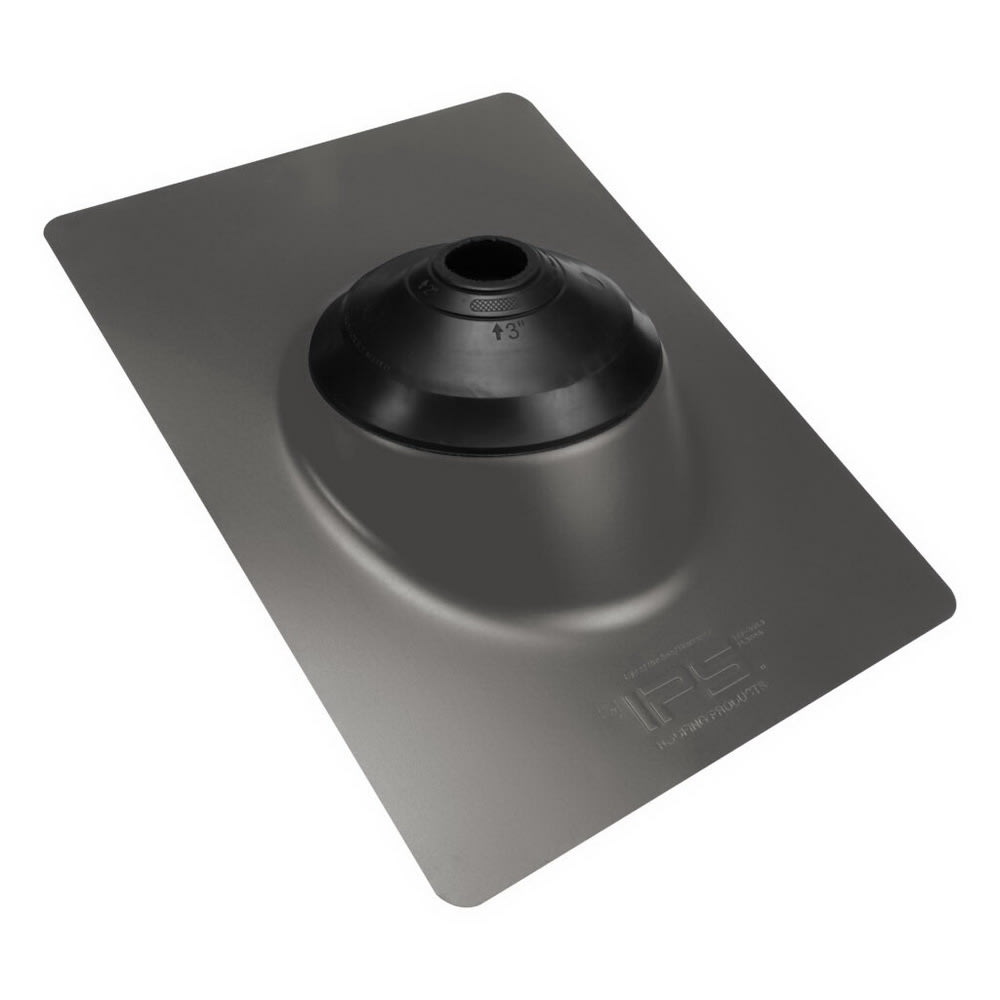

IPS 3-in-1 Galvanized Base Roof Pipe Flashing, 24 Gauge Steel with Elastomer Collar, Fits 1-1/4 in. to 3 in. Pipes
The IPS 3-in-1 pipe flashing is a 24-gauge galvanized steel base roof vent flashing fitted with a multi-size elastomer collar that fits 1-1/4 in. to 3 in. pipes. One sell unit is one flashing. It is approved for type B installations and fits roof pitches up to 45 degrees.
Key Features:
- 24-Gauge Steel Base: Galvanized steel base provides durable pipe flashing support.
- Multi-Size Collar: Elastomer collar fits vent pipes from 1-1/4 in. to 3 in.
- Pitch Flexible: Fits any roof pitch to 45 degrees; 1-1/2 in. and 2 in. vent pipe sizes allow a range beyond 45 degrees.
- Weather Tested: Tested for ultraviolet, ozone, and weather resistance.
- Type B Approved: Approved for type B installations.
- Heat Rated Collar: Elastomer collar is heat tested to 180 degrees F.
- Lifetime Coverage: Backed by a limited lifetime warranty for the life of the current roof system.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | IPS |
| Sell unit | 1 flashing |
| Product line | IPS 3-in-1 pipe flashing |
| Available colors | Brown, Gray |
| Available sizes | Fits 1 in. to 3 in. pipe |
| Material | 24-gauge galvanized steel base with elastomer collar |
| Collar material | Elastomer, heat tested to 180 degrees F |
| Pipe size range | 1-1/4 in. to 3 in. |
| Pitch range | Any roof pitch to 45 degrees (1-1/2 in. and 2 in. allow beyond 45 degrees) |
| Approvals | Approved for type B installations |
| Warranty | Limited Lifetime Warranty for the life of the current roof system |
Fit and Compatibility:
Fits standard 1-1/4 in. to 3 in. vent pipes on pitched roofs. The 3-in-1 multi-size design replaces multiple fixed-size flashings; choose the collar opening that matches your pipe diameter.
Frequently Asked Questions (FAQ):
Q: What pipe sizes does it fit?
A: The multi-size elastomer collar fits vent pipes from 1-1/4 in. to 3 in. in diameter.
Q: What is included?
A: One galvanized steel base flashing with a multi-size elastomer collar.
Q: What roof pitches does it work on?
A: It fits any roof pitch up to 45 degrees, with 1-1/2 in. and 2 in. pipe sizes allowing pitches beyond 45 degrees.
Q: Is it approved for type B vents?
A: Yes, it is approved for type B installations.
Q: What colors are available?
A: Brown and Gray.
Q: Is there a warranty?
A: Yes, a limited lifetime warranty for the life of the current roof system.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
A 3-in-1 flashing covers a range of pipe diameters, which is ideal for service trucks and job-site flexibility since one unit can serve multiple penetrations. Slide the flashing over the pipe and work the base up under the uphill shingles while lapping the downhill side over the shingles below, then seal the collar to the pipe. For hot type B vents, confirm the elastomer collar temperature rating suits the application.
Work on roofs only with proper fall protection and avoid installing around hot vent pipes until they have cooled.
Get the IPS 3-in-1 galvanized pipe flashing for one flashing that fits multiple vent pipe sizes.
