Hunter Panels XCI Ply Class A (3/4 Ply Attached) 4ft x 8ft - All Sizes

Hunter Panels XCI Ply Class A (3/4 Ply Attached) 4ft x 8ft - All Sizes image 2

Hunter Panels XCI Ply Class A (3/4 Ply Attached) 4ft x 8ft - All Sizes

$5,000.00 $4,700.00

Save $300.00

Shipping calculated at checkout.

[{"id":53068667748719,"title":"1.7 in x 4 ft x 8 ft (28 Sheets)","option1":"1.7 in x 4 ft x 8 ft (28 Sheets)","option2":null,"option3":null,"sku":"HXCI1.7","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Hunter Panels XCI Ply Class A (3\/4 Ply Attached) 4ft x 8ft - All Sizes - 1.7 in x 4 ft x 8 ft (28 Sheets)","public_title":"1.7 in x 4 ft x 8 ft (28 Sheets)","options":["1.7 in x 4 ft x 8 ft (28 Sheets)"],"price":470000,"weight":0,"compare_at_price":500000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068667781487,"title":"2.2 in x 4 ft x 8 ft (21 Sheets)","option1":"2.2 in x 4 ft x 8 ft (21 Sheets)","option2":null,"option3":null,"sku":"HXCI2.2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Hunter Panels XCI Ply Class A (3\/4 Ply Attached) 4ft x 8ft - All Sizes - 2.2 in x 4 ft x 8 ft (21 Sheets)","public_title":"2.2 in x 4 ft x 8 ft (21 Sheets)","options":["2.2 in x 4 ft x 8 ft (21 Sheets)"],"price":470000,"weight":0,"compare_at_price":500000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068667814255,"title":"2.7 in x 4 ft x 8 ft (17 Sheets)","option1":"2.7 in x 4 ft x 8 ft (17 Sheets)","option2":null,"option3":null,"sku":"HXCI2.7","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Hunter Panels XCI Ply Class A (3\/4 Ply Attached) 4ft x 8ft - All Sizes - 2.7 in x 4 ft x 8 ft (17 Sheets)","public_title":"2.7 in x 4 ft x 8 ft (17 Sheets)","options":["2.7 in x 4 ft x 8 ft (17 Sheets)"],"price":470000,"weight":0,"compare_at_price":500000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068667847023,"title":"3.2 in x 4 ft x 8 ft (15 Sheets)","option1":"3.2 in x 4 ft x 8 ft (15 Sheets)","option2":null,"option3":null,"sku":"HXCI3.2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Hunter Panels XCI Ply Class A (3\/4 Ply Attached) 4ft x 8ft - All Sizes - 3.2 in x 4 ft x 8 ft (15 Sheets)","public_title":"3.2 in x 4 ft x 8 ft (15 Sheets)","options":["3.2 in x 4 ft x 8 ft (15 Sheets)"],"price":470000,"weight":0,"compare_at_price":500000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068667879791,"title":"3.7 in x 4 ft x 8 ft (12 Sheets)","option1":"3.7 in x 4 ft x 8 ft (12 Sheets)","option2":null,"option3":null,"sku":"HXCI3.7","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Hunter Panels XCI Ply Class A (3\/4 Ply Attached) 4ft x 8ft - All Sizes - 3.7 in x 4 ft x 8 ft (12 Sheets)","public_title":"3.7 in x 4 ft x 8 ft (12 Sheets)","options":["3.7 in x 4 ft x 8 ft (12 Sheets)"],"price":470000,"weight":0,"compare_at_price":500000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53068667912559,"title":"4.2 in x 4 ft x 8 ft (11 Sheets)","option1":"4.2 in x 4 ft x 8 ft (11 Sheets)","option2":null,"option3":null,"sku":"HXCI4.2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Hunter Panels XCI Ply Class A (3\/4 Ply Attached) 4ft x 8ft - All Sizes - 4.2 in x 4 ft x 8 ft (11 Sheets)","public_title":"4.2 in x 4 ft x 8 ft (11 Sheets)","options":["4.2 in x 4 ft x 8 ft (11 Sheets)"],"price":470000,"weight":0,"compare_at_price":500000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

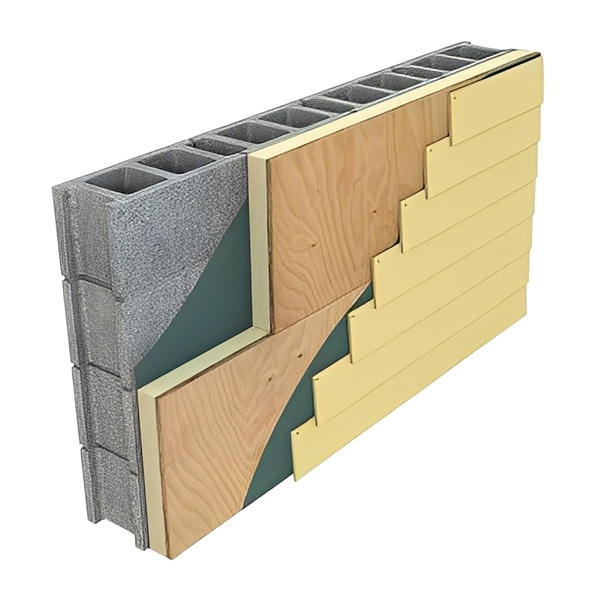

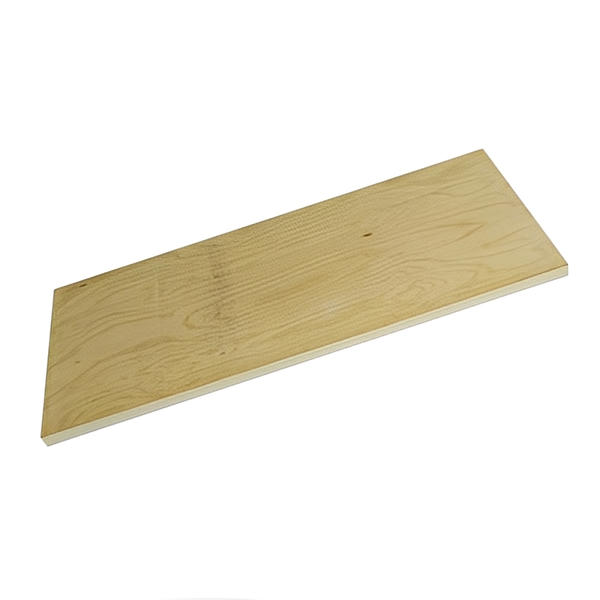

Xci Ply Class A is an energy efficient rigid insulation panel composed of a closed cell class A polyisocyanurate foam core bonded to a premium performance coated glass facer on one side and ¾" fire-treated plywood on the other. It is designed for use in commercial wall applications to provide both continuous insulation and a cladding attachment substrate within the building envelope.

Thickness	R-Value	Sq Ft/Pallet	Sheets Per Pallet
1.7"	7	896	28
2.2"	10	672	21
2.7"	13.1	544	17
3.2"	16.3	480	15
3.7"	19.5	384	12
4.2"	22.7	352	11

Features and Benefits

Manufactured with NexGen Chemistry: Zero Ozone Depleting Potential (ODP); Contains no CFC’s or HCFC’s; Virtually zero Global Warming Potential (GWP). The use of Xci products helps reduce the carbon footprint of buildings.
Polyiso offers increased R-value per inch vs mineral fiber, XPS or EPS options
Offers a superior combination of high insulating properties and mechanically attachable surface for claddings
Mitigates thermal bridging from cladding fasteners
Suitable for above-grade exterior walls in both commercial (Types I-V) and residential construction
For NFPA 285 compliance information reference applicable DrJ Technical Evaluation Report
Up to 2” foam thickness + the wood component can be used as structural insulating sheathing. Contact Hunter Xci for shear values, wind loads and attachment requirements.
Incorporates APA-TECO Rated Exposure 1 Fire Treated Plywood with flame spread of <25 per ASTM E84
Approved component of the Xci AEGIS Wall System
