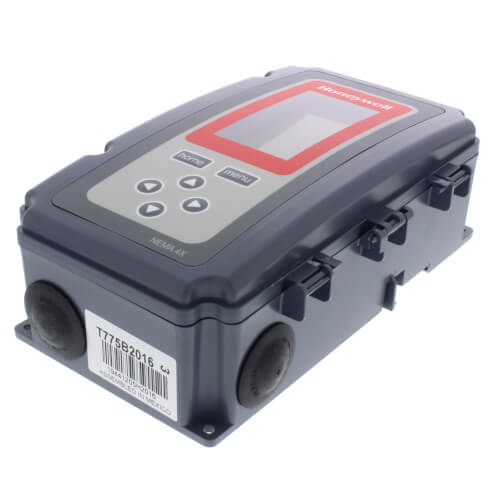

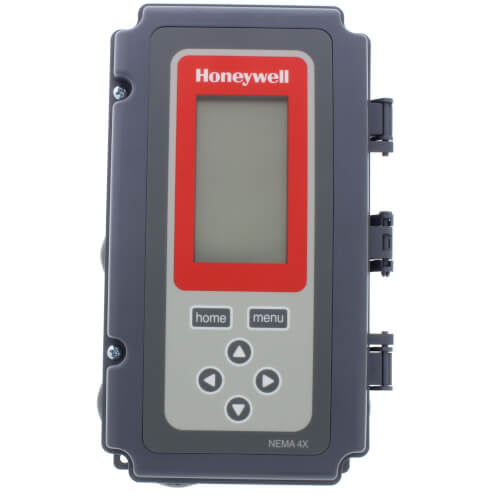

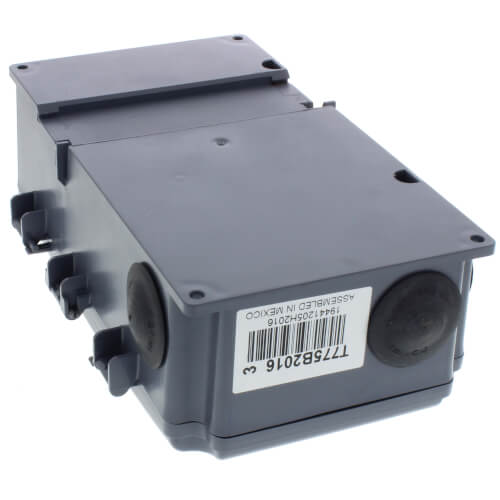

Honeywell T775B2016 Electronic Temp Controller with 2 Temp Inputs, 2 SPDT Relays, NEMA 4X Enclosure Temperature Controller
Regular price $422.35The Honeywell T775B2016 Electronic Temp Controller with 2 Temp Inputs, 2 SPDT Relays, NEMA 4X Enclosure Temperature Controller is a Honeywell temperature controller for HVAC repair and replacement work. Use it when the part number T775B2016 and the listed specifications match the equipment being serviced.
The T775 electronic remote temperature controllers are the next generation of commercial and agricultural controls capable of remote sensing of temperature and providing switched and/or proportional outputs to various types of loads. Features • Save time on installations with the easy-to-use graphical Interface, large display, and the intuitive programming. • Use the time clock scheduler or digital input to control the setback and disable output options to help save energy• Protect equipment from freezing or overheating on models with the modulating high or low limit control option• Get pinpoint control on modulating outputs by setting the…
Key Specs
- Voltage: 120v, 240v, 24V
- Application: Electronic Remote Temperature
- Sensor Type: 1097 ohm @ 77 F PTC, T775-SENS-WR
- Contact Ratings 120v: 1/2 hp, 125 VA Pilot Duty, 9.8 AFL, 58.8 ALR
- Contact Ratings 240v: 4.9 AFL, 125 VA Pilot Duty, 29.4 ALR, 1/2 hp
- Features: NEMA 4X
- Product Type: Temperature Controller
Replacement Notes
Captured replacement references include T631F1092, T775-SENS-WR. Confirm supersession details against the manufacturer parts list.
Expert Verdict
Reviewed by the SuperArbor Pro Desk: choose this part when the existing component label and unit documentation match T775B2016 and the spec set above. It is best suited for targeted HVAC service repairs where exact fitment matters more than broad universal compatibility.
FAQs
What is the Honeywell T775B2016 used for?
It is a temperature controller for compatible Honeywell HVAC equipment. Match the part number T775B2016 and the equipment service literature before ordering or installing.
Which specs should I verify before purchase?
Verify the spec set shown for this part: Voltage: 120v, 240v, 24V; Application: Electronic Remote Temperature; Sensor Type: 1097 ohm @ 77 F PTC, T775-SENS-WR; Contact Ratings 120v: 1/2 hp, 125 VA Pilot Duty, 9.8 AFL, 58.8 ALR; Contact Ratings 240v: 4.9 AFL, 125 VA Pilot Duty, 29.4 ALR, 1/2 hp; Features: NEMA 4X. The replacement should match the existing component and the unit documentation.
Does the electrical rating need to match exactly?
Yes. Confirm voltage rating 120v, 240v, 24V against the failed component label. Do not substitute a different rating unless the equipment manufacturer allows it.
Are replacement or superseded references available?
Captured cross-reference data includes T631F1092, T775-SENS-WR. Verify any supersession directly against the manufacturer parts list before installation.
Who should install this HVAC component?
A qualified HVAC technician should install and test the temperature controller. Disconnect power first, follow lockout procedures, and confirm safe operation after replacement.
Safety and Installation Notes
Disconnect power before service. HVAC electrical and combustion-related components should be installed and tested by a qualified technician. After installation, confirm wiring, mounting, airflow or fluid routing as applicable, and normal system operation.
