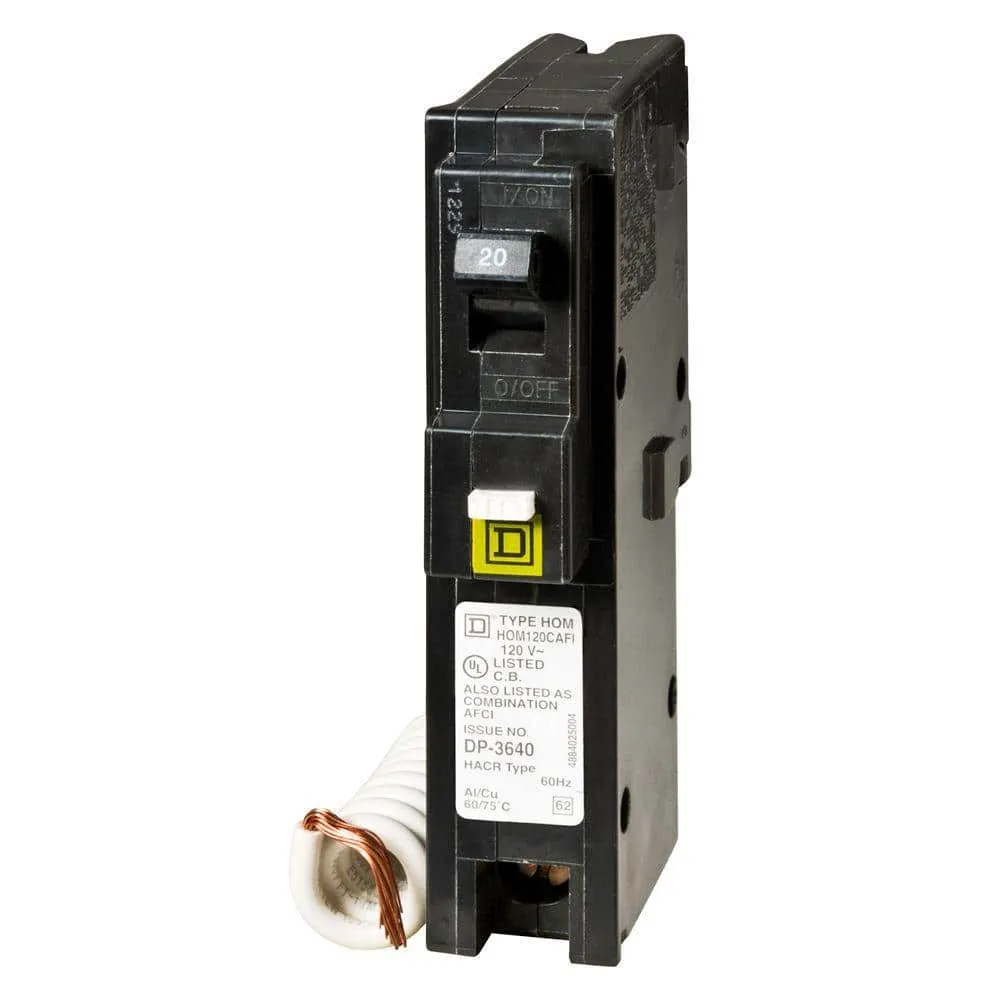

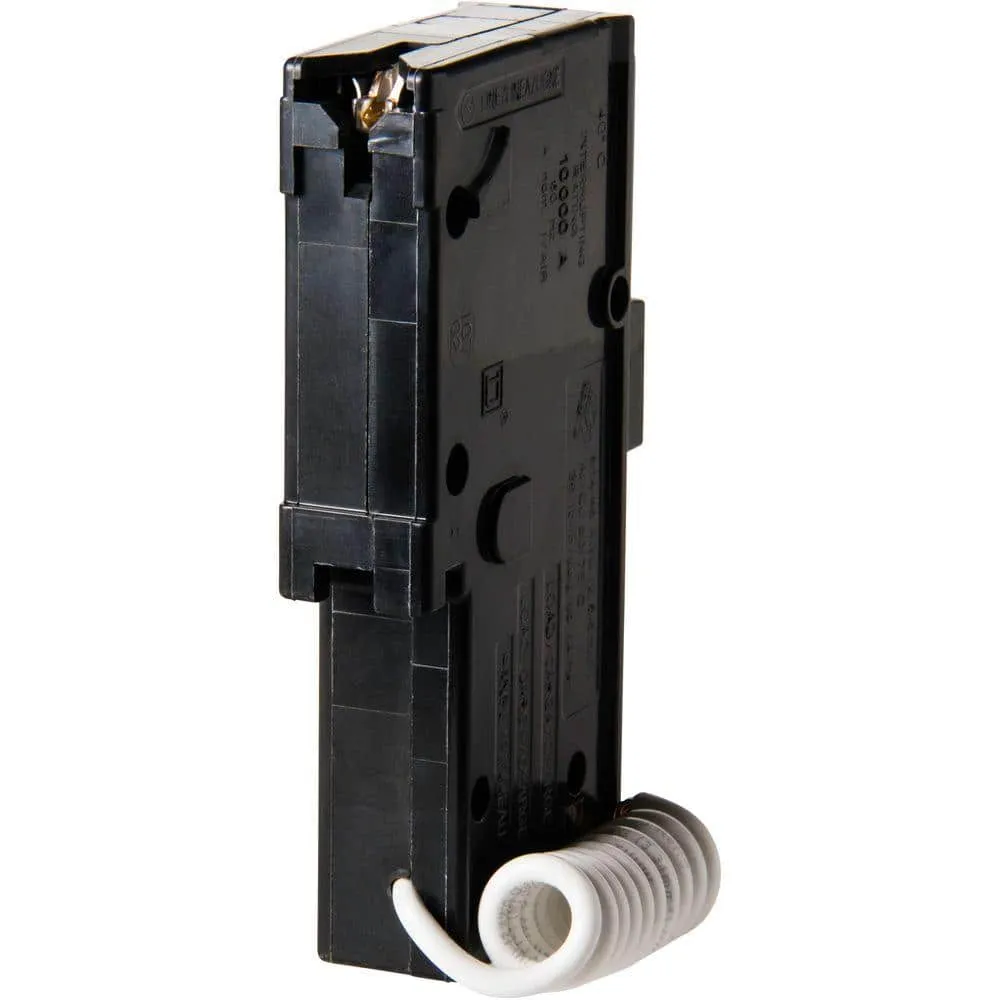

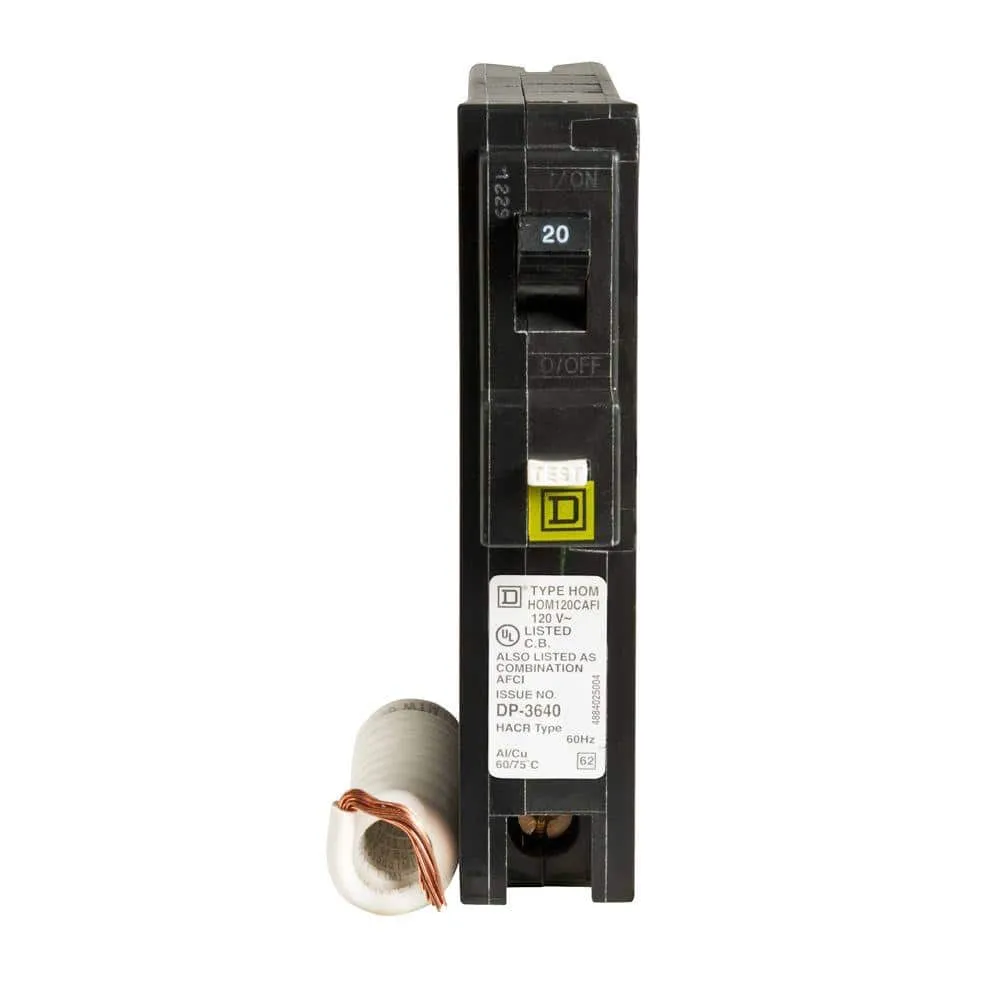

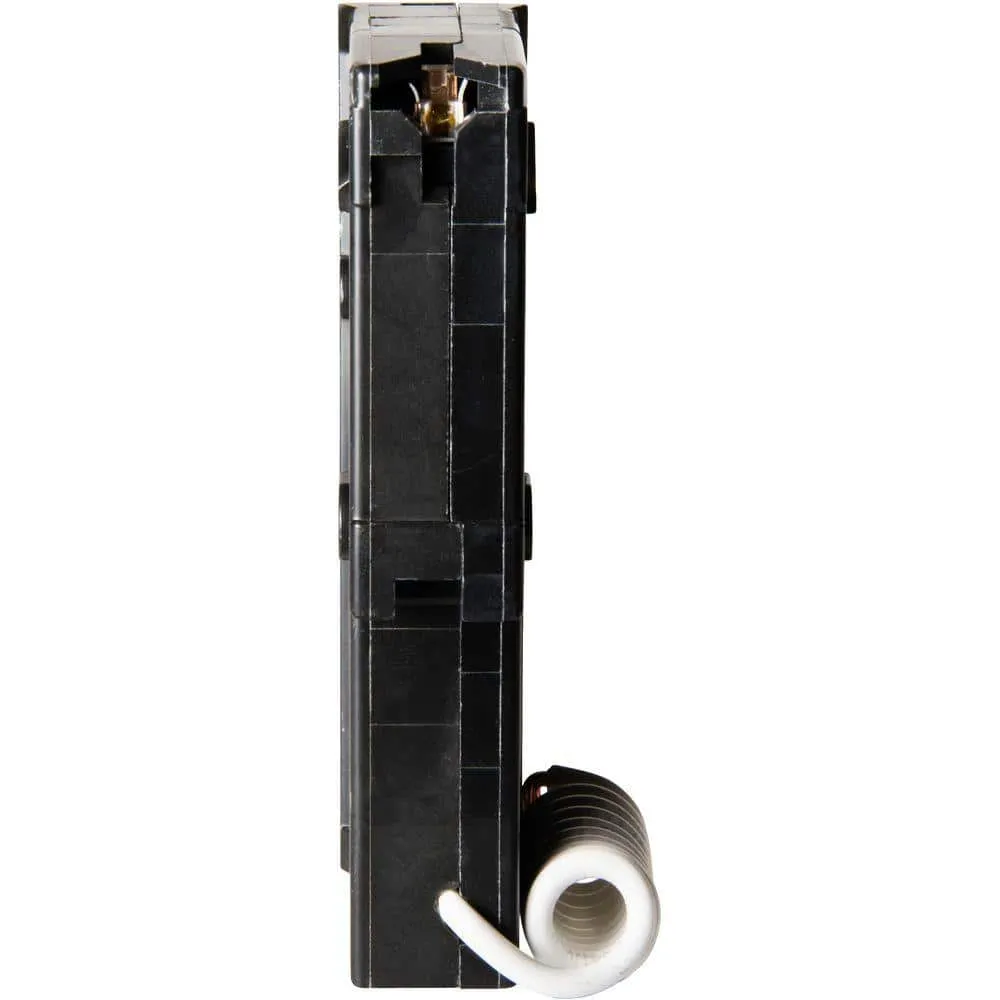

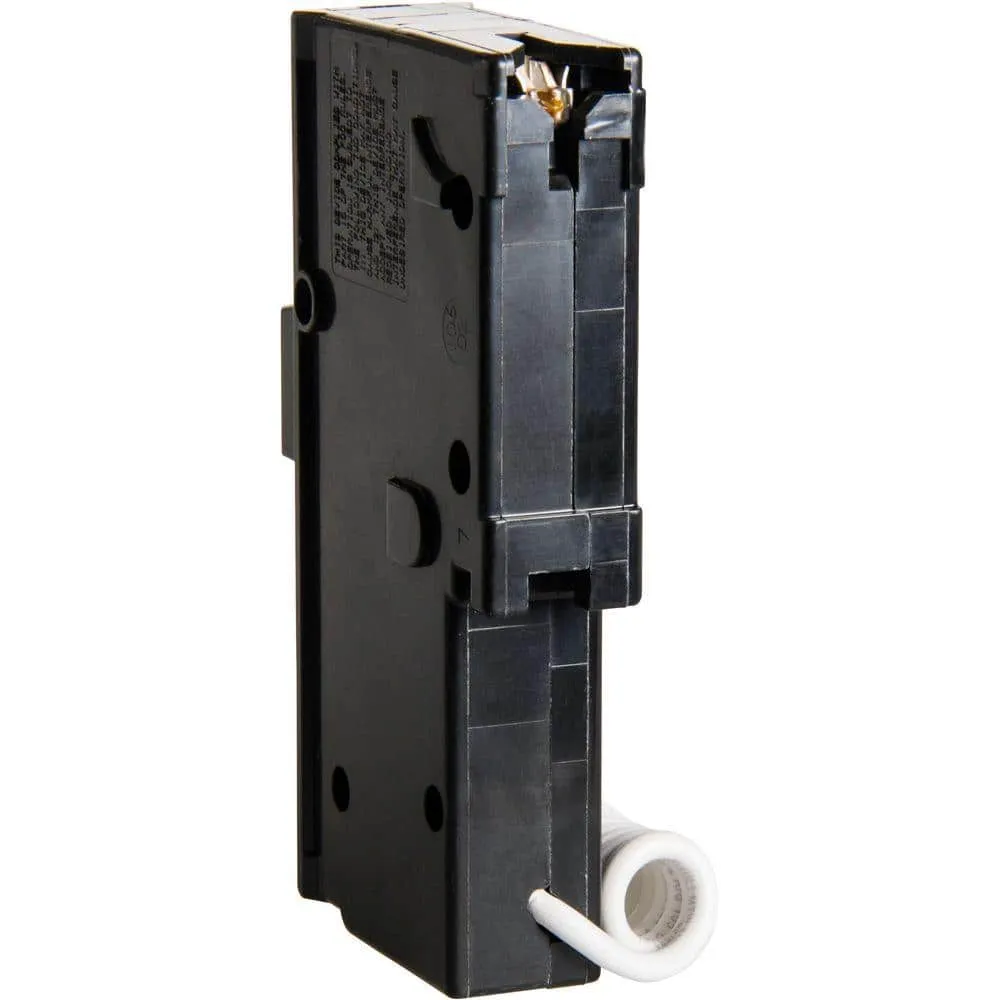

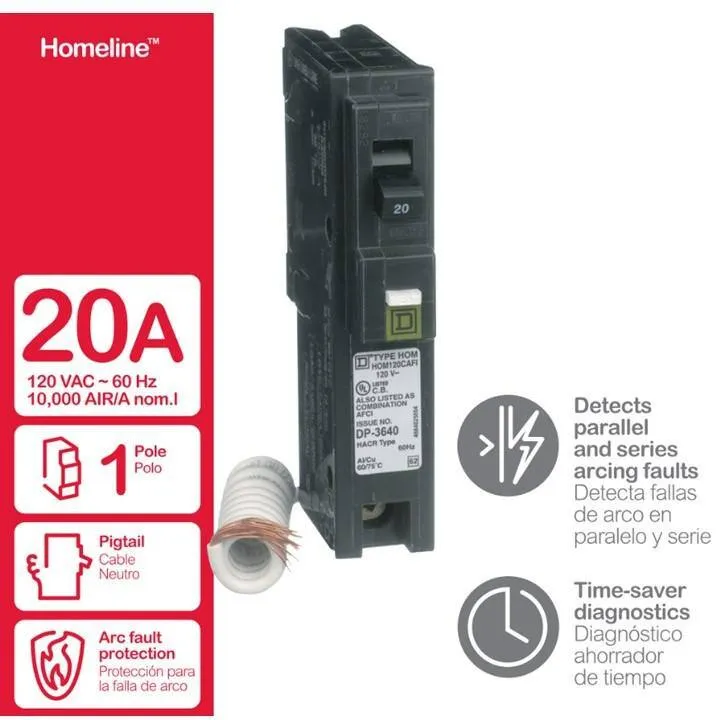

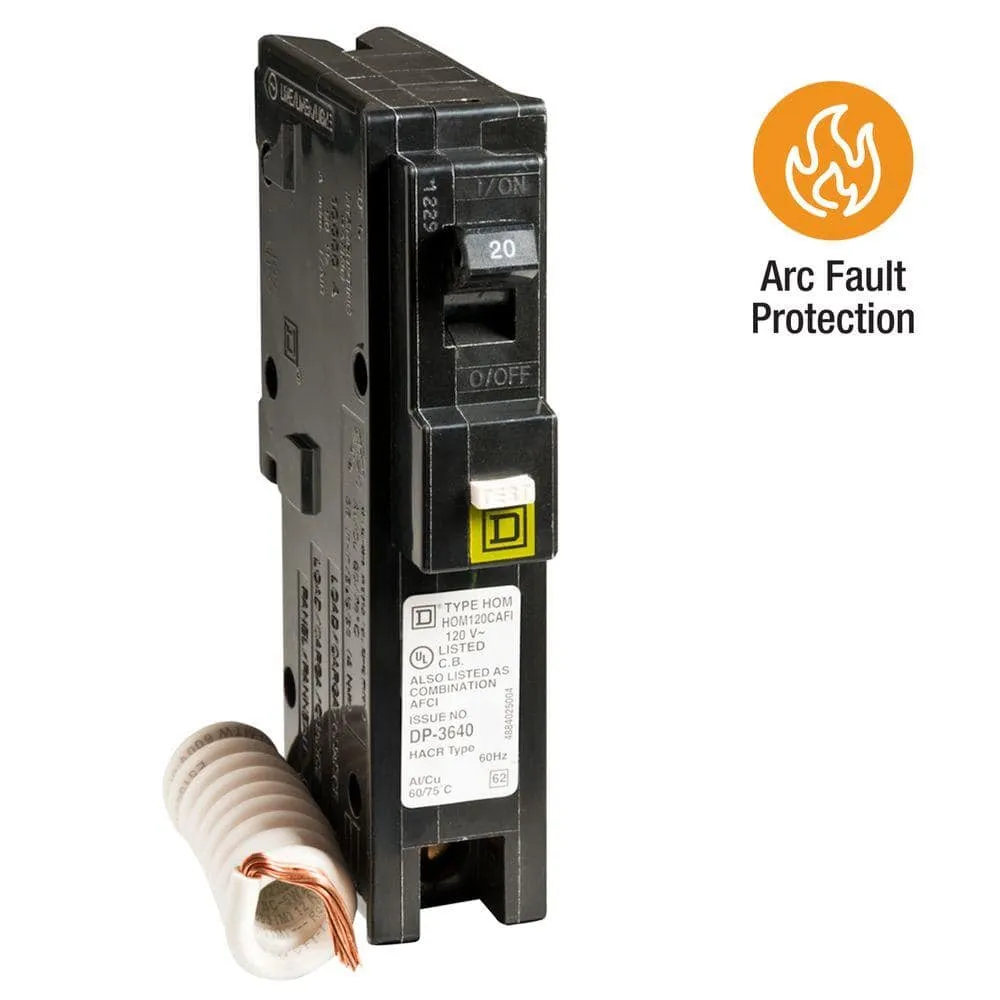

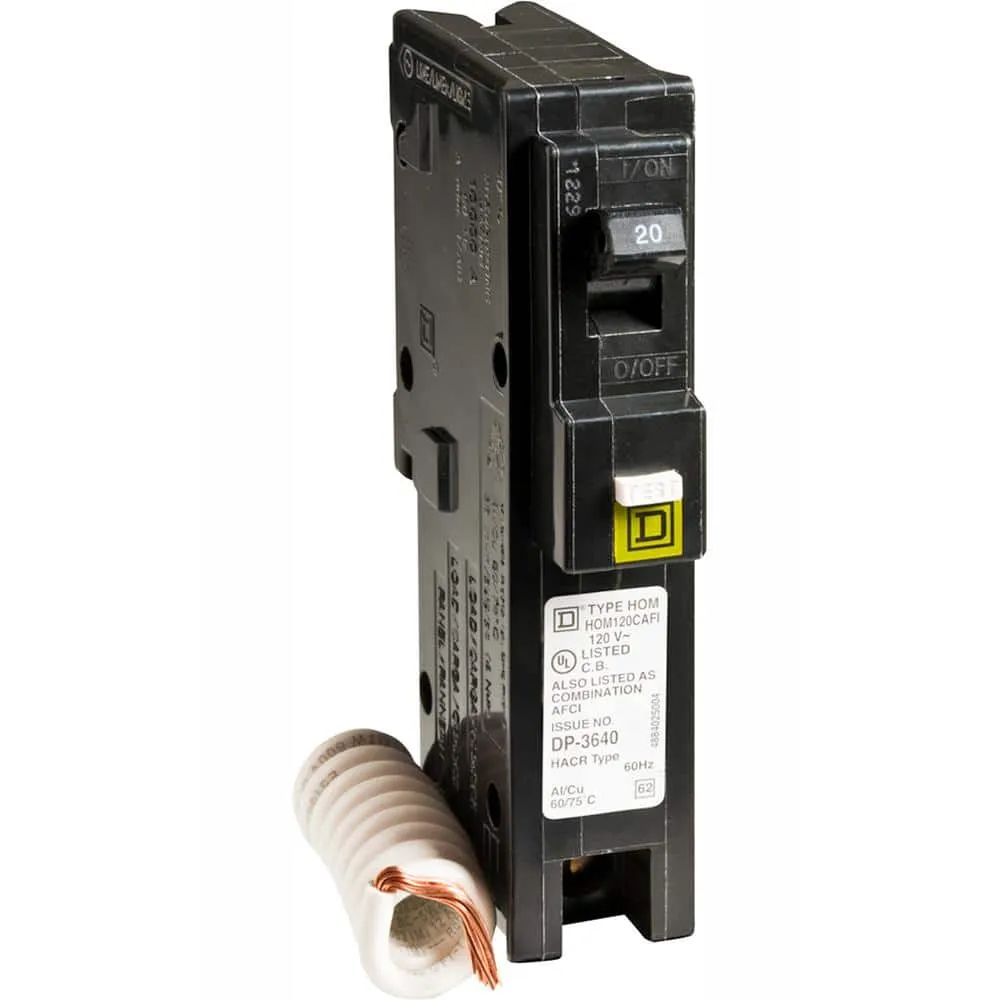

20 Amp Single-Pole Combination Arc Fault Circuit Breaker
20 A1-poleAFCIHomeline
$60.06 each
Orders start at $399. Combine any items to reach it.
- 1 breaker
- $60.06
- Standard delivery
- $49.99 per order
- Sales tax
- Added at checkout
All orders are subject to approval.
You're not charged until your order is approved and ready to ship. Cancel free before then.
Standard delivery$49.99
Per order, added in your cart. We deliver to the 48 contiguous states.
Availability confirmed by the desk at approval, with your delivery date. Shipping policy · Returns
Complete the panel
Square D · Electrical
Details & specifications.
Documents
From the maker · Square D’s description
Upgrade your home's electrical safety with the Square D Homeline 20 Amp Single-Pole Combination Arc Fault Circuit Breaker. Designed specifically to protect against arcing faults, this breaker helps prevent electrical fires while providing overload and short-circuit protection. With easy installation and advanced Time Saver Diagnostics, troubleshooting has never been simpler.
Please check the Product Data Sheet Here
Elevate Your Home's Safety and Function with Sleek Simplicity
Envision a home where safety seamlessly integrates with sophistication and efficiency, thanks to the Square D Homeline Arc Fault Circuit Breaker. This unobtrusive powerhouse ensures comprehensive electrical protection, featuring a striking mix of modern technology and reliable performance. Nestle it into your breaker box, inconspicuously enhancing your home's security with a touch of ease. Truly, it's not just a circuit breaker but a pinnacle of peace of mind that turns advanced safety into a stylish necessity.
Enhance your home's electrical safety with the Square D Homeline 20 Amp Breaker—order now for less troubleshooting and more reliability.
- SKU
- HOM120CAFIC
- UPC
- 0785901477150
- Amps
- 20 A
- Poles
- 1-pole
- Protection
- AFCI
- Series
- Homeline
- Type
- Standard
- Interrupt rating
- 10 kA
- Brand
- Square D
- AIC Rating
- 10000
- Connection Type
- Pigtail
- Interruption Type
- AFCI
- Maximum Amperage (A)
- 20 A
- Mounting Type
- Plug-On
- Number of Poles
- Single
- Number of Spaces
- 1
- Pack Size
- 1
- Product Weight (lb.)
- 0.67 lb
- Trip Unit
- Electronic
- Voltage (V)
- 120/240 V
- Certifications and Listings
- UL Listed
- Manufacturer Warranty
- Square D warrants its branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the Homeline load center in which it is installed.

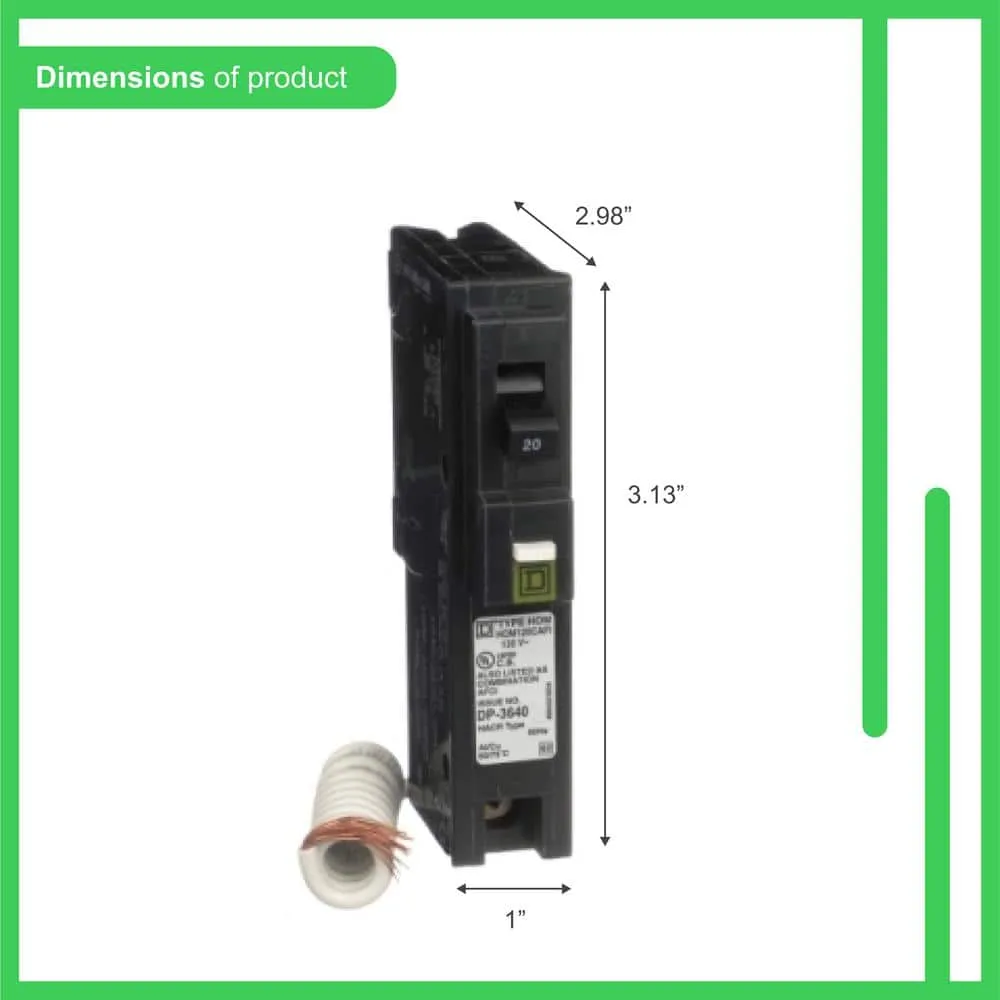

- Product Depth (in.)
- 2.98 in
- Product Height (in.)
- 3.13 in
- Product Width (in.)
- 1 in
- Full product name
- Square D Homeline 20 Amp Single-Pole Combination Arc Fault Circuit Breaker(HOM120CAFIC)
Key features

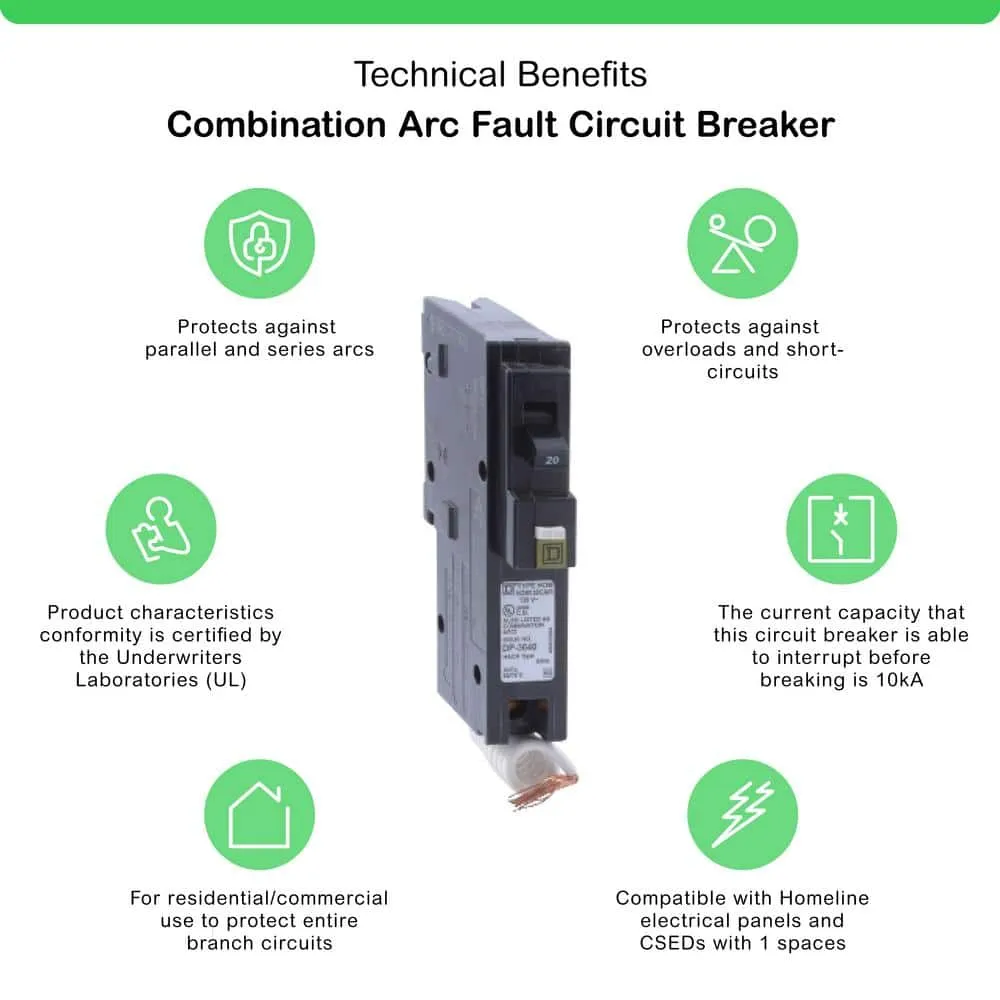

- Arc Fault Protection: Safeguards against both parallel and series arcing faults to enhance electrical safety.

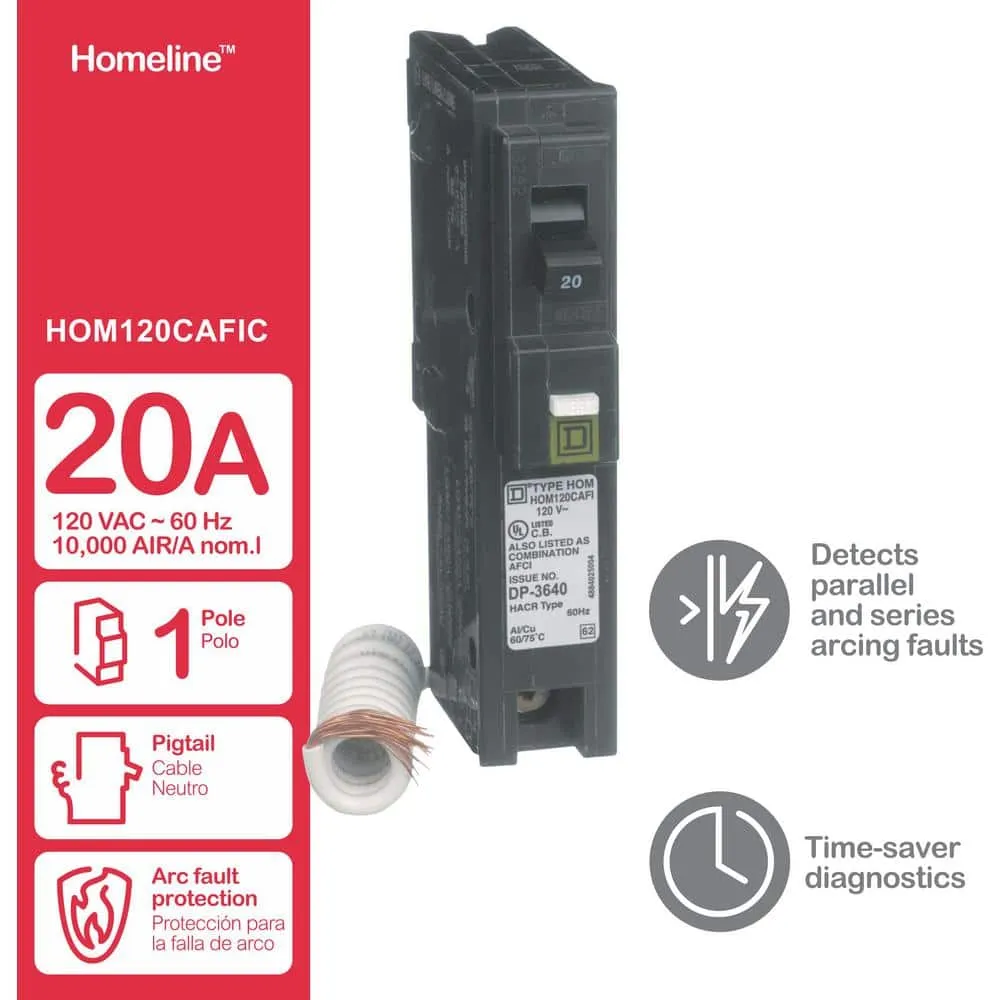

- Time Saver Diagnostics: Quickly identifies fault types, reducing troubleshooting time and effort.
- Compatibility: Designed for use with Square D Homeline breaker boxes and CSED devices.
- Space Efficient: Requires just one space in a standard breaker box, making it ideal for compact settings.
- Durable Build: Backed by a limited lifetime warranty for reliable, long-term use.
Specifications are provided by the manufacturer. Brand names are trademarks of their owners.
Guide
Before you buy a breaker
- 1
Match the panel
Find the brand and series on the label inside the panel door. Homeline and QO are both Square D, and they do not interchange.
- 2
Match the wire
The breaker protects the wire. For copper: 14 AWG on 15 A, 12 AWG on 20 A, 10 AWG on 30 A.
- 3
Protection
Standard, AFCI (arc fault), GFCI (ground fault) or dual function. Your local code says which circuits need which.
- 4
Tandem and quad
Two circuits in one space, only in the slots the panel label allows.
This Square D Homeline breaker provides protection against overloads, short circuits, and both parallel and series arc faults, enhancing the overall safety of your electrical system.
