GRACO E-20 Elite Series IHR312 Reactor 3 Spray Foam Proportioner Package w/ 200 ft Internal Heated Hose, 10 kW
Regular price $46,181.70E-20 Elite IHR312 Spray Foam Proportioner Package

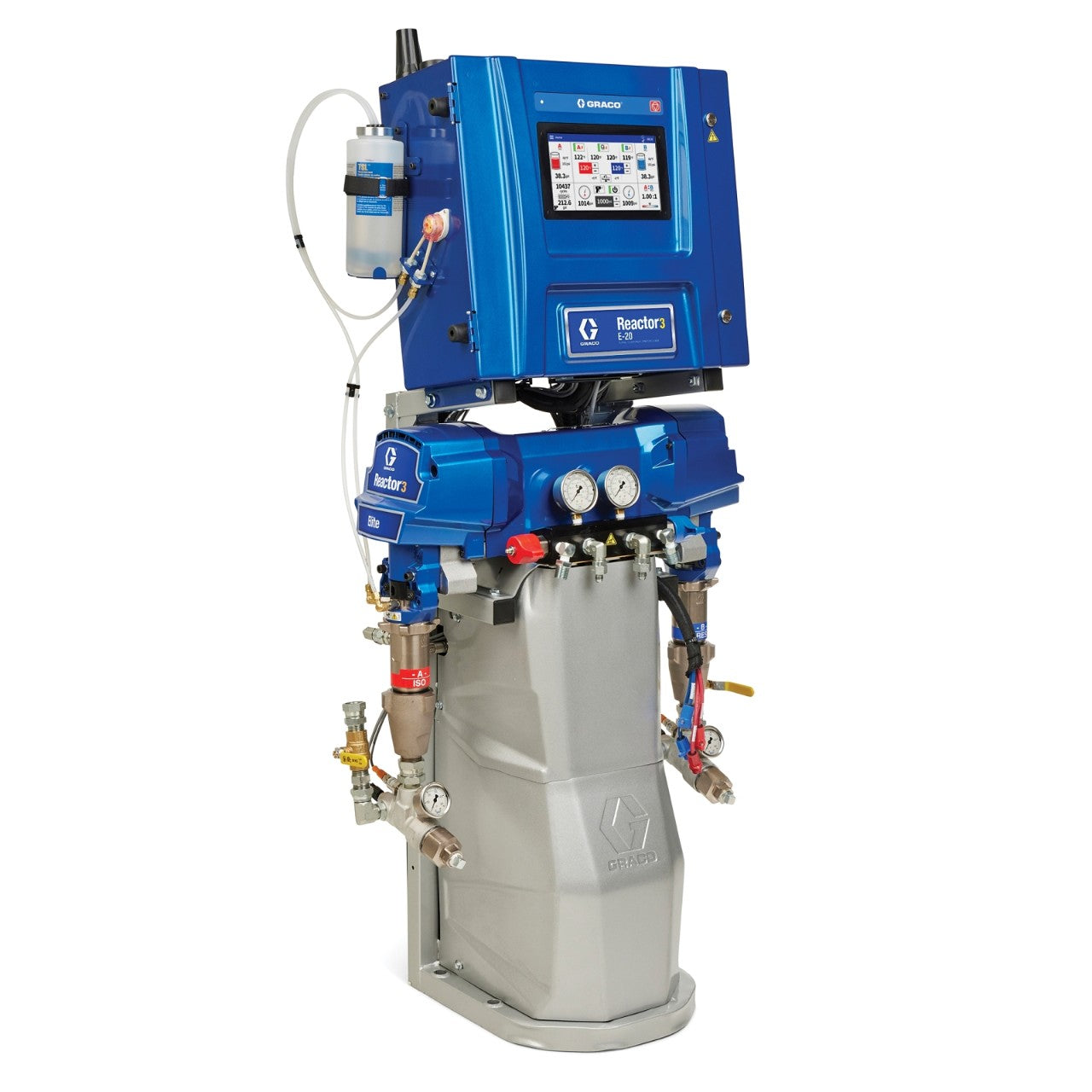

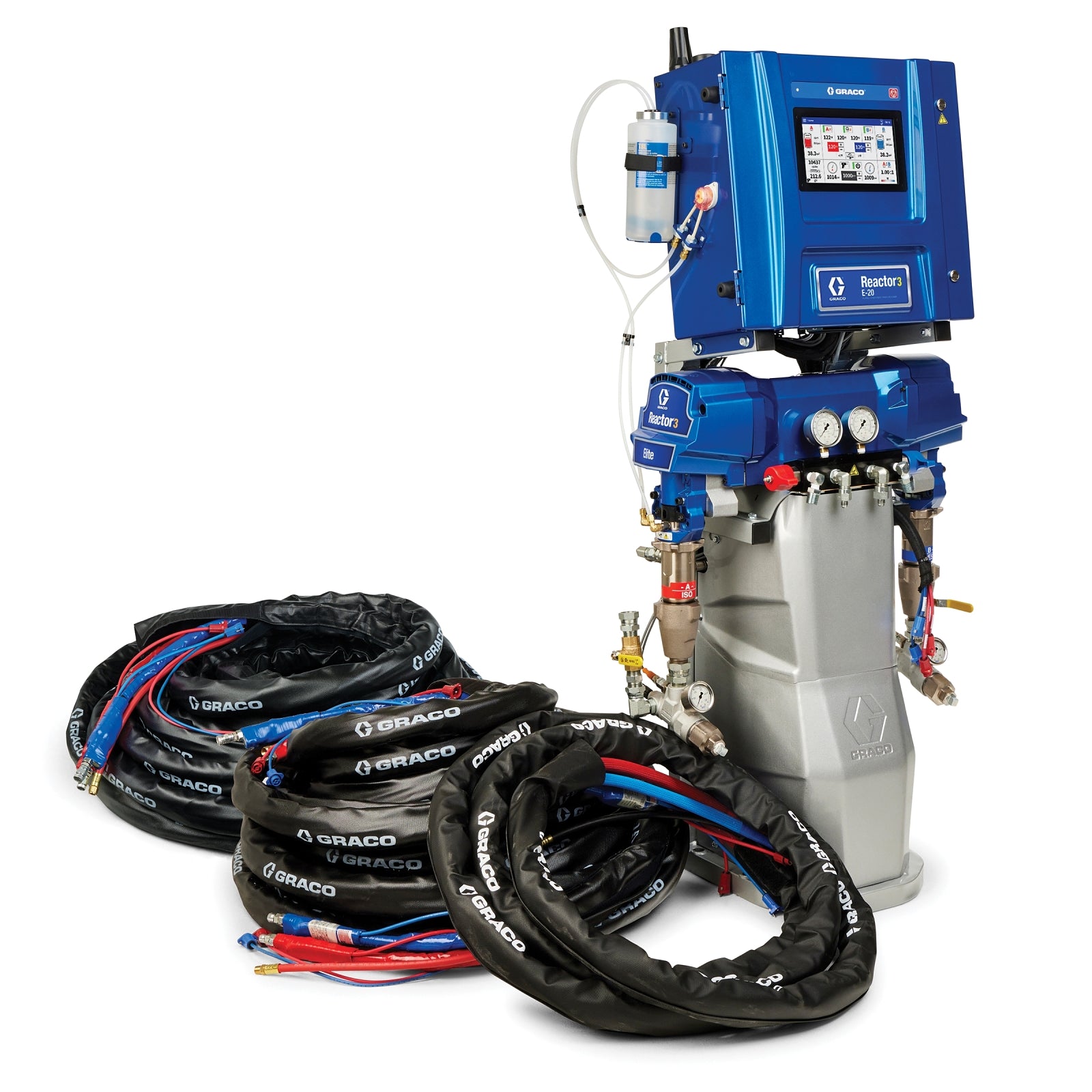

The GRACO Reactor 3 E-20 Elite IHR312 is a professional spray foam proportioner package built to optimize spray parameters and boost productivity. With Katalyst system communication, a large touchscreen ADM, and a 200 ft internal heated hose with 10 kW heater power, it’s designed for consistent performance and system control on the jobsite.
Key Features:
- Katalyst System Communication & Control: Improves performance, ratio control, and yield with full-system monitoring and intelligence.
- Touchscreen Advanced Display Module (ADM): Large touchscreen with intuitive navigation so key spray operations can be managed from one screen.
- Power & Temperature Optimization: Auto Pressure Balance and selectable heater wattage help manage power use while optimizing temperatures for yield and pressure stability.
- Independent Hose Heat Control: Set A and B materials to different temperatures to improve pressure balancing and performance.
- Rugged, Compact Electric Design: Brushless motor, updated temperature control boards, and a reduced footprint to protect components and save rig space.
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Product name | GRACO® E-20 Elite Series IHR312 Tier Spray Foam Proportioner Package |
| Manufacturer part number | IHR312 |
| Series | E-20 |
| Product series | Elite |
| Model | Reactor 3 |
| Type | Proportioner Package |
| Hose length | 200 ft |
| Hose heating type | Internal Heated |
| Power rating / heater wattage | 10 kW |
| Maximum spray pressure | 2000 psi (14 MPa / 140 bar) |
| Maximum flow rate | 20 lb/min (9.1 kg/min) |
| Maximum fluid temperature | 190°F (88°C) |
| Voltage | 200–240 VAC (1‑ph); 200–240 VAC (3‑ph DELTA); 350–415 VAC (3‑ph WYE) |
| Amperage | 65A (1‑ph); 39A (3‑ph DELTA); 24A (3‑ph WYE) |
| Frequency | 50/60 Hz |
| Transfer pump | No Transfer Pump |
| Overall dimensions (W x D x H) | 24.9 in x 15 in x 56.5 in |
| Weight | 260 lb (118 kg) |
| Air flow rate | 20 Lpm |
Frequently Asked Questions (FAQ):
Q: What hose is included with this package?
A: This package includes a 200 ft internal heated hose.
Q: What is the maximum working spray pressure?
A: Maximum spray pressure is 2000 psi (140 bar).
Q: What is the maximum fluid temperature?
A: Maximum fluid temperature is 190°F (88°C).
Q: What electrical power/heater rating does it use?
A: The power rating/heater wattage is 10 kW, and it supports multiple voltage/phase configurations (1‑ph and 3‑ph options).
Q: Does this package include a transfer pump?
A: No—this configuration is listed as 'No Transfer Pump.'
Precision Power, Beautifully Engineered
There’s a quiet luxury in equipment that performs with absolute confidence—and this proportioner delivers that kind of control. The bold, architectural form and oversized touchscreen feel like a command center for crafting flawless spray-foam finishes, while intelligent system communication helps keep every pass consistent and on-ratio. Pair it with a clean, organized rig layout and let the compact footprint create space for a more streamlined workflow. It’s the kind of behind-the-scenes essential that elevates the entire build experience.
Upgrade your spray foam setup with the GRACO Reactor 3 E-20 Elite IHR312 package for smarter control, optimized yield, and professional-grade performance.
