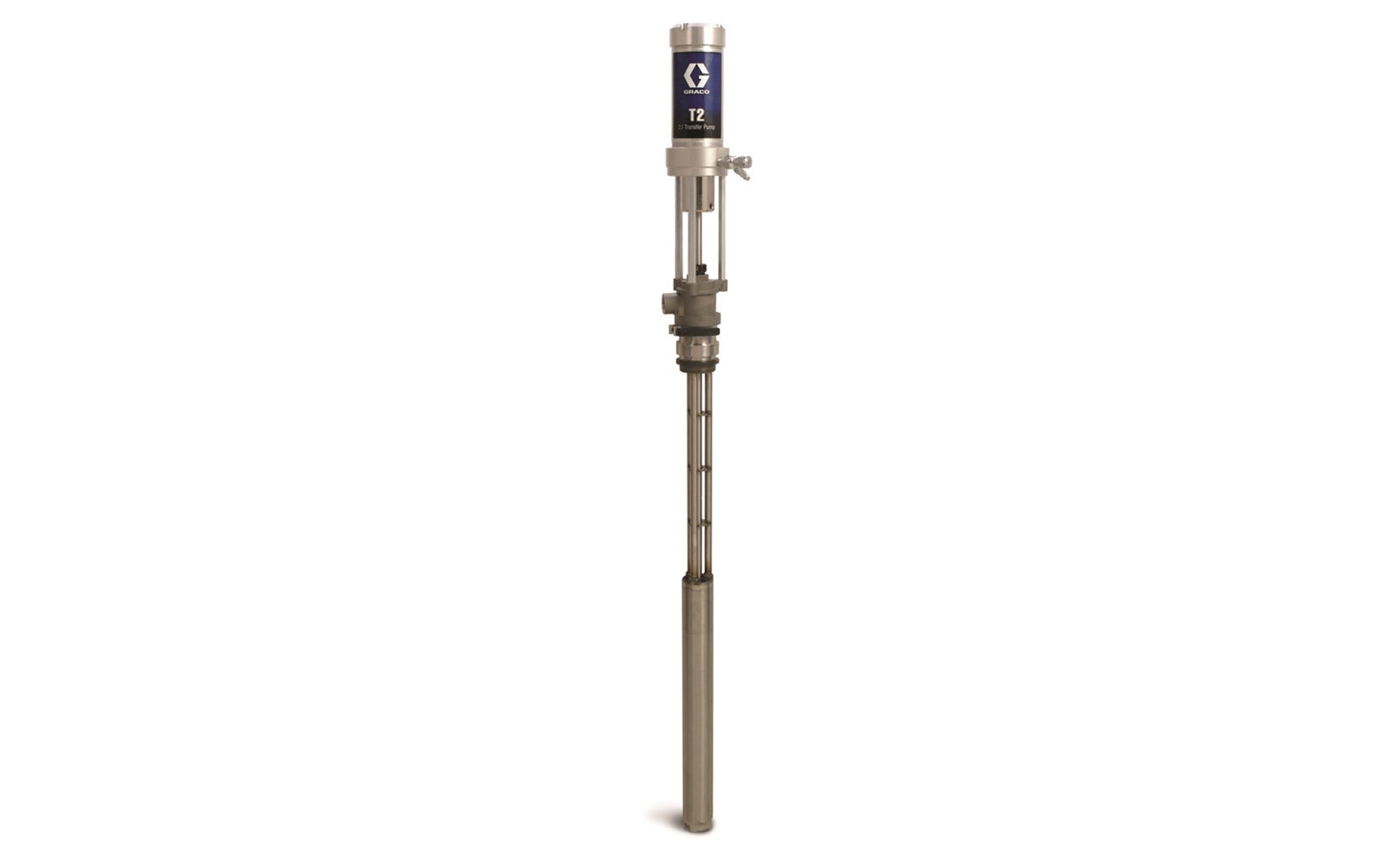

Graco 295616 T2 Stainless Steel Supply/Transfer Piston Pump, 2:1 Ratio, 5 GPM, 405 psi
Regular price $2,454.10Graco T2 2:1 Stainless Steel Supply/Transfer Pump
The Graco 295616 T2 is a pneumatic piston supply/transfer pump built to deliver consistent feed pressure and flow for demanding spray foam and industrial transfer applications. With stainless-steel wetted parts and PTFE seals, it’s designed for corrosion resistance, dependable performance, and reduced maintenance.
Key Features:
- Consistent Material Feed: Maintains dependable feed pressures and flow rates for reliable results
- High-Viscosity Performance: Designed to reduce pressure drops when moving thicker materials across a range of ambient temperatures
- Corrosion-Resistant Build: Stainless-steel wetted components stand up to harsh chemistries and jobsite environments
- Lower Maintenance Sealing: PTFE seals help improve performance while reducing service needs
- Easy Drum Handling: Quick-release bung adapter enables faster drum removal without hose-connection interference
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Part Number | 295616 |
| Model | T2 |
| Type | Pneumatic Piston Pump |
| Pump Ratio | 2:1 (fluid to air) |
| Wetted Material | Stainless Steel |
| Seal Material | PTFE |
| Compatible Material | Polyurethane Foam, Polyurea |
| Application | Industrial |
| Maximum Air Inlet Pressure | 180 psi (12.5 bar) |
| Maximum Working Pressure | 405 psi (28 bar) |
| Maximum Continuous Cycle Rate | 100 cpm |
| Maximum Flow Rate | 5 gpm (20 L/min) |
| Maximum Operating Temperature | 190°F (88°C) |
| Air Inlet Size | 1/4 in (6.35 mm) Female NPT |
| Fluid Outlet Size | 3/4 in (19.05 mm) Female NPT |
| Weight | 21 lb (9.5 kg) |
Frequently Asked Questions (FAQ):
Q: What materials can this pump transfer?
A: It’s compatible with polyurethane foam and polyurea materials.
Q: What air supply connection does it use?
A: The air inlet is 1/4 in female NPT.
Q: What is the fluid outlet connection?
A: The fluid outlet is 3/4 in female NPT.
Q: What are the maximum pressure and flow ratings?
A: Maximum working pressure is 405 psi, maximum air inlet pressure is 180 psi, and maximum flow rate is 5 gpm.
Q: What is the pump type and ratio?
A: It is a pneumatic piston pump with a 2:1 fluid-to-air ratio.
Industrial Precision, Beautifully Engineered
There’s a quiet luxury in equipment that’s purpose-built—clean lines, confident proportions, and performance you can feel in every cycle. The T2’s stainless construction and disciplined 2:1 ratio bring a refined steadiness to material transfer, keeping your workflow fluid and intentional. Style it as the backbone of a professional rig—pair it with crisp hose routing and an organized drum station for a workspace that reads as polished as it performs. It’s the kind of behind-the-scenes essential that makes elevated results look effortless.
Upgrade your material transfer setup with the Graco 295616 T2 for consistent flow, corrosion resistance, and low-maintenance performance.
