GAF M-Curb Pitch Pocket System Kit, 7.5 in Round, 2 in High, Black, 2-Curb Kit
Regular price $148.00Orders start at $399 — combine any items to reach the minimum. Learn more
GAF M-Curb Pitch Pocket System Kit, 7.5 in Round, 2 in High, Black, 2-Curb Kit
This GAF M-Curb Pitch Pocket System Kit includes 2 black 7.5 in diameter, 2 in high curbs per box, sealing difficult penetrations on asphaltic roofs. One box is the sell unit. The kit works with GAF M-Bond and M-Thane components to form a watertight pitch pocket with no flashing.
Key Features:

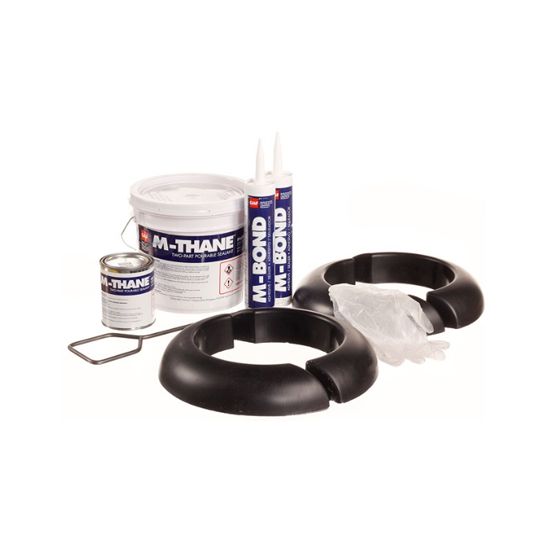

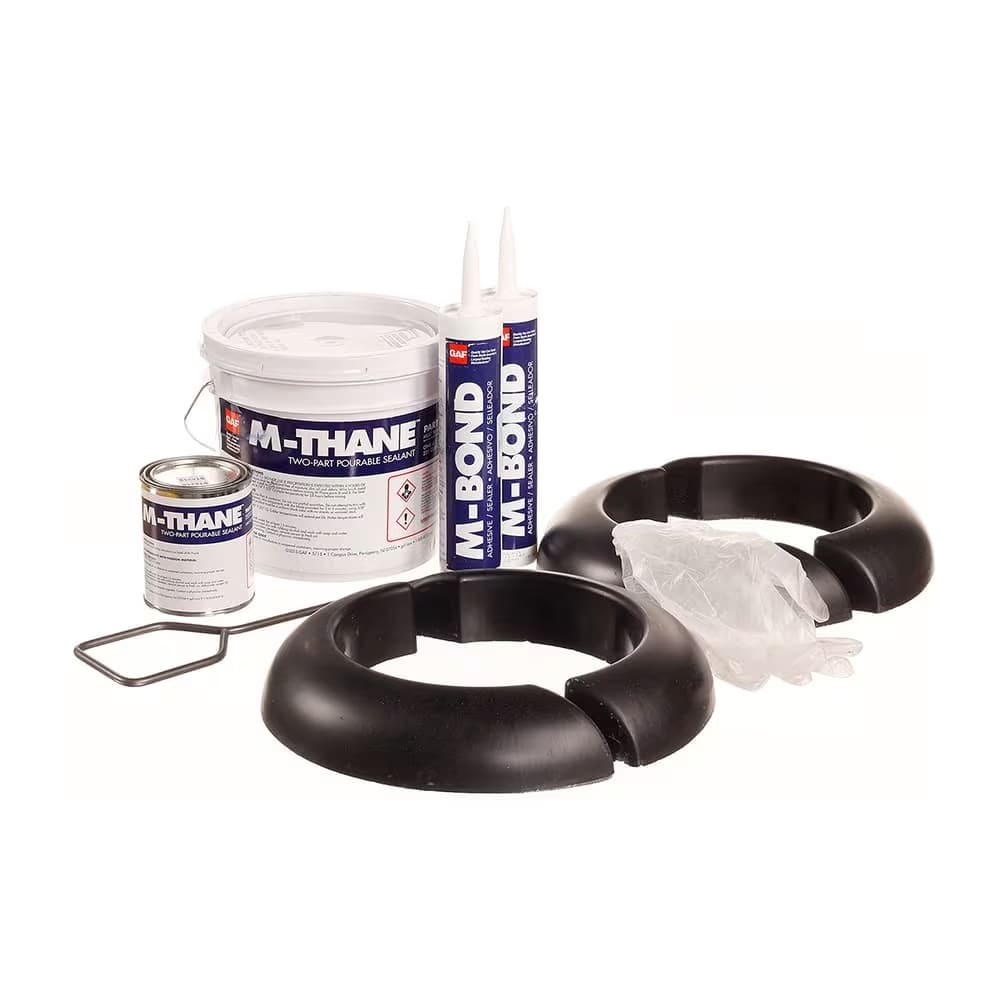

- Complete Kit: Kit contains 2 curbs, 1 gal M-Thane A, 1-Part B, 2 tubes M-Bond, 1 stir paddle, and 1 pair of gloves.
- Watertight Seal: Provides a watertight, durable seal for difficult roof penetrations on asphaltic systems.
- No Flashing Needed: M-Curb Systems require no flashing and easily bond to most common roofing materials.
- Faster Than Pans: Installation requires less time than most conventional metal pans.
- Any Size Opening: Accommodates any size opening with a minimum 1 in clearance to the penetration.
- Quick Cure: Filled sealant is typically tack-free and watertight in 30 minutes to one hour depending on weather.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | GAF |
| Manufacturer model | 4M9R000MW |
| Sell unit | 1 kit box: 2 curbs plus sealants, adhesive, paddle, and gloves |
| Product line | GAF M-Curb Pitch Pocket System |
| Profile / style | Round pitch pocket curb |
| Color | Black |
| Dimensions | 7.5 in diameter x 2 in high |
| Pack quantity | 2 curbs per box / carton (kit includes sealants, adhesive, paddle, gloves) |
| Intended use | Sealing difficult penetrations on asphaltic roof systems |
| Weight | 21 lb per box |
| Installation | Bond rounds with M-Bond Sealant, seal edges, fill with M-Thane pourable sealant |
Coverage & How Much You Need:
Each kit forms 2 pitch pockets. Choose a curb size allowing a minimum 1 in clearance from the inside of the curb to the penetration.
Fit and Compatibility:
Use within the GAF M-Curb three-component system on asphaltic, built-up, and modified bitumen roofs. M-Bond bonds to asphaltic membranes, concrete, steel, aluminum, wood, glass, and PVC; replacement M-Thane and M-Bond components are sold separately.
Frequently Asked Questions (FAQ):
Q: What does the kit include?
A: It contains 2 curbs, 1 gal M-Thane A, 1-Part B, 2 tubes M-Bond, 1 stir paddle, and 1 pair of gloves.
Q: What size are the curbs?
A: Each curb is 7.5 in in diameter and 2 in high, in black.
Q: How many penetrations does one kit seal?
A: Two, one per curb; allow at least 1 in clearance between the penetration and the inside of the curb.
Q: Do I need flashing?
A: No, M-Curb Systems require no flashing and easily bond to most common roofing materials.
Q: How long until it is watertight?
A: The poured sealant is typically tack-free and watertight in 30 minutes to one hour depending on outside weather conditions.
Q: Which roof systems is it for?
A: It is designed for asphaltic systems, including built-up and modified bitumen roofs.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
This 2-curb kit bundles the M-Bond, M-Thane, stir paddle, and gloves you need, so it is the convenient choice when sealing one or two penetrations on a repair or retrofit. Prime the penetration with M-Bond so it shows 1 in above the installed curb, then fill per the data sheet. For larger jobs with many penetrations, source curbs in bulk boxes and sealants separately.
Follow GAF's published data sheet and local code for penetration sealing, and use fall protection when working on commercial roofs.
Order the GAF M-Curb 7.5 in Pitch Pocket System Kit with 2 curbs and sealing components included.
