FRY REGLET JDM-50 Aluminum J Molding, 1/2 in. Depth, 10 ft. Stick, Clear Anodized
Regular price $25.00Orders start at $399 — combine any items to reach the minimum. Learn more
FRY REGLET JDM-50 Aluminum J Molding, 1/2 in. Depth, 10 ft. Stick, Clear Anodized
Fry Reglet JDM-50 J Molding provides a clean, attractive termination for drywall or wood paneling, receiving the wall finish and concealing the edge with no taping required. It is extruded aluminum alloy 6063 T5, 1/2 in. J depth, 3/16 in. lip, 1-1/8 in. flange, in 10 ft. sticks. One stick per order.
Key Features:
- No-taping termination: The J section receives the wall finish and conceals the drywall edge with no taping required.
- 1/2 in. J depth: Dimensioned with a 1/2 in. J depth, 3/16 in. lip and 1-1/8 in. flange.
- 6063-T5 aluminum: Extruded aluminum alloy 6063 T5 for straight, durable trim.
- Interior/exterior: General-purpose trim suitable for interior or exterior use on plaster, stucco, drywall or wood panels.
- 10 ft. stick: Ships as 10 ft. pieces for long, clean runs.
- Finish options: Available in clear anodized or custom-painted colors.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Fry Reglet |
| Manufacturer model | JDM-50 |
| Sell unit | 1 molding stick, 10 ft. |
| Material | Extruded aluminum alloy 6063 T5 |
| Color / finish | Clear anodized (also available custom painted) |

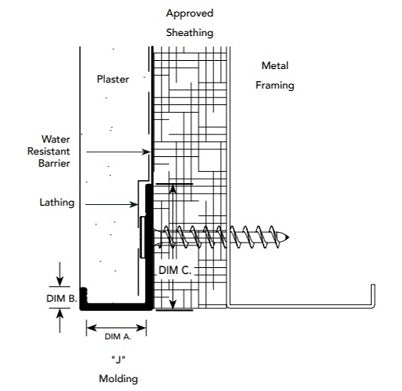

| J depth (Dim. A) | 1/2 in. |
| Lip (Dim. B) | 3/16 in. |
| Flange (Dim. C) | 1-1/8 in. |
| Length | 10 ft. |
| Intended use | Terminating and finishing plaster, stucco, drywall or wood panels, interior or exterior |
| Pack quantity | 15 pieces per carton (order by the piece) |
| Assembly | Installed with the wall framing; no assembly required |
Coverage & How Much You Need:
Each 10 ft. stick trims 10 linear feet of drywall or panel edge. Measure your termination runs and order sticks accordingly; full cartons of 15 pieces are available at added discounts.
Fit and Compatibility:
Part of the Fry Reglet reveals and moldings system; pairs with other Fry Reglet drywall, plaster and stucco trims. Deeper JDM-625 (5/8 in.) and other J molding depths (3/4 in., 1 in.) and lip sizes (1/2 in.) are available separately. Weep holes are available upon request.
Frequently Asked Questions (FAQ):
Q: What is included?
A: One 10 ft. stick of JDM-50 J Molding in clear anodized 6063 aluminum.
Q: What size drywall does it fit?
A: The J depth is 1/2 in., sized for standard 1/2 in. drywall or panel thickness; a 5/8 in. depth (JDM-625) is available separately.
Q: Can it be used outdoors?
A: Yes, it is a general-purpose interior or exterior trim for plaster, stucco, drywall or wood panels.
Q: Do I have to tape the edge?
A: No, the J section receives the wall finish and conceals the edge with no taping required.
Q: Are painted colors available?
A: Yes, custom-painted versions in colors such as white, black, bronze and silver satin are available; small painted orders may require a setup fee.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
Use JDM-50 wherever a drywall or panel edge meets a door, window, ceiling or open wall end and you want to skip taping. Confirm your board thickness before ordering: the 1/2 in. J depth suits standard board, while 5/8 in. board needs the JDM-625. Fasten to framing through the flange and leave the J channel clear so the board slips in fully.
Cut aluminum trim edges are sharp; wear gloves and eye protection when cutting and handling molding.
Order Fry Reglet JDM-50 J Molding for clean, no-tape drywall terminations.
