FRY REGLET FDM F Reveal Molding for Drywall, 5/8 in. x 1/2 in., Custom Painted 6063 Aluminum, 10 ft. Piece – FDM-625-50
Regular price $37.65Orders start at $399 — combine any items to reach the minimum. Learn more
FRY REGLET FDM F Reveal Molding for Drywall, 5/8 in. x 1/2 in., Custom Painted 6063 Aluminum, 10 ft. Piece

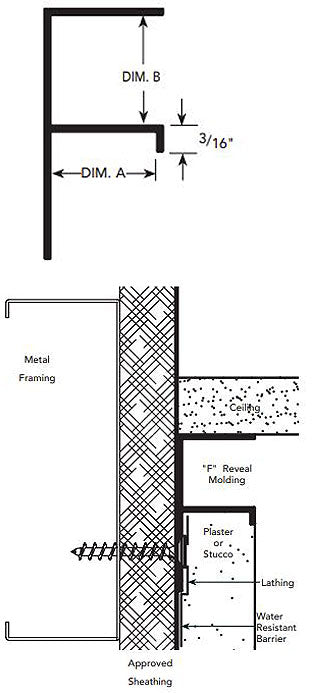

This is the Fry Reglet FDM-625-50 non-vented F Reveal Molding, a 6063 aluminum reveal that forms a clean reveal where drywall or plaster terminates against sills, soffits, jambs, windows, ceilings and other finish materials. It has a 5/8 in. reveal depth (Dimension A) and 1/2 in. reveal width (Dimension B). Each piece is 10 ft. long and comes custom painted in your specified color.
Key Features:
- Clean reveal line: FDM Reveal Molding forms a reveal where plaster or drywall terminates against sill, soffit, jamb, window, ceiling or other finish materials.
- 5/8 x 1/2 profile: This profile provides a 5/8 in. Dimension A reveal depth and 1/2 in. Dimension B reveal width.
- 6063 aluminum: The molding is extruded from 6063 aluminum for durability.
- Custom painted finish: Each piece is custom painted; specify color at time of order.
- 10 ft. lengths: The molding is supplied in 10 ft. pieces.
- Vented option: The FDM series is also available vented to add air flow between room and plenum, and in reveal depths from 3/4 in. to 3/8 in. and widths from 1/2 in. to 3 in.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Fry Reglet |
| Manufacturer model | FDM-625-50 |
| Sell unit | 1 piece, 10 ft., custom painted in specified color |
| Material | 6063 aluminum |
| Color / finish | Custom painted, specify color (white, silver satin, silver gray, tan, platinum, oyster haze, gun metal gray, cream, medium bronze, dark bronze, black, adobe) |
| Profile | F Reveal Molding, non-vented |
| Reveal depth (Dimension A) | 5/8 in. |
| Reveal width (Dimension B) | 1/2 in. |
| Length | 10 ft. per piece |
| Pack quantity | 1 piece |
| Assembly | Forms a reveal at drywall/plaster terminations |
| Intended use | Drywall and plaster reveal at sills, soffits, jambs, windows, ceilings and other finish materials |
| Series options | Vented versions available; Dimension A from 3/4 in. to 3/8 in.; Dimension B from 1/2 in. to 3 in. |
Coverage & How Much You Need:
Each 10 ft. piece covers 10 linear feet of reveal. Measure total reveal run and add waste when determining the number of pieces; order 50 or more pieces to avoid a paint setup charge.
Fit and Compatibility:
FDM reveal molding is designed for drywall and plaster terminations; adjacent reveal profiles, vented versions and other Dimension A/B sizes in the FDM series are available. Powder coat or anodized finish type must be specified, and orders under 50 pieces require a paint setup item.
Frequently Asked Questions (FAQ):
Q: What is included?
A: One 10 ft. piece of Fry Reglet FDM-625-50 non-vented F Reveal Molding, custom painted in the color you specify.
Q: What do the 5/8 and 1/2 inch dimensions mean?
A: Dimension A (reveal depth) is 5/8 in. and Dimension B (reveal width) is 1/2 in.
Q: Which colors are available?
A: Factory finishes include white, silver satin, silver gray, tan, platinum, oyster haze, gun metal gray, cream, medium bronze, dark bronze, black and adobe—specify color when ordering.
Q: Is there a setup charge?
A: Yes, all orders under 50 pieces require a paint setup item, and you must specify powder coat or anodized finish.
Q: Can it vent air?
A: The FDM series is available in vented versions to add air flow between room and plenum; this 625-50 profile is the non-vented version.
Q: Can I return it?
A: No—this is a custom item that is non-cancellable and non-returnable, so confirm color and dimensions before ordering.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
Use the FDM-625-50 when you want a crisp 1/2 in. reveal with 5/8 in. depth at drywall terminations to sills, jambs, soffits and ceilings. If you need a different reveal line, the FDM series ranges from 3/8 to 3/4 in. depth and 1/2 to 3 in. width, with vented options for plenum air flow. Because pieces are custom painted, order all pieces for the job at once and double-check color against the Fry Reglet finish chart before submitting.
Handle cut aluminum edges with care and follow the manufacturer's installation guide for proper fastening at reveals.
Order the Fry Reglet FDM F Reveal Molding today for a crisp, custom-colored reveal at your drywall terminations.
