Elevate UNA-CLAD Galvanized Flat Sheet 4' x 10' 24/22/26 GA Painted Metal Sheet Stock
Regular price $107.50Orders start at $399 — combine any items to reach the minimum. Learn more
Elevate UNA-CLAD Galvanized Flat Sheet 4' x 10' 24/22/26 GA Painted Metal Sheet Stock

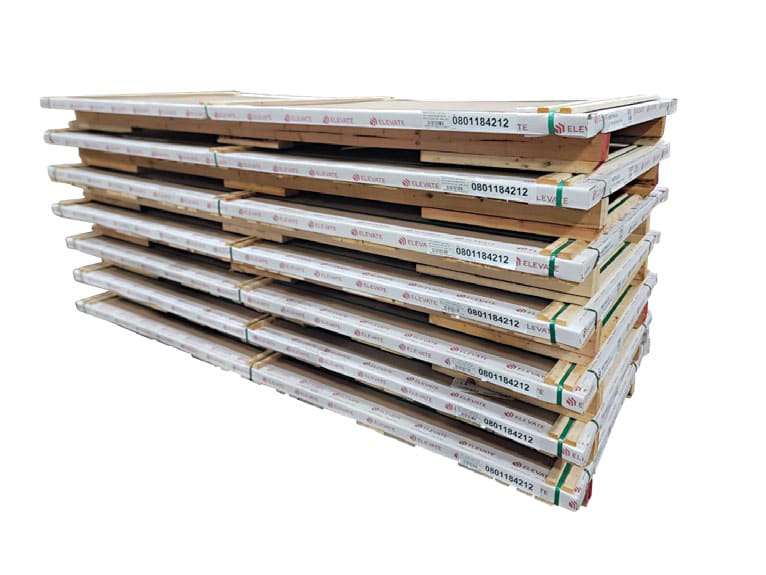

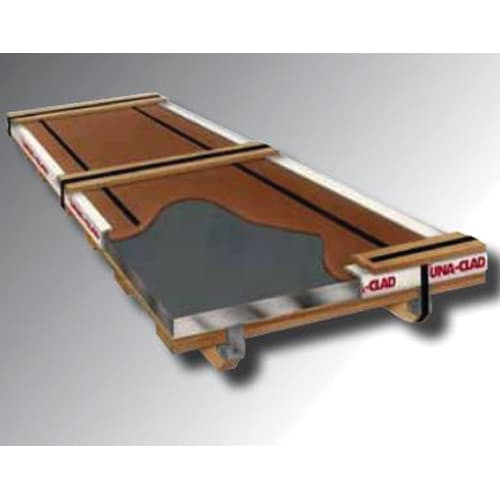

Elevate UNA-CLAD Galvanized Flat Sheets are 4 ft x 10 ft galvanized metal sheet stock for general sheet metal use in building applications. The line spans 22, 24 and 26 gauge sheets in more than 35 painted colors, sold as individual sheets. Sheets are fabricated into fascia, soffits, gravel stops, copings, store fronts and roofing details.
Key Features:
- Standard 4x10 sheets: Every variant is a full 4 ft x 10 ft flat sheet, ready to shear, brake-form and fabricate on site.
- Gauge choices: The line includes 24 GA painted sheets in the widest color range, plus 22 GA and 26 GA options in select colors.
- Wide color range: 41 color and gauge variants range from Bone White, Stone White and Almond to Dark Bronze, Charcoal, Slate Gray, metallics and patina greens.
- Kynar 500 coating: PVDF coated architectural sheet and coil in the UNA-CLAD program carries a full-strength Kynar 500/Hylar 5000 fluoropolymer system of about 1.0 mil dry film on one side.
- Reverse wash coat: A 0.3-0.4 mil wash coat on the reverse side adds protection during handling and fabrication.
- Strippable film: An optional strippable protection film is applied to guard the finish during fabrication and installation.
- ASTM B209 aluminum: The companion UNA-CLAD architectural sheet and coil program conforms to ASTM B209 aluminum sheet standards.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Elevate |
| Sell unit | 1 sheet, 4 ft x 10 ft |
| Product line | UNA-CLAD Architectural Sheet & Coil |
| Available colors | 41 variants including Medium Bronze, Dark Bronze, Sierra Tan, Mansard Brown, Slate Gray, Sandstone, Matte Black, Stone White, Bone White, Charcoal, Silver Metallic, Cityscape, Sherwood Green, Almond, Colonial Red, Regal Blue, Regal Red, Terra Cotta, Patina Green, Classic Copper, Brandywine, Teal, Aged Zinc and more |
| Available sizes | 4' x 10' sheets in 22 GA, 24 GA and 26 GA |
| Material | Galvanized steel flat sheet (UNA-CLAD program also includes ASTM B209 aluminum sheet) |
| Dimensions | 4 ft x 10 ft |
| Finish / texture | PVDF Kynar 500/Hylar 5000 fluoropolymer, minimum 70% PVDF resin, 1.0 +/-0.1 mil dry film with 0.3-0.4 mil reverse wash coat; Mill finish also available |
| Thickness | 24 GA (most colors), 22 GA and 26 GA in select colors |
| Intended use | General sheet metal work including fascia, soffits, gravel stops, copings, store fronts and roofing |
| Temper | H14 temper for UNA-CLAD PVDF coated aluminum sheet |
| Protection | Optional strippable protection film during fabrication and installation |
Coverage & How Much You Need:
One sell unit is a single 4 ft x 10 ft sheet, giving 40 sq ft of material before fabrication waste and trim allowances. Estimate sheet count from flat-pattern layouts of your trim and flashing profiles and order a spare for breakage and miscuts.
Fit and Compatibility:
UNA-CLAD flat sheets are fabricated into custom trim that pairs with Elevate roofing systems and standard metal edging details. Match color across the UNA-CLAD sheet and coil program for consistent fascia, coping and gravel stop runs; no fasteners or brake tooling are included.
Frequently Asked Questions (FAQ):
Q: What is included in one order?
A: One 4 ft x 10 ft galvanized flat sheet in the selected color and gauge; multiple sheets can be ordered as needed.
Q: Which gauge should I choose?
A: 24 GA is the standard choice with the broadest color selection; 22 GA offers extra stiffness for long runs and 26 GA suits lighter applications in select colors.
Q: What finish is on the painted sheets?
A: Painted sheets carry a full-strength Kynar 500/Hylar 5000 PVDF fluoropolymer coating of about 1.0 mil dry film with a 0.3-0.4 mil wash coat on the reverse; Mill finish is unpainted.
Q: What can these sheets be used for?
A: General sheet metal use in building applications, including fascia, soffits, gravel stops, copings, store fronts and roofing details.
Q: Is the finish protected during handling?
A: An optional strippable protection film is applied to protect the surface during fabrication and installation.
Q: How do I plan quantities?
A: Lay out flat patterns for each profile, add bend and cut allowances, then divide by 40 sq ft per sheet and keep a spare sheet on hand.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
Spec the gauge to the span and profile: 22 GA holds sharper brake lines and resists oil-canning better on long fascia, while 24 GA is the workhorse for most trim and 26 GA is fine for light flashing work. Bend with the finish side out and leave the strippable film on until installation to keep the Kynar finish clean. Order all visible metal from the same UNA-CLAD color lot so tonal shifts between sheets do not show on the building.
Sheet metal edges are sharp; wear cut-resistant gloves, eye protection and use proper lifting help when handling 4x10 sheets.
Order Elevate UNA-CLAD Galvanized Flat Sheets in your color and gauge to fabricate matching trim and flashing on site.
