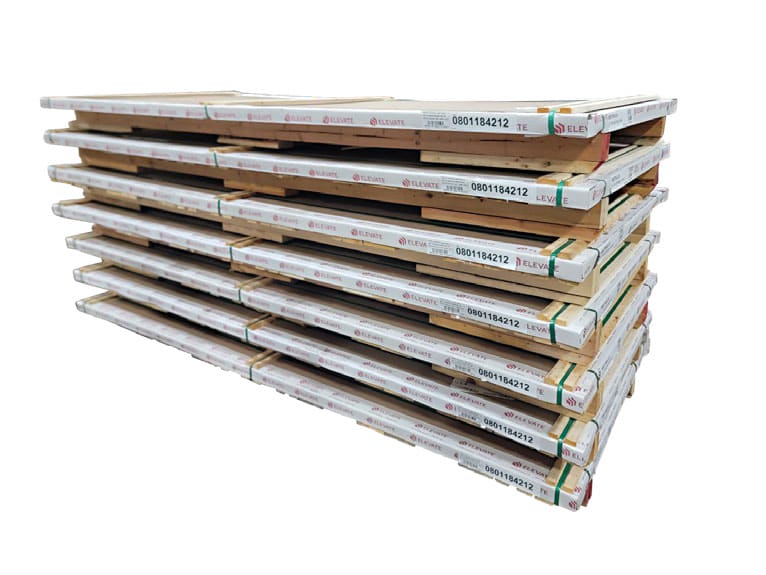

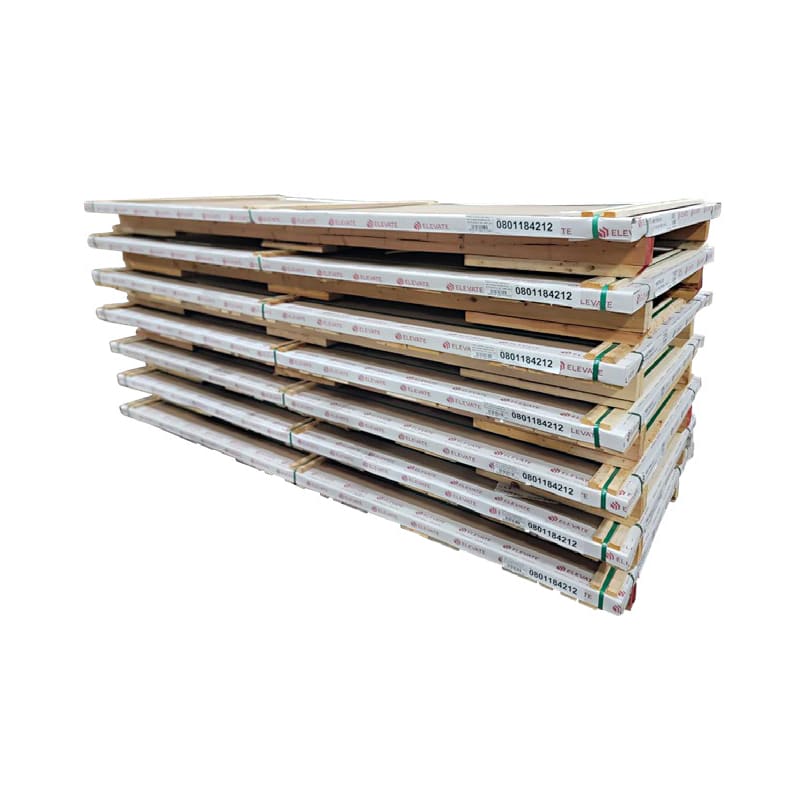

Elevate UNA-CLAD Aluminum Flat Sheet, 4 ft. x 10 ft., .032-.063, Mill and Kynar 500 PVDF Colors

Regular price $146.50

Orders start at $399 — combine any items to reach the minimum. Learn more

/
Shipping calculated at checkout.

Elevate UNA-CLAD Aluminum Flat Sheet, 4 ft. x 10 ft., .032-.063, Mill and Kynar 500 PVDF Colors


Elevate UNA-CLAD Aluminum Flat Sheet is architectural aluminum sheet and coil conforming to ASTM B209 for general sheet metal work. The 4 ft. x 10 ft. sheets are offered in mill finish and in PVDF-coated colors in .032, .040, .050 and .063 gauges, sold per piece. Ideal for fascia, soffits, gravel stops, copings, storefronts and roofing details.


Key Features:

  • ASTM B209 aluminum: Architectural aluminum sheet and coil that conforms to ASTM B209 standards.
  • Kynar 500 PVDF finish: PVDF-coated versions carry a full-strength Kynar 500/Hylar 5000 fluoropolymer coating with a minimum 70% PVDF resin content at 1.0 +/- 0.1 mil dry film thickness.
  • H14 temper: PVDF-coated sheet is produced in H14 temper, primed and coated on one side for fabrication into architectural components.
  • Reverse wash coat: A 0.3-0.4 mil dry film wash coat is applied to the reverse side for additional protection.
  • Strippable film option: An optional strippable protection film is applied to protect the surface during fabrication and installation.
  • Wide color range: Coated finishes include Bone White, Dark Bronze, Matte Black, Mansard Brown, Medium Bronze, Sandstone, Charcoal Gray, Slate Gray, Regal Red, Brandywine and other standard architectural colors.
  • Versatile fabrication stock: Formed on the job or in the shop into fascia, gravel stops, copings and other sheet metal roof components.

Specifications Table:

Specification Details
Brand Elevate
Sell unit 1 sheet, 4 ft. x 10 ft. (PC/EA depending on variant)
Product line UNA-CLAD Aluminum Architectural Sheet & Coil
Material Aluminum, ASTM B209; H14 temper on PVDF-coated sheet
Finish / texture Mill finish, or primed and coated one side with Kynar 500/Hylar 5000 PVDF fluoropolymer (min. 70% PVDF resin), 1.0 +/- 0.1 mil DFT; 0.3-0.4 mil wash coat on reverse
Available colors Mill plus 20+ PVDF colors including Bone White, Stone White, Almond, Sandstone, Sierra Tan, Slate Gray, Charcoal Gray, Silver Metallic, Champagne Metallic, Medium Bronze, Dark Bronze, Extra Dark Bronze, Mansard Brown, Matte Black, Cityscape, Regal Red, Colonial Red, Brandywine, Classic Copper, Patina
Available sizes 4 ft. x 10 ft. sheets in .032, .040, .050 and .063 gauges (67 variants on this line)
Dimensions 4 ft. x 10 ft. sheets
Thickness .032 in., .040 in., .050 in. or .063 in. depending on variant
Optional feature Strippable protection film for fabrication and installation
Coverage per unit One 4 ft. x 10 ft. sheet covers 40 sq. ft. before bends and laps
Intended use General sheet metal use in building applications, including fascia, soffits, gravel stops, copings, store fronts and roofing
Approvals Sheet conforms to ASTM B209

Coverage & How Much You Need:

Each sheet is 4 ft. x 10 ft., or 40 sq. ft. of flat material. Allow additional material for formed edges, laps and waste when sizing fascia, copings or gravel stop runs.

Fit and Compatibility:

UNA-CLAD flat sheet is shop-fabricated or brake-formed into Elevate-compatible sheet metal roof components such as fascia, gravel stops and copings used with Elevate roofing systems. Matching UNA-CLAD coil is available for continuous runs; fasteners and cleats are sold separately.


Frequently Asked Questions (FAQ):

Q: What is included in one sell unit?
A: One 4 ft. x 10 ft. aluminum flat sheet in the selected color and gauge; some mill variants sell per piece and coated variants per each.


Q: Which gauges are available?
A: This line lists .032, .040, .050 and .063 in. thicknesses in the 4 ft. x 10 ft. sheet size.


Q: What is the difference between mill and PVDF-coated sheet?
A: Mill sheet is bare aluminum; PVDF-coated sheet is H14 temper primed and coated one side with a Kynar 500/Hylar 5000 fluoropolymer at 1.0 +/- 0.1 mil, plus a 0.3-0.4 mil wash coat on the reverse.


Q: Can the coated finish be fabricated?
A: Yes, the sheet is intended for general sheet metal fabrication, and an optional strippable protection film helps protect the coating during forming and installation.


Q: What projects is this sheet used for?
A: Fascia, soffits, gravel stops, copings, storefronts and roofing sheet metal work.


Q: Do I need protection film?
A: It is optional; choose film-coated sheet when the metal will be bent, handled or stored where surface scratches are a concern.


Expert Verdict — Reviewed by the SuperArbor Pro Desk

Pick .032 for soffits and light trim, .040-.050 for fascia, copings and gravel stops, and .063 where spans or wind loads demand stiffer metal. Form with the coated side protected and use the strippable film through fabrication to avoid scratches in the Kynar finish. Match coil and flat sheet from the same color family so formed and field-bent components weather identically.

Sheet edges and cut ends are sharp; wear cut-resistant gloves and eye protection when handling, shearing or brake-forming aluminum sheet.


Order Elevate UNA-CLAD Aluminum Flat Sheet in your color and gauge today.
