Elevate RubberGard MAX EPDM Membrane Pre-Taped, .045-.075 in. x 10 ft. x 100 ft., Black
Regular price $1,260.00Elevate RubberGard MAX EPDM Membrane Pre-Taped, .045-.075 in. x 10 ft. x 100 ft., Black

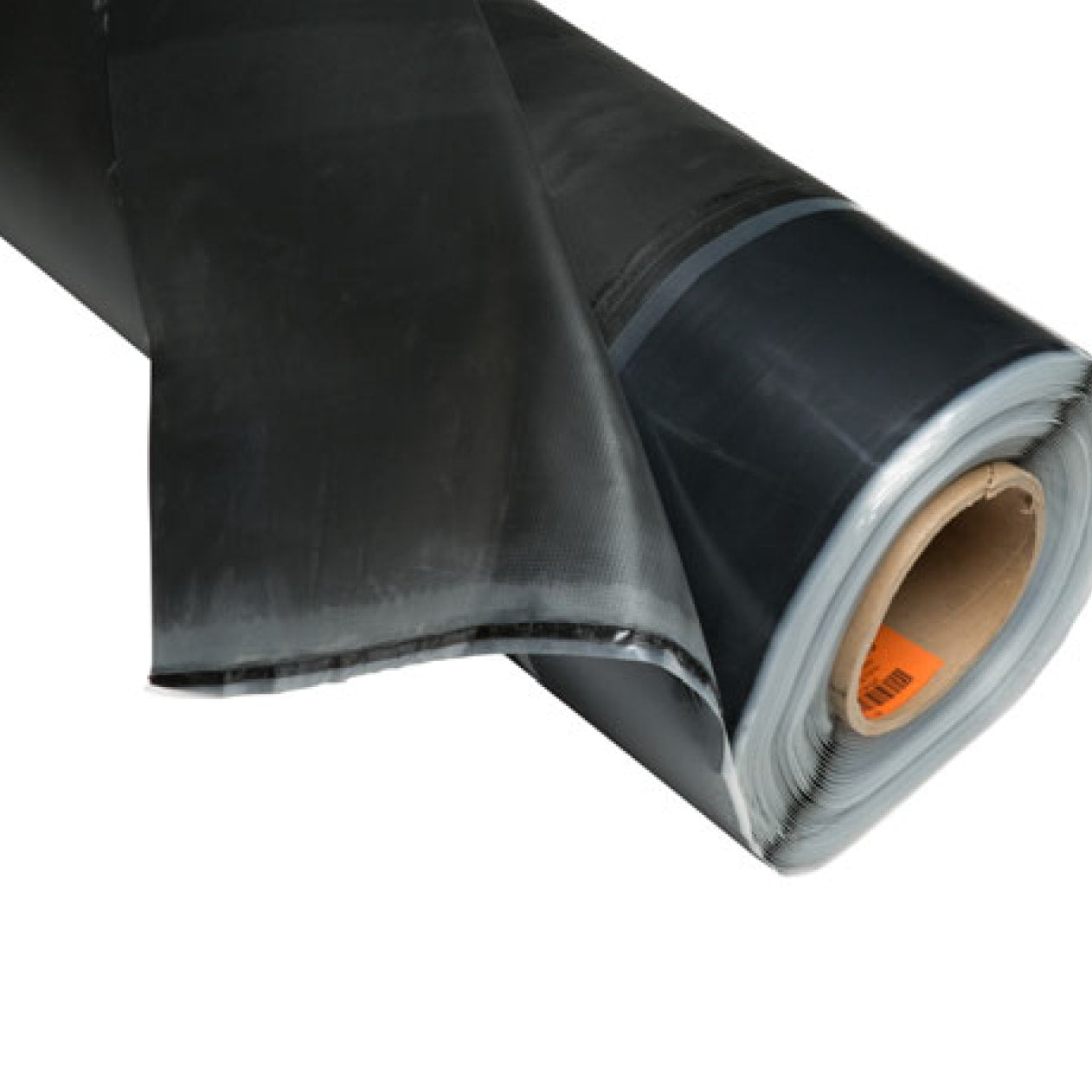

Elevate RubberGard MAX PT is an internally reinforced, cured single-ply EPDM roofing membrane with factory-laminated QuickSeam tape along one 100 ft. edge. Rolls come in .045, .060 or .075 in. thicknesses in 7.5 ft. or 10 ft. widths, all 100 ft. long, with 3 in. or 6 in. tape. The pre-applied tape forms a selvage edge for overlapping panels.
Key Features:
- Reinforced EPDM: Internally reinforced cured single-ply roof membrane.
- Tear and puncture resistance: Combats roof tears and punctures.
- Wind uplift strength: Provides superior strength against wind force.
- Factory QuickSeam tape: 6 in. or 3 in. wide QuickSeam tape laminated continuously along one 100 ft. edge.
- Selvage edge: Pre-applied tape extends slightly beyond the membrane edge to form a selvage edge.
- Large panels: Available in 7.5 ft. and 10 ft. widths, all 100 ft. long.
Specifications Table:
| Specification | Details |
|---|---|
| Brand | Elevate |
| Sell unit | 1 roll |
| Product line | RubberGard MAX PT EPDM |
| Available colors | Black |
| Available sizes | .045 in. x 10 ft. x 100 ft. with 6 in. tape; .060 in. x 7.5 ft. x 100 ft. and .060 in. x 10 ft. x 100 ft. with 6 in. tape; .060 in. x 10 ft. x 100 ft. with 3 in. tape; .075 in. x 10 ft. x 100 ft. with 6 in. tape |
| Material | Internally reinforced cured EPDM |
| Thickness | .045 in., .060 in., .075 in. by variant |
| Dimensions | 7.5 ft. or 10 ft. wide x 100 ft. long |
| Finish / texture | Black |
| Seam tape | Factory laminated 3 in. (76 mm) or 6 in. (152 mm) QuickSeam tape along one 100 ft. edge |
| Coverage per unit | One roll covers up to 750 sq ft. (7.5 ft. x 100 ft.) or 1,000 sq ft. (10 ft. x 100 ft.) |
| Intended use | Single-ply commercial roofing membrane |
Coverage & How Much You Need:
A roll covers 750 sq ft. at 7.5 ft. x 100 ft. or 1,000 sq ft. at 10 ft. x 100 ft., less any overlap at the taped selvage edge. The 6 in. or 3 in. factory tape forms the seam, so plan field overlaps around the tape width and roof geometry.
Fit and Compatibility:
Part of the Elevate RubberGard MAX EPDM roofing system; the factory QuickSeam tape pairs with QuickSeam flashing and accessories. Adhesives, primers, terminations and flashing materials are sold separately.
Frequently Asked Questions (FAQ):
Q: What is included in one roll?
A: One roll of Reinforced EPDM membrane in black with factory-laminated QuickSeam tape along one 100 ft. edge; sold per roll.
Q: What sizes are available?
A: .045 x 10 ft., .060 x 7.5 ft. and .060 x 10 ft. with 6 in. tape, .060 x 10 ft. with 3 in. tape, and .075 x 10 ft. with 6 in. tape, all 100 ft. long.
Q: What is the selvage edge?
A: The pre-applied tape extends slightly beyond the membrane edge to form a selvage edge for overlapping adjacent panels.
Q: Is it puncture resistant?
A: The internally reinforced EPDM combats roof tears and punctures and provides superior strength against wind force.
Q: How do I pick a thickness?
A: .045 in. suits many standard applications, .060 in. is a common mid-range choice, and .075 in. offers extra durability; verify with project specification.
Q: Is adhesive included?
A: No, adhesives, primers and flashing accessories are sold separately.
Expert Verdict — Reviewed by the SuperArbor Pro Desk
The reinforced MAX construction is the right pick where puncture risk or high wind exposure demands more than unreinforced EPDM. Choose 7.5 ft. rolls to reduce waste on narrow roofs or around penetrations, and 6 in. tape where seam margin matters. Keep the selvage edge clean, roll seams firmly with a steel roller, and confirm the deck and insulation meet Elevate system requirements before install.
Large membrane rolls are heavy and can be caught by wind during installation; use a sufficient crew, secure unrolled material and follow fall-protection requirements on the roof.
Order Elevate RubberGard MAX Pre-Taped EPDM Membrane for reinforced, fast-seaming single-ply roof coverage.
